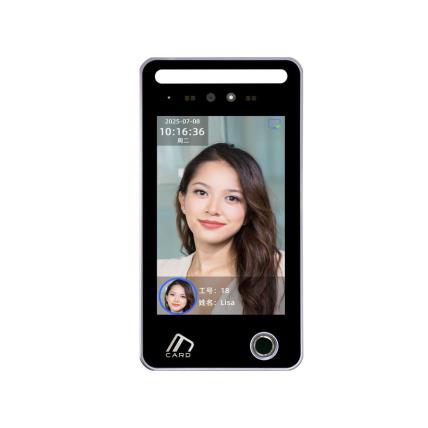

F108 Dynamic Face Recognition Terminal
2.8-inch IPS wide-viewing angle LCD touch screen; high-definition, aesthetically pleasing portrait display, user-friendly human-machine interaction
3.2MP Infrared + 2MP Color, WDR wide dynamic binocular camera, night-time infrared and LED dual fill lights. Ultra-wide dynamic range, clear imaging under strong light, backlight, and low light, with recognition accuracy up to 99.7%
Product Specifications
|
Hardware Parameters |
|
Firmware Parameters |
||
|
Dimensions |
249mm*136mm*23mm |
Operating System |
Linux 3.10 |
|
|
Shell Material |
Plastic |
Registration methods |
On-device: Touchscreen face registration, photo import via USB drive, RFID card registration, password registration. On-software: Online photo import registration, camera photo registration. |
|
|
Keyboard: |
On-screen Touch Virtual Keyboard |
Language/Voice |
Over 20 national languages/voices including Chinese & English T9 Input Method |
|
|
Display |
8-inch IPS Screen |
User Capacity (Persons): |
15000 |
|
|
Fill Light |
LED High-Brightness Fill Light |
Face capacity (images) |
5000 |
|
|
Dual Infrared High-Power Fill Lights |
Fingerprint capacity (pieces) |
10000 |
||
|
Camera: |
Sensor: 1/2.9 inch, FOV 75° |
Card Capacity (Cards): |
15000， ID / IC |
|
|
Sensor: 1/5 inch, FOV 75° |
QR Code Recognition: |
Supports QR code recognition for visitor function via cloud platform |
||
|
CPU |
1.2G Dual-Core ARM Cortex-A7 |
Password Capacity (Entries): |
15000 |
|
|
NPU |
600G (0.6T) Computing Power |
User Records (Entries): |
500,000 |
|
|
RAM |
256M DDR3L |
Verification Modes |
Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card) |
|
|
ROM |
4G EMMC |
Recognition Modes |
1:1, 1:N |
|
|
Keyboard |
On-screen Touch Virtual Keyboard |
Recognition Display |
Name, Employee ID， department，intelligent voice verification broadcast. |
|
|
Communication Interfaces |
TCP/IP, USB Type-A (USB flash drive function), 485 communication, Wireless WiFi (Optional) |
Face Recognition Time |
< 0.2s |
|
|
FRR |
<= 0.1% |
Screen Resolution |
800*1280 |
|
|
FAR |
<= 0.001% |
|||
|
Working temperature |
－15℃ to 60℃ |
Liveness Detection: |
Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium. |
|
|
Interface Parameters |
Recognition Distance |
Pure dynamic face recognition 0.5-2.5 meters With Liveness Detection enabled: 0.5-1.5 meters |
||
|
Exit switch |
1 Channel |
Interface Parameters |
||
|
Alarm output |
1 Channel |
|
Power supply |
DC12V terminal block*1 |
|
Wiegand Signal Output |
1 Set WG26/34 Output |
|
USB Port |
USB 2.0 *1, for data import/export via USB flash drive |
|
Wiegand Signal Input |
1 Set WG26/34 Input |
|
Network Communication |
TCP/IP |
|
Door sensor function |
Support |
|
Power supply |
1 DC12V terminal block |
|
|
|
|
Reset Function |
Support |
Product Details

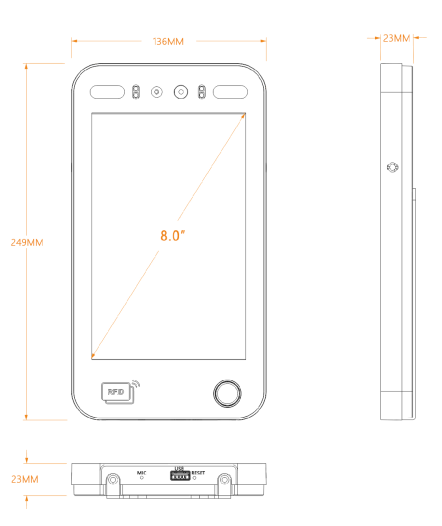

Product Dimensions:

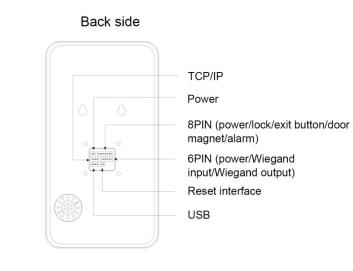

Interface Diagram:
