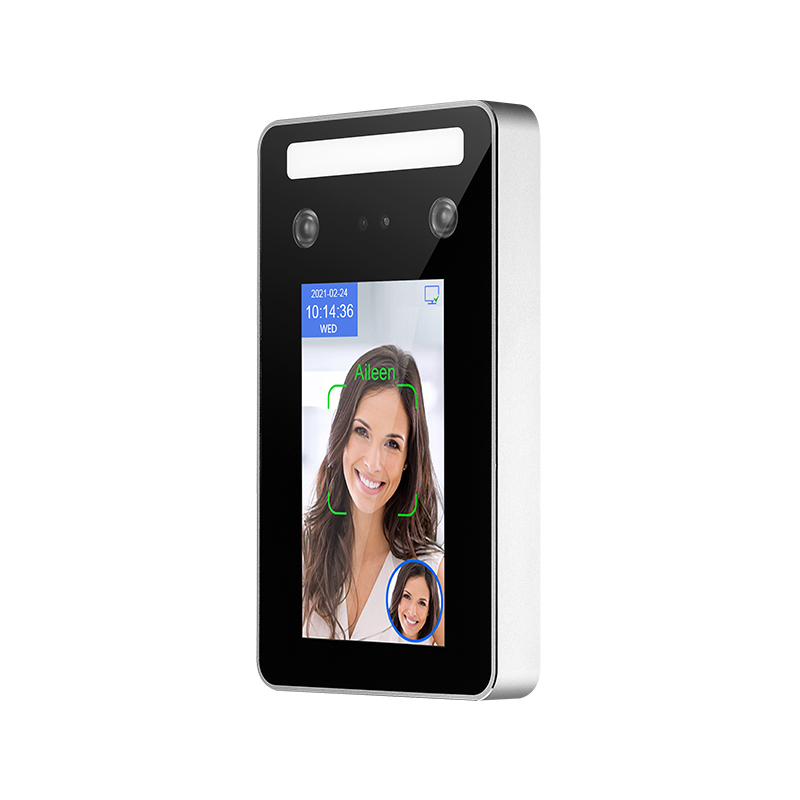

F101 Dynamic Face Recognition Terminal
2.CPU 1.2G Dual-Core ARM Cortex-A, NPU 0.6T Computing Power, AI CPU
3.Genuine 2MP Binocular Camera, Wide Dynamic Range (WDR) Camera, enables recognition under strong backlight and low light conditions.
4.Supports simultaneous recognition of up to 5 persons, supports face tracking and face capture.
5.Fast face recognition speed, less than 0.25 seconds per face.
6.Supports Liveness Detection, dynamic binocular anti-spoofing to prevent using photos
Product Specifications
|
Appearance |
|
Firmware Parameters |
||
|
Shell Material: |
Aluminum Alloy |
Operating System |
Linux 3.10 |
|
|
Manufacturing Process: |
Precision Machining |
Language/Voice |
Over 20 national languages/voices including Chinese & English |
|
|
Hardware Parameters |
User Capacity (Persons): |
5000 Standard / 50000 (Optional) |
||
|
Fill Light: |
LED High-Brightness Fill Light |
Face Capacity (Images): |
5000 Standard / 50000 (Optional) |
|
|
Dual Infrared High-Power Fill Lights |
Card Capacity (Cards): |
5000 Standard / 50000 (Optional), ID Standard (IC Optional) |
||
|
Display: |
5-inch IPS Touch Screen |
QR Code Recognition: |
Supports QR code recognition for visitor function via cloud platform |
|
|
Camera: |
Sensor: 1/2.9 inch, FOV 75°, 2MP Pixel HD Color Camera with WDR (Wide Dynamic Range) |
Password Capacity (Entries): |
5000 Standard / 50000 (Optional) |
|
|
Sensor: 1/5 inch, FOV 75°, 2MP Pixel Infrared Camera |
User Records (Entries): |
500,000 |
||
|
CPU |
1.2G Dual-Core ARM Cortex-A7 |
Verification Modes |
Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card) |
|
|
NPU |
600G (0.6T) Computing Power |
Recognition Modes |
1:1, 1:N |
|
|
RAM |
256M DDR3L |
Recognition Display |
Name, Employee ID |
|
|
ROM |
4G EMMC |
Face Recognition Time |
< 0.2s |
|
|
Screen Resolution |
720*1280 |
Liveness Detection: |
Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium. |
|
|
Keyboard: |
On-screen Touch Virtual Keyboard |
Recognition Distance |
Pure dynamic face recognition 0.5-2.5 meters |
|
|
Communication Interfaces: |
TCP/IP, USB Type-A (USB function), Wireless WiFi (Optional) |
Interface Parameters |
||
|
FRR |
<= 0.1% |
USB Output |
1 Port (USB function) |
|
|
FAR |
<= 0.001% |
Relay Output |
1 Channel |
|
|
Dimensions |
185mm*110mm*20mm |
Alarm Output |
Support |
|
|
Power Supply |
DC 12V，2A |
Exit Button Input |
1 Channel |
|
|
Waterproof Rating |
IP65 |
Wiegand Signal Output |
1 Set WG26/34 Output |
|
|
Operating Temperature |
<= 0.1% |
|
Wiegand Signal Input |
1 Set WG26/34 Input |
|
|
|
|
Door Contact |
Support |
Product Details

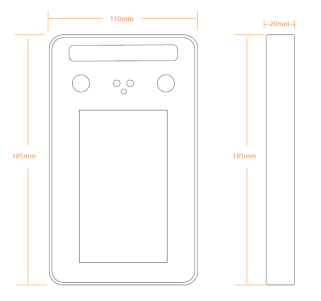

Product Dimensions:

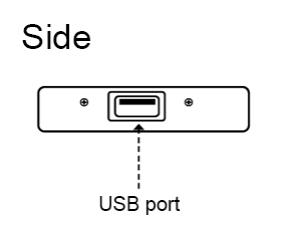

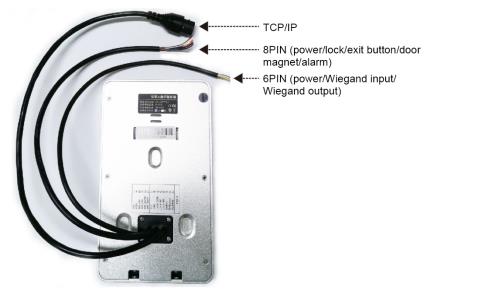

Interface Diagram:
