F109 Dynamic Face Recognition Access Control & Attendance Terminal

1.Equipped with 2MP Pixel HD Color Camera WDR (Wide Dynamic Range) + 2MP Pixel Infrared Camera; clear imaging under strong light/low light/backlight, recognition accuracy up to 99.7%; supports Liveness Detection, dynamic binocular anti-spoofing; rejects fake faces and photos.
2.8-inch IPS HD Touch Screen, resolution 800*1280.
3.Fast face recognition speed, recognition time < 0.2 seconds; supports on-site capture and saving of portrait photos upon successful face recognition.

Appearance



Firmware Parameters

Manufacturing Process

Precision Machining

Operating System

Linux 3.10

Shell Material

Aluminum Alloy

Liveness Detection:

Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium.

Hardware Parameters

Language/Voice

Over 20 national languages/voices including Chinese & English

Dimensions

L267*W138*H25 (mm)

User Capacity (Persons):

15000

Display

8-inch IPS Screen

Face capacity (images)

5000

Fill Light

LED High-Brightness Fill Ligh

Fingerprint capacity (pieces)

10000

Camera:

2MP Pixel HD Color Camera with WDR (Wide Dynamic Range)

Card Capacity (Cards):

15000, ID / IC



CPU

1.2G Dual-Core ARM Cortex-A7

NPU

0.8T

Password Capacity (Entries):

15000

RAM

256M DDR

User Records (Entries):

500,000

ROM

4G EMMC

Verification Modes

Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card)

Communication Interfaces

 TCP/IP, USB Type-A interface (USB flash drive function), WiFi

Recognition Modes

1:1, 1:N

FRR

<= 0.1%

Recognition Display

Name, Employee ID

FAR

<= 0.001%

Face Recognition Time

< 0.2s

Power supply

DC 12V,2A

Recognition Distance

Pure dynamic face recognition 0.5-2.5 meters

With Liveness Detection enabled: 0.5-1.5 meters

Working temperature

-15℃ to 60℃

Interface Parameters

Screen Resolution

800*1280

USB Output

1 Port (USB function)





Relay Output

1 Channel





Wiegand Signal Output

 1 Set WG26/34 Output







Wiegand Signal Input

1 Set WG26/34 Input







Reset switch

Support







Alarm output

Support

Product Details

Product Dimensions:

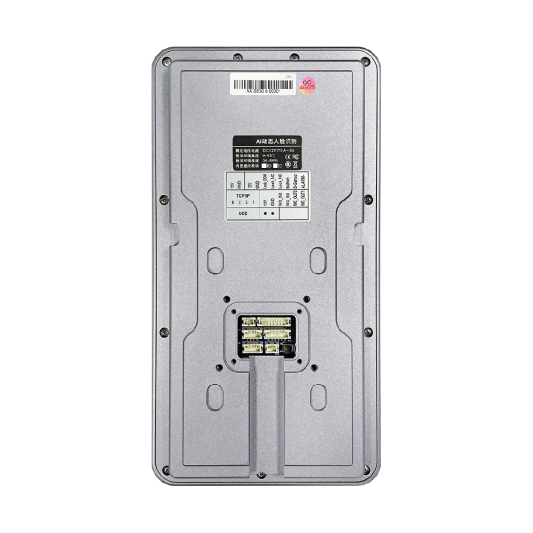

Backside:
