Home    Access control Device    Face Recognition    F102 Dynamic Face Recognition Terminal

F102 Dynamic Face Recognition Terminal

1.CPU 1.2G Dual-Core ARM Cortex-A, NPU 0.6T Computing Power, AI CPU
2.Genuine 2MP Binocular Camera, Wide Dynamic Range (WDR) Camera, enables recognition under strong backlight and low light conditions.
3.Supports simultaneous recognition of up to 5 persons, supports face tracking and face capture.
4.Fast face recognition speed, less than 0.25 seconds per face.
5.Supports Liveness Detection, dynamic binocular anti-spoofing to prevent using photos or videos on any medium.

Product Specifications



Hardware Parameters



Firmware Parameters

Screen Resolution

1280*720

Operating System

Linux 3.10

Keyboard

Screen Touch Virtual Keyboard

Language/Voice

Over 20 national languages/voices including Chinese & English

Display

5-inch IPS Touch Screen

User Capacity (Persons):

15000 standard/50000 (optional)

Fill Light

LED High-Brightness Fill Light

Face Capacity (Images):

5000 standard/20000 (optional)

Dual Infrared High-Power Fill Lights

Fingerprint capacity (pieces)

10000 standard/50000 (optional)

Camera:

Sensor: 1/2.9 inch, FOV 75°
2MP Pixel HD Color Camera with WDR (Wide Dynamic Range)

Card Capacity (Cards):

15000 standard/50000(optional), ID standard (IC optional)

Sensor: 1/5 inch, FOV 75°
2MP Pixel Infrared Camera

QR Code Recognition:

Supports QR code recognition for visitor function via cloud platform

CPU

1.2G Dual-Core ARM Cortex-A7

Password Capacity (Entries):

15000 standard/50000 (optional)

NPU

600G (0.6T) Computing Power

User Records (Entries):

500,000

RAM

256M DDR3L

Verification Modes

Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card)

ROM

4G EMMC

Recognition Modes

1:1, 1:N

Communication Interfaces:

TCP/IP, USB Type-A (USB function), Wireless WiFi (Optional)

Recognition Display

Name, Employee ID

FRR

<= 0.1%

Face Recognition Time

< 0.2s

FAR

<= 0.001%

Liveness Detection:

Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium.

Dimension

155mm*155mm*25mm

Recognition Distance

Pure dynamic face recognition 0.5-2.5 meters

Power supply

DC 12V,1A

With Liveness Detection enabled: 0.5-1.5 meters

Working temperature

-15℃ to 60℃

Interface Parameters





USB Output

1 Port (USB function)





Relay Output

1 Channel





Exit switch

1 Channel





Wiegand Signal Output

 1 Set WG26/34 Output







Doorbell function

Support

Product Details

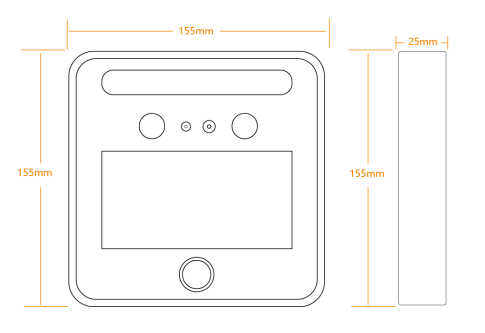

Product Dimensions:

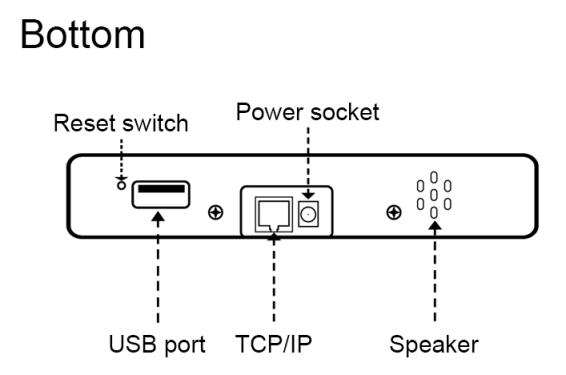

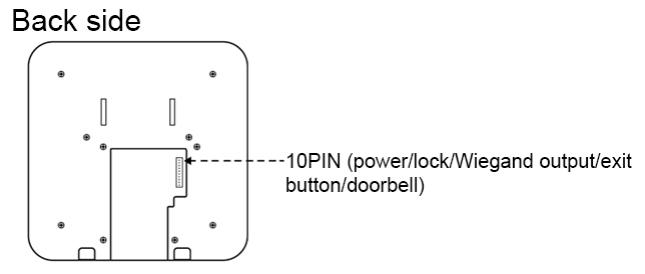

Interface Diagram:

C:/Users/Administrator/Desktop/3.jpg3

C:/Users/Administrator/Desktop/4.jpg4
