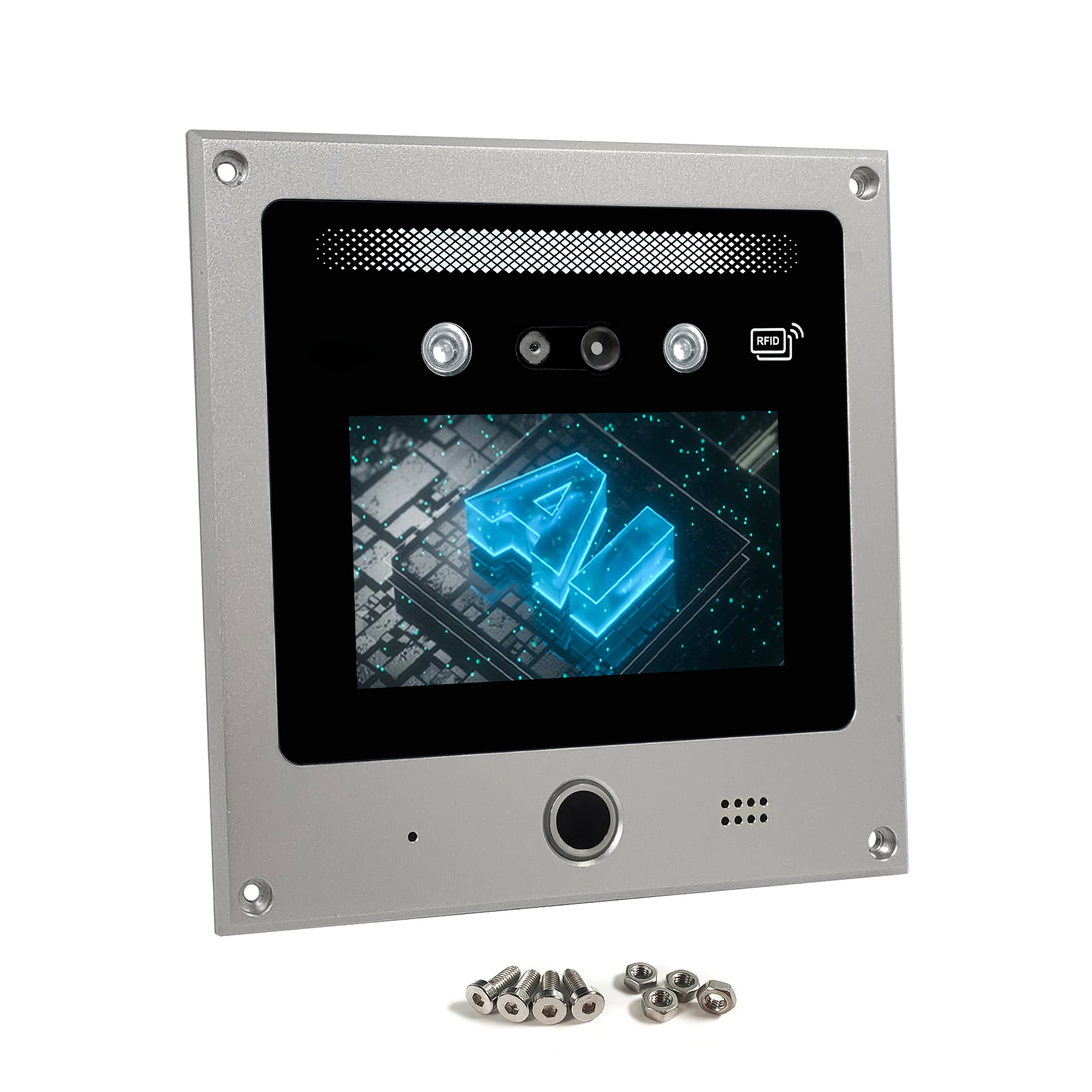

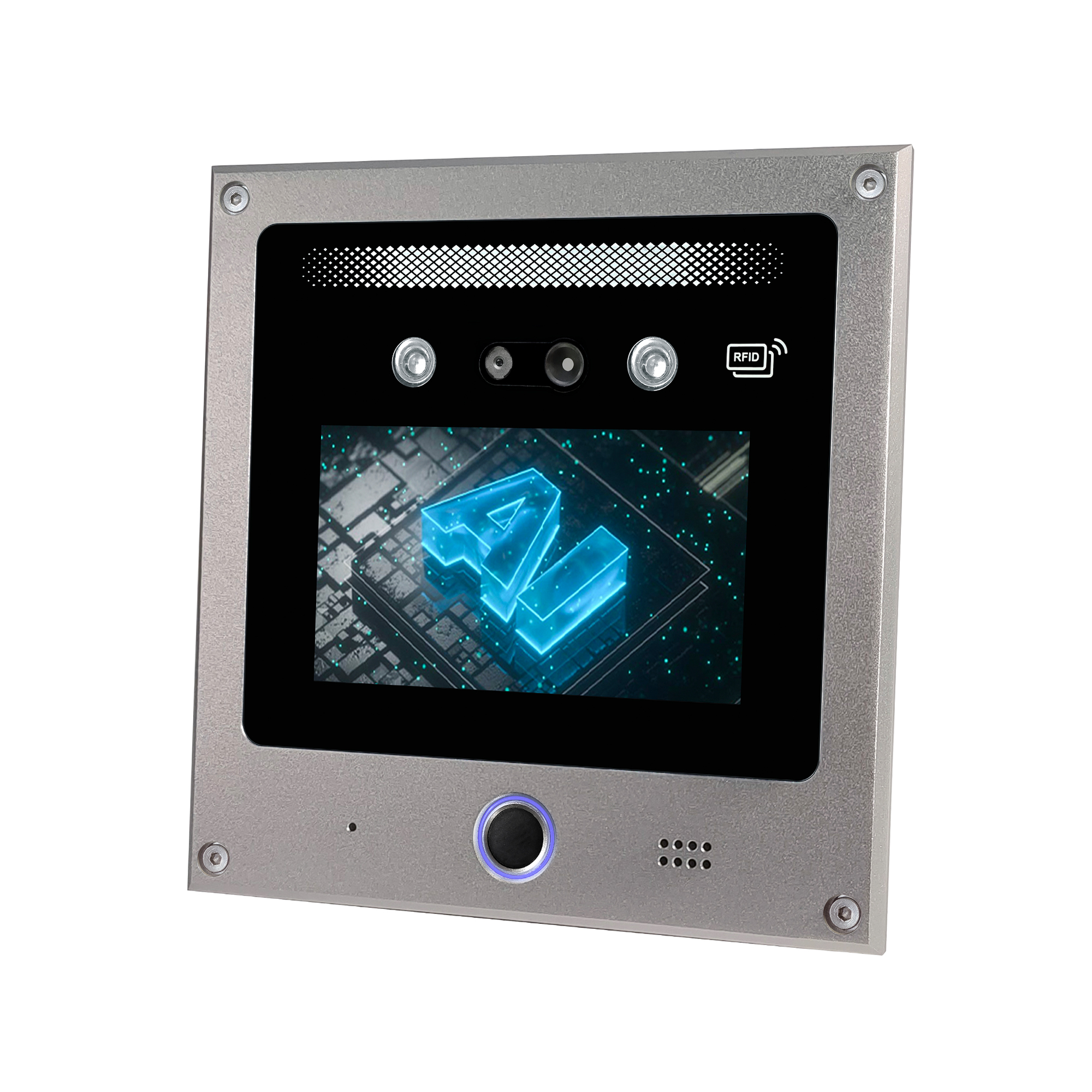

F110 Embedded Face Recognition Elevator Control Terminal

Hardware Parameters

Firmware Parameters

Size

180mm*180mm*26mm

Operating System

Linux 3.10

Screen Resolution

720*1280

Liveness Detection:

Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium.

Display

5-inch IPS Screen

Language/Voice

Over 20 national languages/voices including Chinese & English

Camera

1/2.9-inch sensor, 75° FOV, 2MP HD color camera, WDR (Wide Dynamic Range)

1/5-inch sensor, 75° FOV, 2MP infrared camera

User Capacity (Persons):

15000

Fill light

LED high-brightness fill light; dual infrared high-power fill light

Face capacity (images)

5000

CPU

1.2G Dual-Core ARM Cortex-A7

Fingerprint capacity (pieces)

10000

NPU

600G (0.6T) Computing Power

Card capacity (Cards):

15000， ID / IC

RAM

256M DDR3L

ROM

4G EMMC

Password Capacity (Entries):

15000

Communication Interfaces

 TCP/IP, USB Type-A interface (USB flash drive function), WiFi

User Records (Entries):

500,000

FRR

<= 0.1%

Verification Modes

Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card)

FAR

<= 0.001%

Recognition Modes

1:1, 1:N

Power supply

DC 12V，2A

Recognition Display

Name, Employee ID

Working temperature

－15℃ to 60℃

Face Recognition Time

< 0.2s

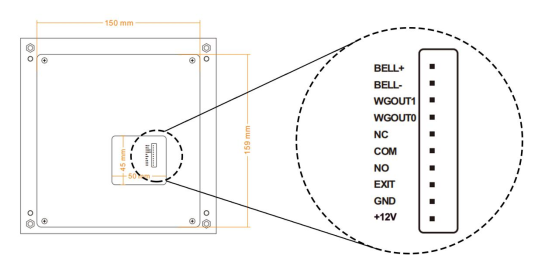

Interface Parameters

Recognition Distance

Pure dynamic face recognition 0.5-2.5 meters

Exit switch

1Channel

Doorbell function

Support

Ringing function

Support

Relay output

2-channel (one channel for lock control output, and one channel that can be configured as a doorbell/ringing bell)

Wiegand Signal Output

 1 Set WG26/34 Output
