F107 Dynamic Face Recognition Terminal

1.Sleek Appearance, Aluminum Alloy Construction
2.CPU 1.2G Dual-Core ARM Cortex-A, NPU 0.6T Computing Power, AI CPU
3.Genuine 2MP Binocular Camera, Wide Dynamic Range (WDR) Camera, enables recognition under strong backlight and low light conditions.
4.Supports 15000 users, 5000 face images, 10000 fingerprints, 15000 cards, 15000 passwords.
5.Supports simultaneous recognition of up to 5 persons, supports face tracking and face capture.
6.Fast face recognition speed, less than 0.2 seconds per face


Product Specifications

Appearance



Firmware Parameters

Manufacturing Process

Precision Machining

Operating System

Linux 3.10

Shell Material

Aluminum Alloy

Language/Voice

Over 20 national languages/voices including Chinese & English

Hardware Parameters

User Capacity (Persons):

15000

Dimensions

299mm*164mm*21mm

Face capacity (images)

5000

Keyboard:

On-screen Touch Virtual Keyboard

Fingerprint capacity (pieces)

10000

Display

10.1-inch IPS Screen

Card Capacity (Cards):

15000， ID / IC

Fill Light

LED High-Brightness Fill Light

QR Code Recognition:

Supports QR code recognition for visitor function via cloud platform

Dual Infrared High-Power Fill Lights

Password Capacity (Entries):

15000

Camera:

Sensor: 1/2.9 inch, FOV 75°
2MP Pixel HD Color Camera with WDR (Wide Dynamic Range)

User Records (Entries):

500,000

Sensor: 1/5 inch, FOV 75°
2MP Pixel Infrared Camera

Verification Modes

Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card)

CPU

1.2G Dual-Core ARM Cortex-A7

Recognition Modes

1:1, 1:N

NPU

600G (0.6T) Computing Power

Recognition Display

Name, Employee ID

RAM

256M DDR3L

Face Recognition Time

< 0.2s

ROM

4G EMMC

Screen Resolution

800*1280

Power supply

DC 12V 2A

Communication Interfaces

TCP/IP, USB Type-A (USB flash drive function), 485 communication, Wireless WiFi (Optional)

Liveness Detection:

Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium.

FRR

<= 0.1%

Recognition Distance

Pure dynamic face recognition 0.5-2.5 meters

With Liveness Detection enabled: 0.5-1.5 meters

FAR

<= 0.001%

Interface Parameters

Working temperature

－15℃ to 60℃

Power supply

DC12V terminal block*1

Mouse

Support

Wiegand Signal Output

1 Set WG26/34 Output

Interface Parameters

Wiegand Signal Input

1 Set WG26/34 Input

Exit switch

1 Channel

Door sensor function

Support

Alarm output

1 Channel

Master card function

Supports registration of personnel via face, fingerprint, card, and password after swiping the master card.

USB Output

1 Port (USB function)



Relay Output

1 Channel

Product Details

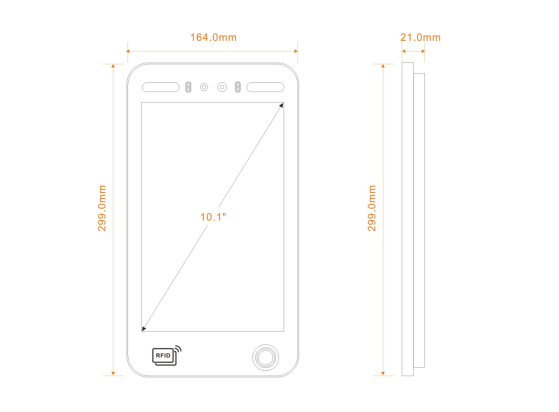

Product Dimensions:

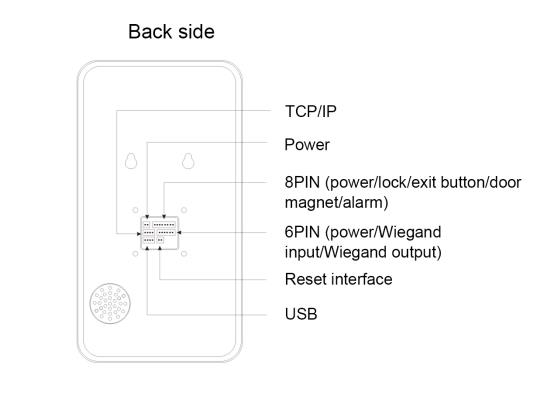

Interface Diagram:

C:/Users/Administrator/Desktop/接口图/107.jpg107
