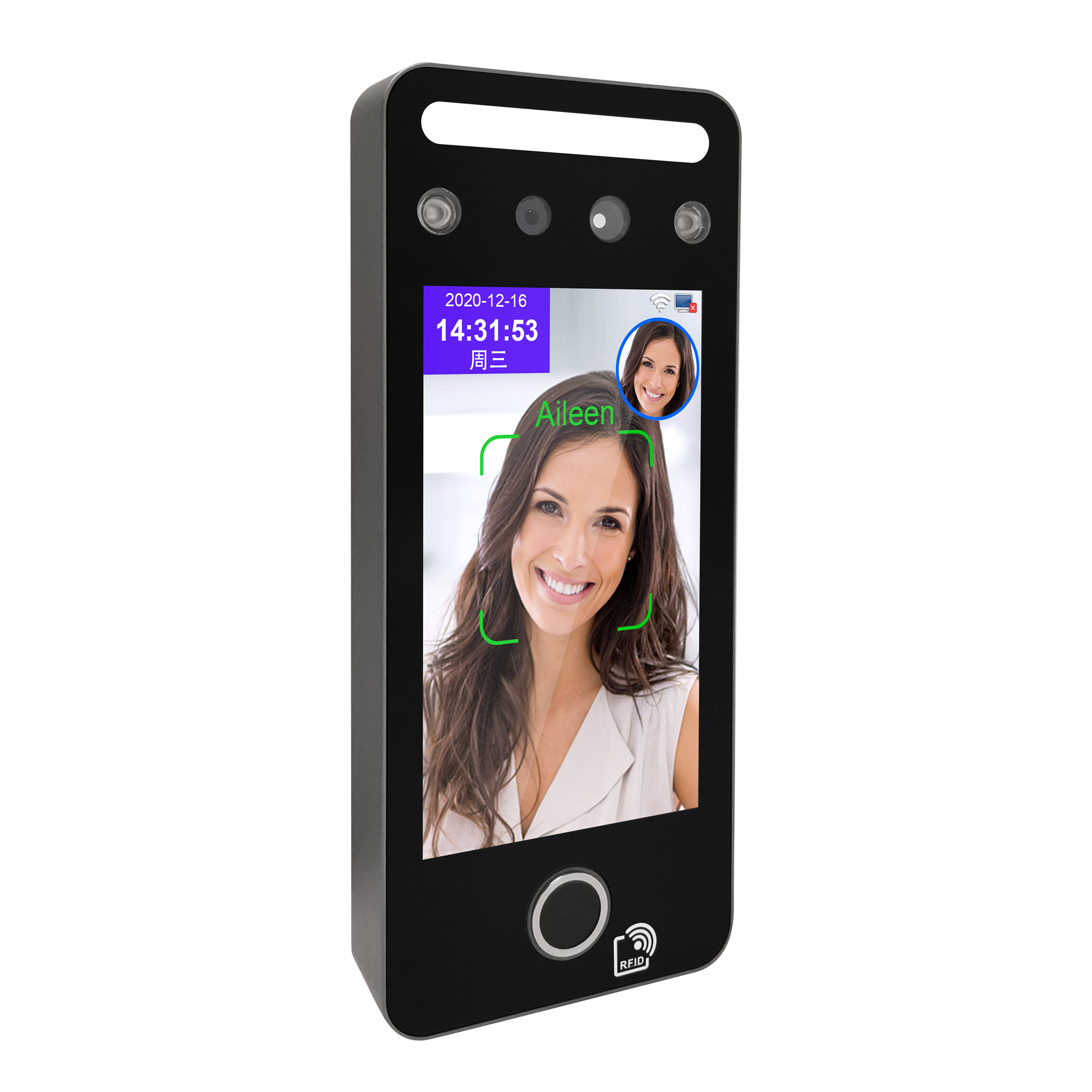

F106 Dynamic Face Recognition Terminal

1.Sleek Appearance, Aluminum Alloy Construction
2.CPU 1.2G Dual-Core ARM Cortex-A, NPU 0.6T Computing Power, AI CPU
3.Genuine 2MP Binocular Camera, Wide Dynamic Range (WDR) Camera, enables recognition under strong backlight and low light conditions.
4.Supports simultaneous recognition of up to 5 persons, supports face tracking and face capture.
5.Fast face recognition speed, less than 0.2 seconds per face.
6.Supports Liveness Detection, dynamic binocular anti-spoofing to prevent deception using

 Product Specifications

Appearance



Firmware Parameters

Manufacturing Process

Precision Machining

Operating System

Linux 3.10

Shell Material

Aluminum Alloy

Language/Voice

Over 20 national languages/voices including Chinese & English

Hardware Parameters

User Capacity (Persons):

5000 standard/20000 (optional)

Screen Resolution

720*1280

Fingerprint capacity (pieces)

10000 standard/20000 (optional)

Display

5-inch IPS Touch Screen

Card Capacity (Cards):

5000 standard/20000 (optional)， ID standard （IC optional）

Dimensions

188mm*80mm*20mm

QR Code Recognition:

Supports QR code recognition for visitor function via cloud platform

Fill Light

LED High-Brightness Fill Light

Password Capacity (Entries):

5000 standard/20000 (optional)

Dual Infrared High-Power Fill Lights

User Records (Entries):

500,000

Camera:

Sensor: 1/2.9 inch, FOV 75°
2MP Pixel HD Color Camera with WDR (Wide Dynamic Range)

Verification Modes

Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card)

Sensor: 1/5 inch, FOV 75°
2MP Pixel Infrared Camera

Recognition Modes

1:1, 1:N

CPU

1.2G Dual-Core ARM Cortex-A7

Recognition Display

Name, Employee ID

NPU

600G (0.6T) Computing Power

Face Recognition Time

< 0.2s

RAM

256M DDR3L

Card Capacity (Cards):

5000 standard/20000 (optional)， ID standard （IC optional）

ROM

4G EMMC

Power Supply

DC12V (1 terminal block)

Keyboard

On-screen Touch Virtual Keyboard

Liveness Detection:

Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium.

Communication Interfaces

TCP/IP, USB Type-A (USB flash drive function), 485 communication, Wireless WiFi (Optional)

Recognition Distance

Pure dynamic face recognition 0.5-2.5 meters

FRR

<= 0.1%

With Liveness Detection enabled: 0.5-1.5 meters

FAR

<= 0.001%

Interface Parameters

Power supply

DC 12V，1A

Anti-tamper function

Support

Working temperature

－15℃ to 60℃

Fire alarm linkage

Support

Interface Parameters

Anti-tailgating

Support

Exit switch

1 Channel



Interlocking doors

Support

USB Output

1 Port (USB function)



Door contact function

Support

Relay Output

1 Channel



Doorbell function

Support

Alarm output

 1 Channel



Master-Slave Support

Support. Can connect with company fingerprint attendance terminals to form a master-slave system. Only the master requires information management; slaves can be used directly. Enables complex access control like anti-passback, entrance/exit control.

Wiegand Signal Input

1 Set WG26/34 Input







Wiegand Signal Output

 1 Set WG26/34 Output







Product Details

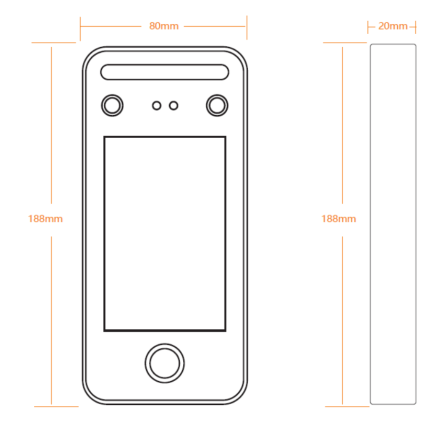

Product Dimensions:

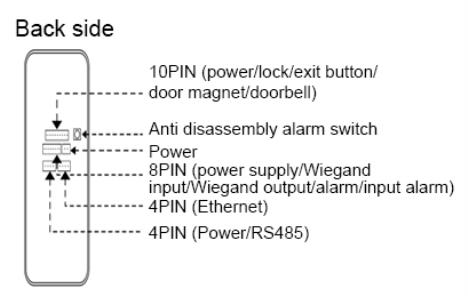

Interface Diagram:

C:/Users/Administrator/Desktop/接口图/106.jpg106106-2
