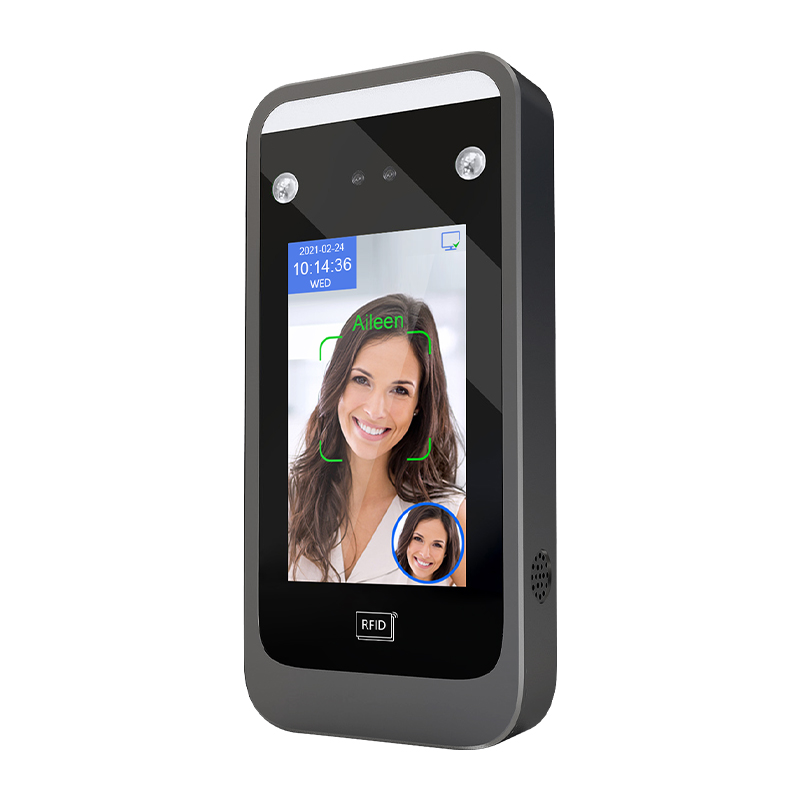

F104 Dynamic Face Recognition Terminal
2.Genuine 2MP Binocular Camera, Wide Dynamic Range (WDR) Camera, enables recognition under strong backlight and low light conditions.
3.Supports simultaneous recognition of up to 5 persons, supports face tracking and face capture.
4.Fast face recognition speed, less than 0.2 seconds per face.
5.Supports Liveness Detection, dynamic binocular anti-spoofing to prevent deception using photos or videos on any medium.
Product Specifications
|
Hardware Parameters |
|
Firmware Parameters |
||
|
Size |
187.5mm*87.5mm*26mm |
Operating System |
Linux 3.10 |
|
|
Keyboard |
Screen Touch Virtual Keyboard |
Language/Voice |
Over 20 national languages/voices including Chinese & English |
|
|
Display |
4.3-inch IPS Touch Screen |
User Capacity (Persons): |
5000 standard/50000 (optional) |
|
|
Fill Light |
LED High-Brightness Fill Light |
Face Capacity (Images): |
5000 standard/50000 (optional) |
|
|
Dual Infrared High-Power Fill Lights |
Card Capacity (Cards): |
5000 standard/50000 (optional)， ID standard （IC optional） |
||
|
Camera: |
Sensor: 1/2.9 inch, FOV 75° |
QR Code Recognition: |
Supports QR code recognition for visitor function via cloud platform |
|
|
Sensor: 1/5 inch, FOV 75° |
Password Capacity (Entries): |
5000 standard/50000 (optional) |
||
|
CPU |
1.2G Dual-Core ARM Cortex-A7 |
User Records (Entries): |
500,000 |
|
|
NPU |
600G (0.6T) Computing Power |
Verification Modes |
Dynamic Face Recognition, Card, Password, Combinations (e.g., Face+Card) |
|
|
RAM |
256M DDR3L |
Recognition Modes |
1:1, 1:N |
|
|
ROM |
4G EMMC |
Recognition Display |
Name, Employee ID |
|
|
Communication Interfaces: |
TCP/IP, USB Type-A (USB function), Wireless WiFi (Optional) |
Face Recognition Time |
< 0.2s |
|
|
FRR |
<= 0.1% |
Liveness Detection: |
Dynamic dual-camera anti-spoofing, prevents cheating from using B&W/color photos, videos on any medium. |
|
|
FAR |
<= 0.001% |
Recognition Distance |
Pure dynamic face recognition 0.5-2.5 meters |
|
|
Dimension |
155mm*133mm*25.5mm |
With Liveness Detection enabled: 0.5-1.5 meters |
||
|
Power supply |
DC 12V，1A |
Interface Parameters |
||
|
Interface Parameters |
Exit switch |
1 Channel |
||
|
Door Contact Function |
Support |
USB Output |
1 Port (USB function) |
|
|
Doorbell Function |
Support |
Relay Output |
1 Channel |
|
|
Ring / Audible Alert Function |
Support |
Wiegand Signal Output |
1 Set WG26/34 Output |
|
|
Fire (Alarm) Linkage |
Support |
|
Wiegand Signal Input |
1 Set WG26/34 Input |
|
Anti-tailgating |
Support |
|
|
|
Product Details

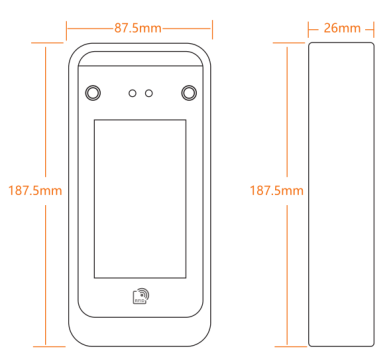

Product Dimensions:

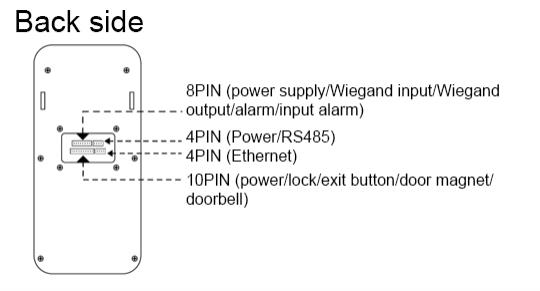

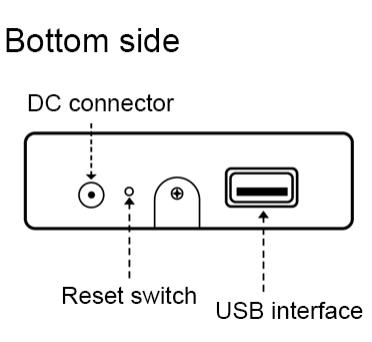

Interface Diagram:
