CF-E711 Impinj E710 Chip UHF Embedded Module
-Tag buffer: 1000 tags @ 96bit EPC
-Support multiple tags anti-collision function
-Continue work 24 hours×365 days
-With RSSI to identify tag signal distance
-Low power consumption design, single +3.6V~+5.5V power supply
-Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
-Applications: Handheld device embedding, equipment integration, logistics management, clothing management, smart
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna port |
IPEX Female |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Communication interface |
TTL Uart interface, baud rate 115200bps |
|
|
Chip solution |
Impinj E710 |
Transmission mode |
Operates in wide spectrum frequency hopping (FHSS) or fixed frequency transmission mode |
|
|
RF output power |
0-27dbm (adjustable) |
Operating voltage |
3.6--5.5V |
|
|
Read speed |
1000 tags/s |
Max work current |
600mA (27dbm) |
|
|
Tag buffer |
1000 @96bit EPC tag |
Standby current |
67mA |
|
|
Read distance |
0~10 meter (depends on antenna & tag) |
Min work current |
360mA |
|
|
Working mode |
Active mode Answer mode |
Receive sensitivity |
-84 dbm |
|
|
RSSI |
Support |
Connector |
20 pins |
|
|
Environmental parameters |
Development Environment |
|||
|
Cooling method |
External cooling |
SDK |
Demo software, API, examples, user manual |
|
|
Operating temperature |
-20℃~+60℃ |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Storage temperature |
-40℃~+85℃ |
Firmware version |
Support online upgrade |
|
|
Operating humidity |
<95% (25℃) |
Physical parameters |
||
|
|
Size |
28*28*3.5mm |
||
|
|
|
|
Weight |
4.5 |

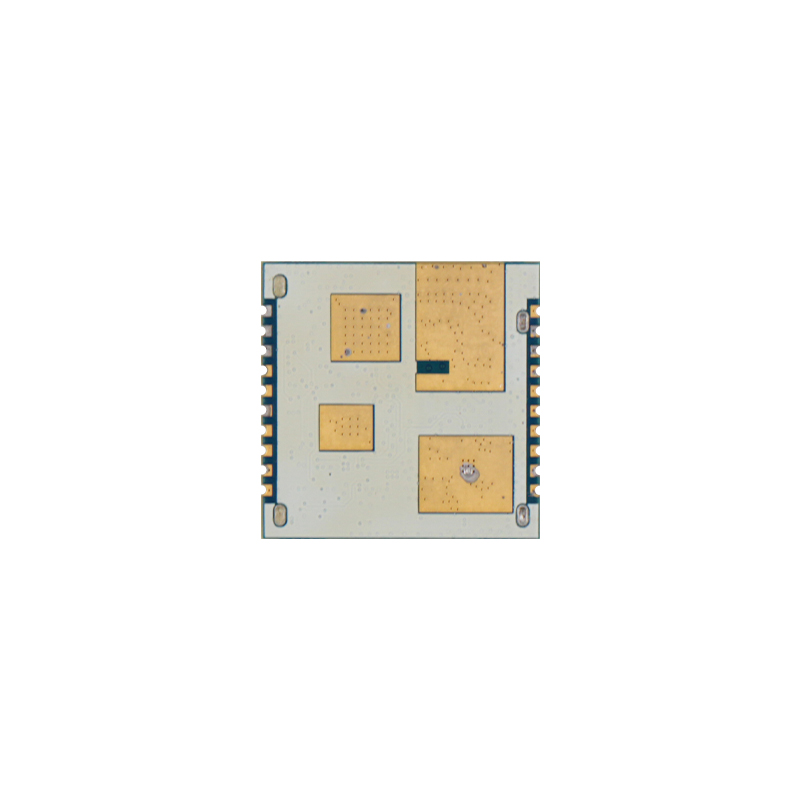

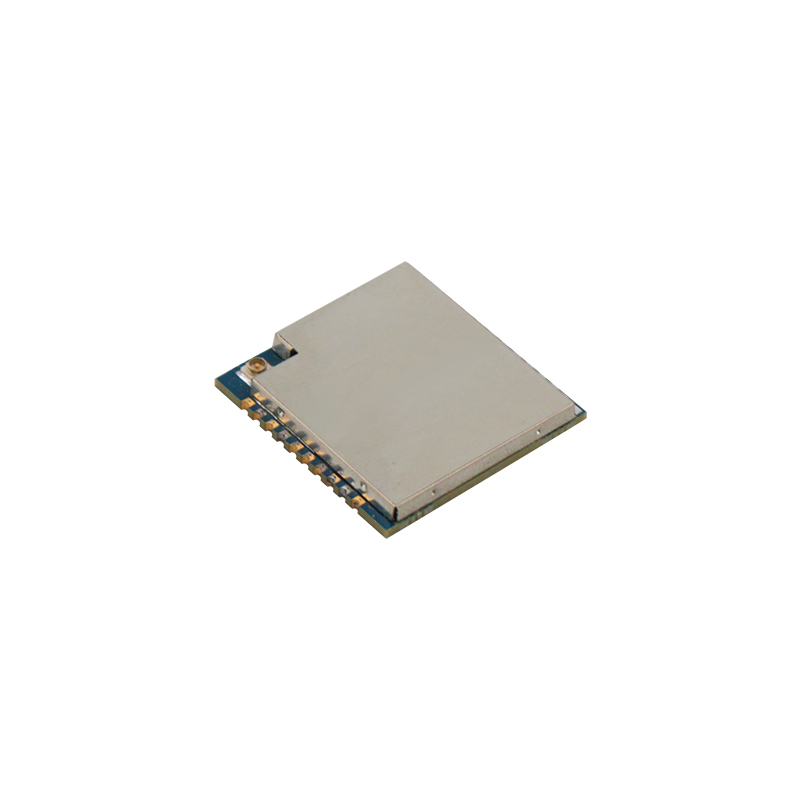

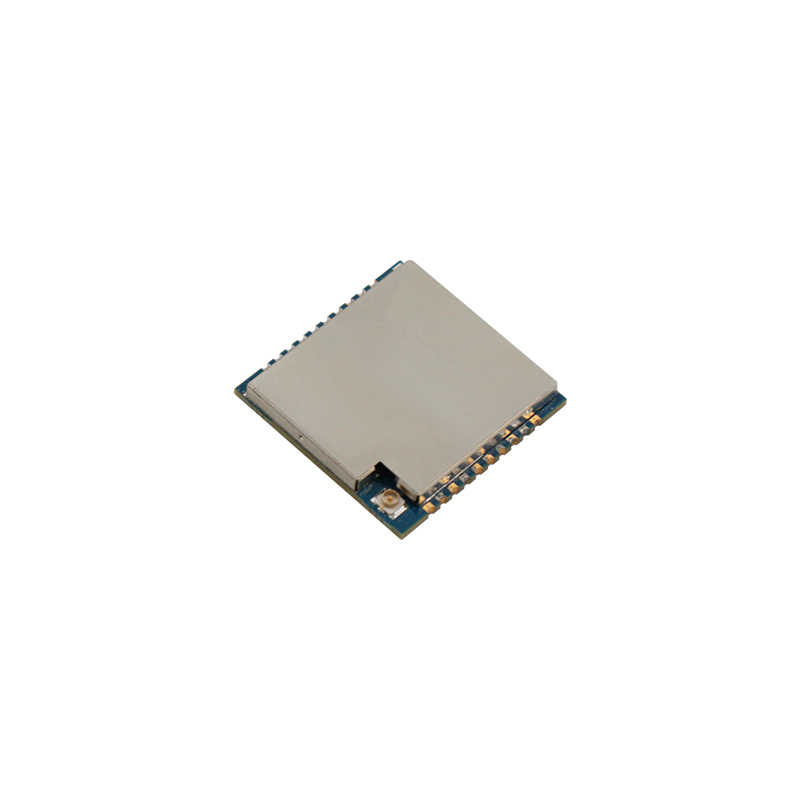

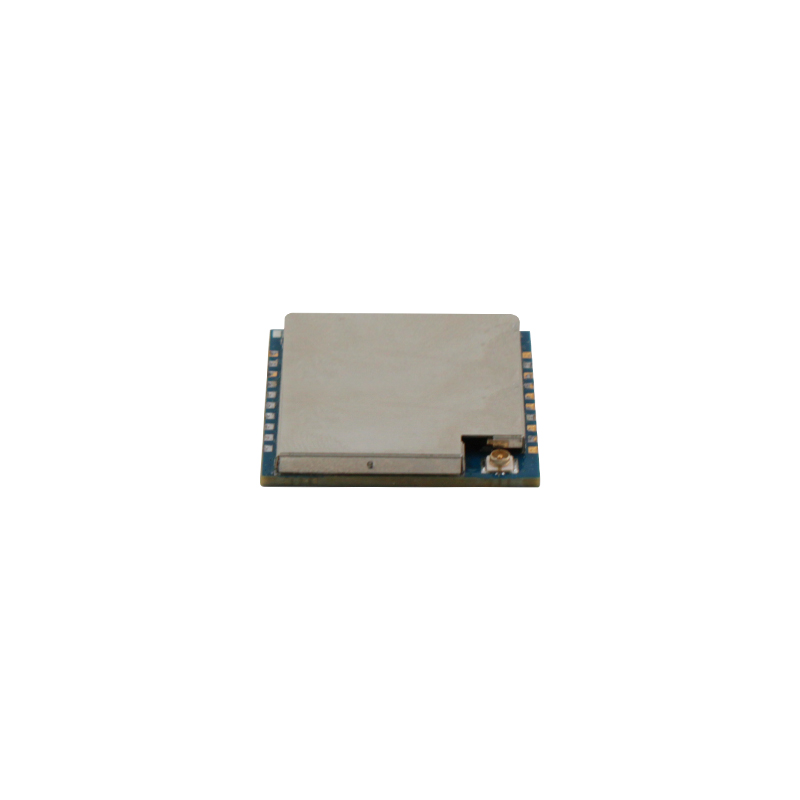

Details display
|
Socket No. |
Symbol |
Comment |
|
1 |
VCC |
Power Supply |
|
2 |
VCC |
Power Supply |
|
3 |
EN |
Enable High level effective with internal 10kOhm resistor pulled up to VCC |
|
4 |
NC |
Reserved |
|
5 |
NC |
Reserved |
|
6 |
NC |
Reserved |
|
7 |
RX |
Serial data input |
|
8 |
TX |
Serial data output |
|
9 |
BEEP |
Buzzer output (3.3V TTL level, outputs high when activated) |
|
10 |
NC |
Reserved |
|
11 |
GND |
Ground |
|
12 |
GPI1 |
General Input (3.3V TTL level) |
|
13 |
GPI2 |
General Input (3.3V TTL level) |
|
14 |
GPO1 |
General Output (3.3V TTL level) |
|
15 |
GPO2 |
General Output (3.3V TTL level) |
|
16 |
NC |
Reserved |
|
17 |
NC |
Reserved |
|
18 |
NC |
Reserved |
|
19 |
GND |
Ground |
|
20 |
GND |
Ground |

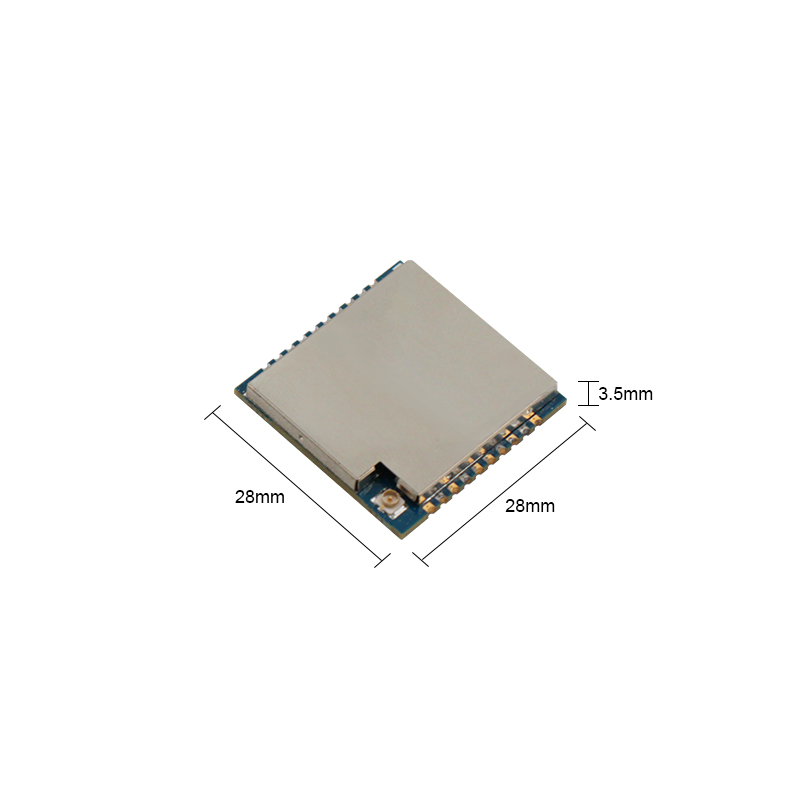

Physical Size (mm)
Application information
1、When use the module design reader, must consider good heat dissipation design, ensure the module’s heat dissipation position in full contact with reader’s base plate, and apply thermal grease on the contact surface to reduce thermal resistance;
2、For other communication protocol information, please refer to the product user manual.
