MU606L UHF RFID Module
-Support secondary program development
-Suitable for smaller tags and close-range recognition scenarios
-Peak counting speed <250 sheets/second
-It has broad application prospects in various industries such as logistics, retail, and identity recognitio
Product Specifications
|
RFID Parameters |
|
Interface parameters |
||
|
frequency |
902~928MHz (US standard) 865~868MHz (European standard) |
Communication interface |
UART 3.3V |
|
|
protocol |
ISO18000-6C (EPC GEN2) GB/T 29768-2013 |
Maximum communication baud rate |
Default 115200bps, configurable |
|
|
RF Output Power |
0-26dbm |
Number of antenna ports |
1 |
|
|
Reading speed |
＜250 tags/second |
Antenna impedance |
50Ω |
|
|
Reading distance |
0~10m |
Environmental parameters |
||
|
chip |
UC8688 |
Operating temperature |
-40℃~70℃ |
|
|
Output power flatness |
±0.2dB |
Storage temperature |
-40℃~85℃ |
|
|
chip |
UC8688 chip |
Relative humidity |
10%RH~95%RH |
|
|
Tag Cache |
100 pieces @96bit EPC |
Power parameters |
||
|
Label RSSI |
support |
Operating voltage |
4.5V~5.5V |
|
|
Chip temperature detection |
support |
Standby power consumption |
<20mA |
|
|
Physical parameters |
Sleep power consumption |
<5uA |
||
|

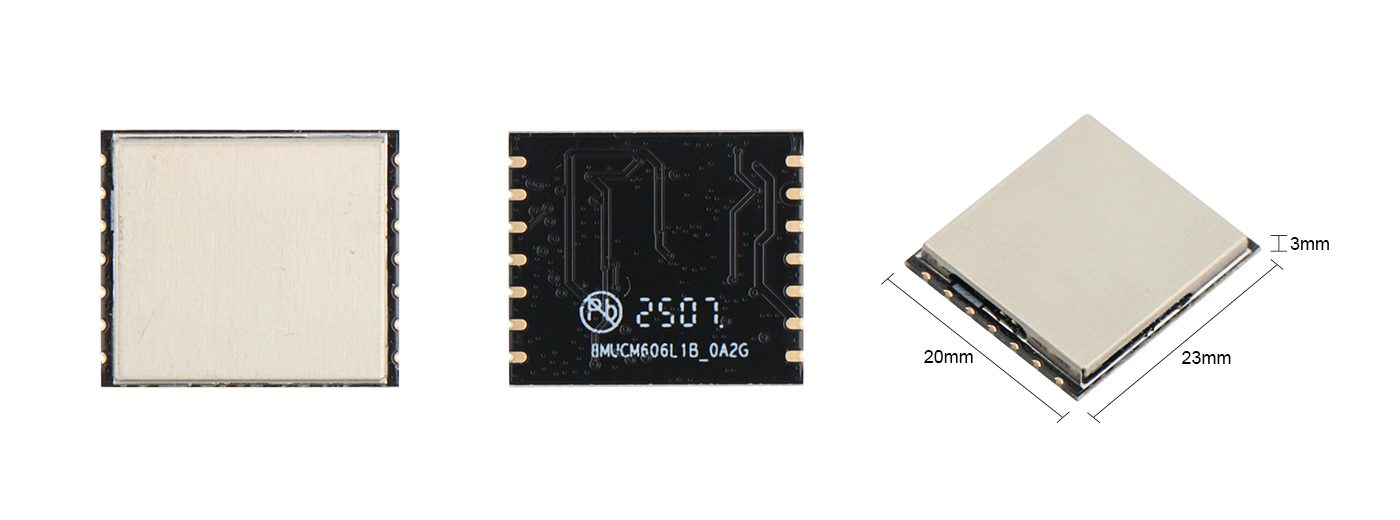

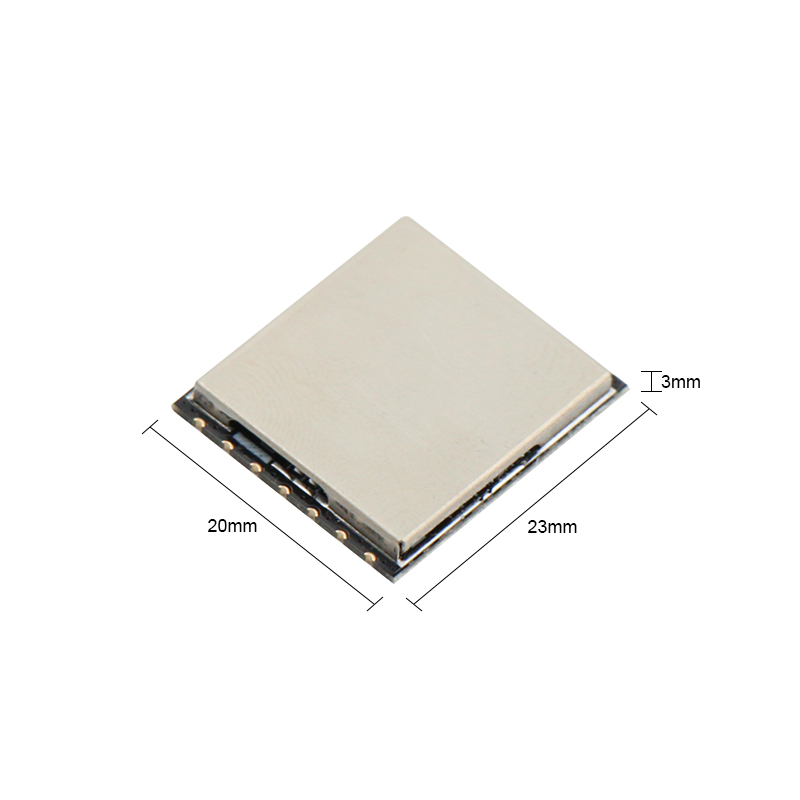

Product size |
23mm x 20mm x 3.0mm |
Normal operation |
142mA~290mA@5V |
|
|
Product Weight |
2.7g |
|
|
|
|
Protection level |
IEC IP51 |
|
|
|

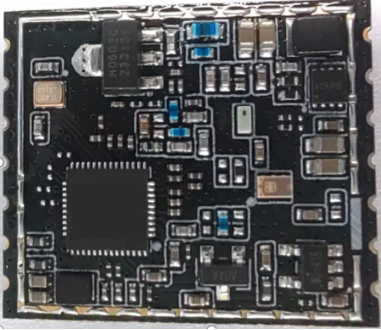

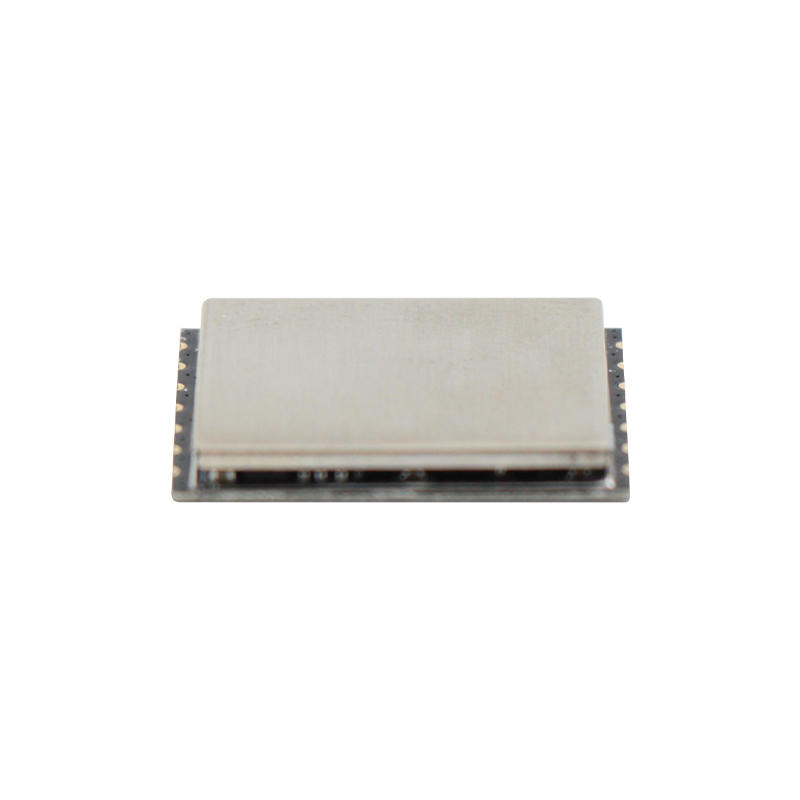

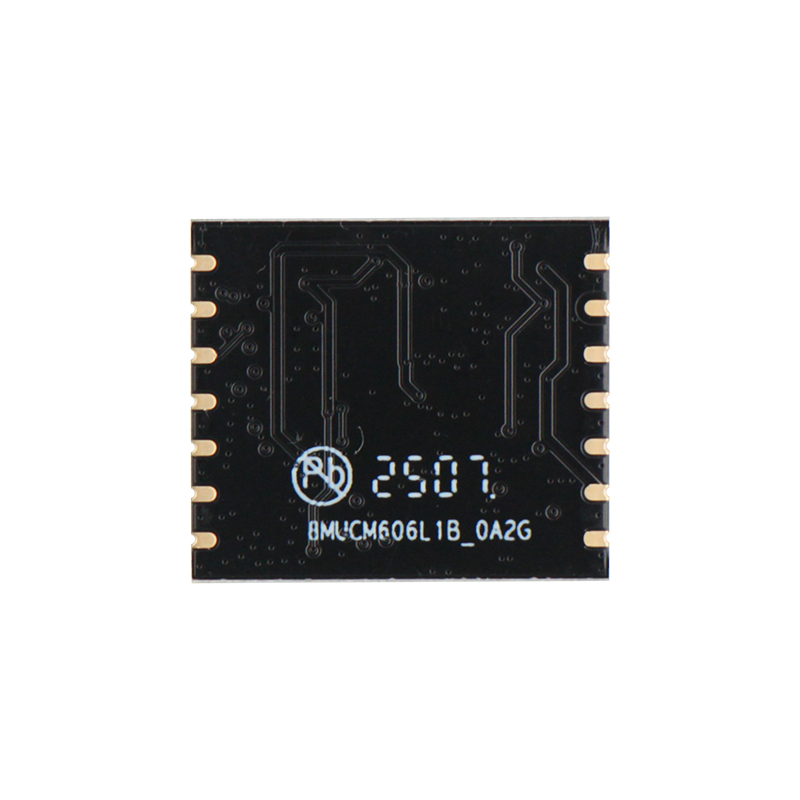

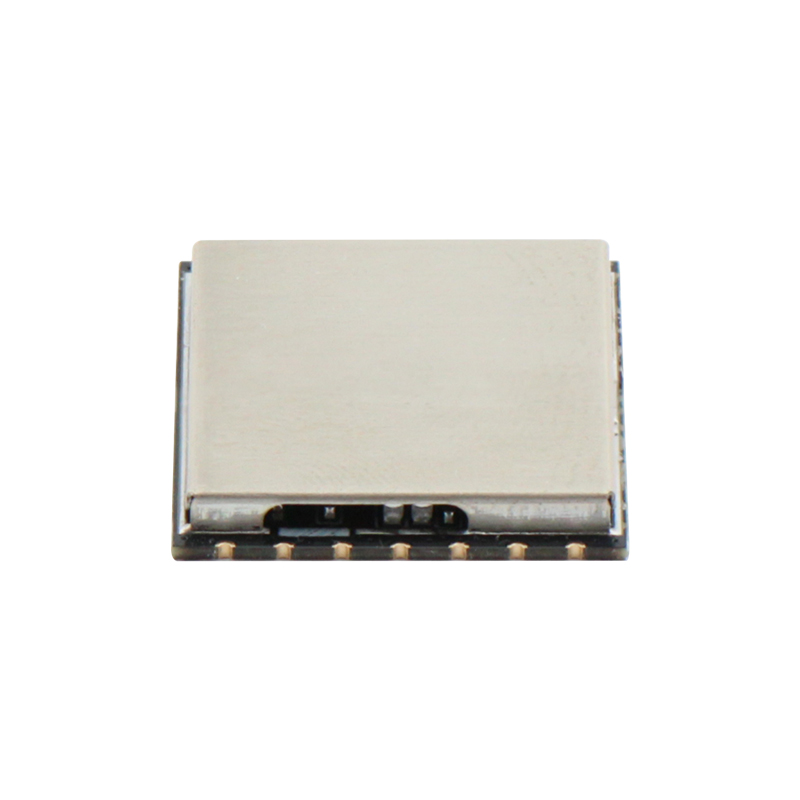

Details display

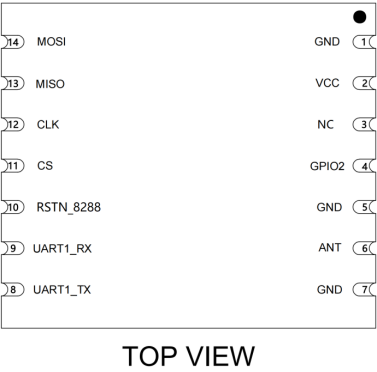

Module Specifications (Wiring Diagram & Dimensions)
|
Wiring Definition |
||
|
Bottom pad number |
definition |
illustrate |
|
1 |
GND |
Ground |
|
2 |
VCC |
4.5~5.5V |
|
3 |
NC |
Can connect to test point |
|
4 |
GPIO2 |
General purpose GPIO |
|
5 |
GND |
Ground |
|
6 |
ANT |
antenna |
|
7 |
GND |
Ground |
|
8 |
UART1_TX |
Communication serial port, TTL level |
|
9 |
UART1_RX |
Communication serial port, TTL level |
|
10 |
RSTN_8288 |
Reset |
|
11 |
CS |
SPI chip select |
|
12 |
CLK |
SPI Clock |
|
13 |
MISO |
SPI master data output slave data input |
|
14 |
MOSI |
SPI master data input slave data output |

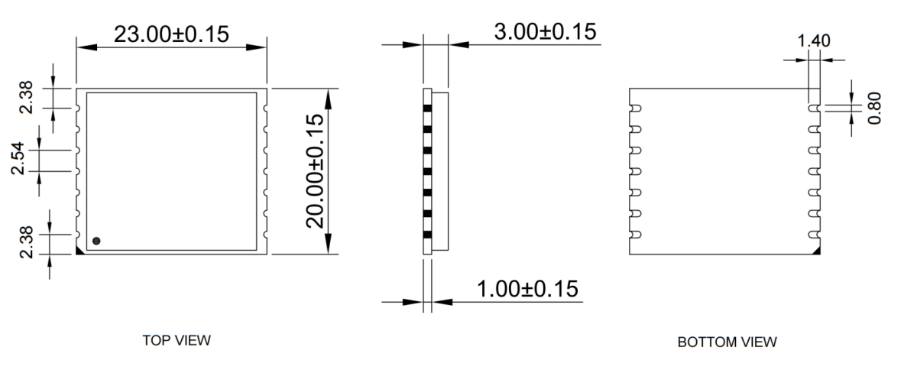

Three-dimensional dimensions

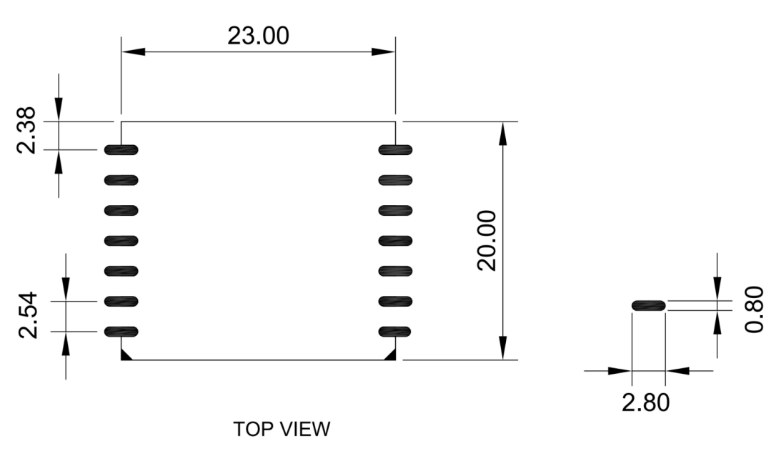

Package size
