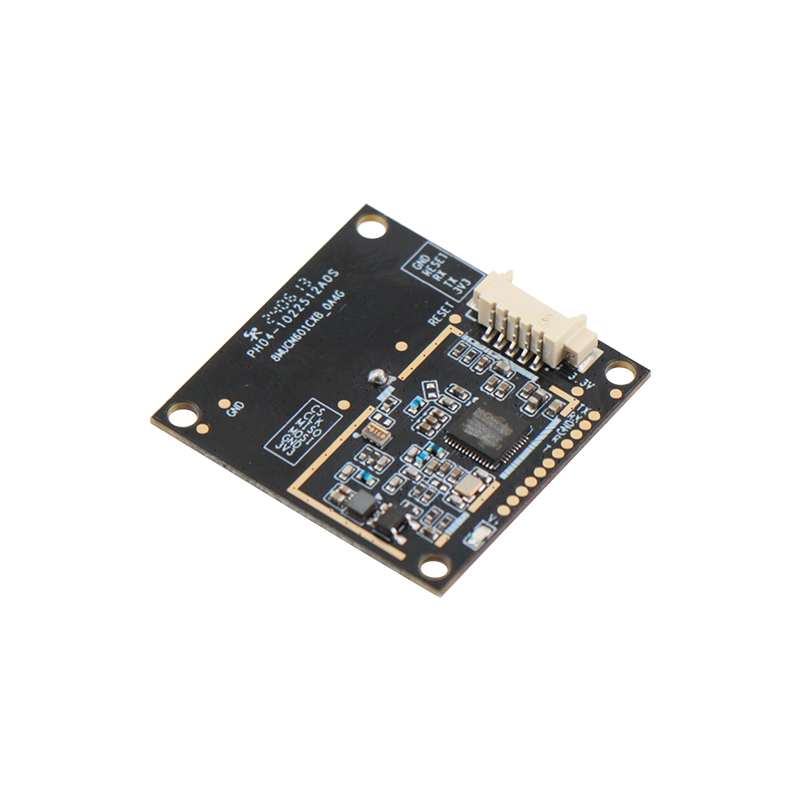

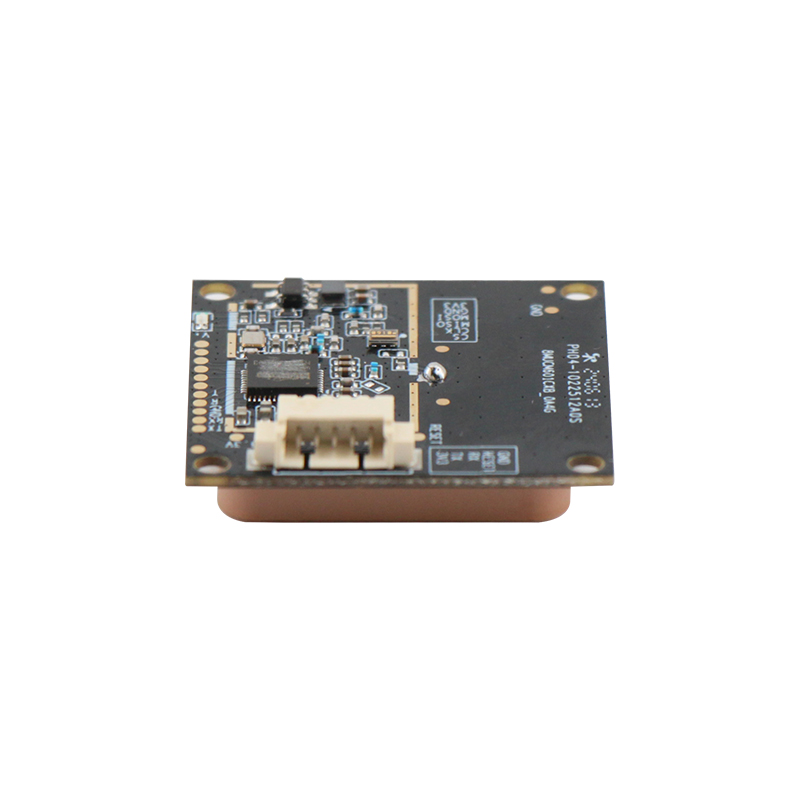

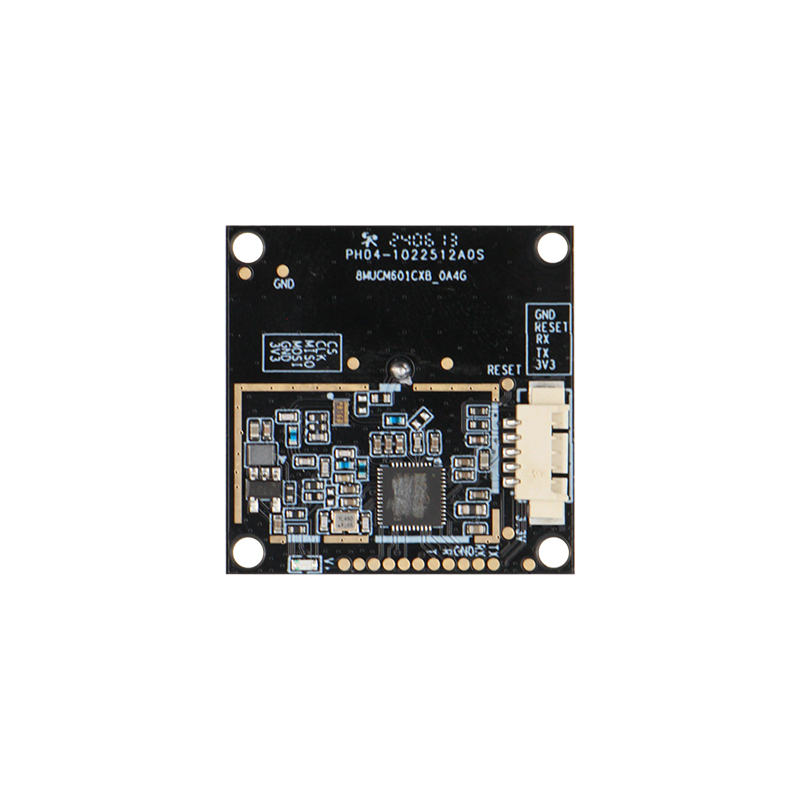

MU601C UHF RFID Module
-Support secondary program development
-Suitable for smaller tags and close-range recognition scenarios
-Peak counting speed <100 sheets/second
-It has broad application prospects in various industries such as logistics, retail, and identity recognition
Product Specifications
|
RFID Parameter |
|
Antenna parameters |
||
|
Frequency |
902~928MHz (US）865~868MHz （EU） |
Antenna Specifications |
25mm*25mm*4mm |
|
|
Protocol |
ISO18000-6C (EPC GEN2) GB/T 29768-2013 |
Frequency |
865~868MHz/902~928MHz±2MHz |
|
|
RF Output Power |
0-20dbm(Adjustable) |
VSWR |
1.5MAX |
|
|
Reading Speed |
>100 tags/second |
10dB bandwidth |
15MHz MIN |
|
|
Reading Range |
0-1.5m （Depends on tag and working environment ） |
Gain |
1.5dB typ @30mm*30mm |
|
|
Output power accuracy |
1dB |
Impedance |
50Ω |
|
|
Output power flatness |
±0.2dB |
Polarization |
RHCP |
|
|
Receiving sensitivity |
-67dBm |
Physical parameters |
||
|
Tag Cache |
100 pcs@96bit EPC |
Operating voltage |
3.3V |
|
|
Tag RSSI |
support |
Standby power consumption |
<20mA |
|
|
Chip temperature detection |
support |
Normal operation |
20~110mA@3.3V |
|
|
Communication interface |
TTL Uart |

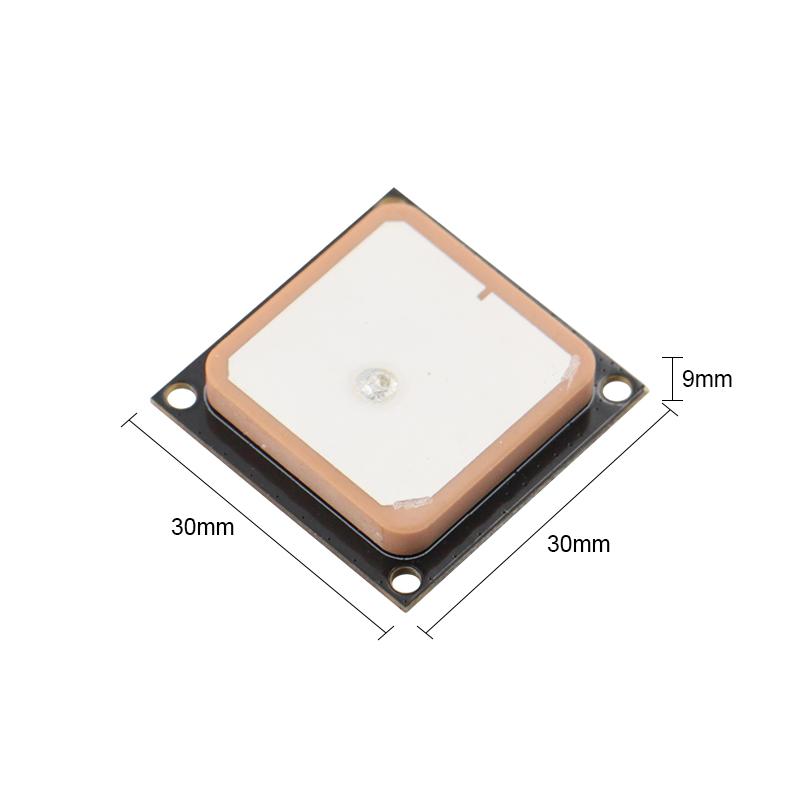

Size |
30mm x30mm x 9mm (含座子) |
|
|
Maximum communication baud rate |
Default 115200bps, configurable |
Weight |
16g |
|
|
Environmental parameters |
Protection level |
IEC IP51 |
||
|
Operating temperature |
-40℃~70℃ |
|
|
|
|
Storage temperature |
-40℃~85℃ |
|
|
|
|
Relative humidity |
10%RH~95%RH |
|
|
|

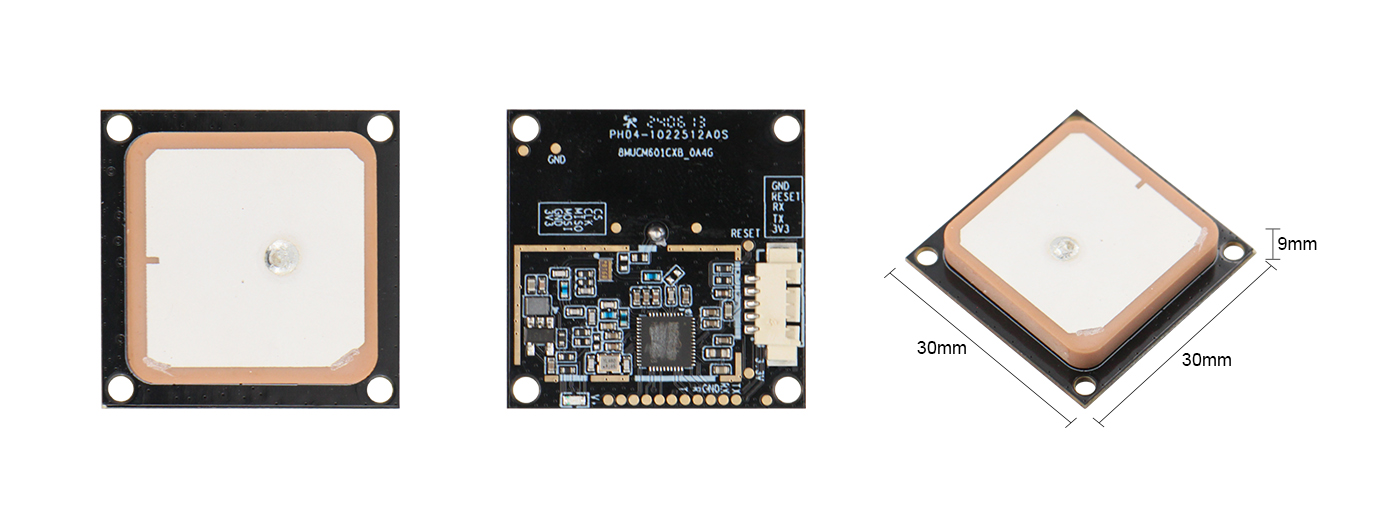

Details display

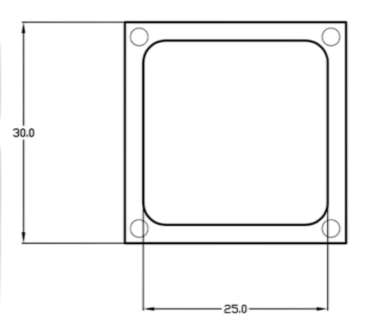

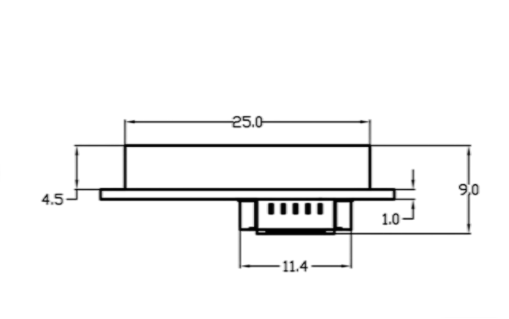

Module Specifications (Dimensions & Wiring)

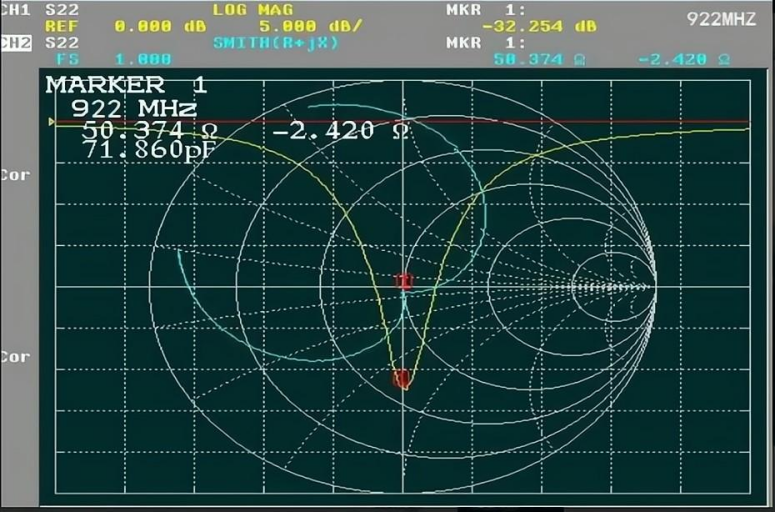

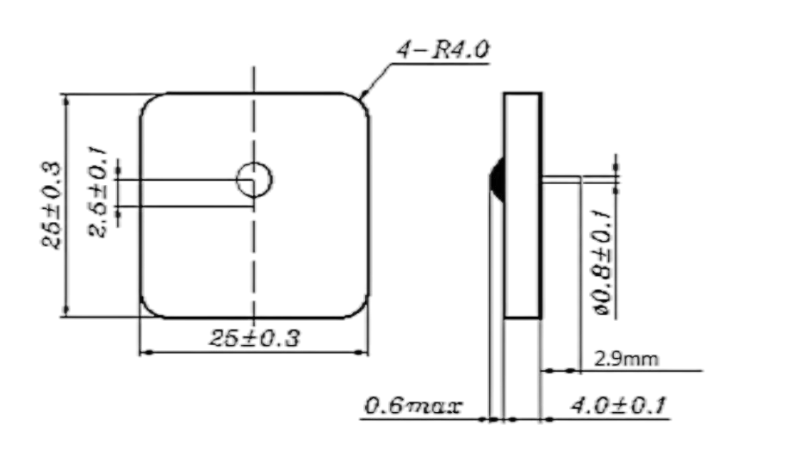

Antenna Specifications (Dimensions & Radiation Diagram)
