MU608H UHF RFID Module
-Support secondary program development
-Suitable for multi-tag and long-distance identification
-Peak counting speed <650 sheets/second
-It has broad application prospects in various industries such as warehousing, retail, anti-counterfeiting, identity recognition, medical care, aviation, etc.
Product Specifications
|
RFID Parameters |
|
Interface parameters |
||||
|
model |
MU608H |
Antenna interface type |
MMCX female connector |
|||
|
frequency |
902~928MHz |
Number of antenna ports |
1 |
|||
|
protocol |
ISO18000-6C (EPC GEN2) GB/T 29768-2013 |
Antenna impedance |
50Ω |
|||
|
RF Output Power |
3-33dbm |
GPIO |
2 inputs, 3 outputs, 3.3V |
|||
|
Reading speed |
＜650 tags/second |
Communication interface |
UART interface 3.3V GPIO: 2 inputs, 3 outputs, 3.3V |
|||
|
Reading distance |
0~15m |
Maximum communication baud rate |
Default 115200bps, configurable |
|||
|
Output power accuracy |
±1dB |
Environmental parameters |
||||
|
Receiving sensitivity |
80dBm |
Operating temperature |
-40℃~60℃ |
|||
|
chip |
UC8688 chip |
Storage temperature |
-40℃~85℃ |
|||
|
Tag Cache |
700 pieces @96bit EPC |
Relative humidity |
10%RH~95%RH |
|||
|
Label RSSI |
support |
Power parameters |
||||
|
Chip temperature detection |
support |
Operating voltage |
4.5V~5.5V |
|||
|
Antenna connection protection |
support |
Standby power consumption |
<160mA |
|||
|
Physical parameters |
Sleep power consumption |
<5uA |
||||
|
Product size |
55.9mm x 35.6mm x 4.4mm |
Normal operation |
170mA~1000mA@5V |
|||
|
Protection level |
IEC IP51 |
|
||||
|
|
|
|
||||

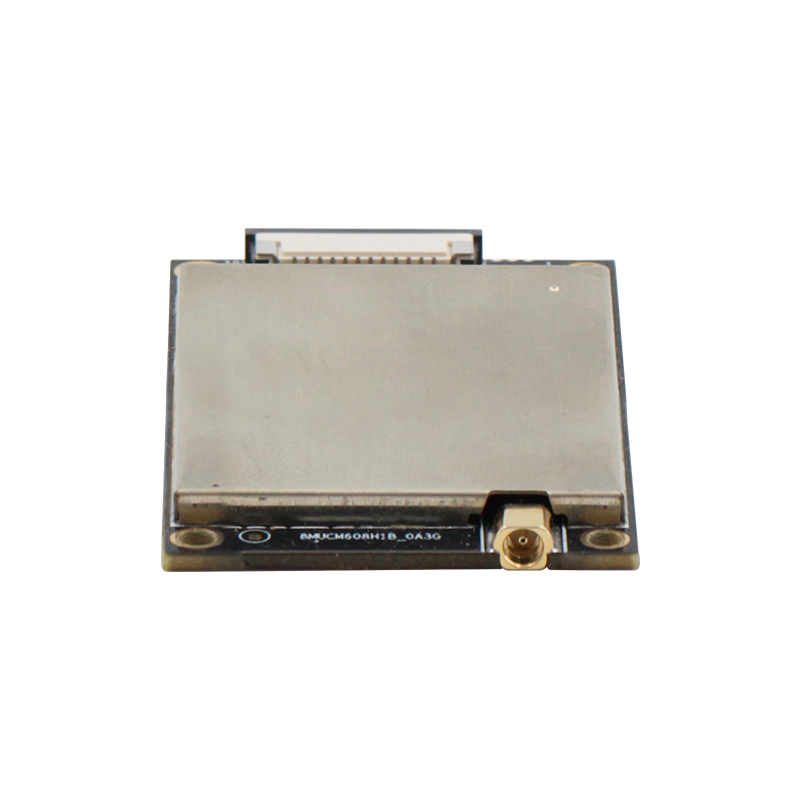

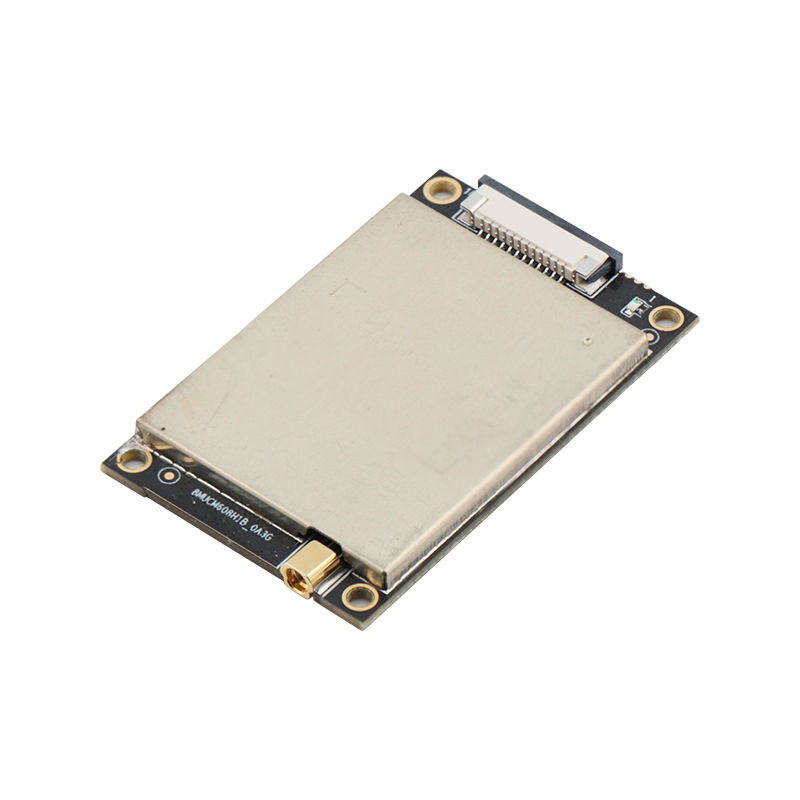

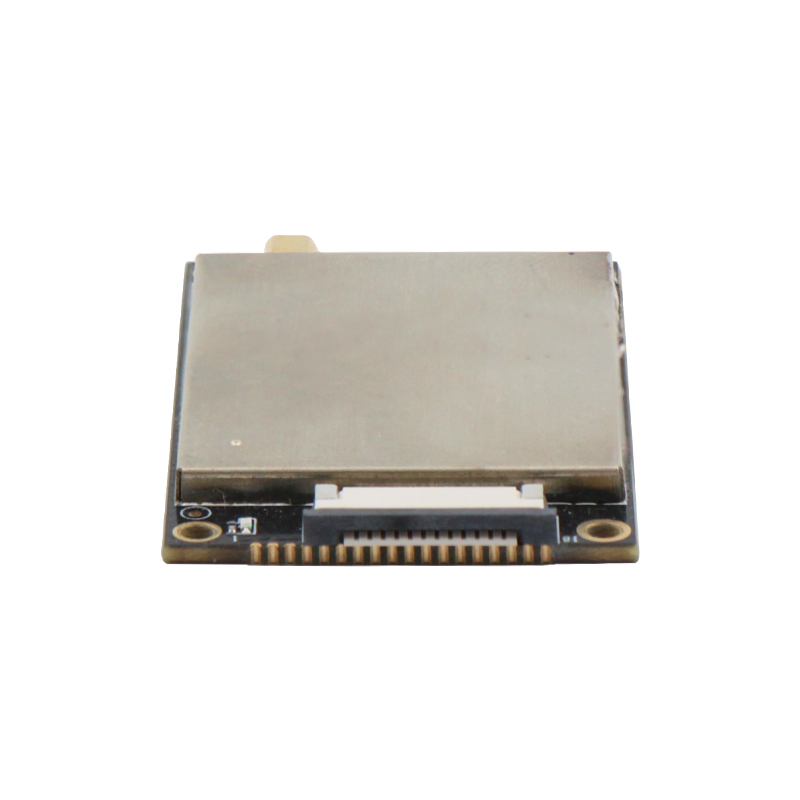

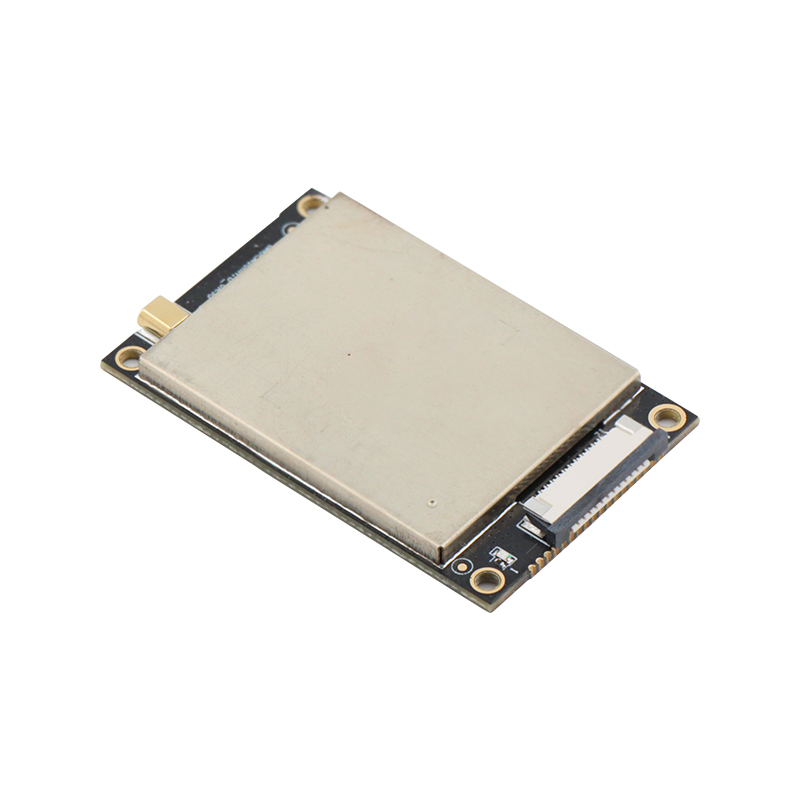

Details display
Pin Configuration and Function Description
FPC spacing 1.0mm
|
FPC connector definition |
||
|
FPC serial number |
definition |
illustrate |
|
1 |
+3.6 ~ 5V DC |
power supply |
|
2 |
||
|
3 |
GND |
Ground |
|
4 |
||
|
5 |
EN module power enable |
High level enable |
|
6 |
GPIO12 |
General purpose GPIO |
|
7 |
GPIO28 |
General purpose GPIO |
|
8 |
GPIO5 |
General purpose GPIO |
|
9 |
UART_2RX |
TTL level |
|
10 |
UART_2TX |
|
|
11 |
RST |
LOW ACTIVE, leave it unconnected if not in use |
|
12 |
GPIO7 |
General purpose GPIO |
|

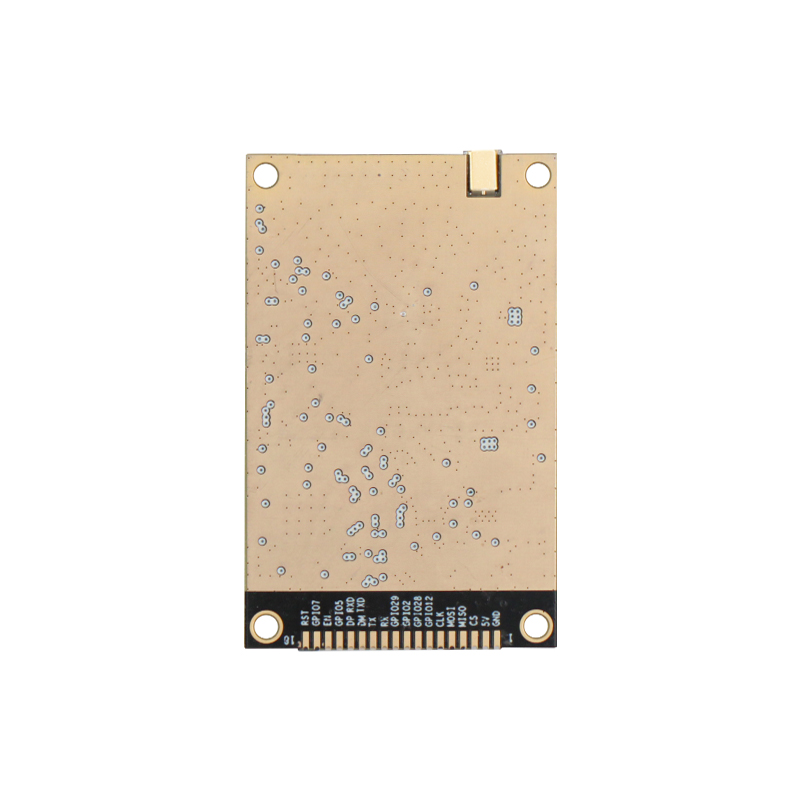

Wiring Definition |
||
|
Bottom pad number |
definition |
illustrate |
|
1 |
GND |
Ground |
|
2 |
+3.6 ~ 5V DC |
power supply |
|
3 |
SPI_CS |
SPI chip select |
|
4 |
MISO |
SPI master input slave output |
|
5 |
MOSI |
SPI master output slave input |
|
6 |
SPI_CLK |
SPI Clock |
|
7 |
GPIO12 |
General purpose GPIO |
|
8 |
GPIO28 |
General purpose GPIO |
|
9 |
GPIO2 |
General purpose GPIO |
|
10 |
GPIO29 |
General purpose GPIO |
|
11 |
UART_2RX |
TTL level |
|
12 |
UART_2TX |
|
|
13 |
UART_1TX |
For debugging only |
|
14 |
UART_1RX |
|
|
15 |
GPIO5 |
General purpose GPIO |
|
16 |
EN module power enable |
High level enable |
|
17 |
GPIO7 |
General purpose GPIO |
|
18 |
RST |
LOW ACTIVE, leave it unconnected if not in use |
