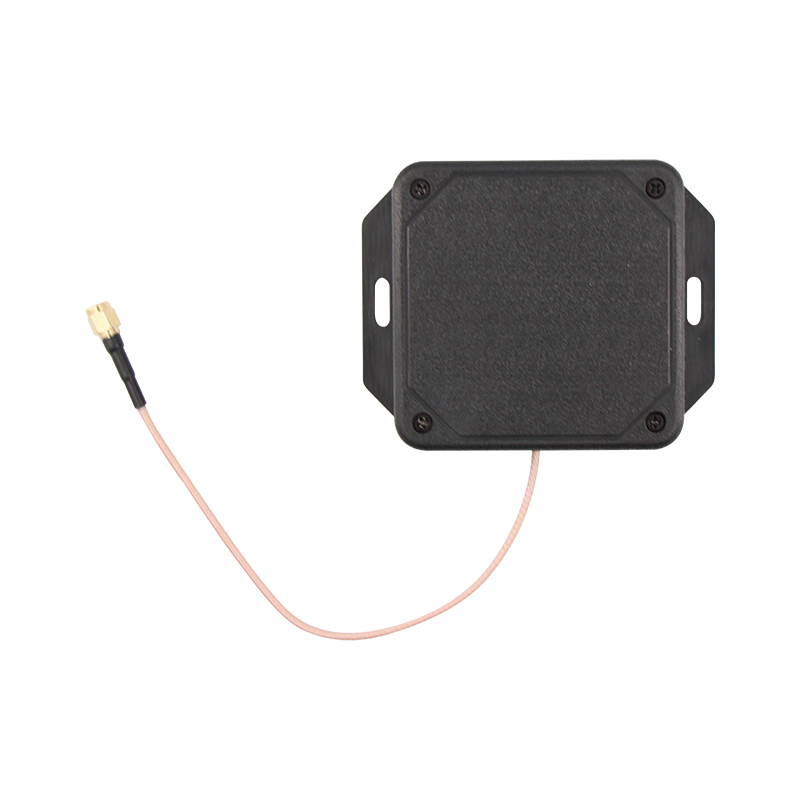

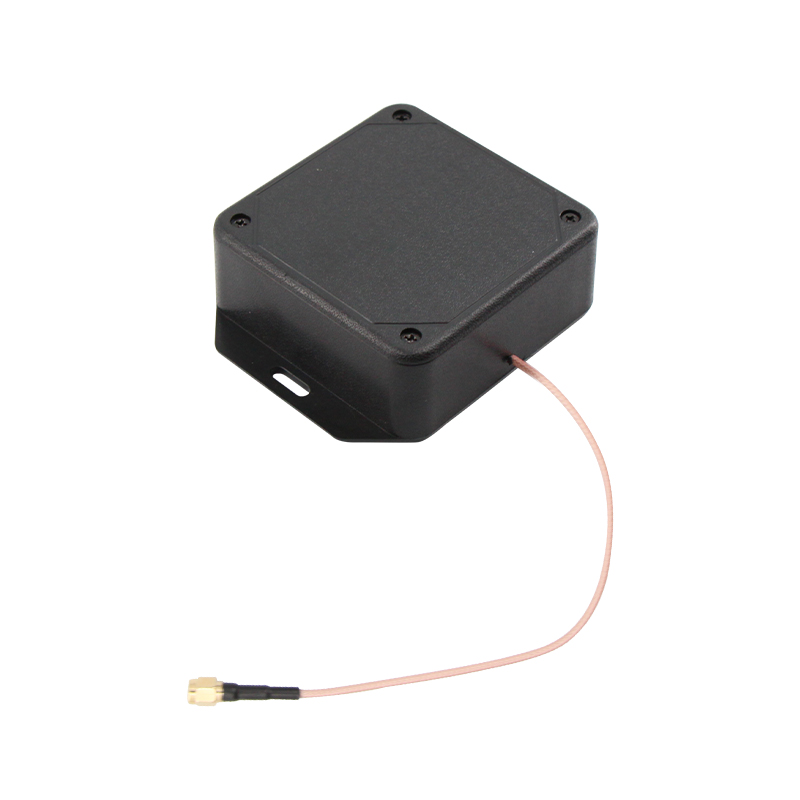

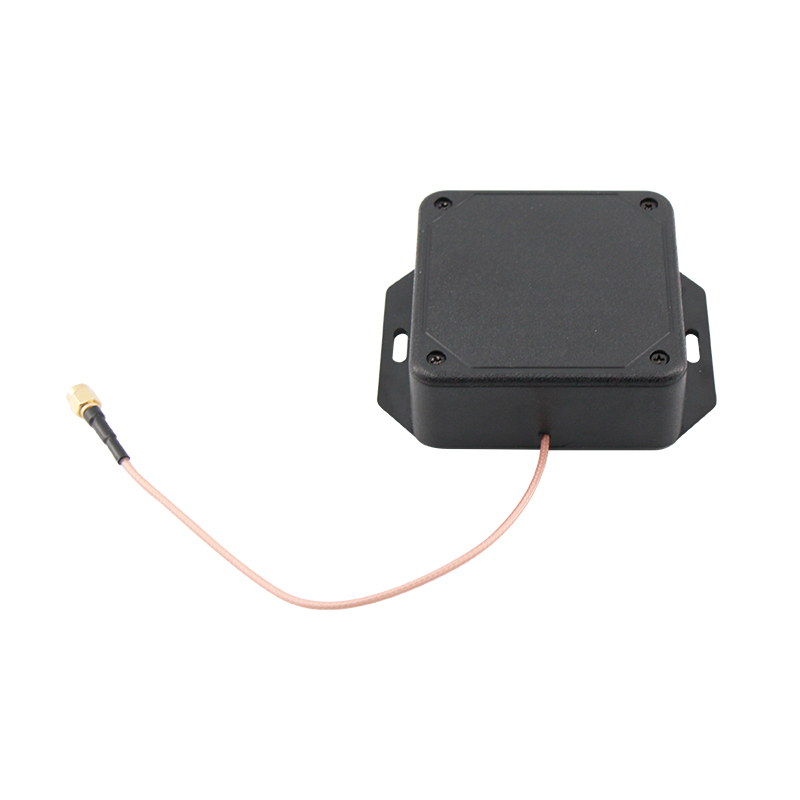

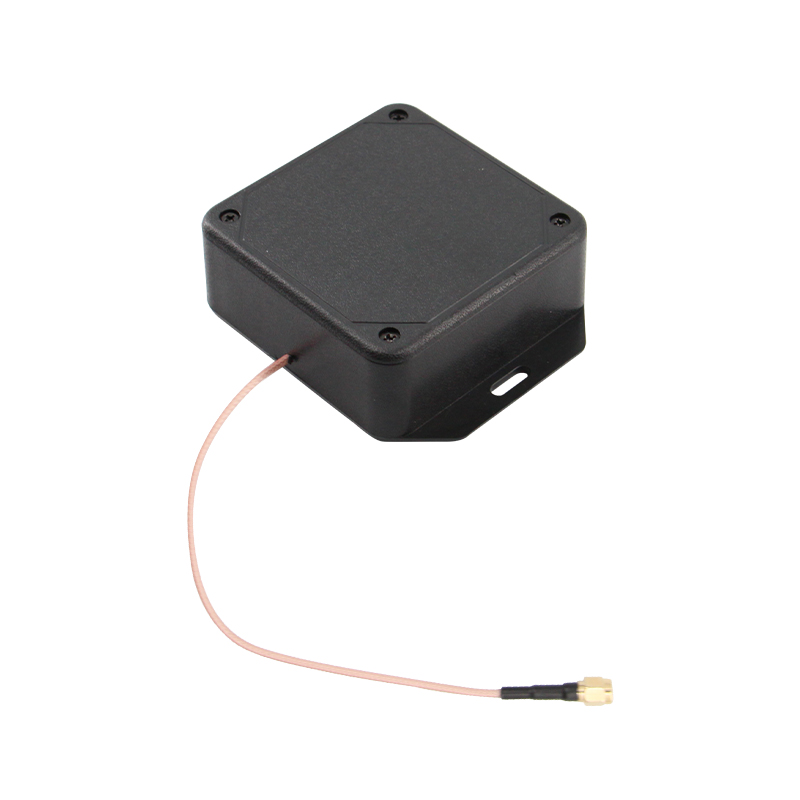

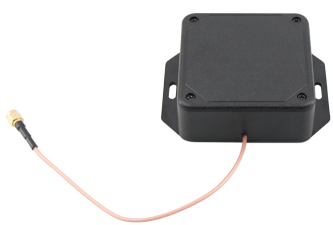

CF-RA5008 UHF 5dBi smart cabinet antenna
- Near field directional identification antenna

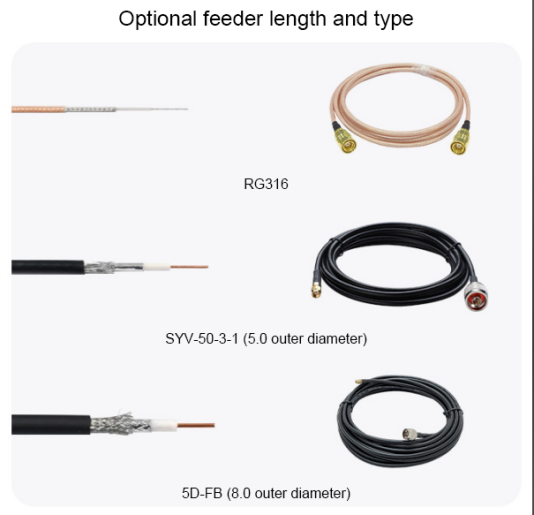

- With standard 1meter cable by RG316 material, line machine integration
- Applications: vehicle management, book file management, tool and consumables management, medical equipment management, intelligent cabinet management and other scenarios
- With standard 1meter cable by RG316 material, line machine integration
- Applications: vehicle management, book file management, tool and consumables management, medical equipment management, intelligent cabinet management and other scenarios
Specification
|
Electrical Specifications |
|
Mechanical Specifications |
||
|
Frequency |
915MHz/866.5MHz |
|

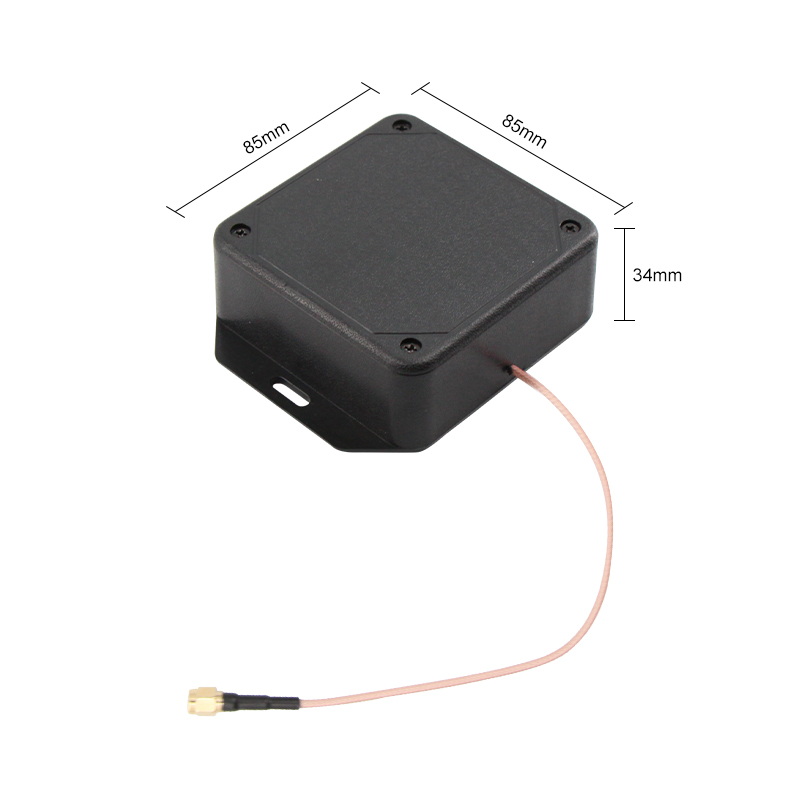

Size |
85*85*34mm |
|
Gain |
5dBi |
|
Material |
ABS |
|
Polarization |
circular |
|
Working temperature |
-20-60℃ |
|
Antenna axis ratio |
≤5dB |
|
|
|
|
Impedance |
50Ω |
|
|
|
|

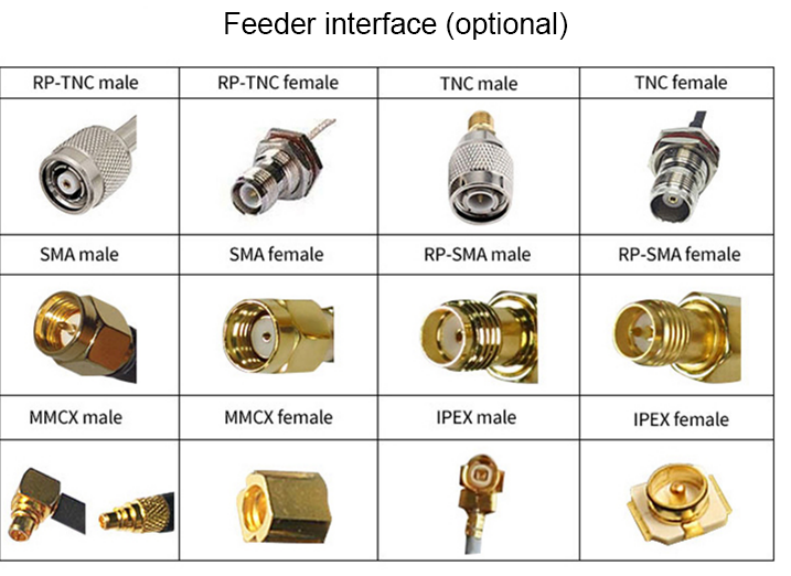

Connector |
SMA male |
|
|
|
Product details
Related products
|
picture |
|
|
|
|
model |
CF-RA6004 |
CF-RA8007 |
CF-RA1008 |
|
gain |
6dBi |
8dBi |
10dBi |
|
Polarization mode |
circular polarization |
circular polarization |
Linear polarization/circular polarization |
|
Read the reference |
0-6 meters (It depends on the card reader and tag) |
0-8 meters (It depends on the card reader and tag) |
0-10 meters (It depends on the card reader and tag) |
|
size |
156*130*20mm |
295*105*10mm |
Multiple sizes are available |
