CF-RA1014 UHF 10dBi narrow beam antenna

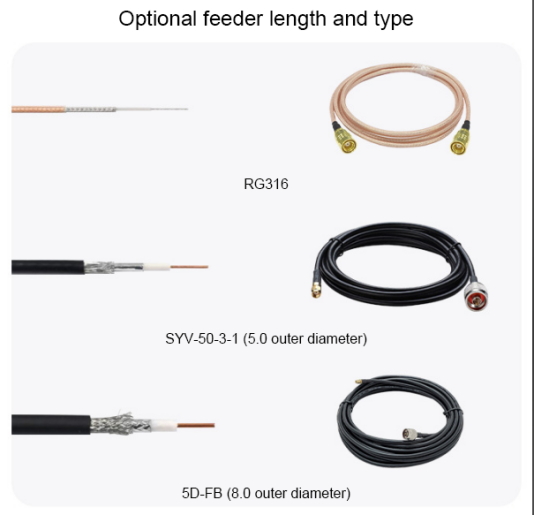

- Standard 1 meter cable by RG316 material, line machine integration
- Applications: file cabinet management, channel door management, freezer management, asset management, file cabinet management and other scenarios
Specification
|
Electrical Specifications |
|
Mechanical Specifications |
||
|
Frequency |
902-928MHz |
|

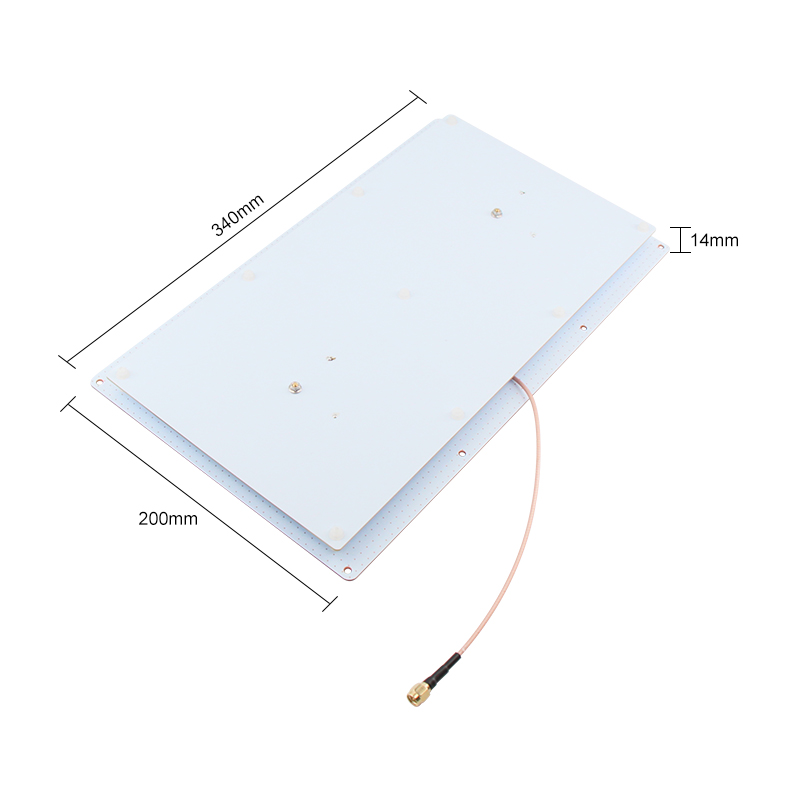

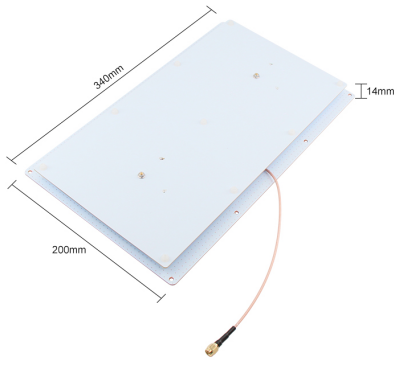

Antenna size |
340*200*14mm |
|
Gain |
10dBi |
|
Net weight |
0.4kg |
|
Radiation Angle |
Hor:73° Ver:43° |
|
Packing |
45*20.5*2cm |
|
Polarization |
circular polarization |
|
Gross weight |
0.8kg |
|
VSWR |
≤1.4 |
|
Material |
PCB |
|
Front-to-back ratio |
≥20 |
|
Antenna color |
Original color |
|
Impedance |
50Ω |
|
Working temperature |
-20-60℃ |
|
Maximum input power |
100W |
|
Waterproof |
not have |
|
Lightning protection |
DC grounding |
|
|
|
|

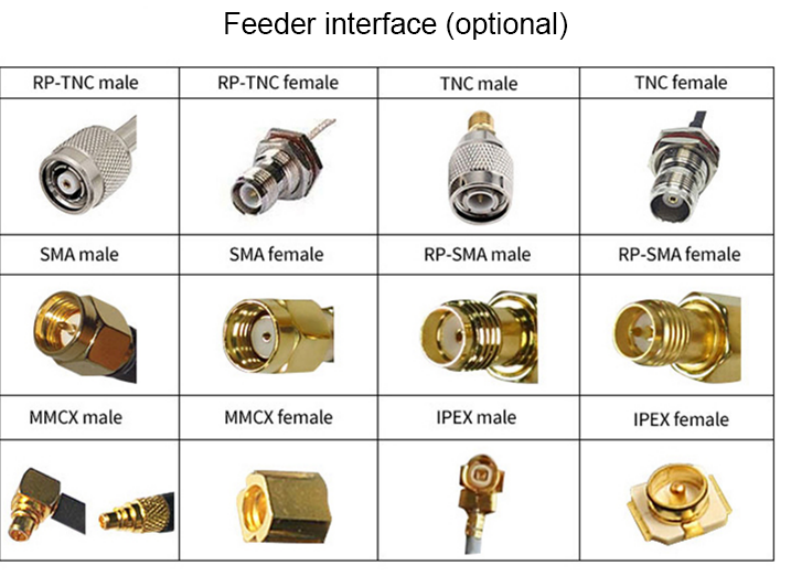

Connector |
SMA male |
|
|
|

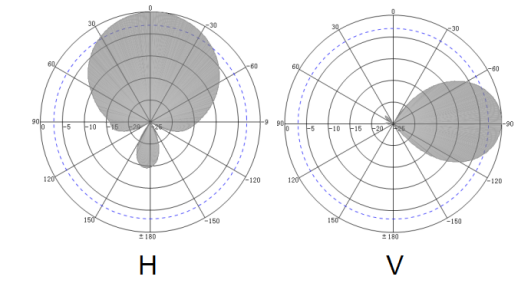

Angle of radiation

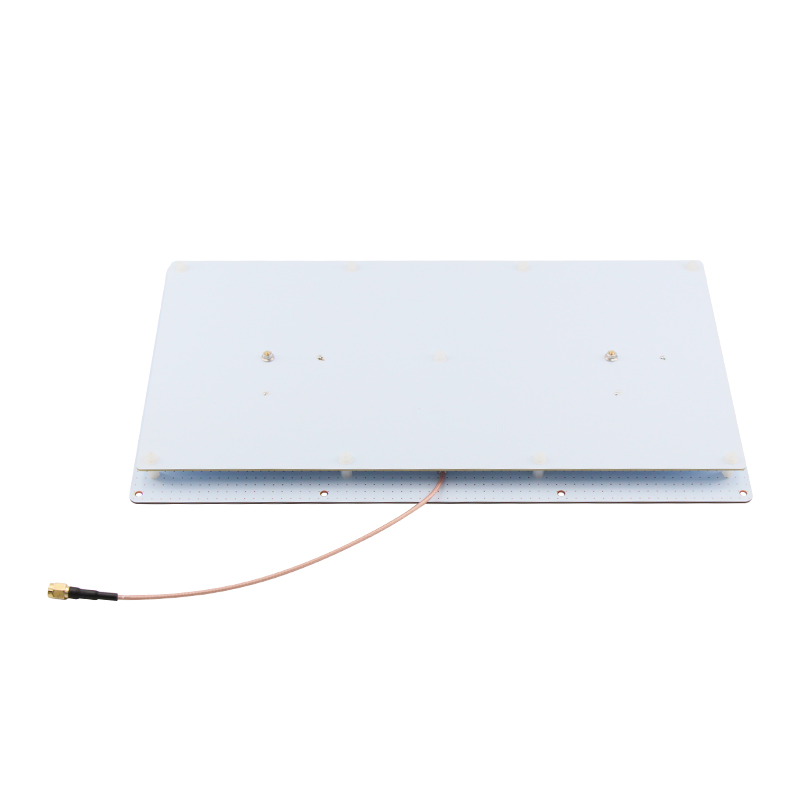

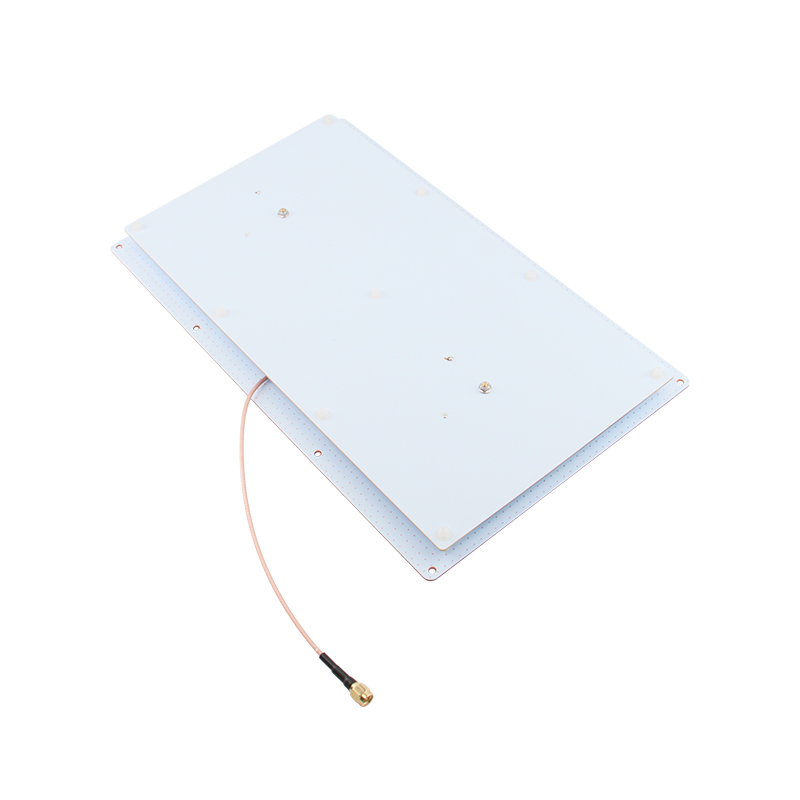

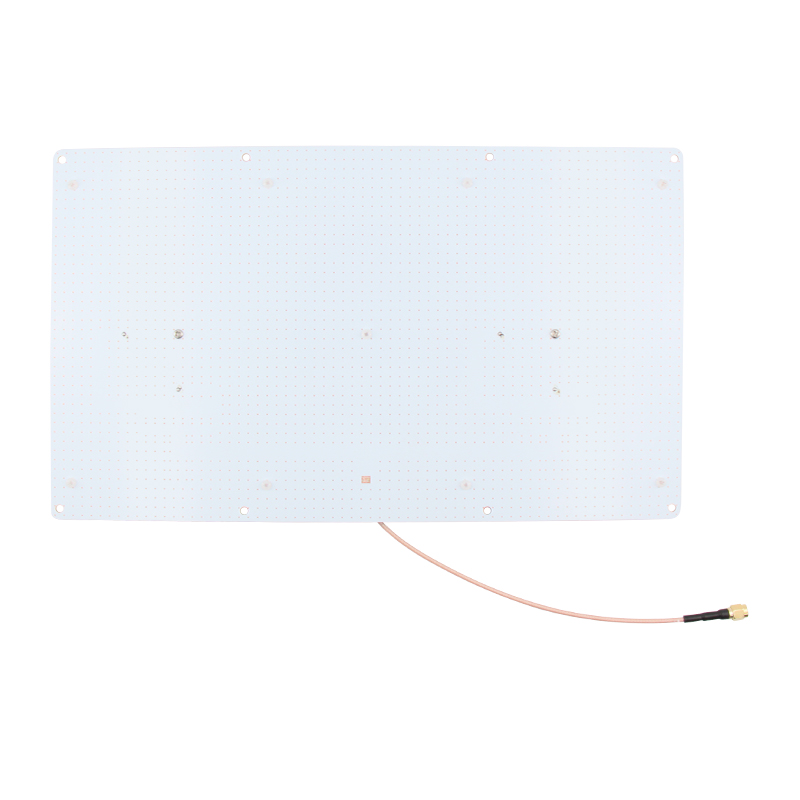

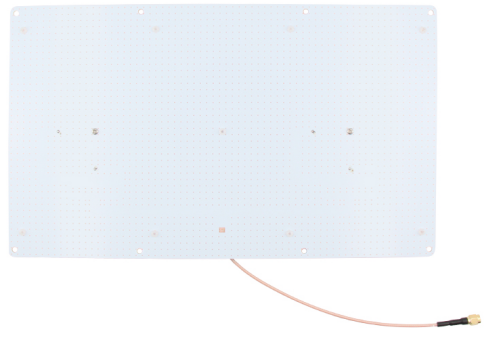

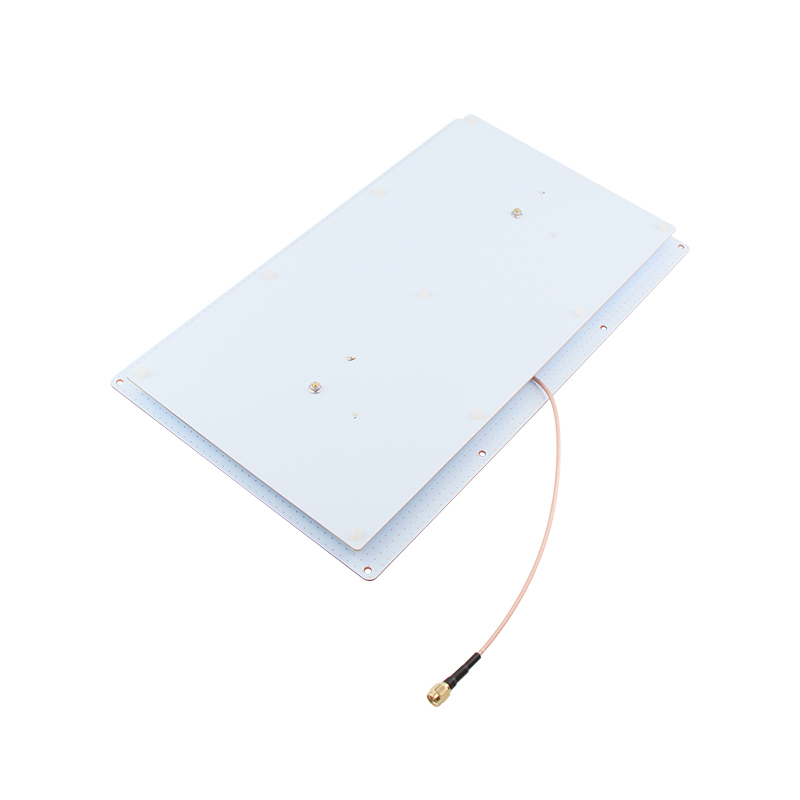

Product details
