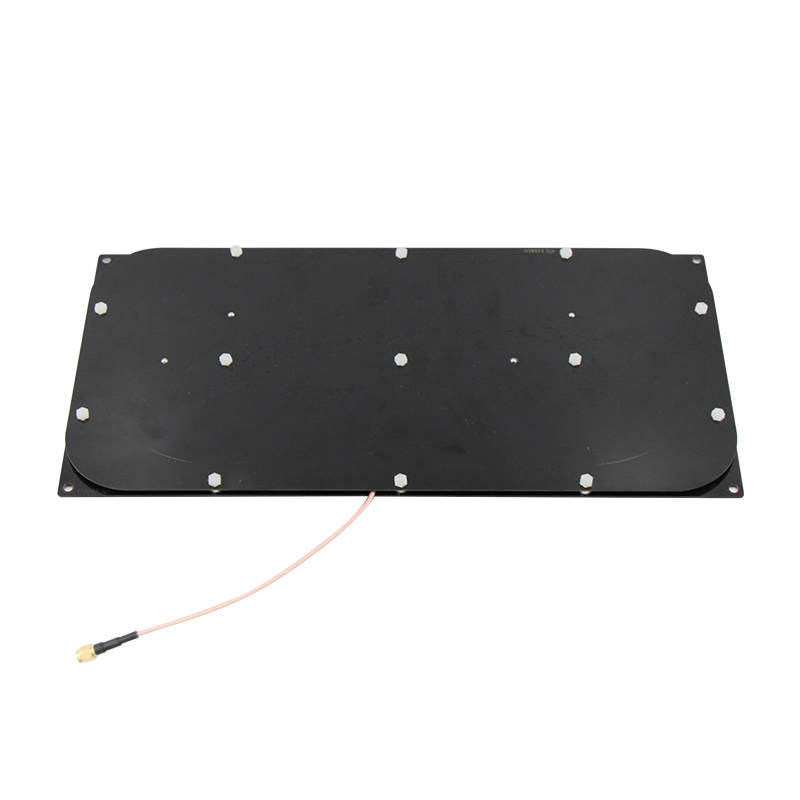

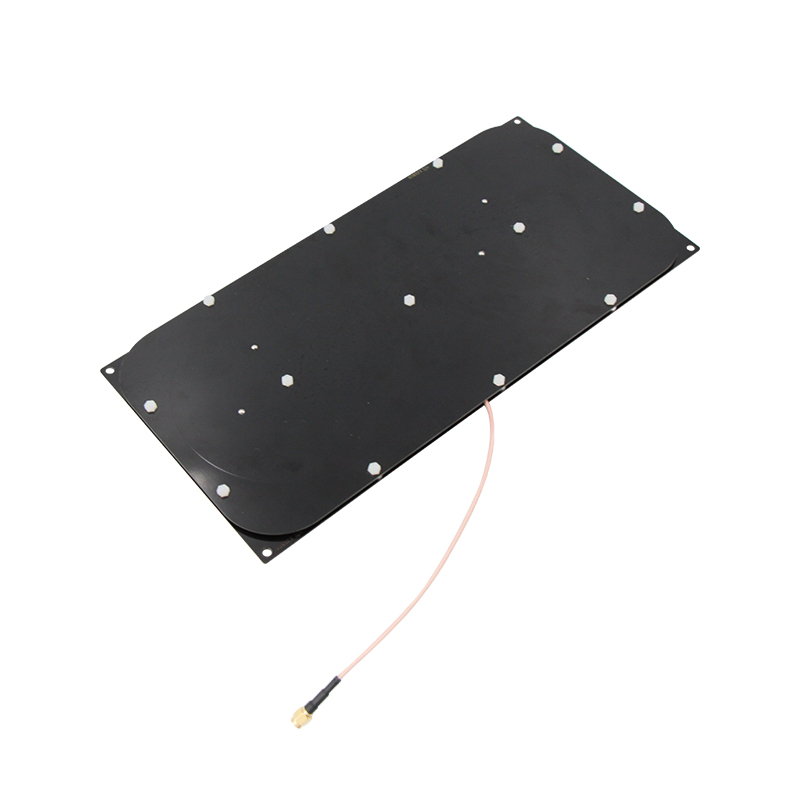

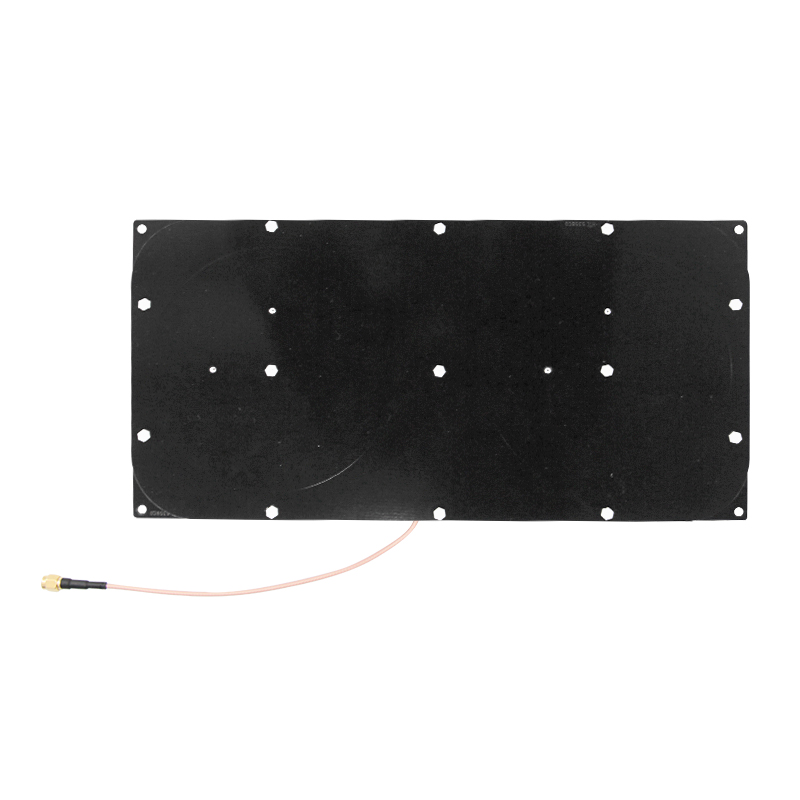

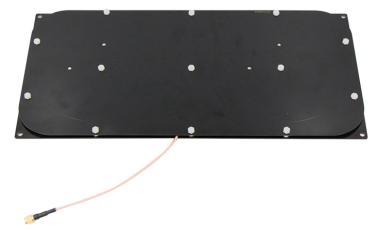

CF-RA8010 UHF 8dBi Narrow beam antenna

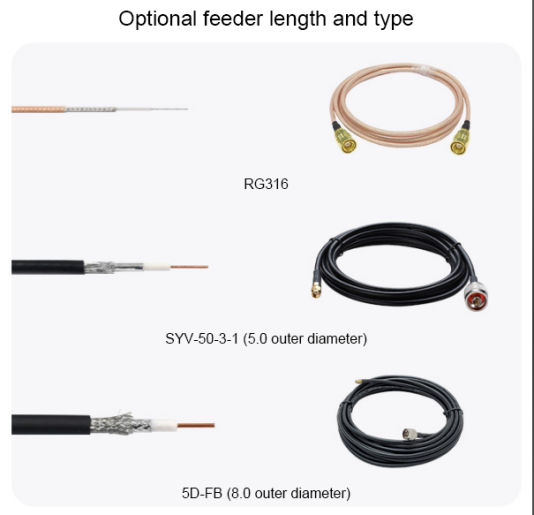

- With standard 1meter cable by RG316 material, line machine integration
- Applications: file cabinet management, channel door management, freezer management, asset management, intelligent cabinet management and other scenarios
Specification
|
Electrical Specifications |
|
Mechanical Specifications |
||
|
Frequency |
860-960MHz |
|

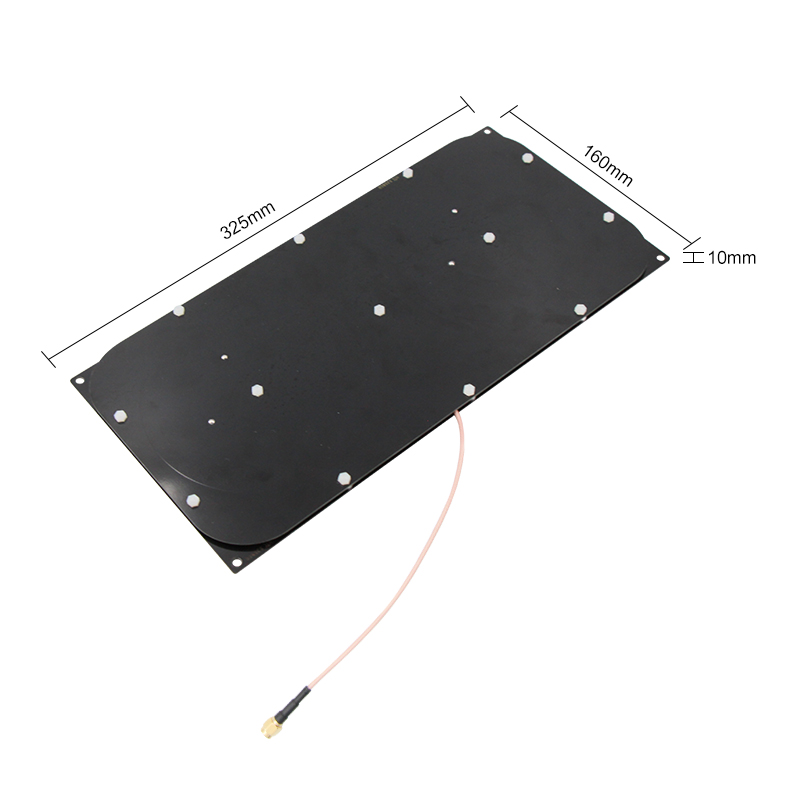

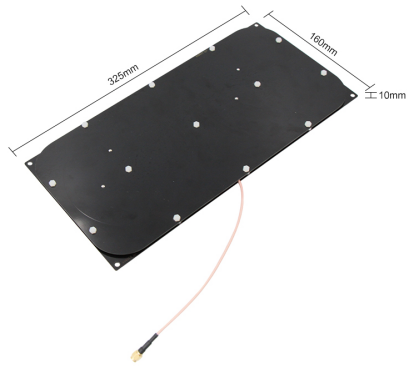

Antenna size |
325*160*10mm |
|
Gain |
8dBi |
|
Net weight |
0.3kg |
|
Radiation Angle |
Hor:70° Ver:45° |
|
Packing |
37*20*6cm |
|
Polarization |
circular polarization |
|
Gross weight |
0.4kg |
|
VSWR |
≤1.3 |
|
Material |
PCB |
|
Front-to-back ratio |
≥20 |
|
Color |
black |
|
Impedance |
50Ω |
|
Working temperature |
-20-60℃ |
|
Maximum input power |
100W |
|
Waterproof |
not have |
|
Lightning protection |
DC grounding |
|
|
|
|
Connector |
SMA male |
|
|
|

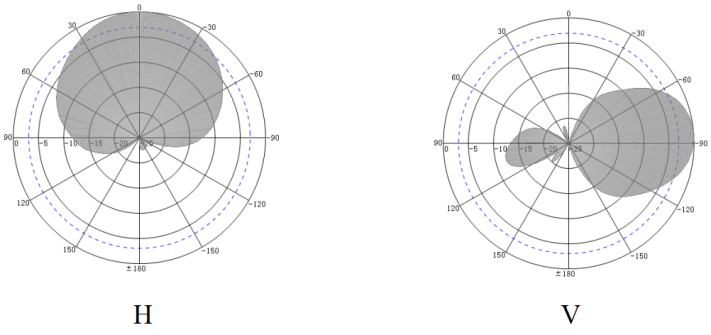

Radiation Angle

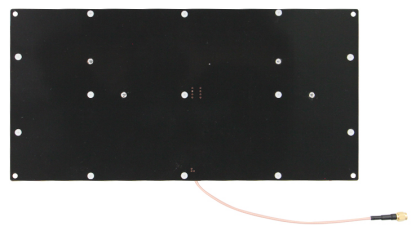

Display
