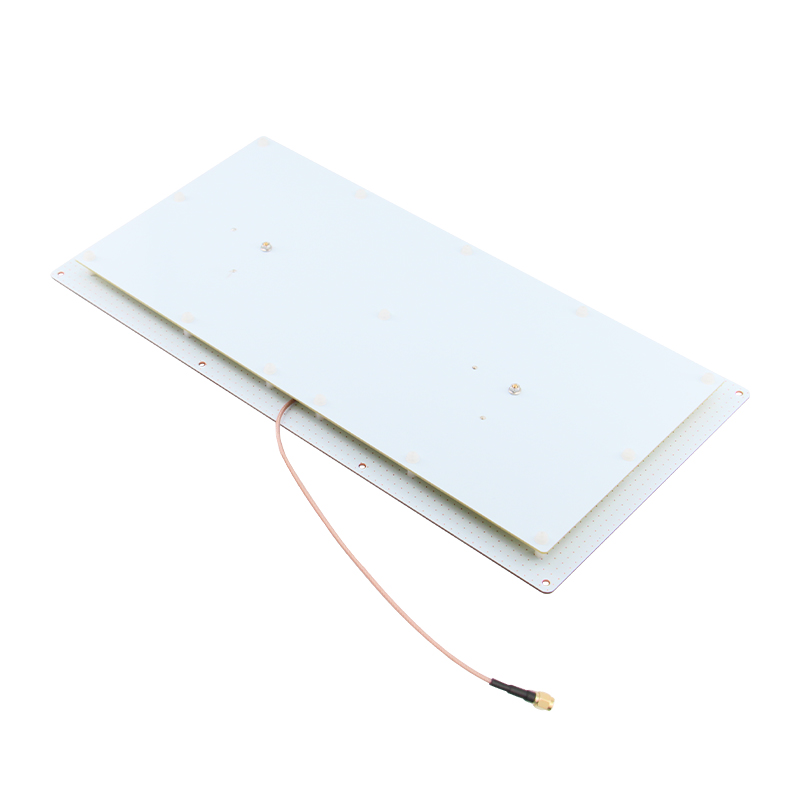

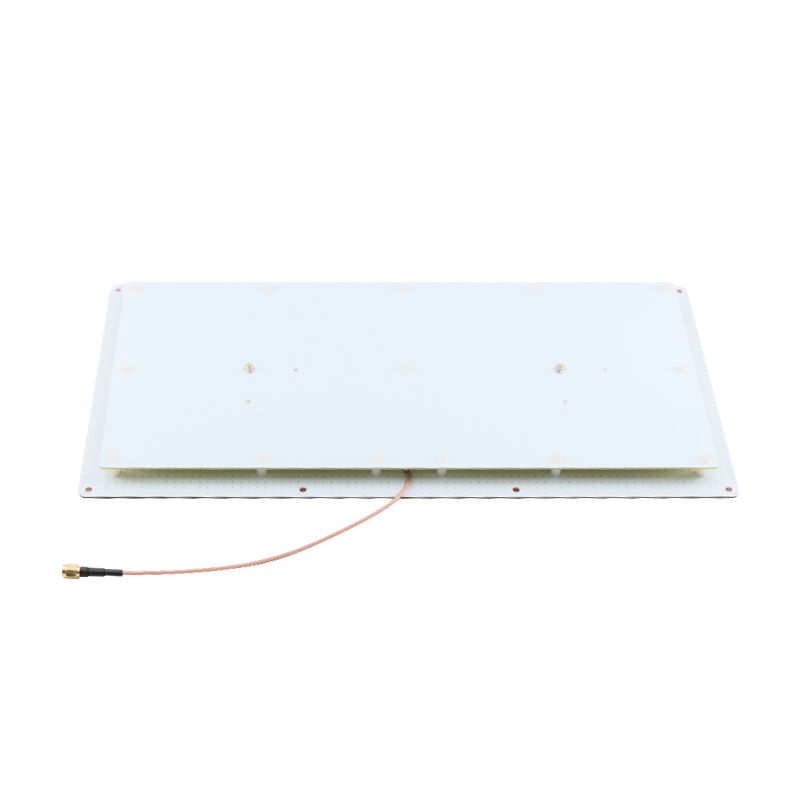

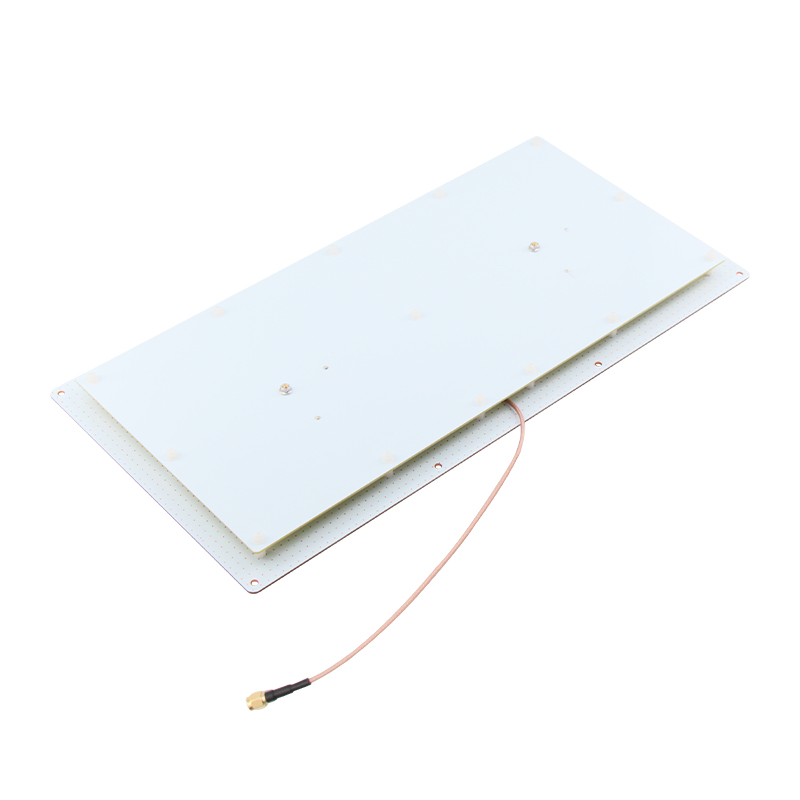

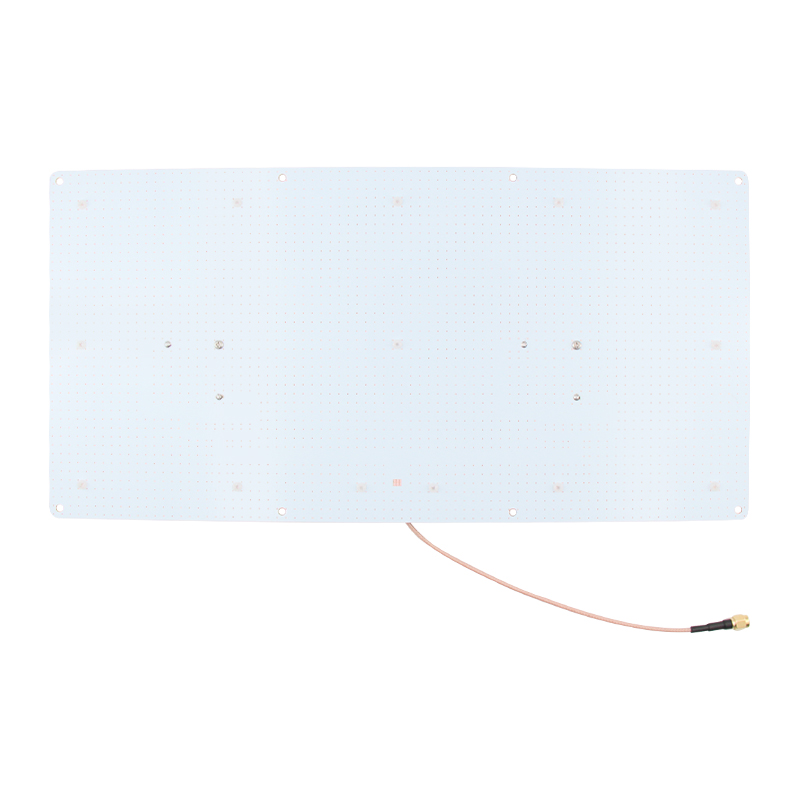

CF-RA1101 UHF 11dBi narrow beam antenna

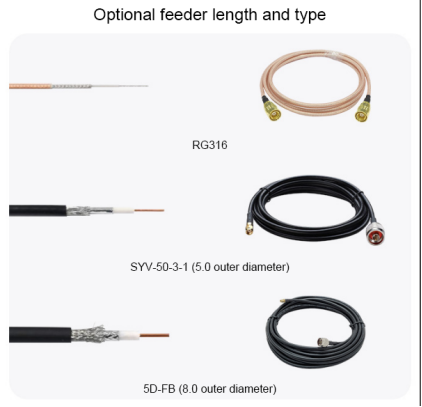

- With standard 1meter cable by RG316 material, line machine integration
- Applications: file cabinet management, channel door management, freezer management, asset management, file cabinet management and other scenarios
Specification
|
Electrical Specifications |
|
Mechanical Specifications |
||
|
Frequency |
902-928MHz |
|

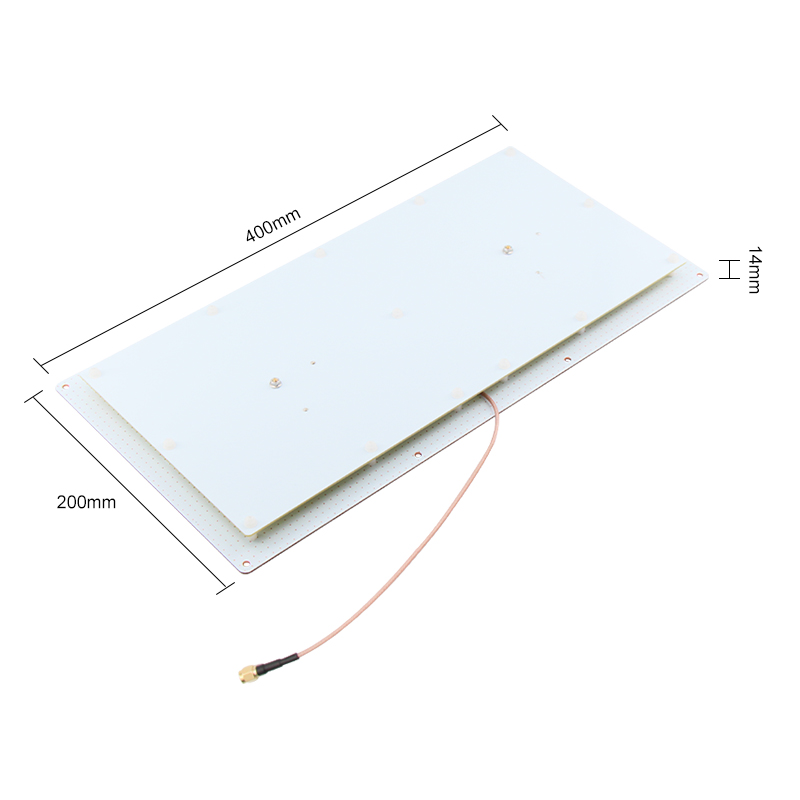

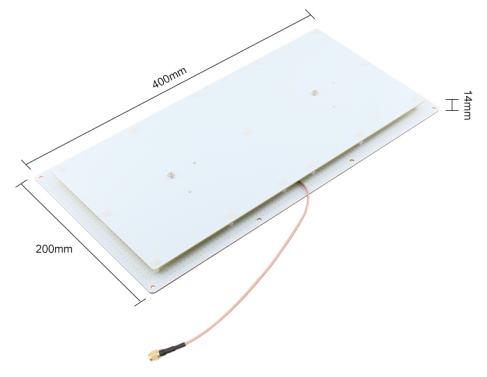

Antenna size |
400×200*14mm |
|
Gain |
11dBi |
|
Net weight |
0.5kg |
|
Radiation Angle |
Hor:68° Ver:40° |
|
Packing |
42.5*21*3cm |
|
Polarization mode |
circular polarization |
|
Gross weight |
0.6kg |
|
VSWR |
≤1.4 |
|
Material |
PCB |
|
Front-to-back ratio |
≥20 |
|
Antenna color |
white |
|
Impedance |
50Ω |
|
Working temperature |
-20-60℃ |
|
Maximum input power |
100W |
|
Waterproof |
Not have |
|
Lightning protection |
DC grounding |
|
|
|
|

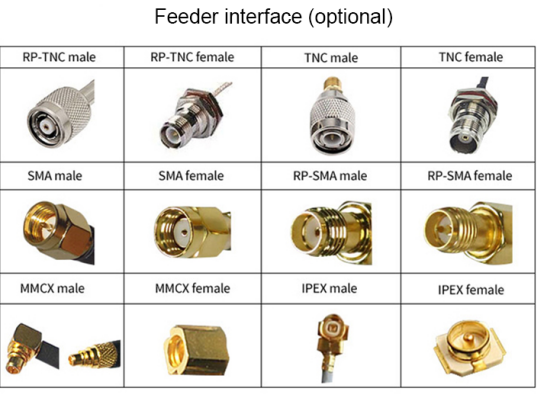

Connector |
SMA male |
|
|
|

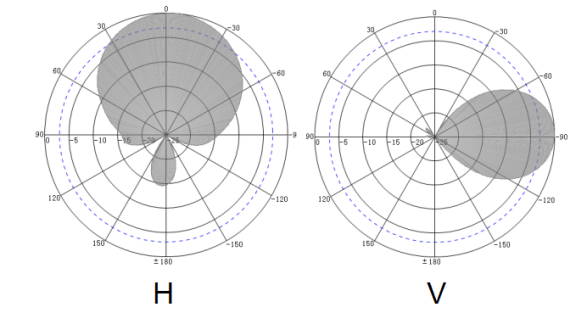

Angle of radiation

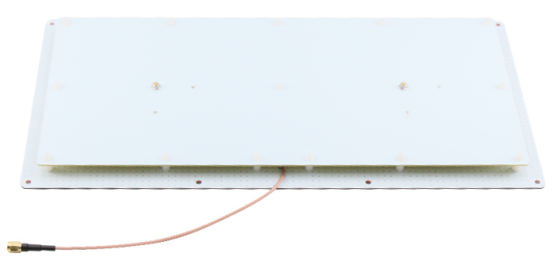

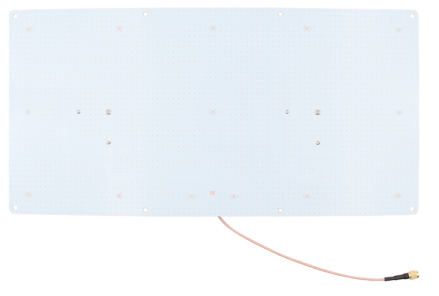

Product details
