G9507 UHF Silicone Washing Tag
The surface of clothing has good radio frequency performance.
The material and design have been tested for reliability.
They are widely used in industrial washing, work clothes management, medical clothing management, personnel inspection management, laundry clothing management and other scenarios.
G9507 UHF Silicone Washing Tag
UHF silicone washing tags are installed on linens. The surface of clothing has good radio frequency performance. The material and design have been tested for reliability. They are widely used in industrial washing, work clothes management, medical clothing management, personnel inspection management, laundry clothing management and other scenarios.
|
Performance Specifications |
|
|
Model |
G9507 |
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Operating frequency |
902-928MHz （The same size can be selected from European standard, and the frequency can also be customized according to the application) |
|
Chip Type |
Impinj M4QT |
|
Chip storage |
EPC 128-bit，User 512-bit |
|
Read & Write |
Readable and writable (customers can repeatedly write content into the chip) |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
95% alcohol test passed |
|
Gasoline Testing |
Passed by wiping with 92# gasoline |
|
High and low temperature alternating test |
-40℃ ~ +140℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days of testing passed |
|
RoHS |
Passed, the material passed SGS certification |
|
IP Rating |
IP68 |
|
Reading Distance |
More than 6 meters (30dBm power + 8dBi antenna) |
|
More than 3 meters (using Alien9011 handheld reader in open outdoor space. If other handheld devices are used, the reading distance may be different) |
|
|
Polarization |
Linear polarization |
|
RF performance consistency test |
100% tested and passed (tested by Voyantic Tagformace tester from Finland, Europe) |
|
Physical properties |
|
|
Optional |
Write code, laser serial code |
|
Warranty |
1year |
|
Main material |
Silicone |
|
Surface color |
White |
|

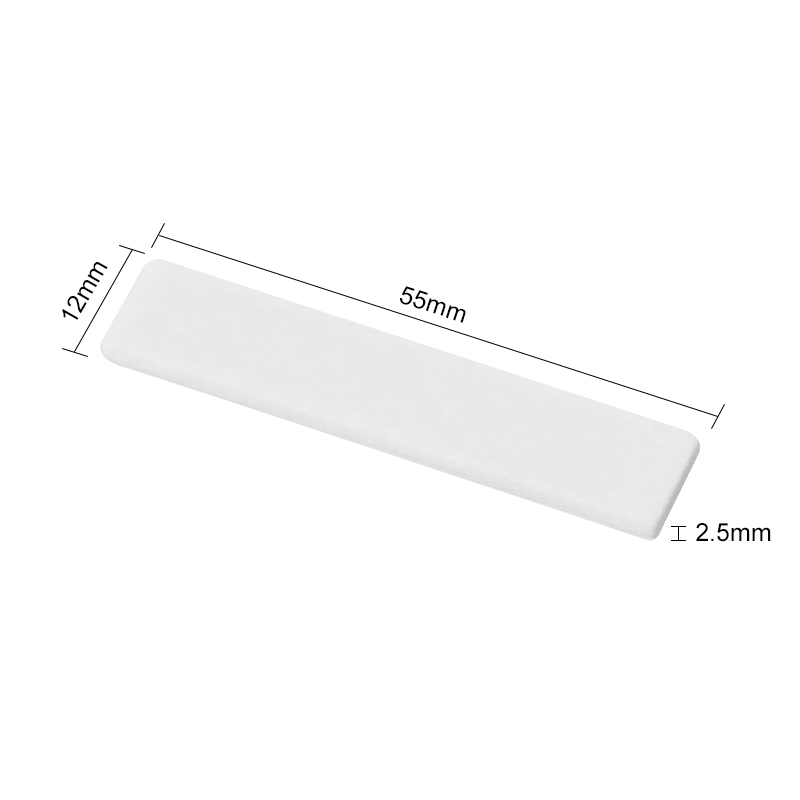

Product size |
55*12*2.5mm |
|
Operating temperature |
-40℃~ +85℃ |
|
Storage temperature |
-45℃~ +140℃ |
|
Storage humidity |
5%～95% |
|
Installation |
Put into the bag for sewing |
|
Product Weight |
2g/pc |
|
Package |
Carton packaging |
