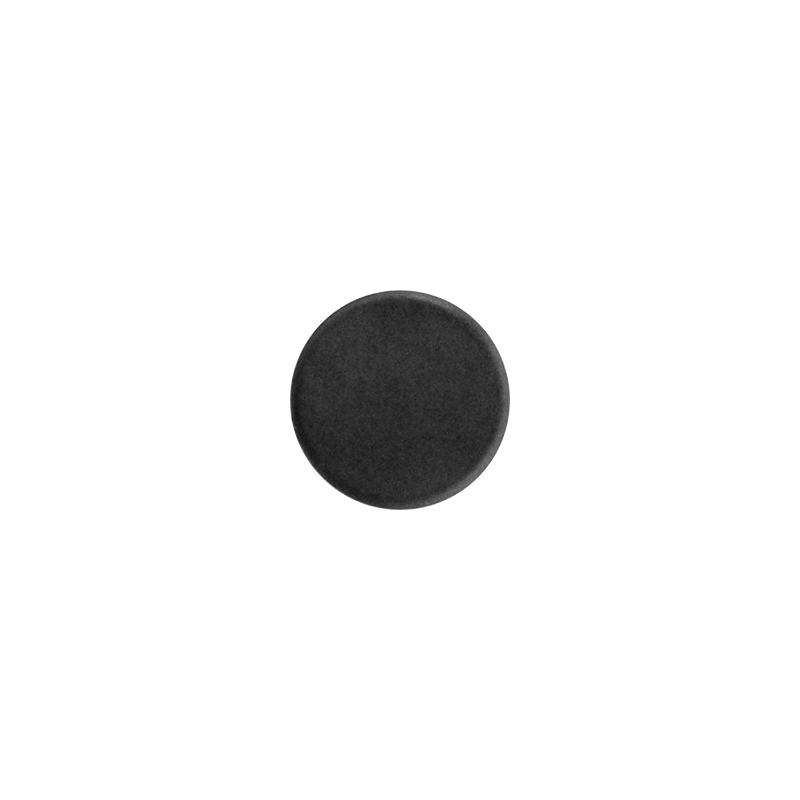

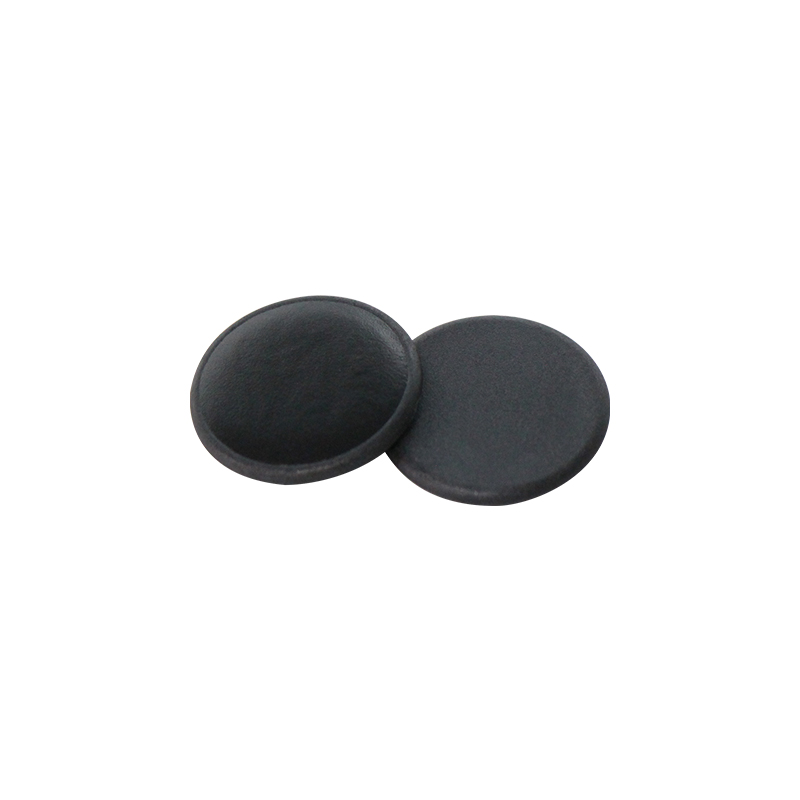

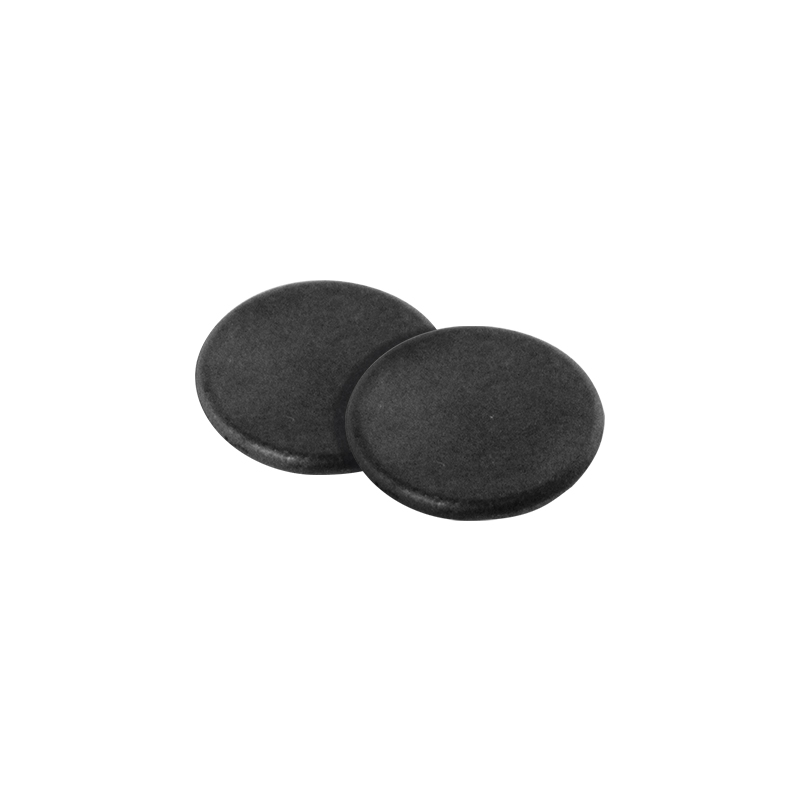

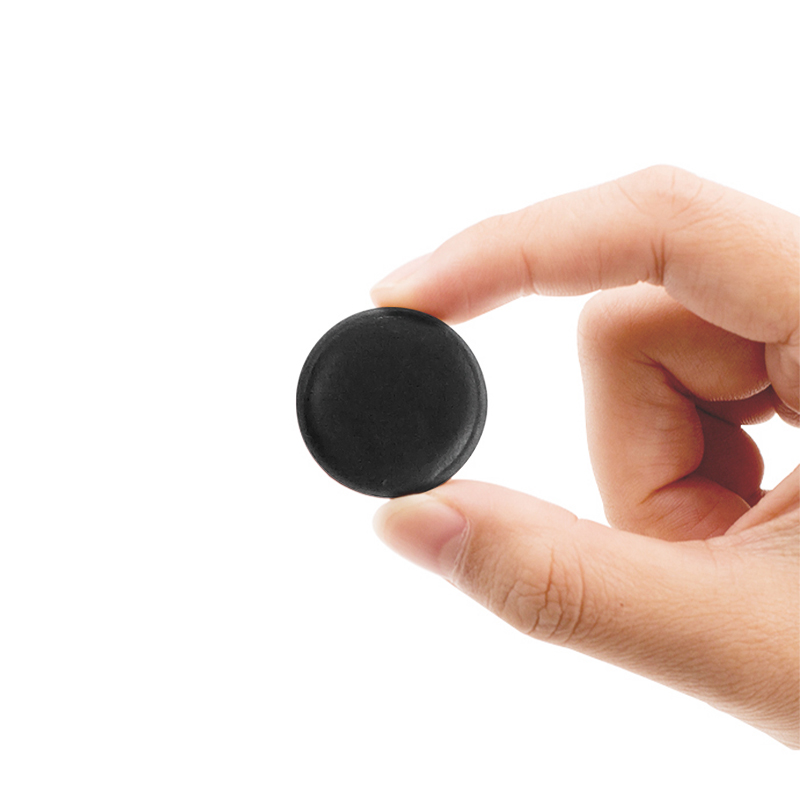

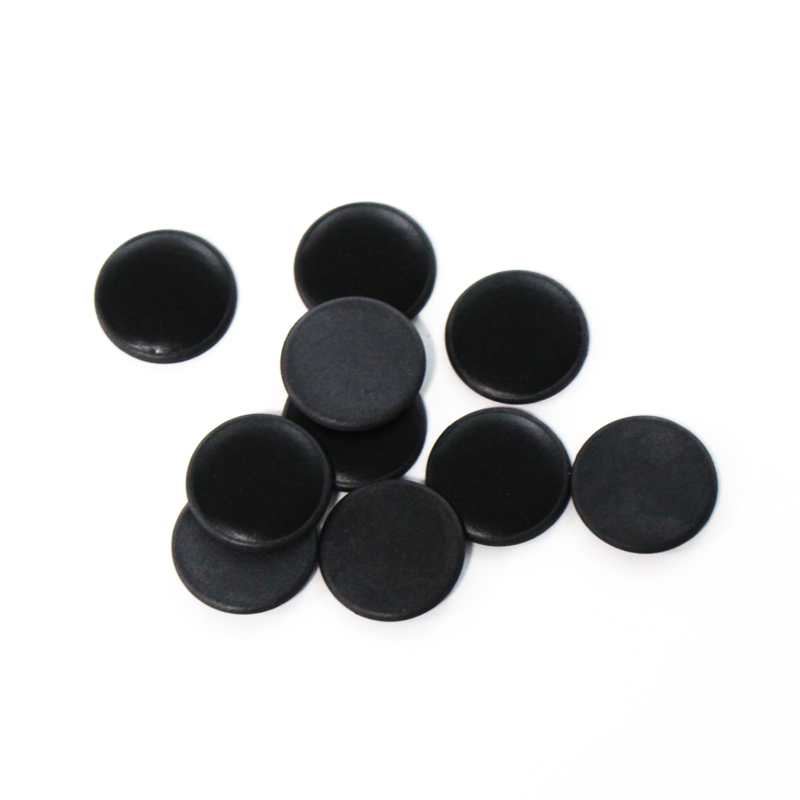

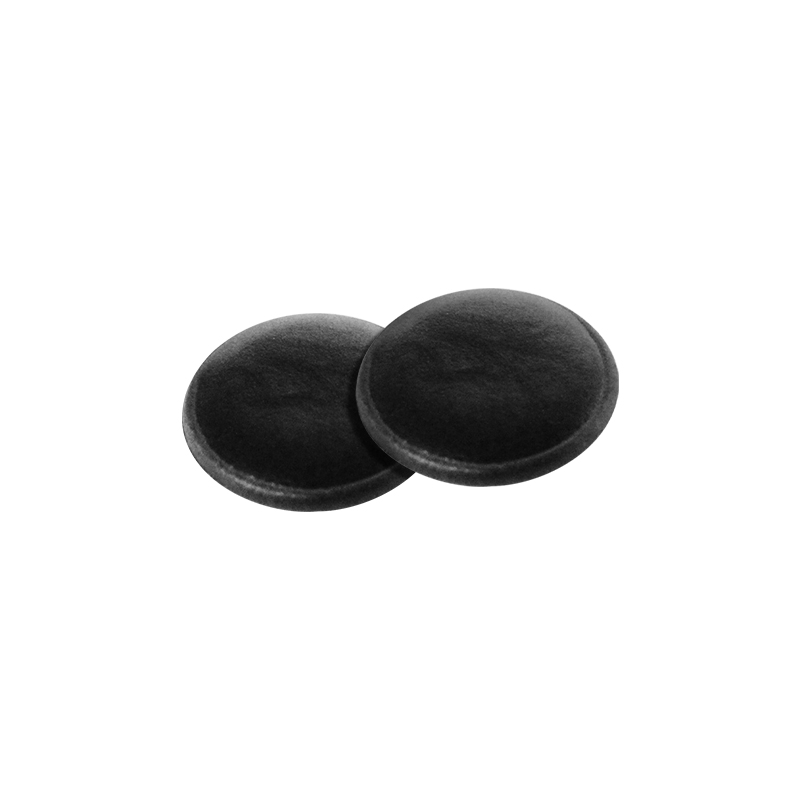

G9505 UHF Hard Washing Tag
The materials and designs have been tested for reliability and are widely used in industrial washing,
work clothes management, medical clothing management, personnel inspection management and other scenarios.
|
Performance Specifications |
|
|
Model |
G9505 |
|
Protocol |
UHF：EPC Class1 Gen2，ISO18000-6C HF：ISO15693 或ISO14443A |
|
Operating frequency |
UHF：902-928MHz（Customizable frequency according to application） HF：13.56MHz |
|
Chip Type |
UHF：NXP Ucode7/7M HF：NXP ICODE SLIX / NTAG213 |
|
Read & write |
Readable & writable (can repeatedly write content into the chip) |
|
Data Retention |
20 years |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
95% alcohol test passed |
|
Gasoline Testing |
Passed by wiping with 92# gasoline |
|
High and low temperature alternating test |
-40℃～+150℃, 7 high and low temperature alternating cycles, a total of 2 consecutive days of testing passed |
|
RoHS |
Passed, materials passed SGS certification |
|
IP Rating |
IP67 |
|
Physical properties |
|
|
Product Material |
PPS and high temperature resistant epoxy adhesive |
|
Product size |

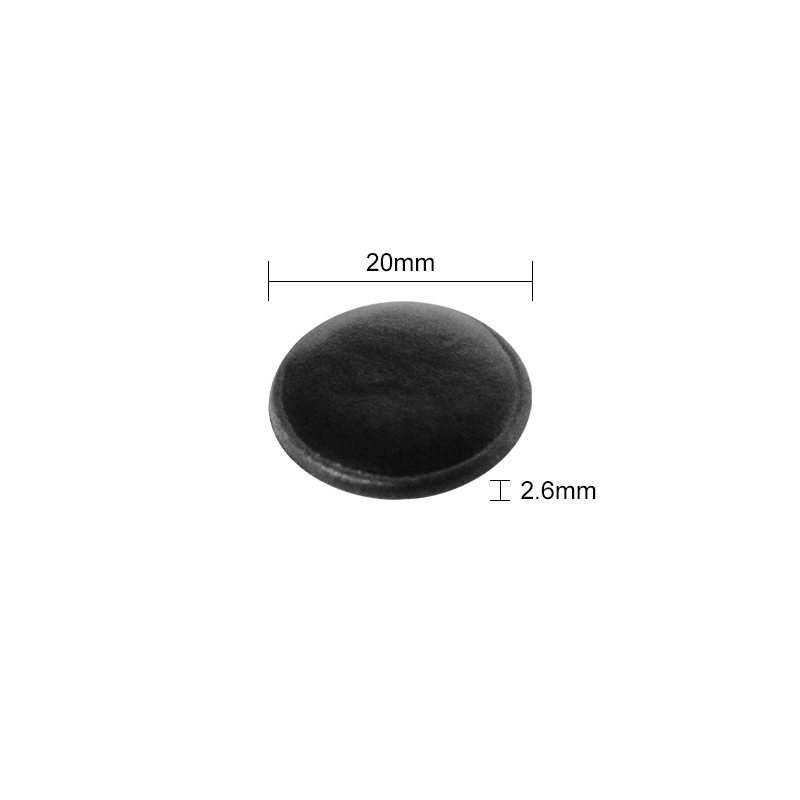

Diameter 20mm, thickness 2.6mm (accuracy +-0.2mm) |
|
Operating temperature |
-25℃~ +110℃ |
|
Storage temperature |
-40℃~ +135℃ |
|
Short-term heat resistance |
180℃ @ 2minutes |
|
Storage humidity |
5%～95% |
|
Installation |
Sewing with cloth bag |
|
Product Weight |
2g/pc |
|
Package |
Carton packaging |
|
Surface color |
Black |
