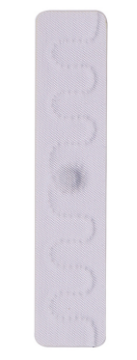

G9508 UHF Laundry Tag
suitable for scenes that require frequent cleaning and reuse,
and are widely used in industries such as medical care, hotels, manufacturing, catering, and gyms.
|
Performance Specifications |
|
|
Model |
G9508 |
|
Frequency |
865~868MHz（EU） / 902~928MHz（US ） |
|
Protocol |
ISO18000-6C(EPC-Gen2) |
|
Chip type |
M730/U9 |
|
Working mode |
Read or write |
|
Data retention |
Rewritable 100,000 times, data storage for 20 years |
|
Tag polarization |
Linear polarization |
|
Repeatability |
200 industrial washes or 2 years (whichever comes first) |
|
Function and consistency testing |
Can withstand all chemicals in normal industrial washing processes; can withstand 60Bars pressure |
|
Physical properties |
|
|
Size (optional) |

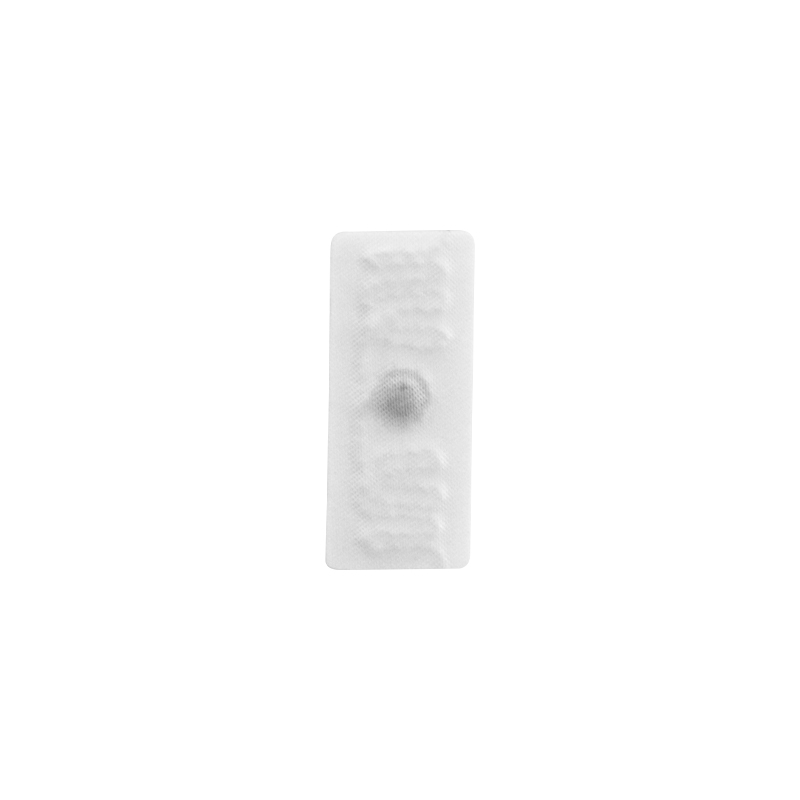

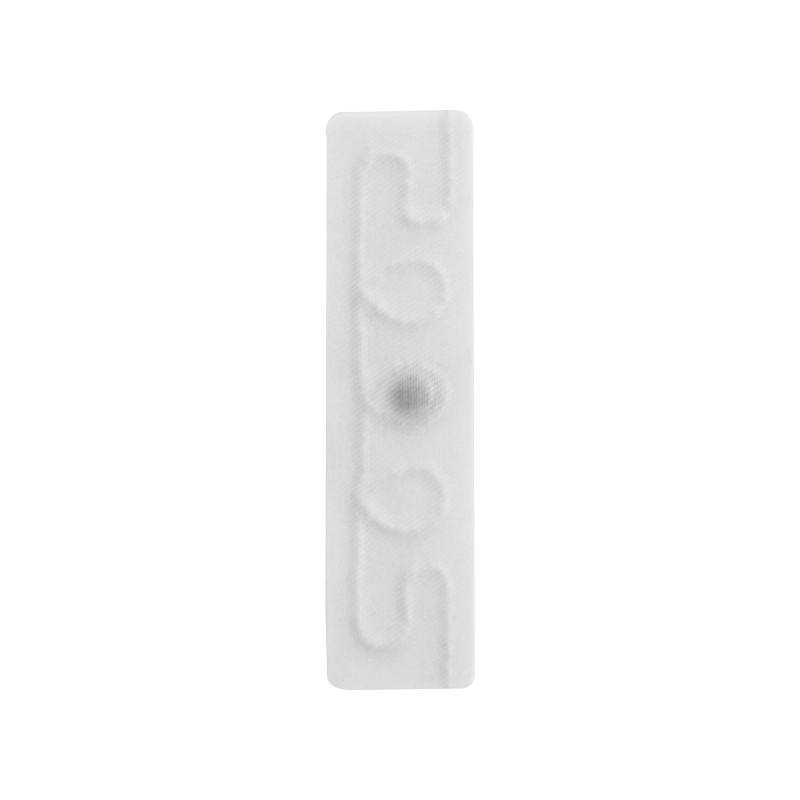

75*15mm、70*18mm、70*15mm、70*10mm、58*15mm、55*12mm、36*11mm |
|
Material style |

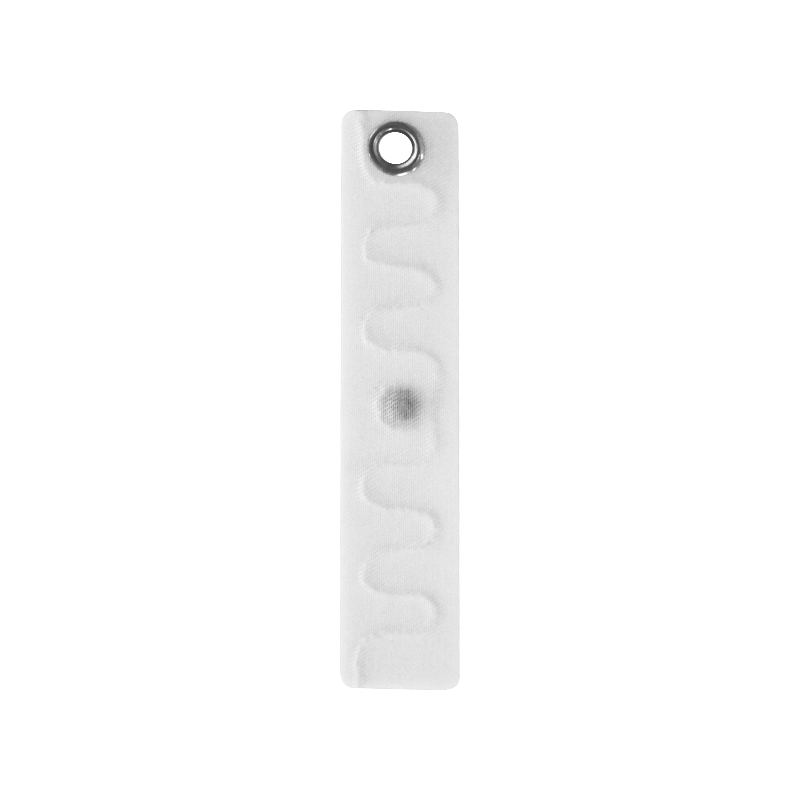

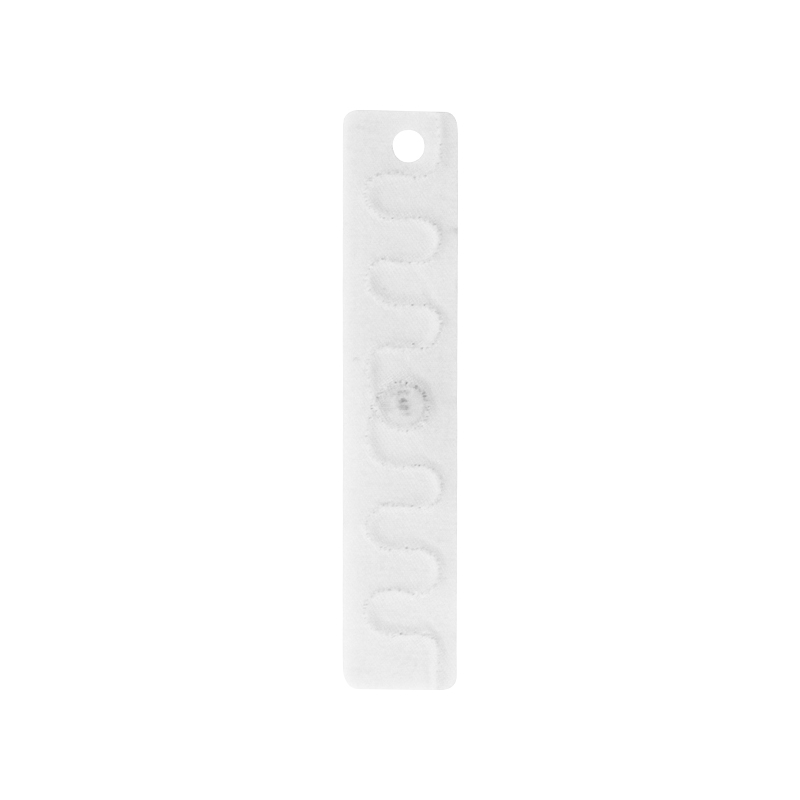

Polyester material: Default sewing type, supports ironing and punching (only 75*15mm) |
|
Operating temperature |
-40℃~ +85 ℃ 85 degrees @ 60 minutes; 120 degrees @ 10 minutes; 150 degrees @ 4 minutes; 180 degrees @ 10 seconds |
|
Storage temperature |
-25℃~ +110℃ |
|
Operating humidity |
≤80% |

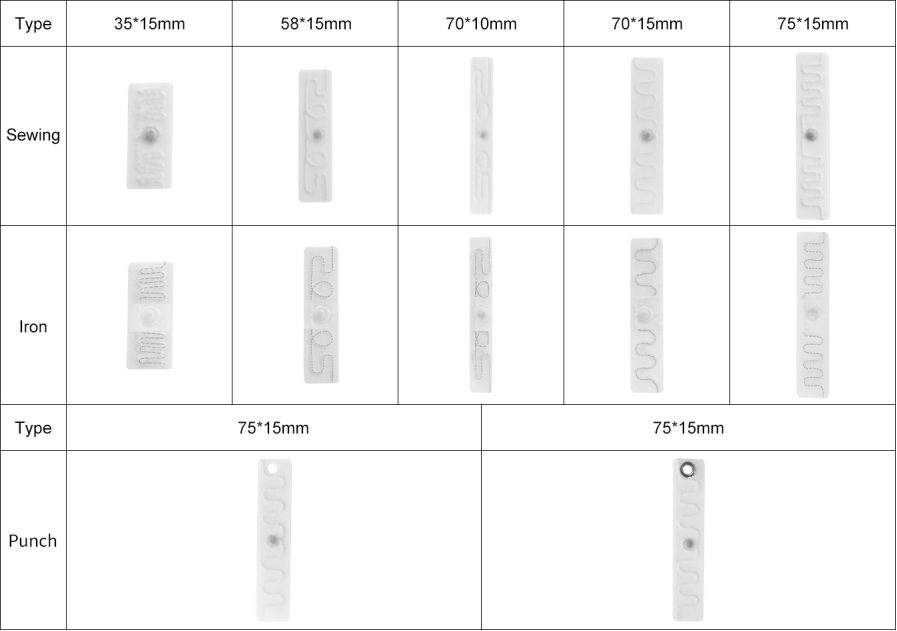

Comparison of different sizes and craftsmanship：
