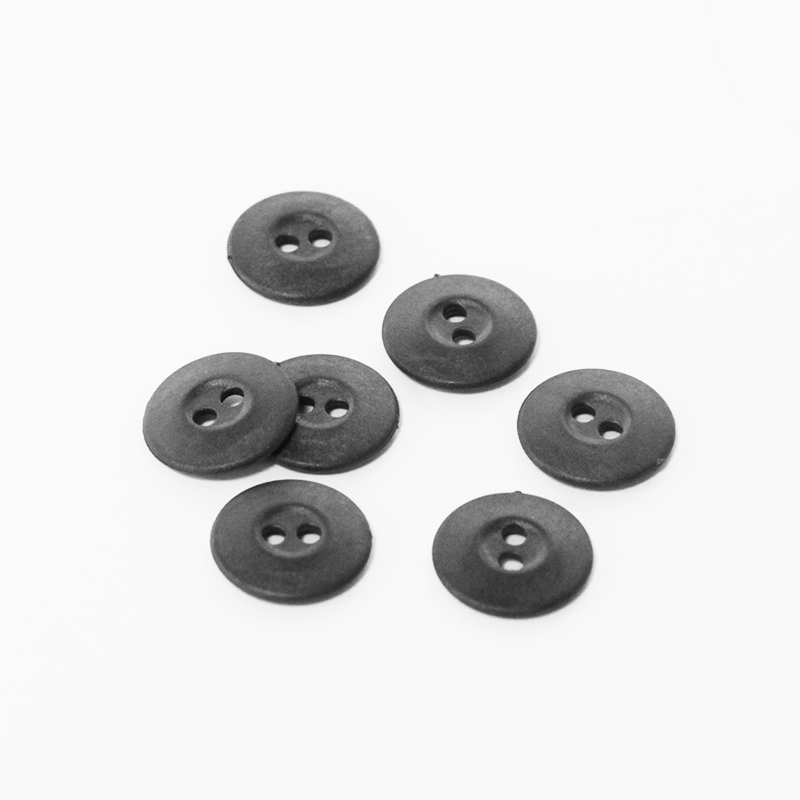

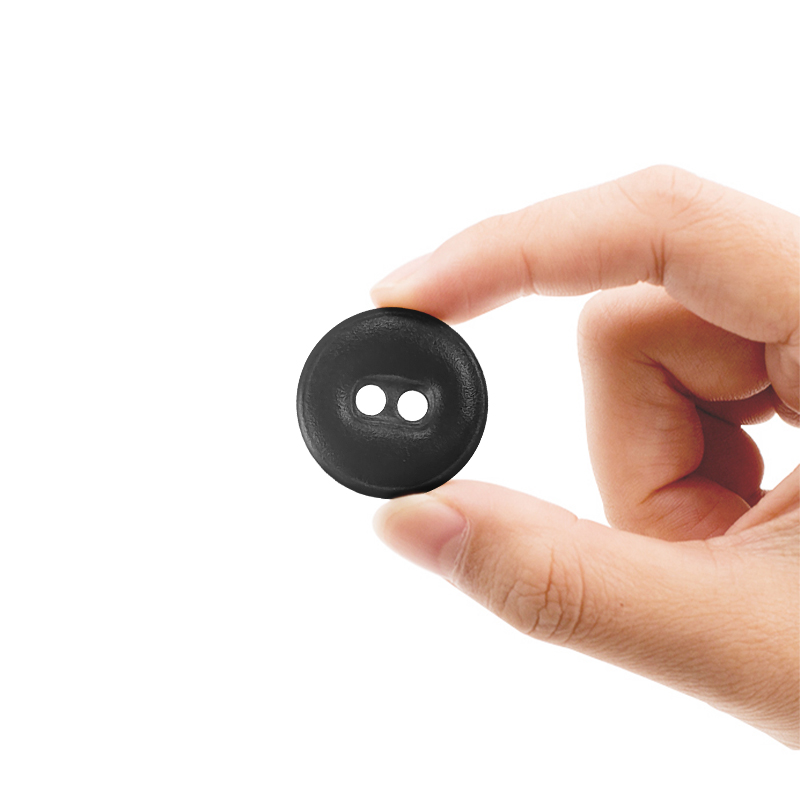

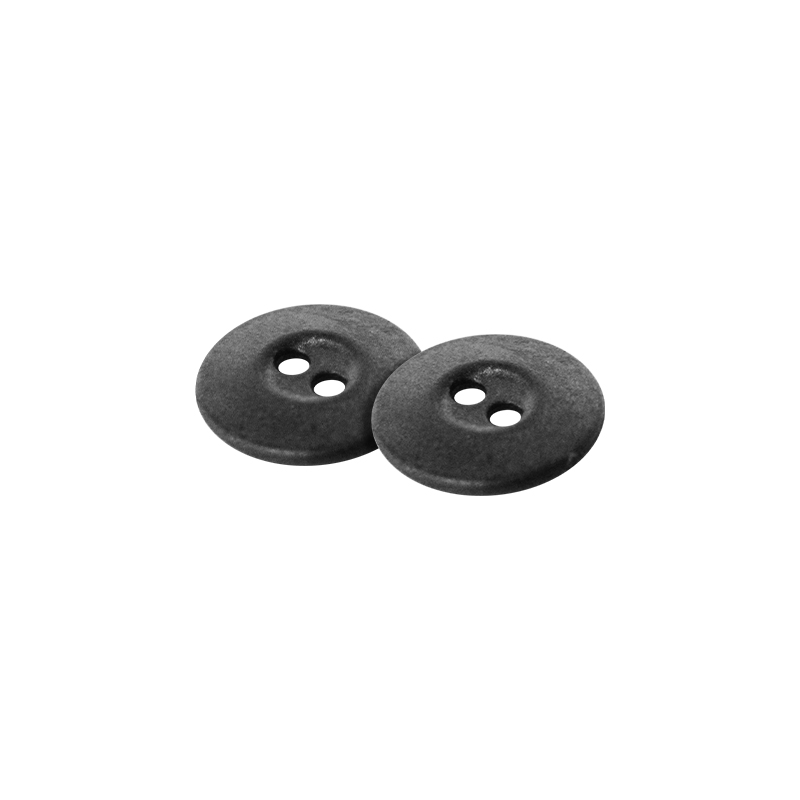

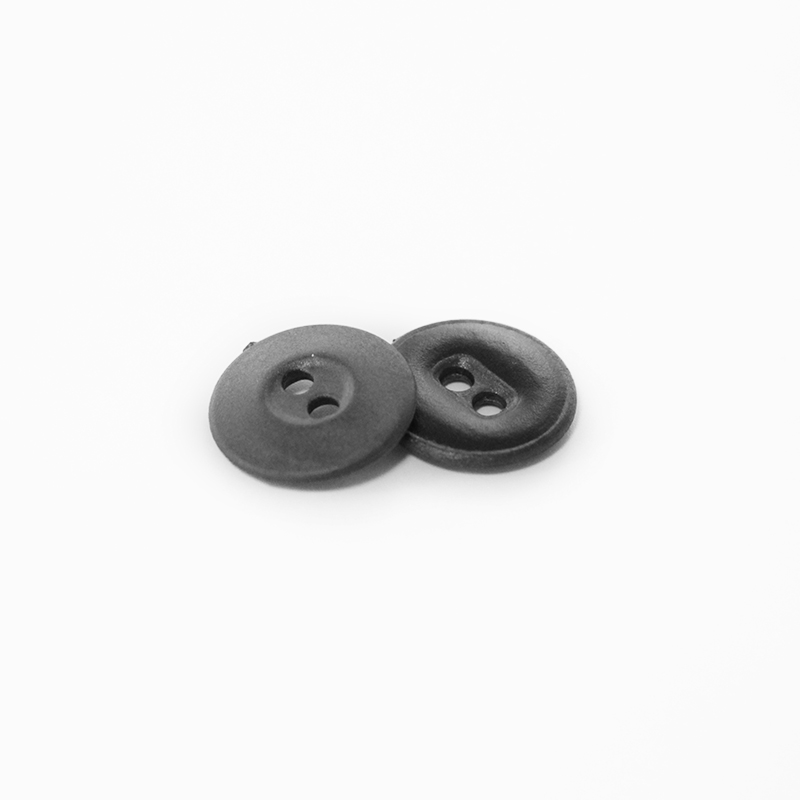

G9504 UHF Hard Washing Tag
The materials and designs have been tested for reliability and are widely used in industrial washing,
work clothes management, medical clothing management, personnel inspection management and other scenarios.
|
Performance Specifications |
|
|
Model |
G9504 |
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Operating frequency |
902-928MHz(Frequency can be customized according to application) |
|
Chip Type |
NXP Ucode7 / 7M chip |
|
Chip storage |
EPC 128-bit |
|
Read & write |
Readable & writable (can repeatedly write content into the chip) |
|
Reading Distance(Fixed Reader) |
1.5 meters or above (4W EIRP, using Alien9900 fixed reader, other readers may have different reading distances) |
|
Reading Distance |
1 meter or more (using 33dbi power handheld reader in open outdoor space) |
|
Data Retention |
20 years |
|
Polarization |
Linear polarization |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
95% alcohol test passed |
|
Gasoline Testing |
Passed by wiping with 92# gasoline |
|
High and low temperature alternating test |
-40℃～+150℃, 7 high and low temperature alternating cycles, a total of 2 consecutive days of testing passed |
|
RoHS |
Passed, materials passed SGS certification |
|
Physical properties |
|
|
Warranty |
1 year |
|
Main material |
PPS and high temperature resistant epoxy adhesive, waterproof, surface can be laser numbered |
|
Product size |

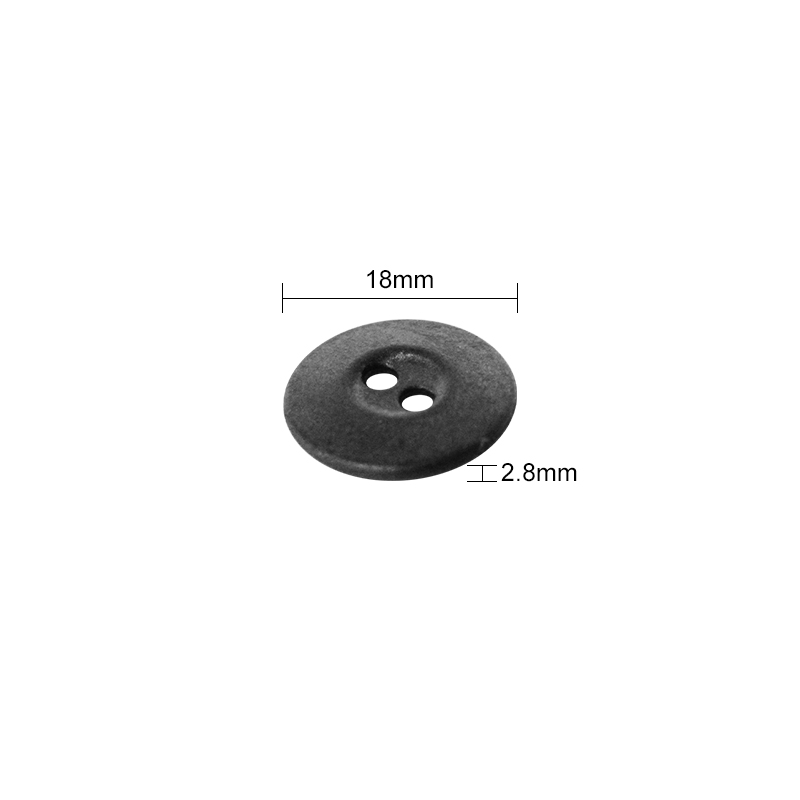

Diameter 18mm, thickness 2.8mm (accuracy +-0.2mm) |
|
Operating temperature |
-25℃~ +110℃ |
|
Storage temperature |
-40℃~ +135℃ |
|
Short-term heat resistance |
180℃ @ 2minutes |
|
IP Rating |
IP67 |
|
Storage humidity |
5%～95% |
|
Installation |
Double-hole sewing installation |
|
Product Weight |
0.91g/pc |
|
Package |
Carton packaging |
|
Surface color |
Black |
