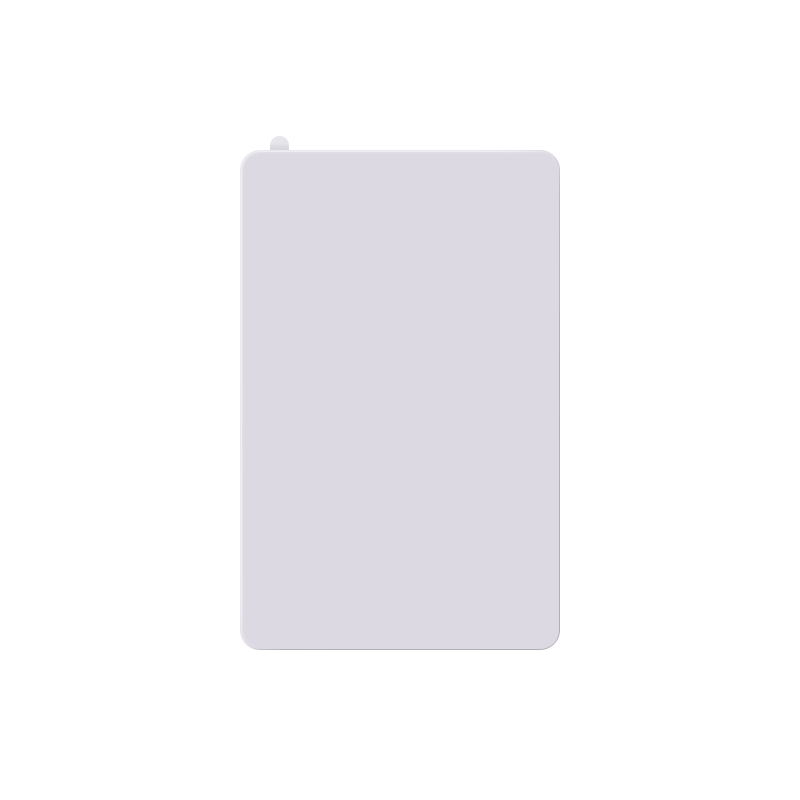

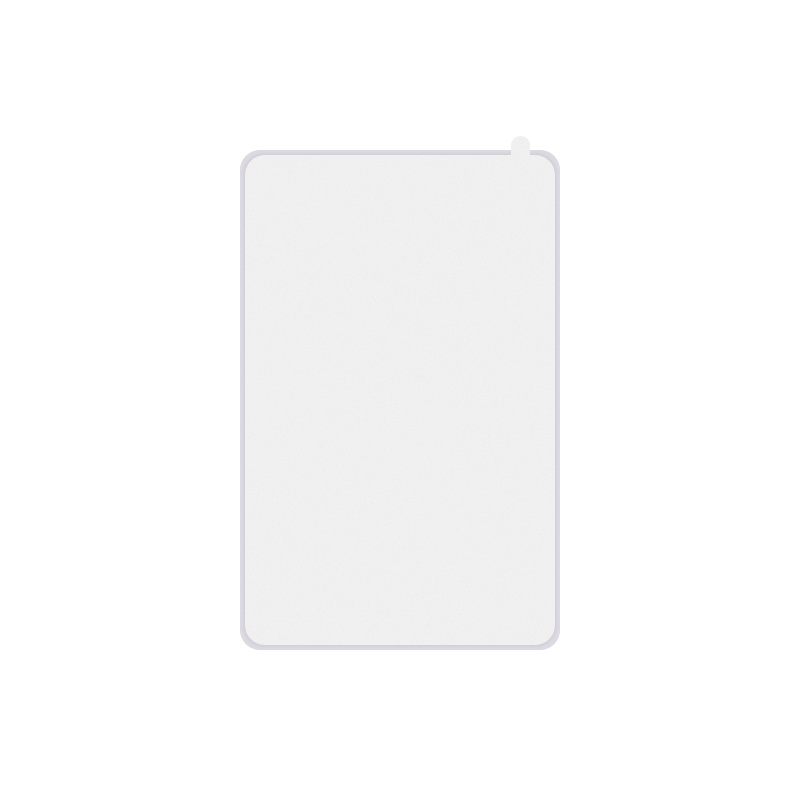

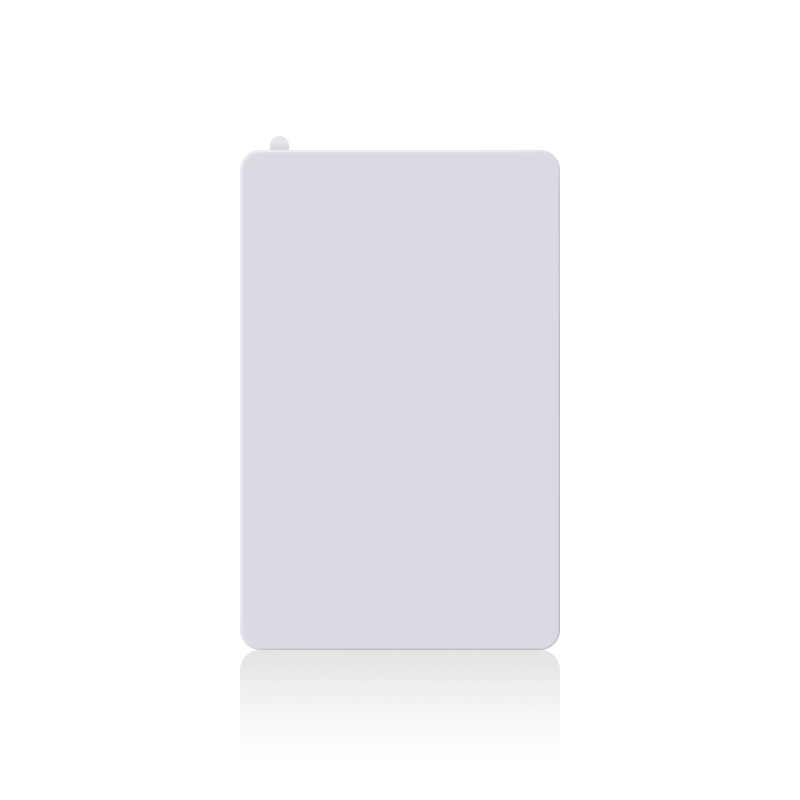

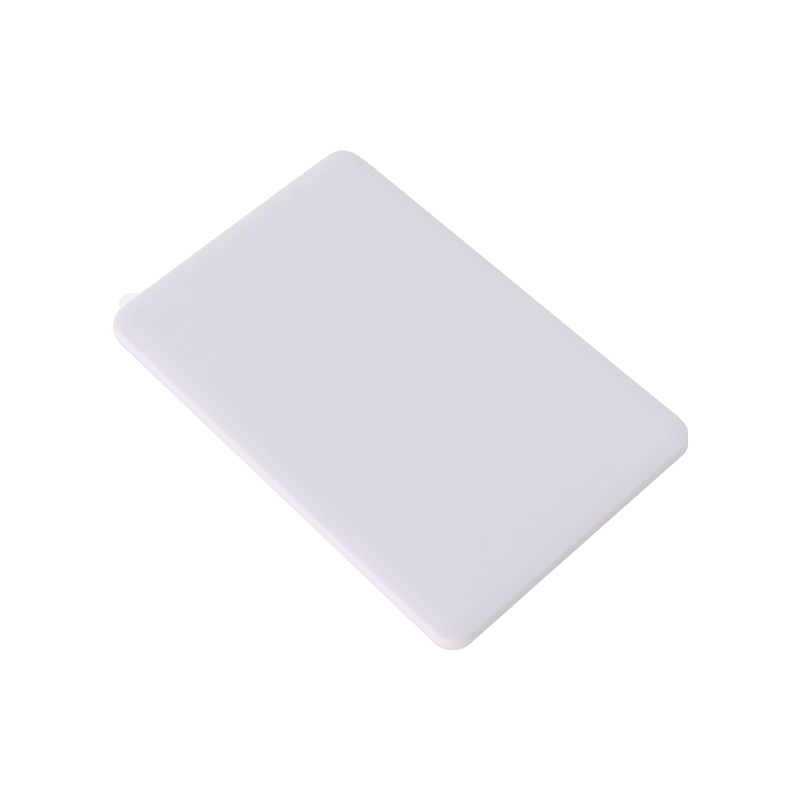

T-V865403CT UHF Vehicle anti-tampering tag
It has the characteristics of long reading distance, high sensitivity and excellent physical properties.
It can be easily used in vehicle management and other occasions.
|
Performance Specifications |
||
|
Working frequency |
860-960MHz |
|
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
|
Chip |
H3 |
M4QT |
|
Read data |
0-4.2m（4dBi antenna handheld reader） 0-8.8m（9dBi antenna + fixed reader） |
0-7m（4dBi antenna handheld reader） 0-11m（9dBi antenna + fixed reader） |
|
Function |
Read and write |
Read and write |
|
EPC |
96 bits |
128 bits |
|
User |
512 bits |
512 bits |
|
TID |
96 bits |
96 bits |
|
Access password |
32 bits |
32 bits |
|
Kill password |
32 bits |
32bits |
|
Data retention time |
50 years |
50 years |
|
Number of erasable times |
100,000 times |
100,000 times |
|
Physical properties |
||
|
Dimensions (length x width x thickness) |
86mmx 54mm x 3mm |
|
|
Material |
Ceramic, silver, 3M tape, PC plastic |
|
|
Color |
White |
|
|
Weight |
5g |
|
|
Operating temperature |
-40ºC ~ +85ºC |
|
|
Application environment |
Vehicle management, logistics management, etc. |
|
|
Physical properties |
||
|
|
||
