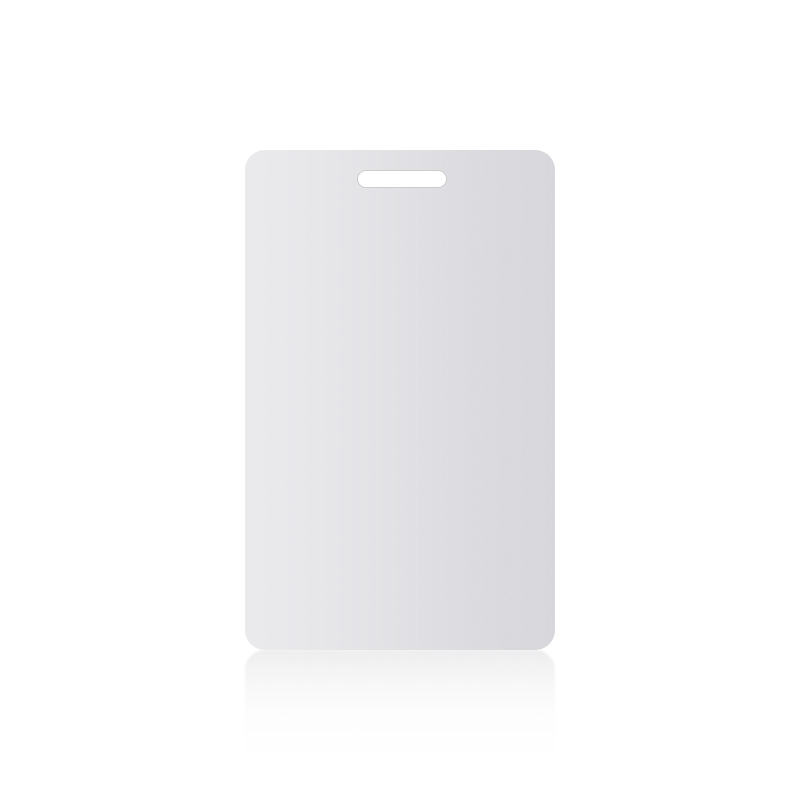

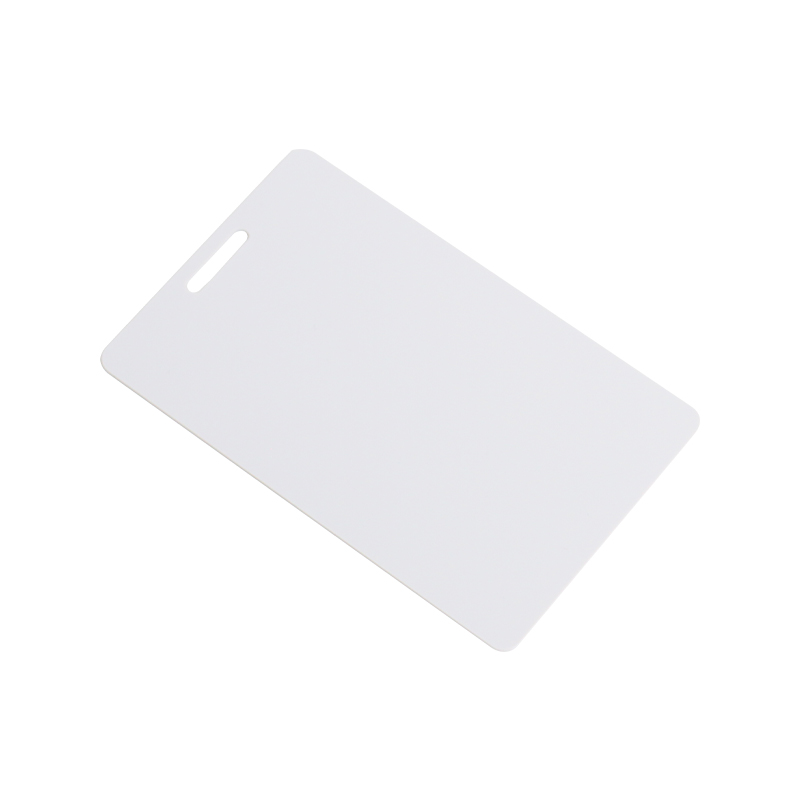

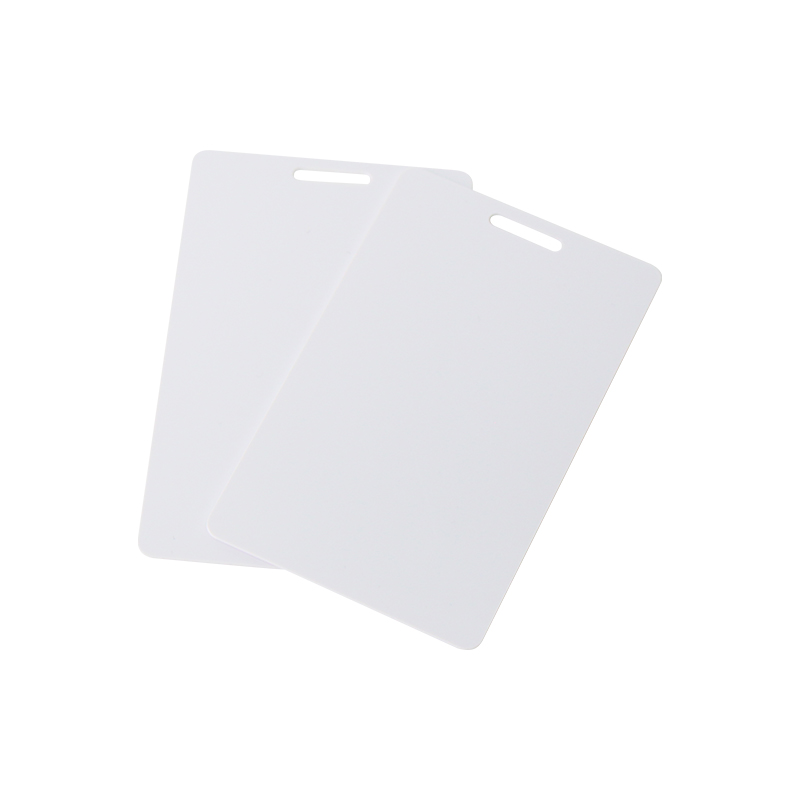

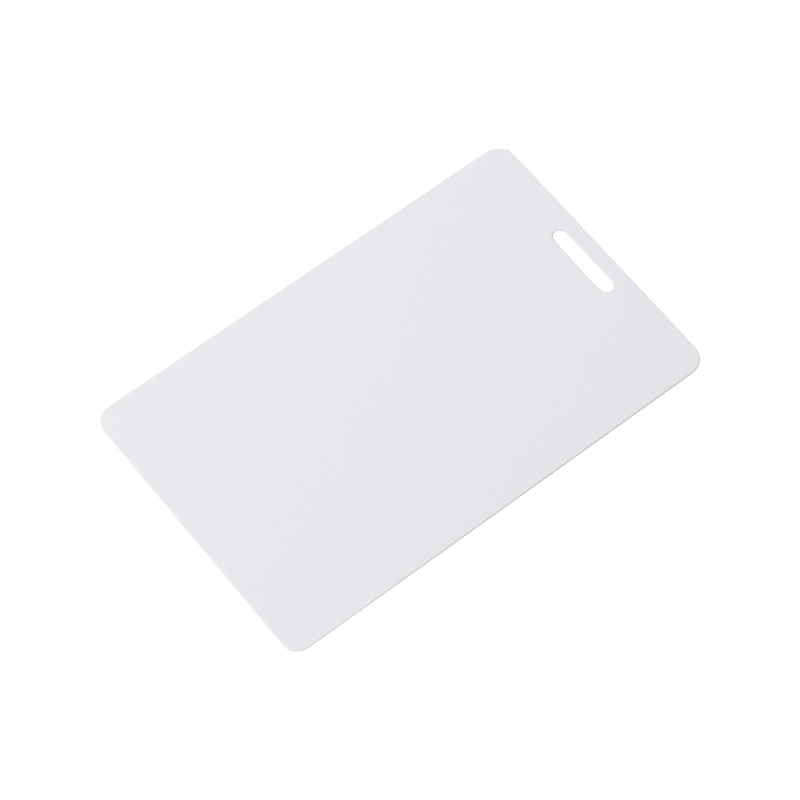

T-S05 UHF personnel access card
T-S05 is an ultra-high frequency electronic tag designed for personnel access control.
It can be hung on the chest or put in the pocket.
When it is close to the human body, the reading distance can reach 3 meters.
It can be used in scenarios such as employee management.
It can be hung on the chest or put in the pocket.
When it is close to the human body, the reading distance can reach 3 meters.
It can be used in scenarios such as employee management.
|
Performance Specifications |
|
|
Working frequency |
860 - 960 MHz |
|
Read data |
0-3.6m（4dBi antenna handheld reader） 0-6m（9dBi antenna + fixed reader） |
|
Chip |
Monza R6P |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits/96bits |
|
User data area |
32 bits |
|
TID |
96 bits |
|
Access password |
32 bits |
|
Kill password |
32 bits |
|
Data retention time |
50 years |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
86mmx 54x 1mm |
|
Material |
White |
|
Weight |
5.8g |
|
Operating temperature |
-40ºC to +85ºC |
|
Application environment |
Personnel management |
|

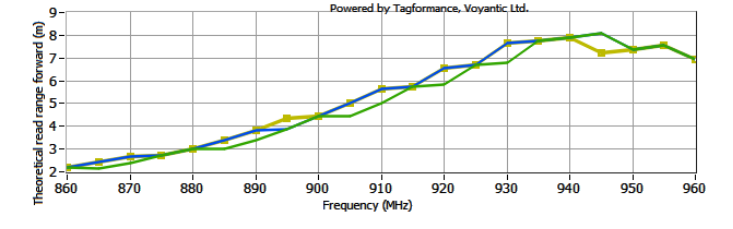

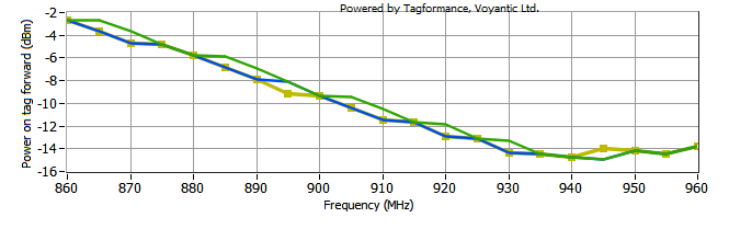

Test curve chart |
|
|
|
|
