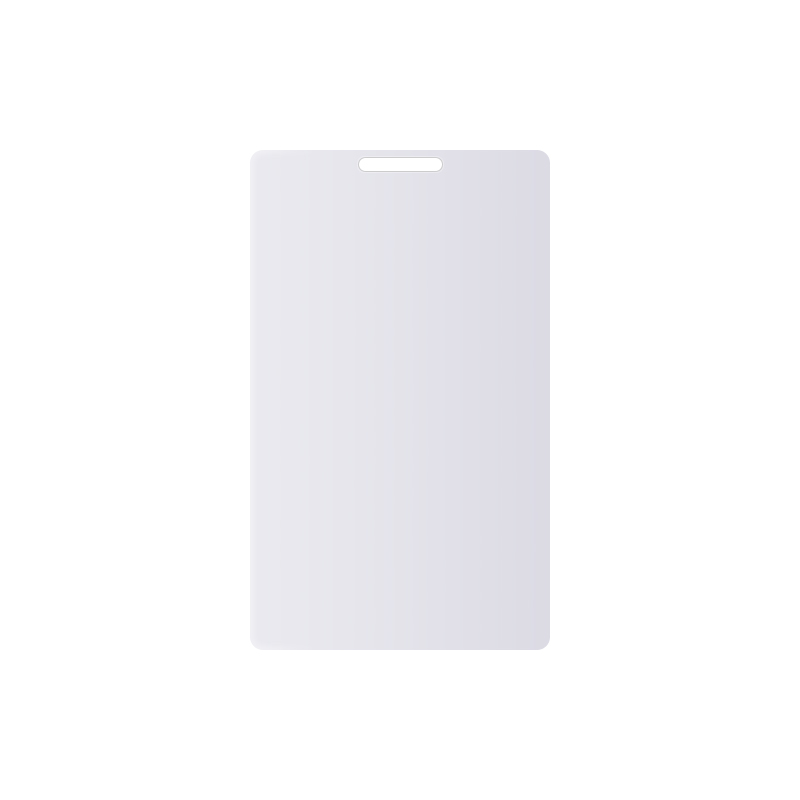

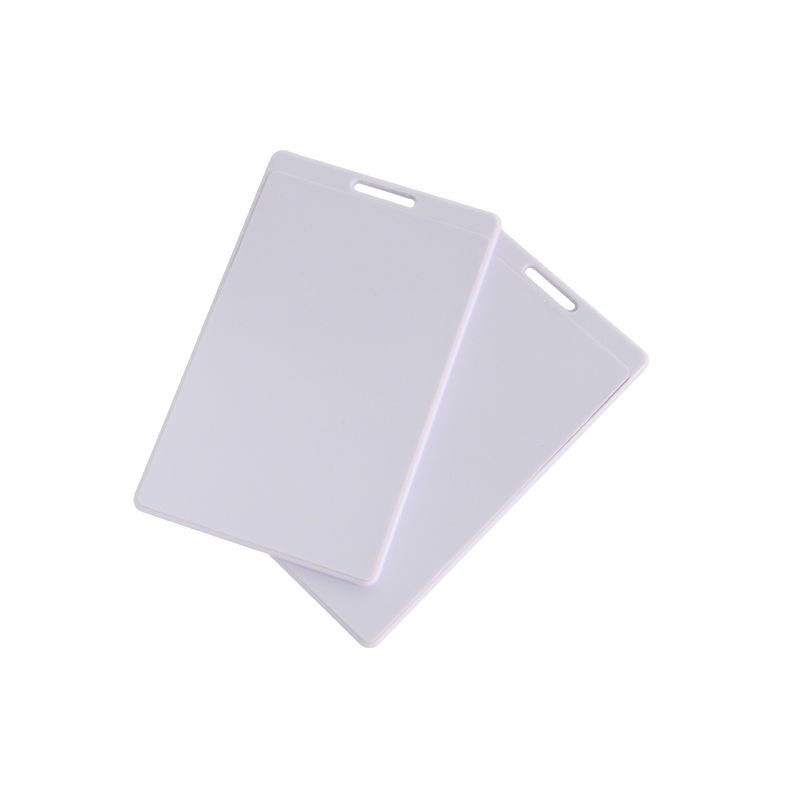

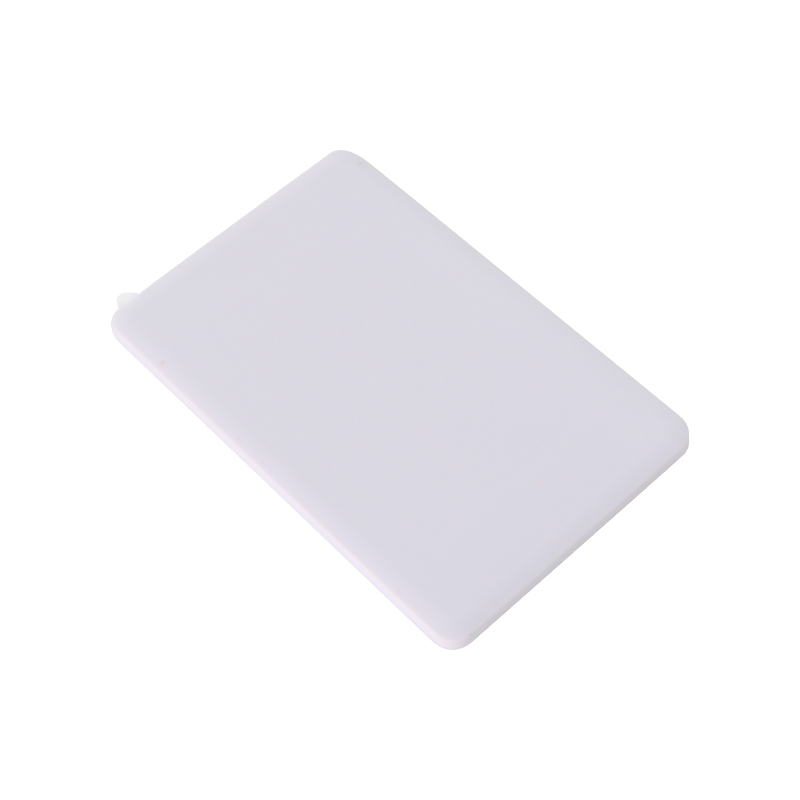

T-S06 UHF personnel access card
T-S06 is an ultra-high frequency electronic tag designed for personnel access control.
It can be dropped or put into a pocket.
When it is close to the human body, the reading distance can reach 3 meters.
It can be used in scenarios such as employee management.
It can be dropped or put into a pocket.
When it is close to the human body, the reading distance can reach 3 meters.
It can be used in scenarios such as employee management.
|
Performance Specifications |
|
|
Working frequency |
860 - 960 MHz |
|
Read data |
0-8m（4dBi antenna handheld reader） 0-14m（9dBi antenna + fixed reader） |
|
Chip |
Monza R6P |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits |
|
User data area |
32 bits |
|
TID |
48 bits |
|
Access password |
32 bits |
|
Kill password |
32 bits |
|
Data retention time |
10 years |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
90mmx 55x 2.5mm |
|
Material |
ABS+PC |
|
Color |
White |
|
Weight |
3.2g |
|
Operating temperature |
-40ºC to +85ºC |
|
Application environment |
Asset management, logistics management, vehicle tracking management, etc. |
|

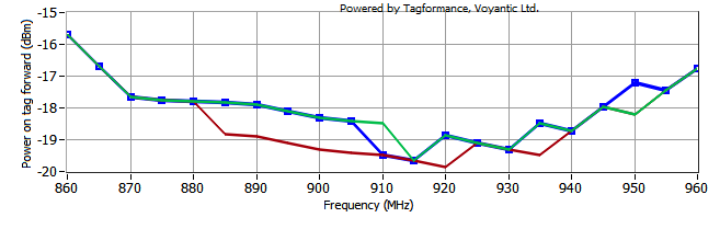

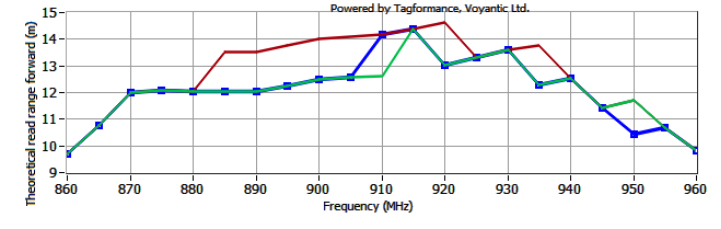

Test curve chart |
|
|
|
|
