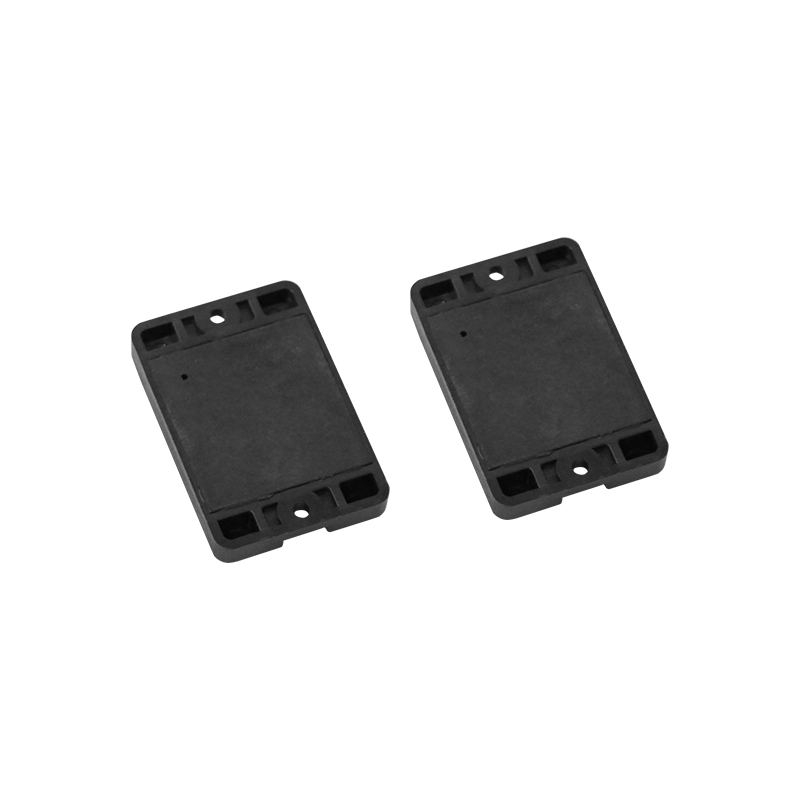

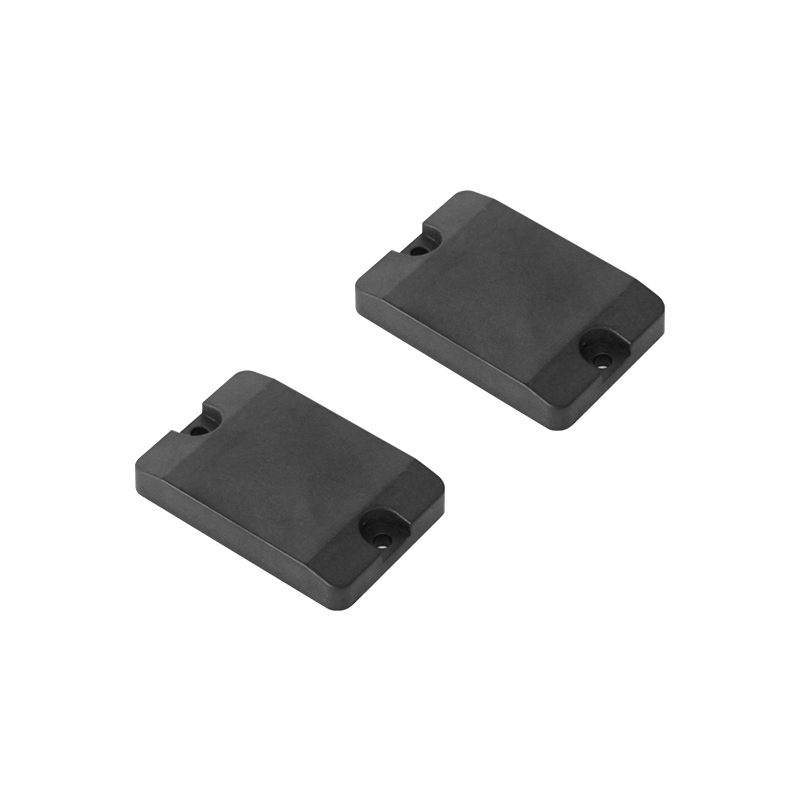

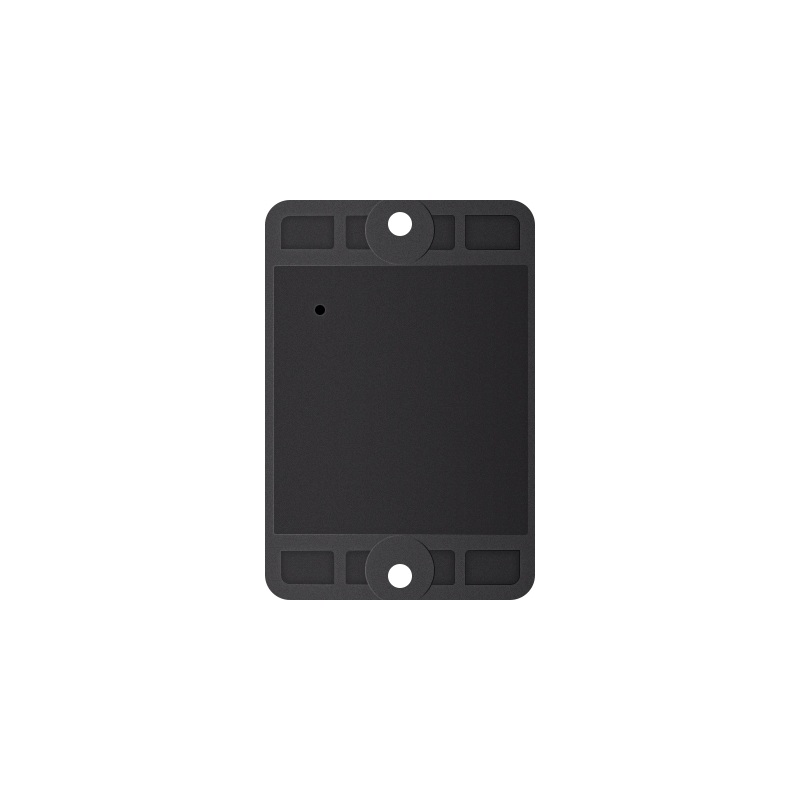

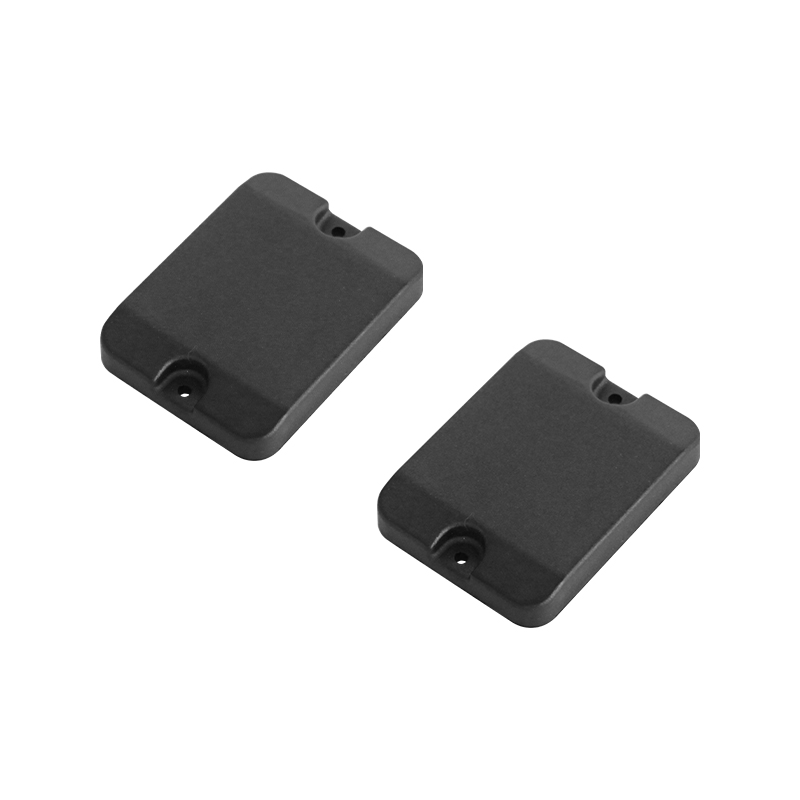

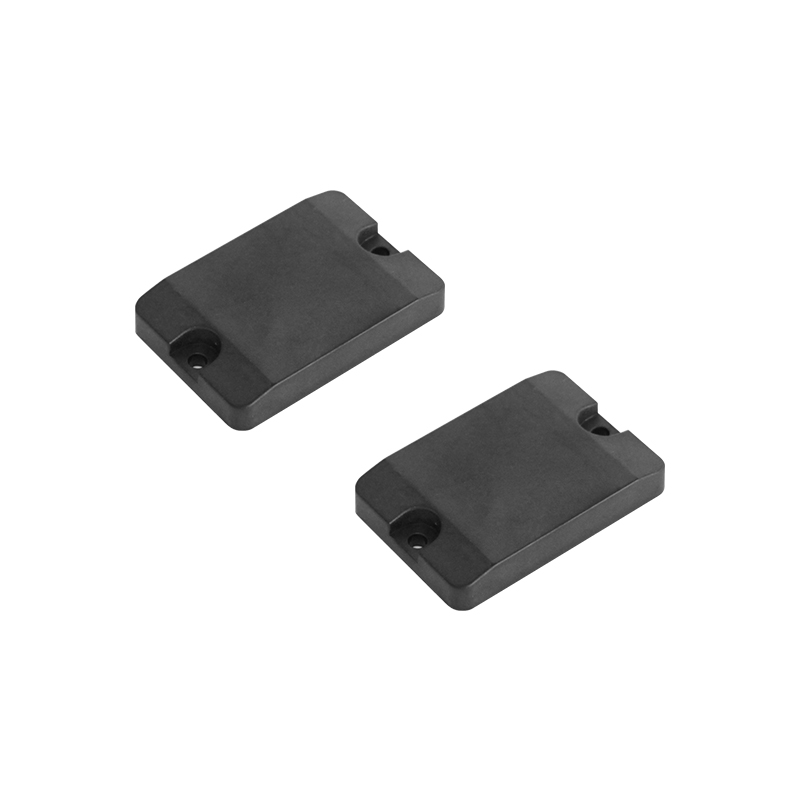

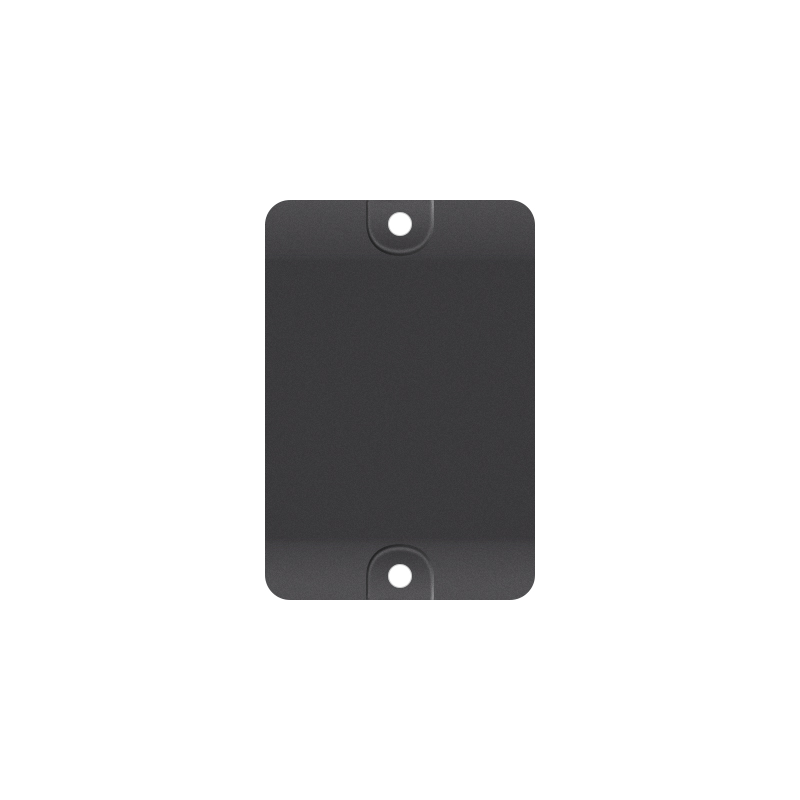

T-T463108 UHF High temperature resistant tags
T-T463108 is a tag designed for ultra-high temperature metal application environments.
It can work normally in environments up to 280ºC and can be used in automotive paint, industrial production and other fields.
It can work normally in environments up to 280ºC and can be used in automotive paint, industrial production and other fields.
|
Performance Specifications |
|
|
Working frequency |
902- 928 MHz |
|
Read data |

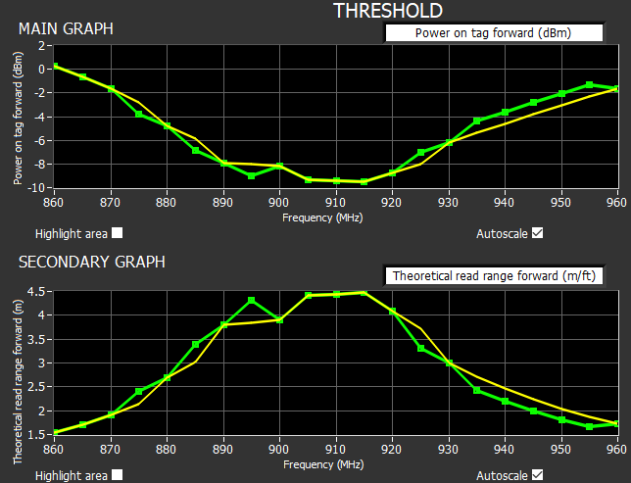

0-2.5m（4dBi antenna handheld reader） 0-4.5m（9dBi antenna + fixed reader） |
|
Chip |
Monza R6P |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits |
|
TID |
96 bits |
|
Access password |
32 bits |
|
Kill password |
32 bits |
|
Data retention time |
50 years |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
46mmx 31mm x 8mm |
|
Material |
Special high temperature resistant material |
|
Weight |
14.5g |
|
Operating temperature |
-25ºC to +150ºC |
|
Storage temperature |
-55ºC to +280ºC |
|
IP rating |
IP65 |
|
Application environment |
High temperature environment such as automotive paint, industrial production, etc. |
|
