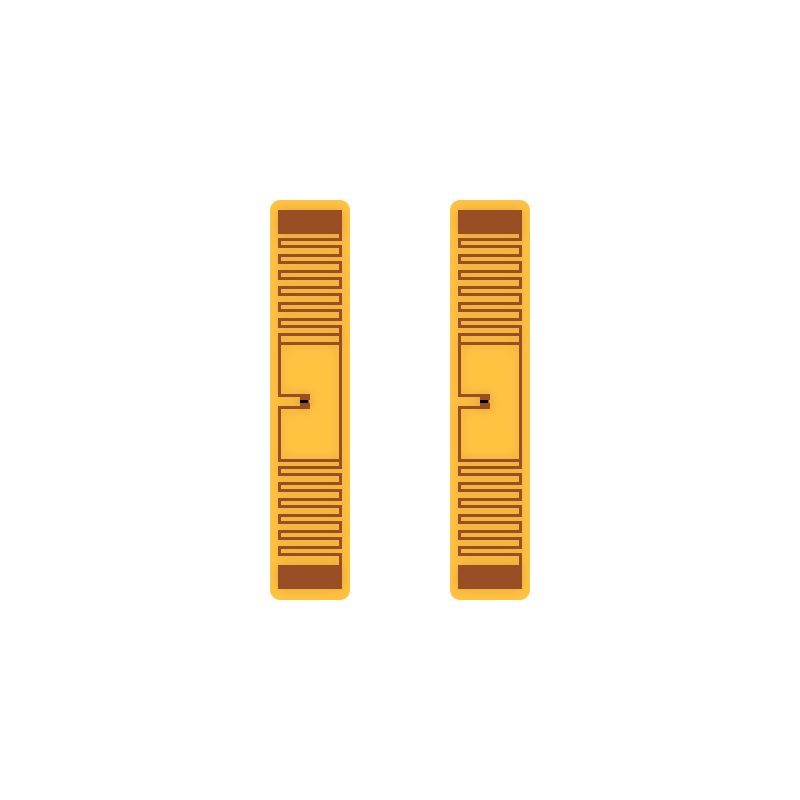

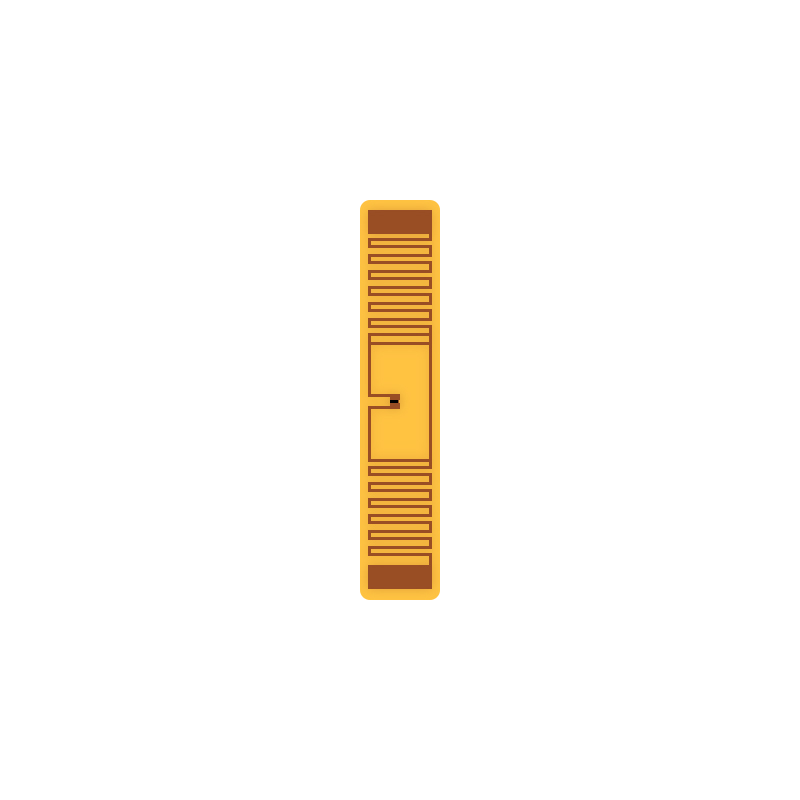

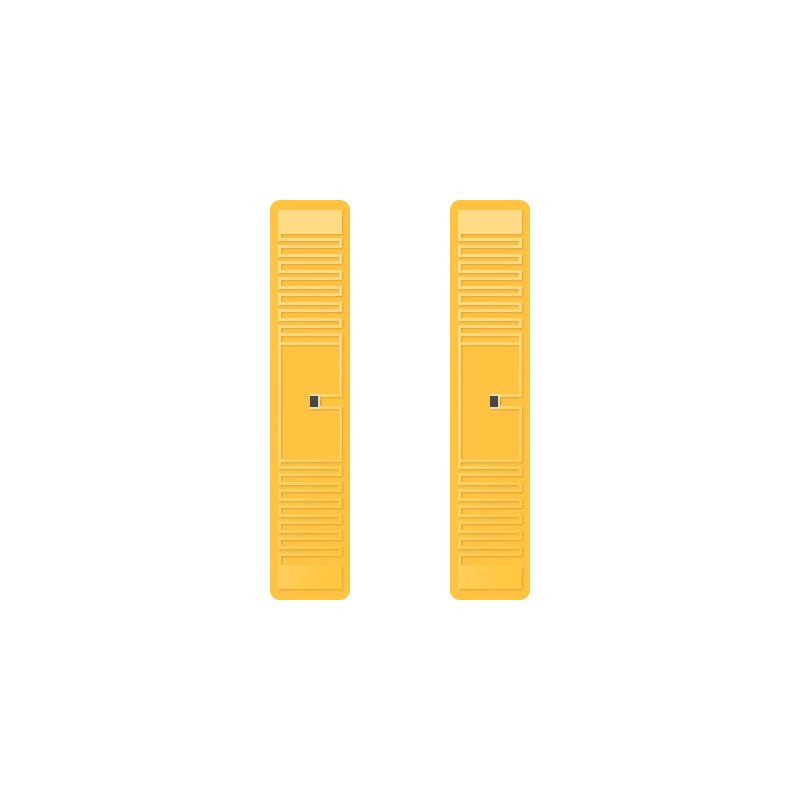

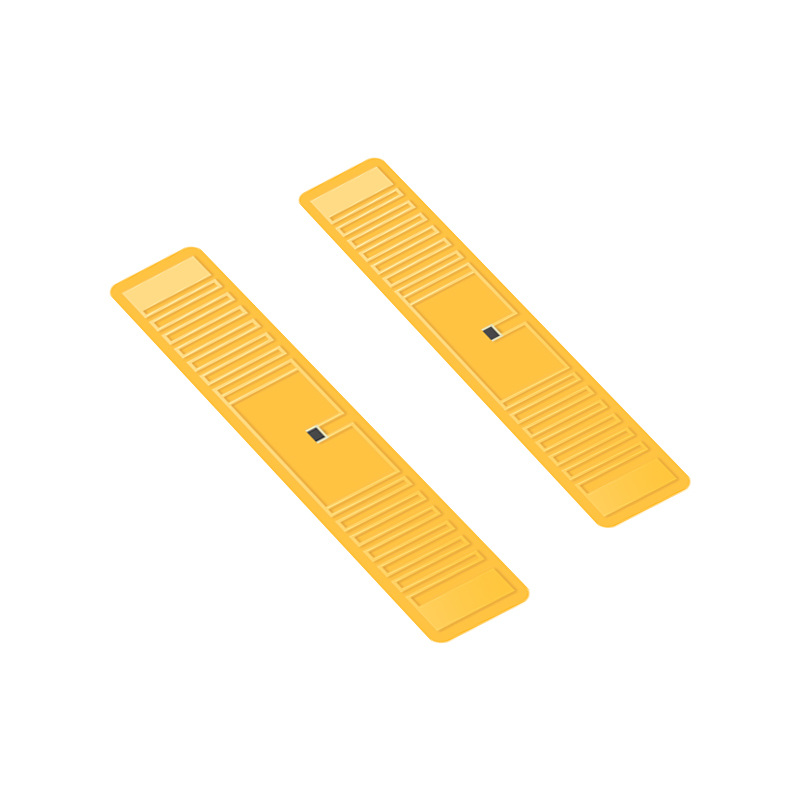

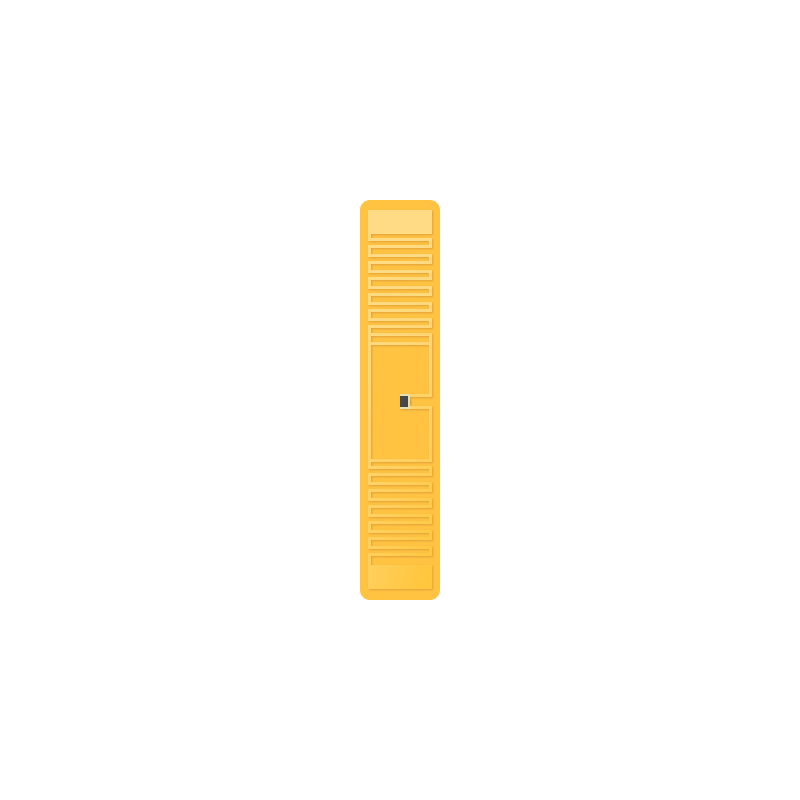

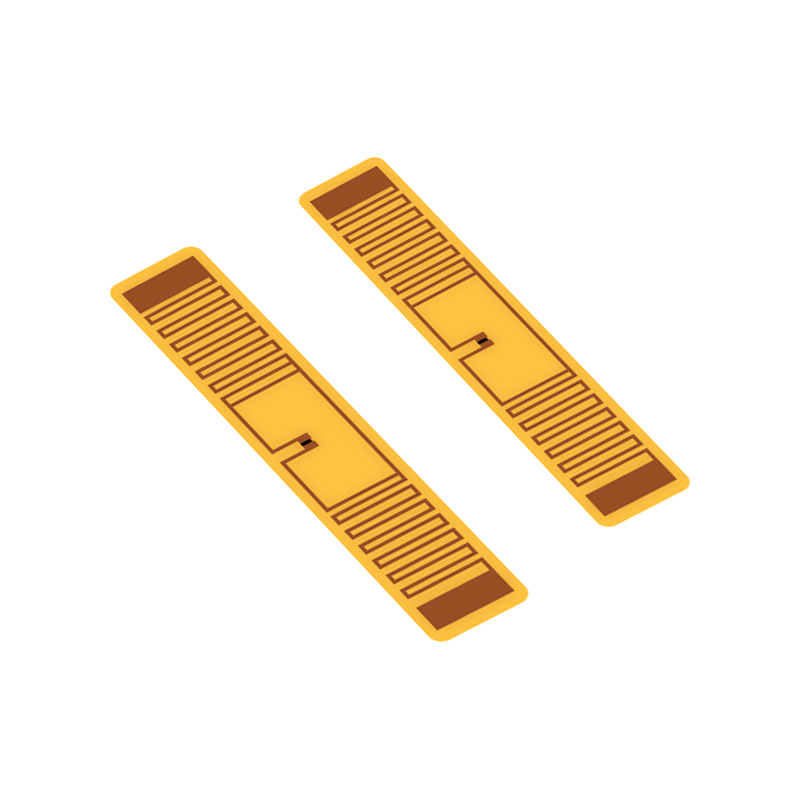

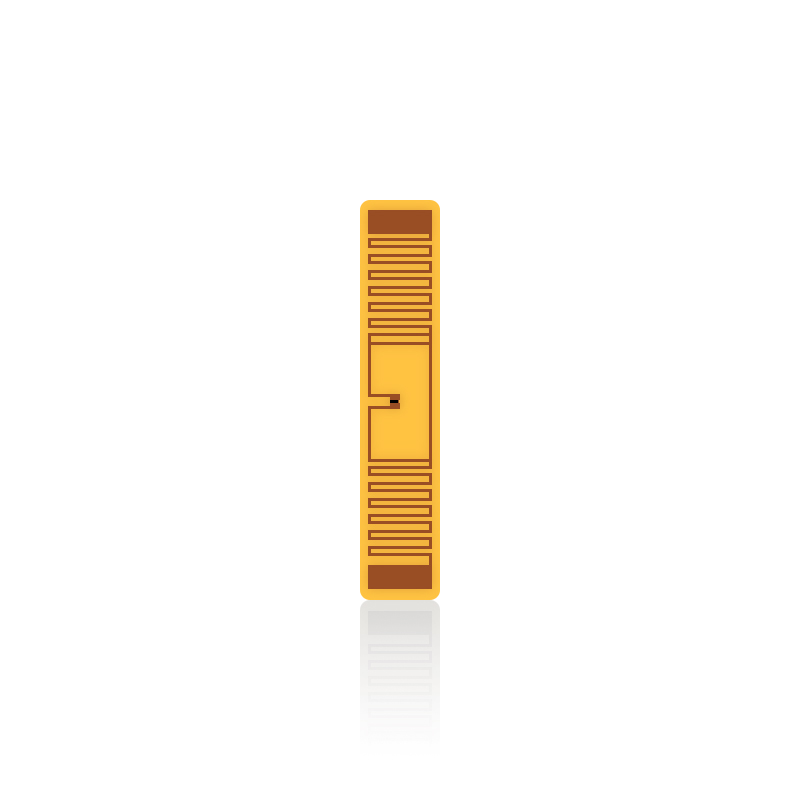

T-T5010 UHF High Temperature FPC Inlay
T-T5010 UHF FPC Inlay is a FPC specially designed for non-metallic environments. It has the characteristics of long reading distance and high sensitivity. It is suitable for various non-metallic environments and can be easily applied to intelligent manufacturing, industrial washing, non-metallic asset equipment management, supply chain management and other occasions.
|
Performance Specifications |
|
|
Working frequency |
902MHz-928MHz |
|
Read data |
0-1.5m（4dBi antenna handheld reader） 0-2m（9dBi antenna + fixed reader） |
|
Chip |
Monza R6P |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits |
|
User data area |
32 bits |
|
TID |
48 bits |
|
Access password |
32 bits |
|
Kill password |
32 bits |
|
Data retention time |
50 year |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
50mm x 10mm |
|
Material |
FPC |
|
Weight |
0.1g |
|
Operating temperature |
-40ºC ~ + 200ºC |
|
IP rating |
IP65 |
|
Application environment |
Smart manufacturing, industrial washing, asset management, supply chain management, etc. |
