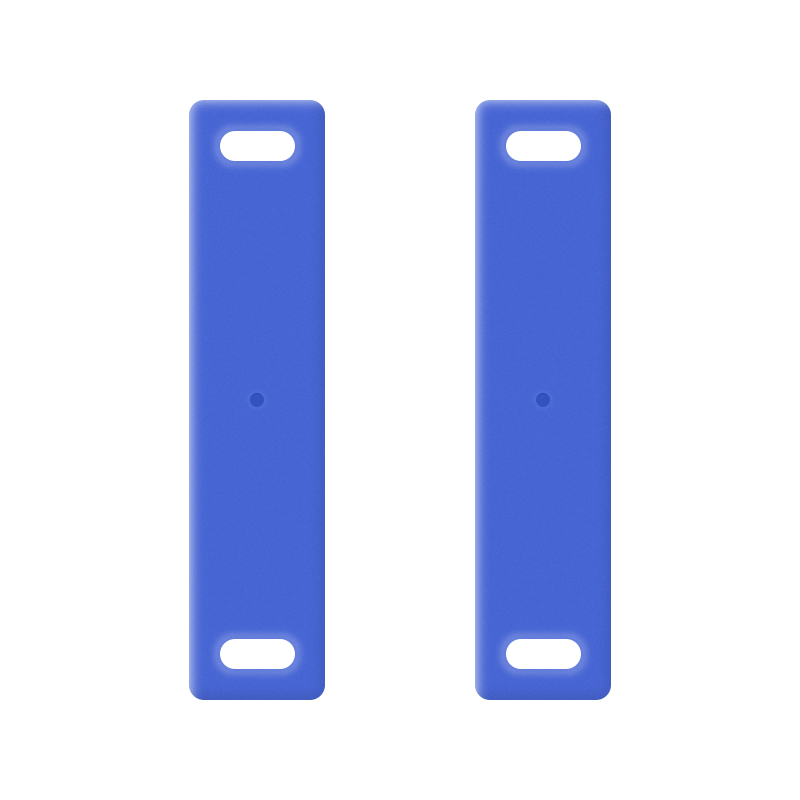

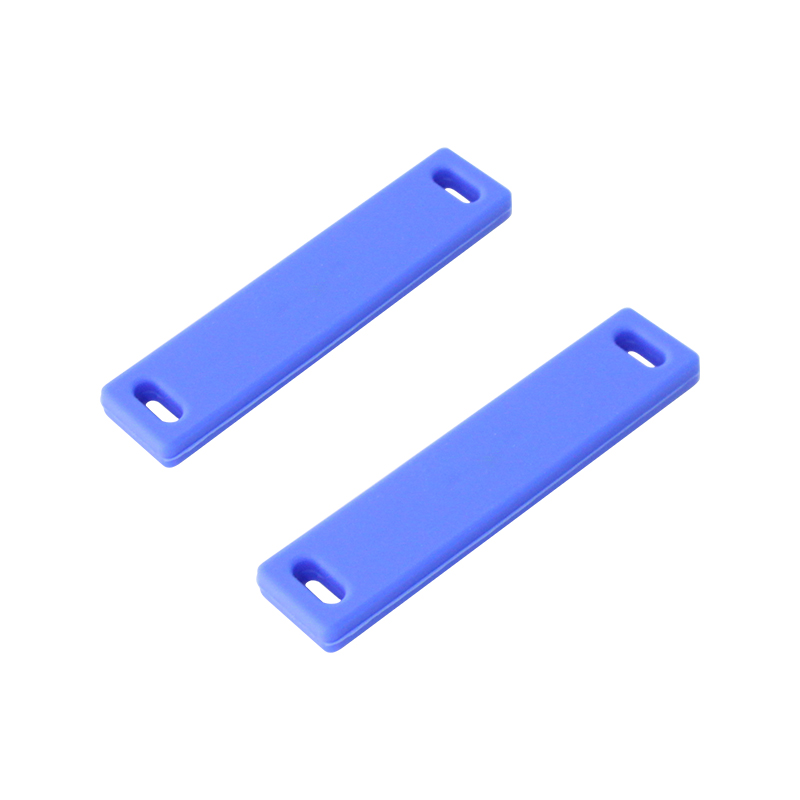

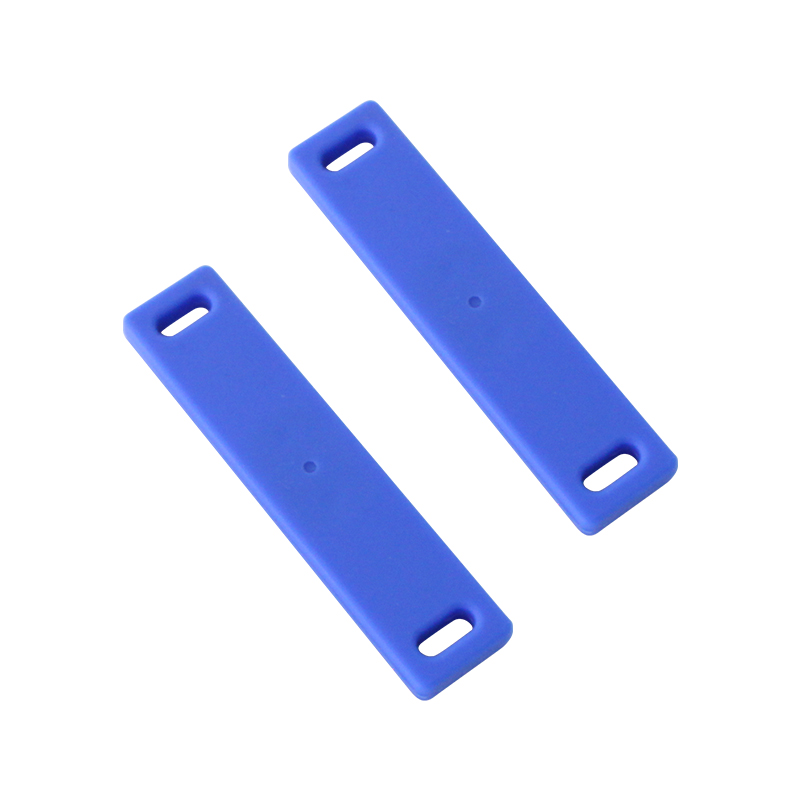

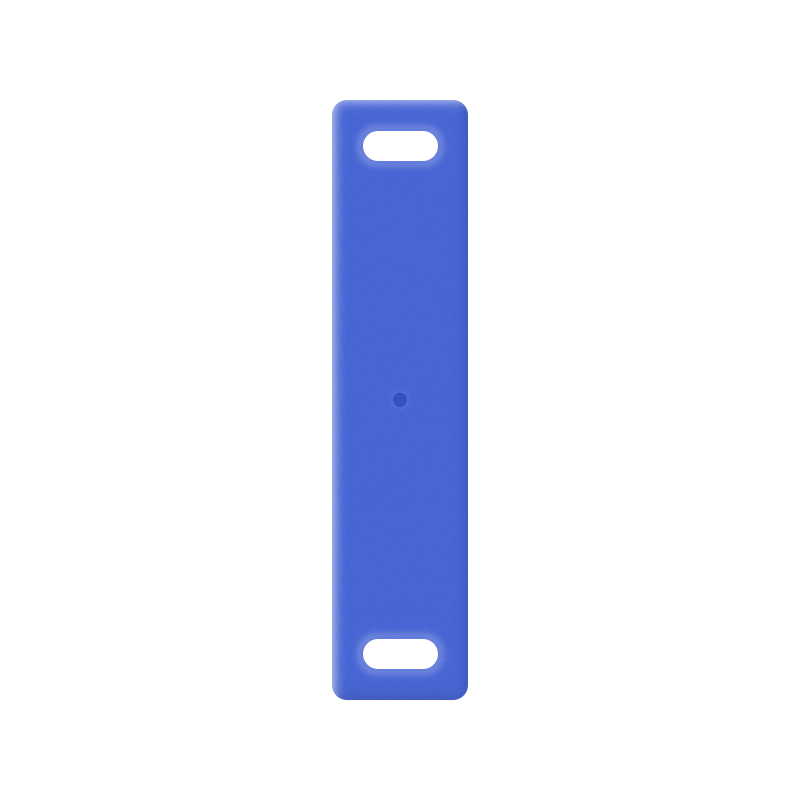

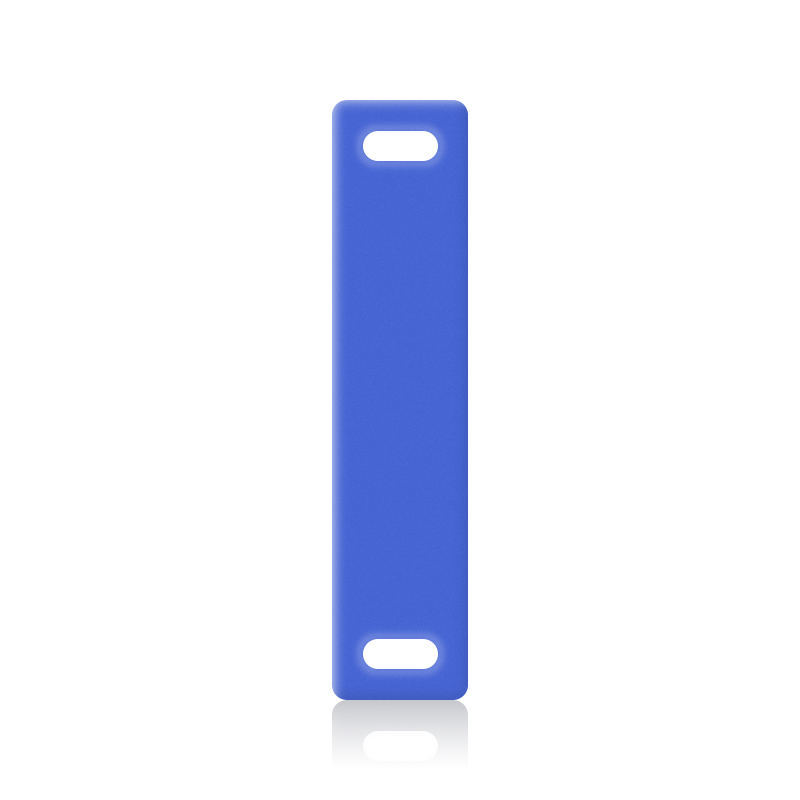

T-S20 UHF Silicone Tag
T-S20 is an asset management silicone electronic tag that can be used in both metal and non-metal environments. It has the characteristics of long reading distance and high sensitivity.
|
Performance Specifications |
|
|
Working frequency |
902 - 928 MHz |
|
Read data |
4dBi antenna handheld reader: 0-3.5m (on metal plate) 0-2m (in the air) (9dBi antenna + fixed reader) 0-6m (on metal plate) 0-3.5m (in the air) |
|
Chip |
NXP U8 |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits |
|
User data area |
/ |
|
TID |
96 bits |
|
Access password |
32 bits |
|
Kill password |
32 bits |
|
Data retention time |
50 years |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
80mm x 18mmx6mm |
|
Material |
Silicone |
|
Weight |
14g |
|
Operating temperature |
-20ºC to +85ºC |
|
IP rating |
IP65 |
|
Application environment |
Applicable to asset management in metal and non-metal environments |
|

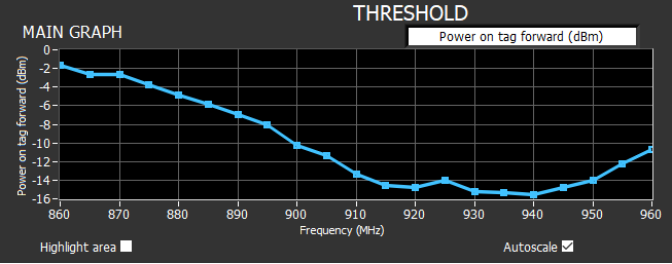

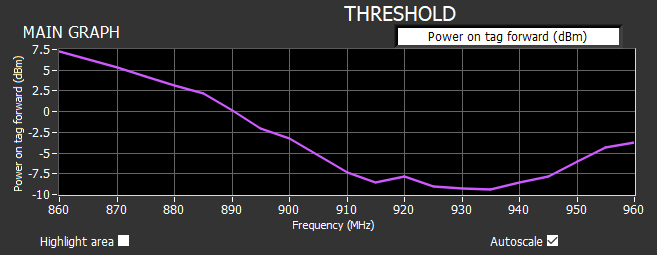

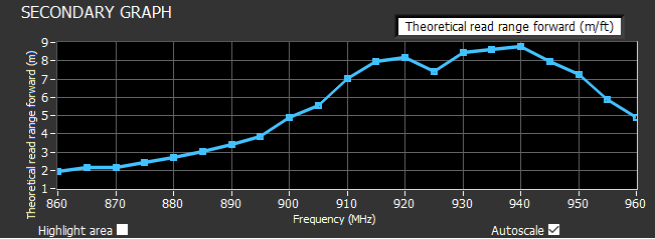

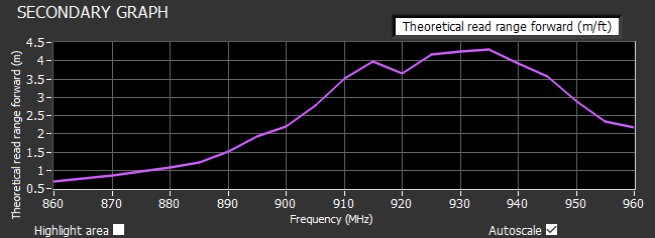

Test curve chart |
|
|
On metal plate:
In the air:
|
|
