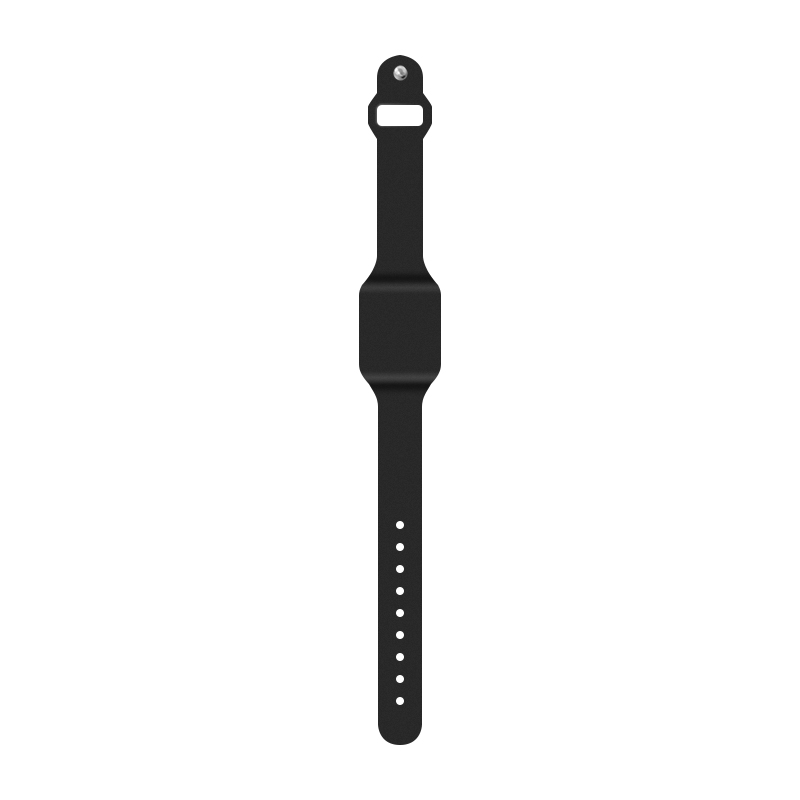

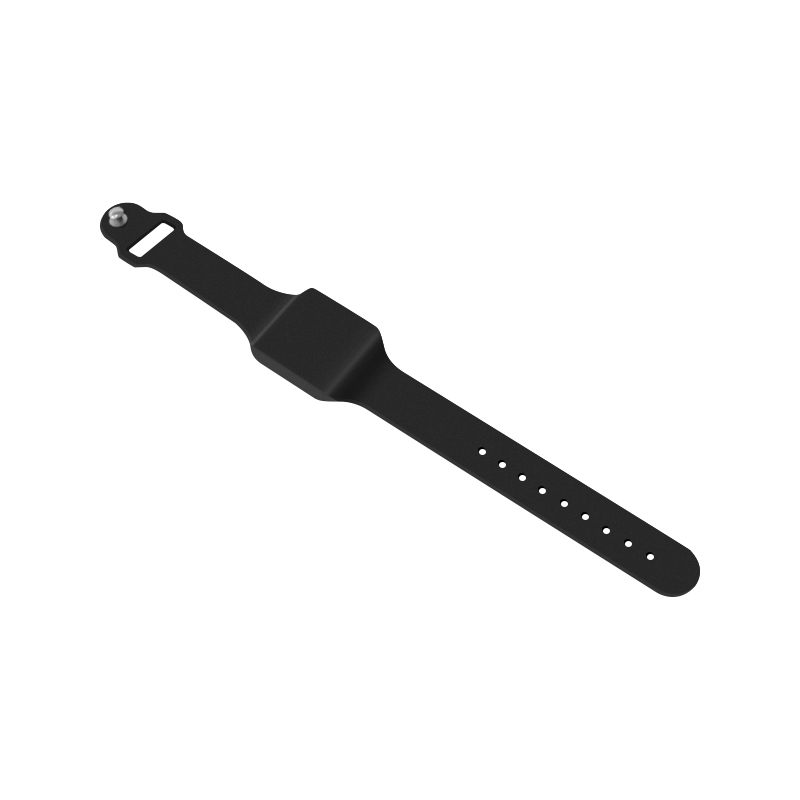

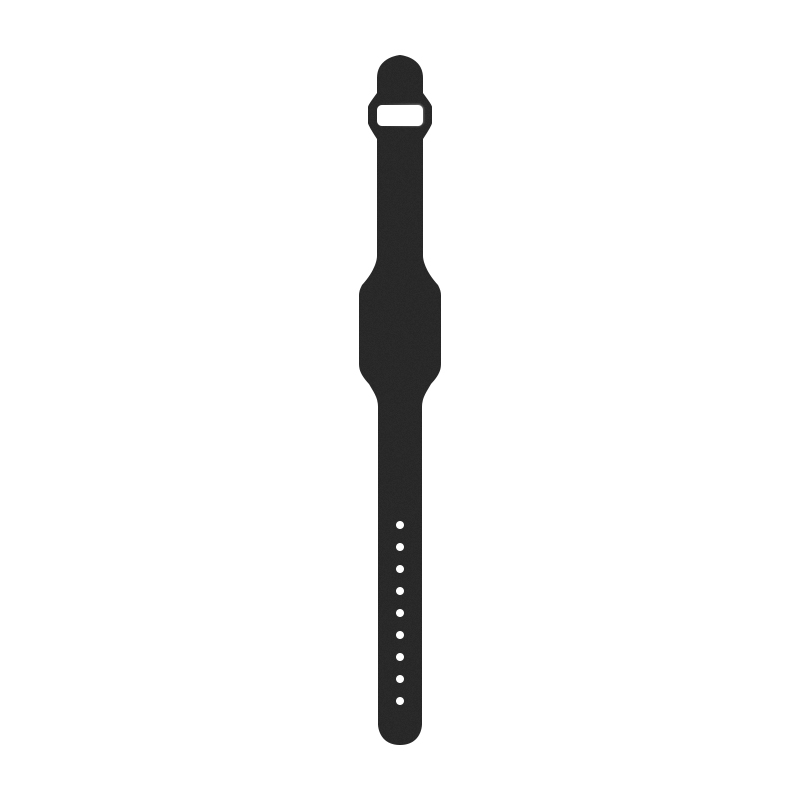

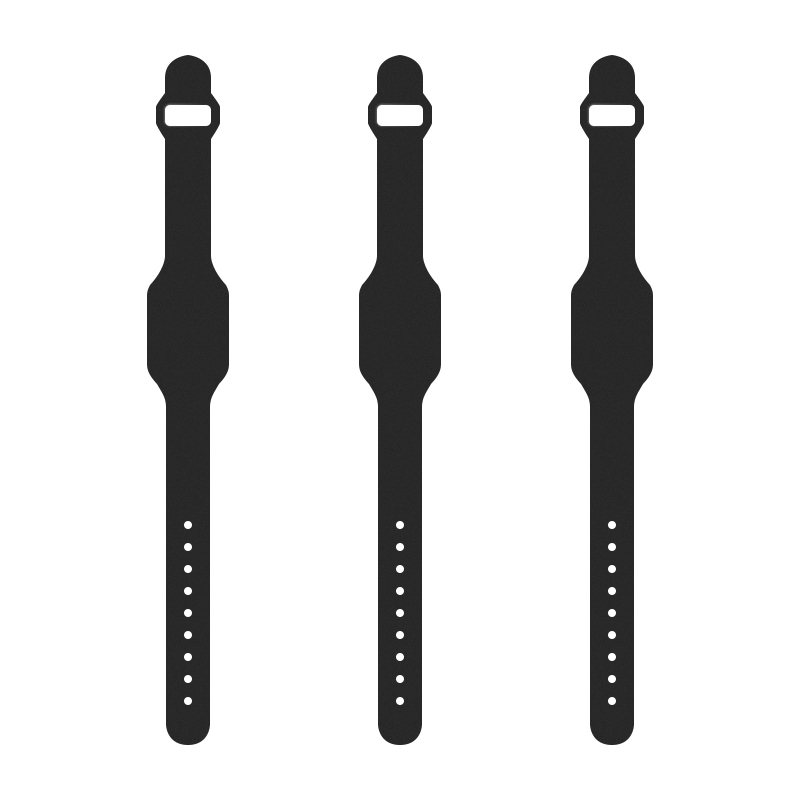

T-S03 UHF wristband
T-S03 is an ultra-high frequency wristband electronic tag designed for personnel management. It has the characteristics of long reading distance on the human body and comfortable wearing, and can be used for personnel management applications.
|
Performance Specifications |
|
|
Working frequency |
902 - 928 MHz |
|
Read data |
0-2.7m (4dBi antenna handheld reader); 0-4.5m (9dBi antenna + fixed reader) |
|
Chip |
R6P |
|
Working protocol |
ISO 18000-6C, EPC global C1Gen2 |
|
Function |
Read/Write |
|
EPC |
128 bits |
|
User data area |
32 bits |
|
TID |
48 bits |
|
Access password |
32 bits |
|
Kill password |
32bits |
|
Data retention time |
50 years |
|
Number of erasable times |
100,000 times |
|
Physical properties |
|
|
Dimensions (length x width x thickness) |
32mmx255mmx6mm |
|
Material |
Silicone |
|
Weight |
31.5g |
|
Operating temperature |
-20ºC to +85ºC |
|
IP rating |
IP65 |
|
Application environment |
Logistics management, asset management, and supply chain management, etc. |
|

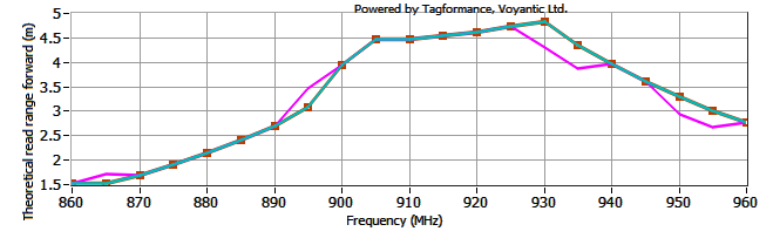

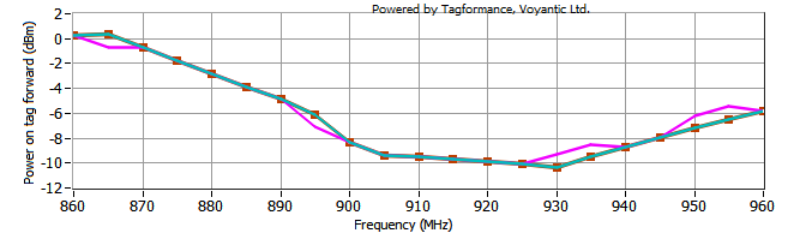

Test curve chart |
|
|
|
|
