CF800 OS UHF 8 ports fixed reader
2.operating system: Android12
3.Antenna port: 8 SMA-K female headers
4.communication: RJ45, 2 USB3.0 Type A, support USB Host (one supports OTG), RS232/ RS485
5.General purpose I/O: 2 inputs, 2 outputs, optocoupler isolated (terminal)
HDMI Type A, support 1080p HD video output.
1.Product introduction
CF800 is a high-performance chip solution uhf 8 ports fixed reader, designed with completely independent intellectual property rights, combined with a proprietary high-efficiency signal processing algorithm, while maintaining a high reading rate, it can realize fast reading and writing processing of electronic tags, which can Widely used in various radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
2.Product parameters
CF800 OS UHF 8 ports fixed reader | |
size |
Length 159mm, width 108mm, height 24mm |
weight |
0.6kg |
shell material |
die cast aluminum |
Visual Status Indicators |
Various status LED lights |
Individual package size |
200*255*100mm
|
Individual package weight |
1.3kg
|
Hardware, OS and Firmware Management: |
|
processor |
Quad-core Cortex-A55, clocked at 2.0GHz |
Memory |
2+16GB |
operating system |
Android12 |
firmware upgrade |
Support local USB upgrade. |
Internet service |
4G: default Europe, can choose China, America, etc. |
WiFi |
2.4G/5G dual-band, support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, IPV4,IPV6;; |
SDK |
Host Application - .Net, C and Java EMDK Embedded Applications - C and Java SDK |
Connectivity |
|
Antenna port |
8 SMA-K female headers |
communication |
RJ45, 2 USB3.0 Type A, support USB Host (one supports OTG), RS232 |
power supply |
Support DC9-30V input, default DC24V input |
General purpose I/O |
2 inputs, 2 outputs, optocoupler isolated (terminal) |
RFID parameters |
|
Receiver Sensitivity Upper Limit |
-88dBm |
management agreement |
HDMI Type A, support 1080p HD video output |
frequency band |
Worldwide Readers: 902 MHz - 928 MHz (also supports some countries using this frequency band), 865 MHZ - 868 MHz (only for) US readers: 902 – 928 MHz |
Transmission power output |
0dBm to +33.0dBm: |
working environment |
|
Operating temperature |
-20 °C ~+65 °C |
storage temperature |
-40℃至80℃ |
humidity |
5% to 95% (non-condensing) |
3.Product accessories: power adapter + plug *1 set, HDMI cable *1, Type-A usb3.0 cable *1

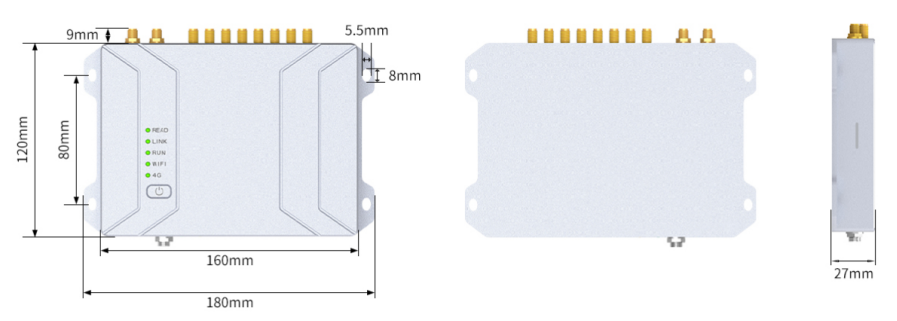

4.Equipment Dimensions: Unit (mm)

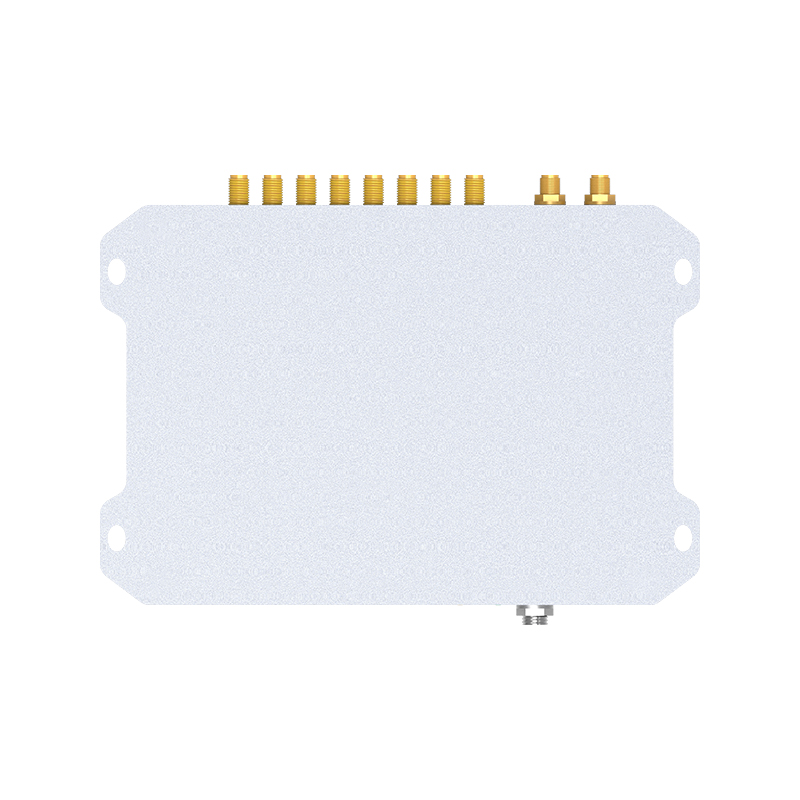

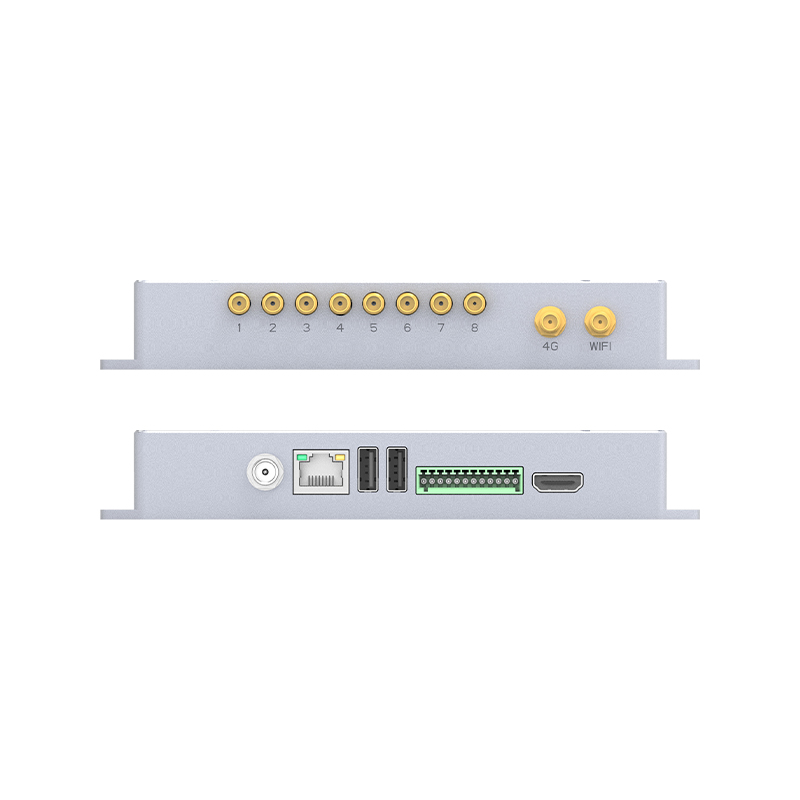

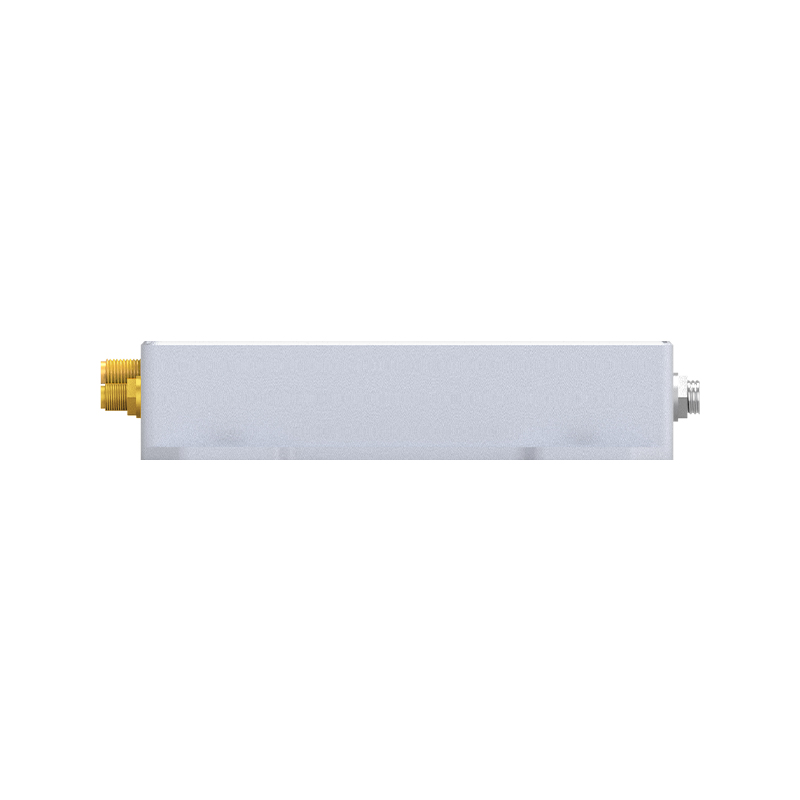

Device front and back:

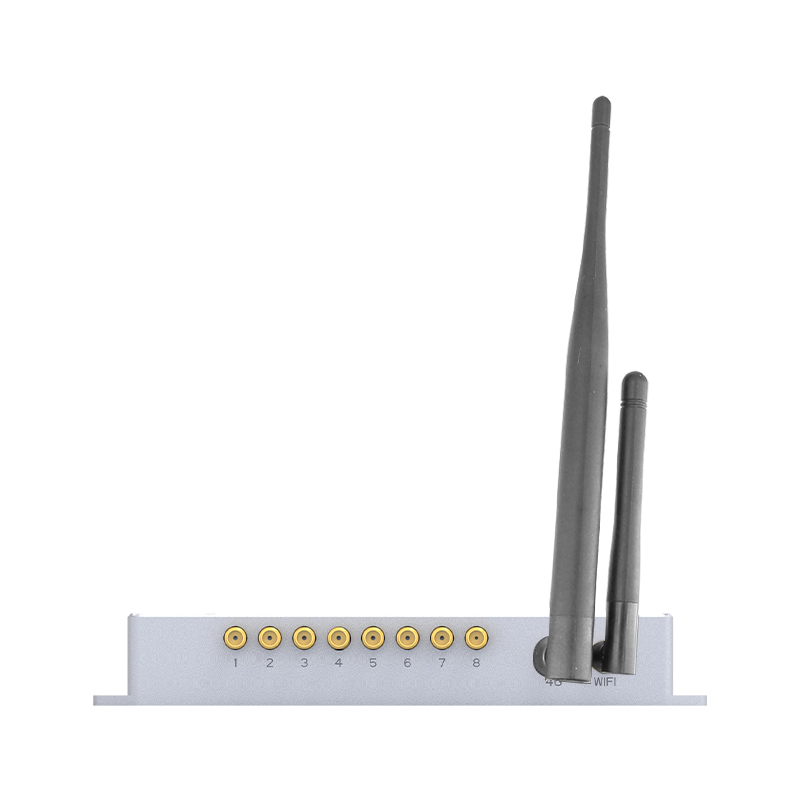

5.Antenna interface: 8 SMA female heads, 1 SMA 4G interface, and 1 SMA WIFI interface (8 external antennas can be connected)

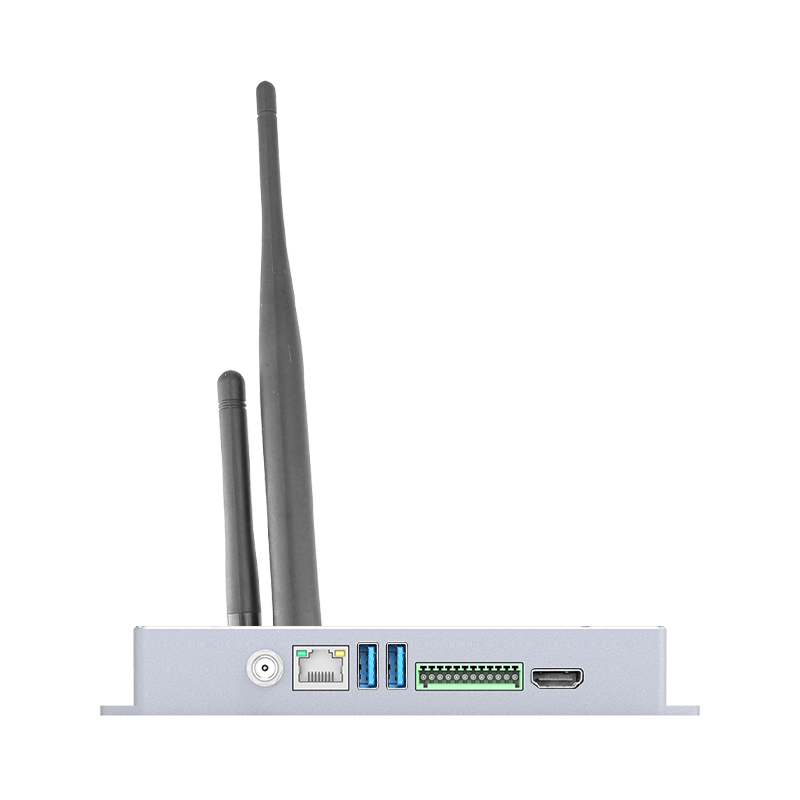

Standard communication interface: Type-A, RJ45, GPIO, HDMI
DC power supply
serial number |
Signal |
content |
1 |
PWR |
+24V DC |
2 |
CND |
grounding |
- GPIO
serial number |
Signal |
content |
1 |
RS232-RXD |
Device RXD |
2 |
GND |
Signal GND |
3 |
RS232-TXD |
DeviceTXD |
4 |
GND |
GND |
5 |
DC+ |
Power Output |
6 |
DC- |
power ground |
7 |
GPO-1 |
GPIO output 1 |
8 |
GPO-2 |
GPIO output 2 |
9 |
GPIO GND |
signal ground |
10 |
GPI-1 |
GPIO input 1 |
11 |
GPI-2 |
GPIO input 2 |
12 |
GPIO GND |
signal ground |
