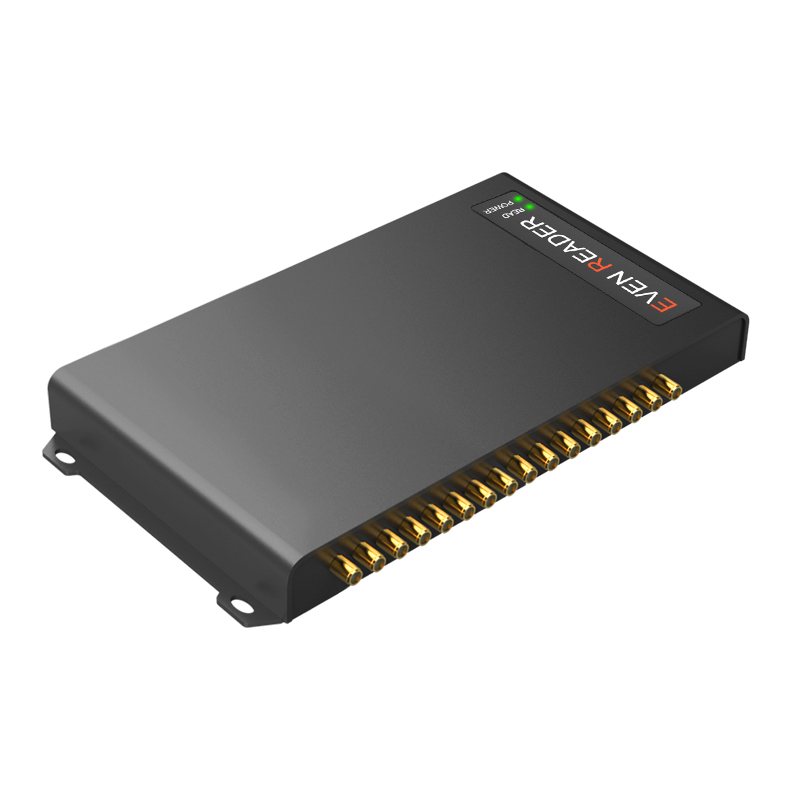

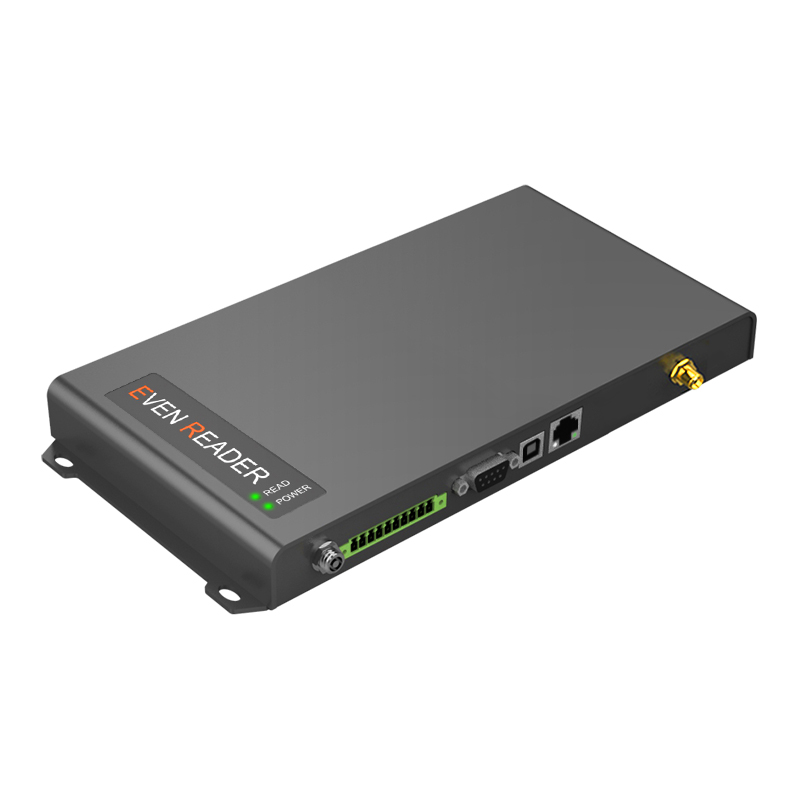

CF817 Even E710 UHF sixteen-channel Fixed Reader

1.Protocol:  ISO18000-6C(EPC GEN2)
2.Frequency:  902~928MHz（US）/865~868MHz(EU)
3.RF power:  33dbm (adjustable）
4.Communication Interface:RS232/USB/RJ45/POE (optional)
5. Reading distance:  0~15 meters (depending on external antenna and tag)
6. Antenna port: 16 SMA female
7. GPIO:   2 sets of trigger signal input, 2 sets of relay signal output

1、Product Features

CF817 EVEN E710 UHF sixteen-channel fixed reader
RF chip solution	Impinj E710 chip
RF Power	33dbm(adjustable)
fast card reading	Tag query speed up to 800 tags; tag cache 600 @ 128bits EPC
Polling Inventory	Multi-antenna port polling fast inventory
Communication Interface	RS232/USB/RJ45/POE (optional)
GPIO communication	2 sets of GPI & 2 sets of GPO, can control external devices
Support multi-language development	Support C#, Delphi, java, Python, VB and other language development
Support firmware remote online upgrade	Special functional requirements can be completed through remote upgrades
With LED indicator	Check Reader working Status

2.Product parameters

CF817 EVEN E710 UHF sixteen-channel fixed reader
Design	Impinj E710 chip
frequency standard	902~928MHz (US） 865~868MHz (EU）
protocol standard	ISO18000-6C (EPC GEN2)
RF power	33dbm (adjustable）
Maximum query speed	800 tags/sec
Reading distance	0~15M （Depends on external antenna and tag）
data cache size	600pcs @ max 128bits EPC or 180pcs @ max 496bits EPC
mixed query	Support simultaneous query of EPC+TID area data
Operating mode	answer mode real-time inventory mode trigger mode (optional)
judgment distance	Support output RSSI value
voltage	12V 2A
current consumption	0.5~1.2A
Communication Interface	RS232/USB/RJ45/POE (optional)
GPIO interface	4 optocoupler input 4 optocoupler output
Antenna port	16 SMA female

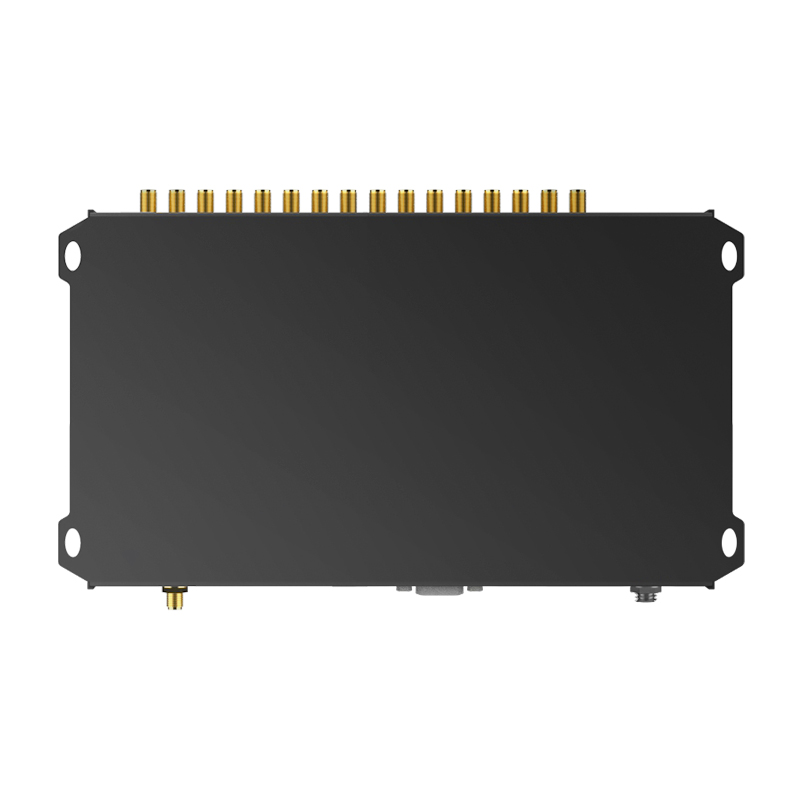

Equipment size	14522426mm
equipment weight	1.3kg
Individual package size	310230140mm
Individual package weight	2.5kg
Operating temperature	-10-+60℃
Storage temperature	-20-+75℃

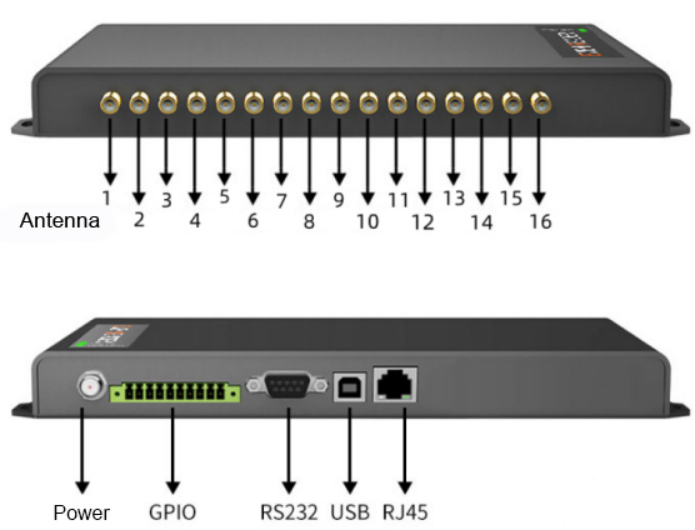

3、Interface definition

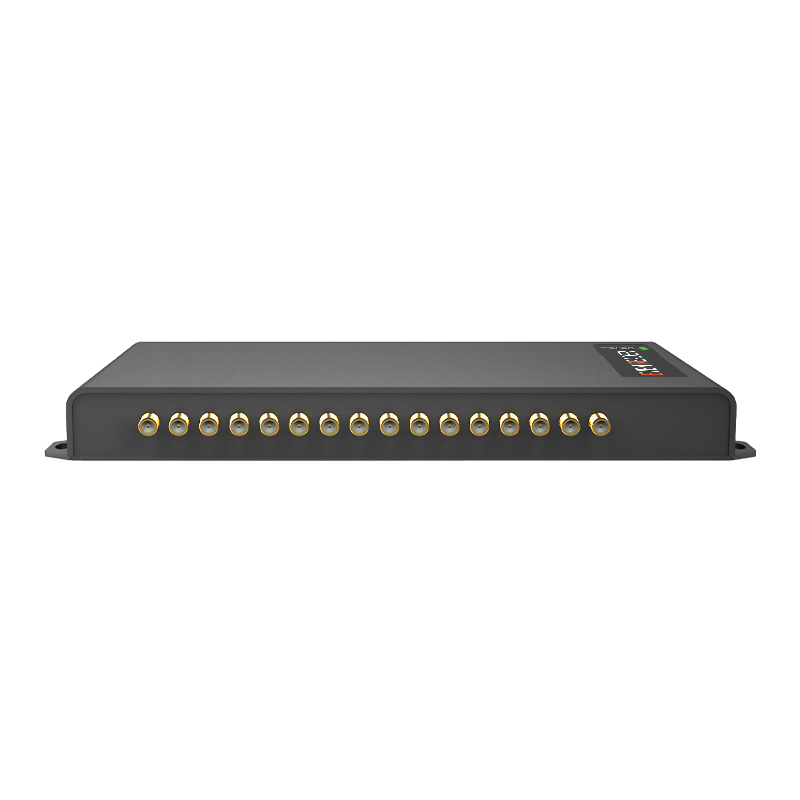

3.1 Antenna interface: 16 SMA female connectors (16 different types of antennas can be connected externally at the same time)


	Panel Antenna	cabinet antenna

	near field antenna	ceramic antenna

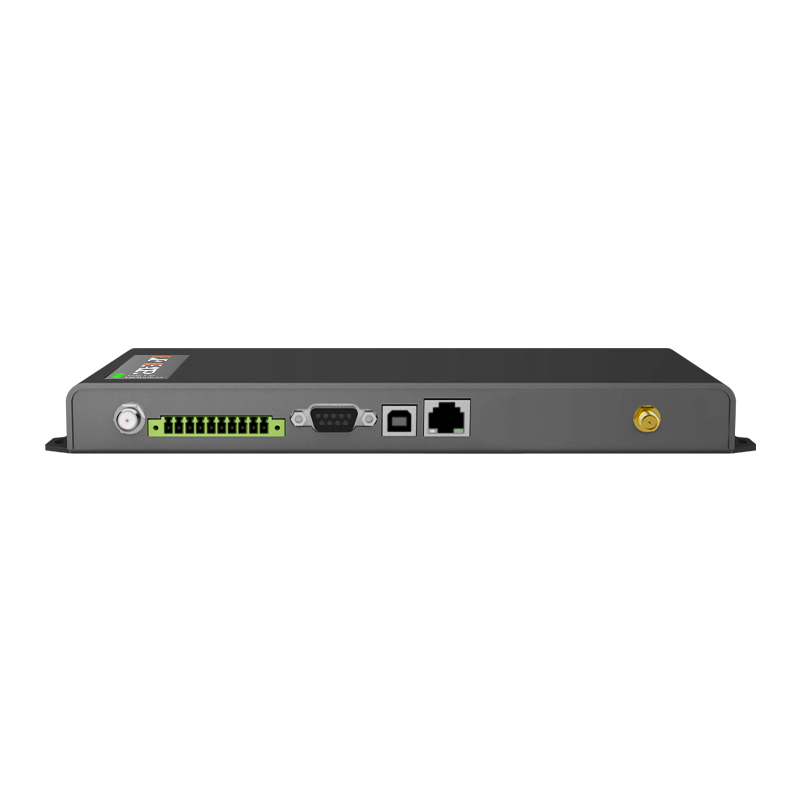

3-2、Standard interface: USB, RS232, RS485,RJ45 Optional interface: POE, WIFI

TCP/IP

Network communication is stable,wireless length limit

POE

POE Network cable power supply,

no wiring, plug and play

WIFI

Wireless communication,

no need to wiring

4、Definition

DC
Serial No	Signal	Content
Central	PWR	+12V DC
Outer	GND	grounding

RS232 D89 Female
Serial No	Signal	Content
1	NC	reserve
2	RXD	RS232 data input
3	TXD	RS232data output
4	NC	reserve
5	GND	Ground
6	NC	reserve
7	NC	reserve
8	NC	reserve
9	NC	reserve

GPIO
Serial No	Signal	Content
1	Output1R	Universal optocoupler isolated output 1+
2	Output1L	Universal optocoupler isolated output 1-
3	Output2R	Universal optocoupler isolated output 2+
4	Output2L	Universal optocoupler isolated output 2-
5	GND	Signal ground
6	Input1＋	Universal optocoupler isolation input 1+
7	Input1-	Universal optocoupler isolation input 1-
8	Input2＋	Universal optocoupler isolated input 2+
9	Input2-	Universal optocoupler isolation input 2-
10	GND	Signal ground
