CF816 Even E710 UHF eight-channel Fixed Reader
2.Frequency: 902~928MHz(US)/865~868MHz(EU)
3.RF power: 33dbm (adjustable)
4.Communication Interface:
Standard interface: USB, RS232.TCP/IP
Optional interface: POE
5. Reading distance: 0~15 meters (depending on external antenna and tag)
6. Antenna port: 8 SMA female
7. GPIO: 2 sets of trigger signal input, 2 sets of relay signal output
1、Product Features
CF816 EVEN E710 UHF eight-channel fixed reader |
|
RF chip solution |
Impinj E710 chip |
RF Power |
33dbm(adjustable) |
fast card reading |
Tag query speed up to 800 tags; tag cache 600 @ 128bits EPC |
Polling Inventory |
Multi-antenna port polling fast inventory |
Communication Interface |
Standard interface:USB、RS232、TCP/IP Optional interface:POE |
GPIO communication |
2 sets of GPI & 2 sets of GPO, can control external devices |
Support multi-language development |
Support C#, Delphi, java, Python, VB and other language development |
Support firmware remote online upgrade |
Special functional requirements can be completed through remote upgrades |
With LED indicator |
Check Reader working Status |
2.Product parameters
CF816 EVEN E710 UHF eight-channel fixed reader | |
Design |
Impinj E710 chip |
frequency standard |
902~928MHz (US) 865~868MHz (EU) |
protocol standard |
ISO18000-6C (EPC GEN2) |
RF power |
33dbm (adjustable) |
Maximum query speed |
800 tags/sec |
Reading distance |
0~25M (Depends on external antenna and tag) |
data cache size |
600pcs @ max 128bits EPC or 180pcs @ max 496bits EPC |
mixed query |
Support simultaneous query of EPC+TID area data |
Operating mode |
answer mode real-time query mode trigger mode (optional) |
judgment distance |
Support output RSSI value |
voltage |
12V 2A |
current consumption |
0.5~1.2A |
Communication Interface |
standard interface:USB、RS232、TCP/IP Optional interface:POE |
GPIO interface |
4 optocoupler input 4 optocoupler output |

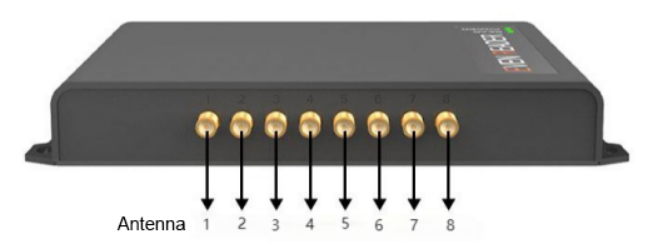

Antenna port |
8 SMA female |

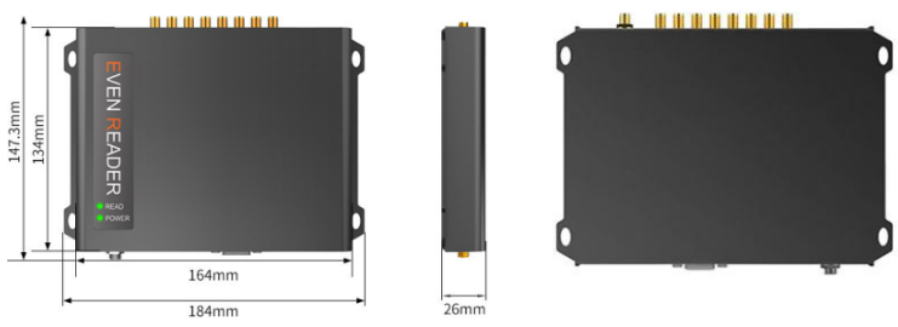

Equipment size |
147*184*26mm |
equipment weight |
0.6kg |
Individual package size |
200*255*100mm |
Individual package weight |
1.3kg |
Operating temperature |
-10-+60℃ |
Storage temperature |
-20-+75℃ |
3、Interface definition
3.1 Antenna interface: 4 RP TNC female connectors (4 different types of antennas can be connected externally at the same time)
Panel Antenna |
cabinet antenna |
|
near field antenna |
ceramic antenna |
3-2、Standard interface: USB, RS232, RS485, TCP/IP Optional interface: POE, WIFI
TCP/IP Network communication is stable,wireless length limit |
POE POE Network cable power supply, no wiring, plug and play |
WIFI Wireless communication, no need to wiring |
4、Definition
DC |
||
Serial No |
Signal |
Content |
Central |
PWR |
+12V DC |
Outer |
GND |
grounding |
RS232 D89 Female |
||
Serial No |
Signal |
Content |
1 |
NC |
reserve |
2 |
RXD |
RS232 data input |
3 |
TXD |
RS232data output |
4 |
NC |
reserve |
5 |
GND |
Ground |
6 |
NC |
reserve |
7 |
NC |
reserve |
8 |
NC |
reserve |
9 |
NC |
reserve |
GPIO |
||
No. |
Symbol |
content |
1 |
Output1R |
Universal optocoupler isolated output 1+ |
2 |
Output1L |
Universal optocoupler isolated output 1- |
3 |
Output2R |
Universal optocoupler isolated output 2+ |
4 |
Output2L |
Universal optocoupler isolated output 2- |
5 |
GND |
Signal ground |
6 |
Input1+ |
Universal optocoupler isolation input 1+ |
7 |
Input1- |
Universal optocoupler isolation input 1- |
8 |
Input2+ |
Universal optocoupler isolated input 2+ |
9 |
Input2- |
Universal optocoupler isolation input 2- |
10 |
GND |
Signal ground |

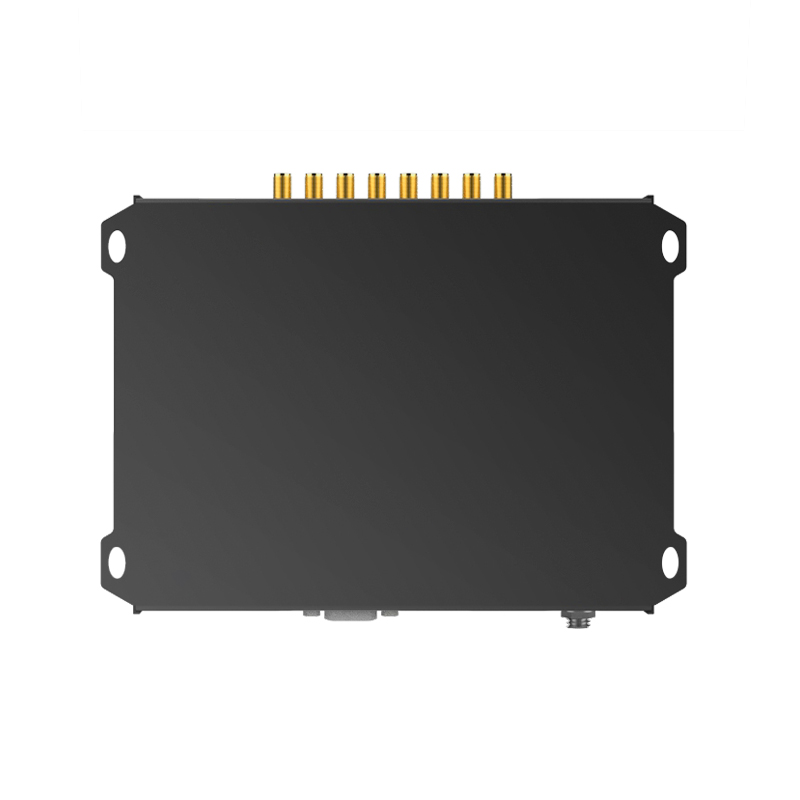

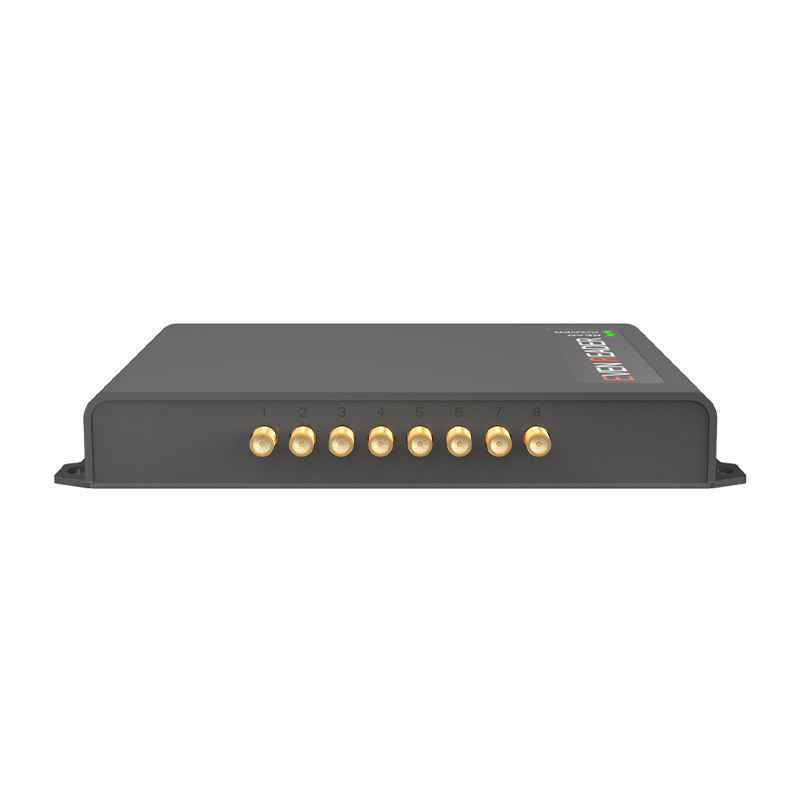

5、Product view
6、Product accessories: power adapter + plug * 1 set, serial cable * 1 USB cable * 1
7、EVEN series products
CF810 four channels 0-15 meters High performance chip RP TNC female port |
CF815 four channels 0-25meters Impinj E710 chip RP TNC female port |
CF811 eight channels 0-15 meters High performance chip SMA female port |
CF816 sixteen channels 0-25meters Impinj E710 chip SMA female port |
8、Application
