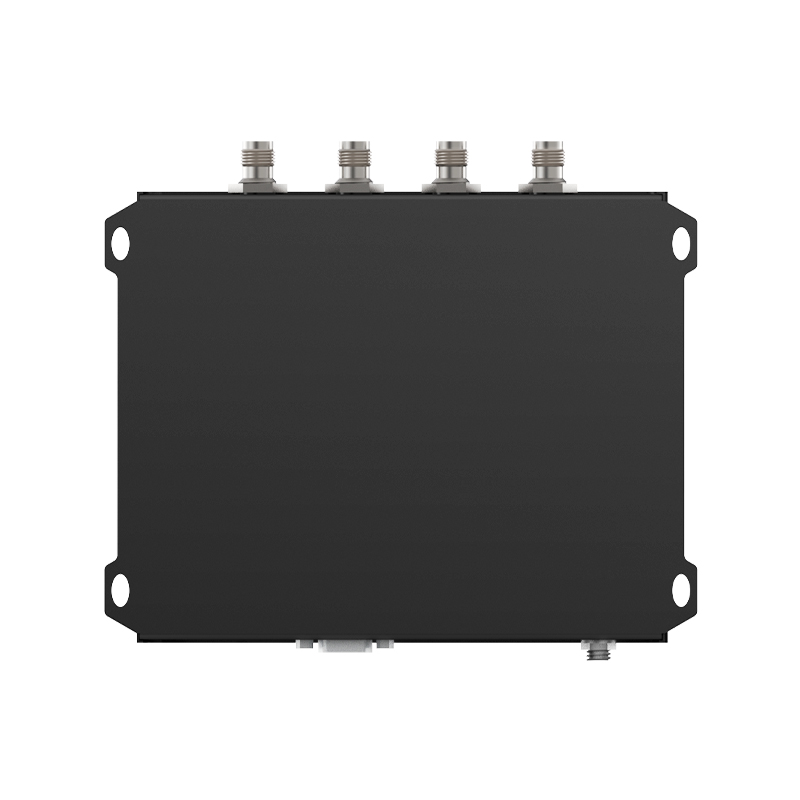

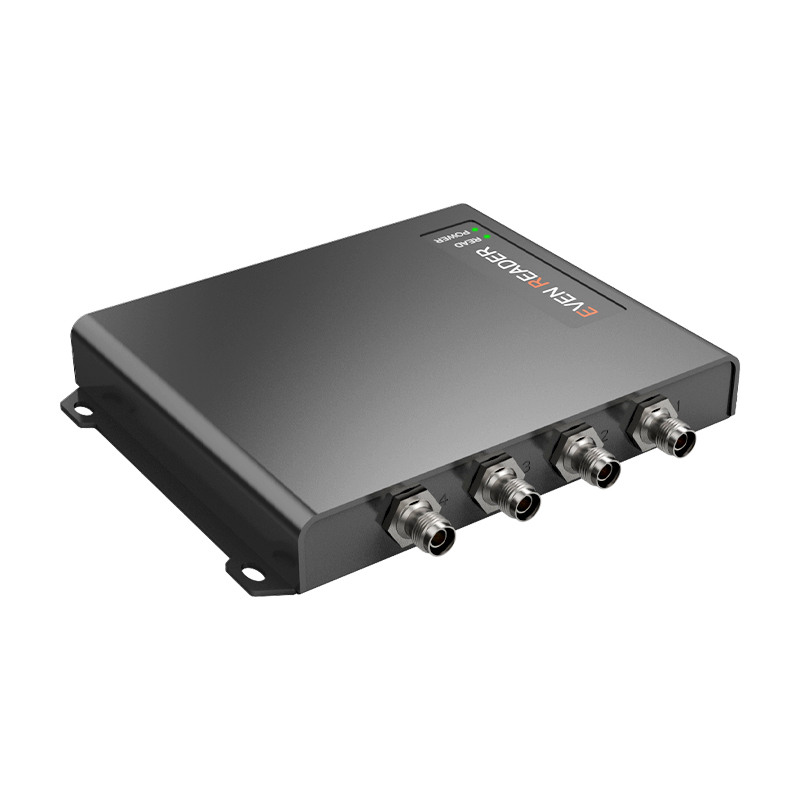

CF815 Even E710 UHF four-channel Fixed Reader
- Max inventory speed 800 tags/s
- Support multi-antenna ports anti-collision polling inventory
- Support RSSI recognize tags signal distance
- Support multiple c#,java,vc language for development
- Applications: Warehouse Inventory management,Production control ,
Asset tracking,laundry management ,intelligent cabinet , waste collection management etc.
Products Specification
|
RFID Technical Parameter |
|
Data Communication |
||
|
Engine |
Impinj E710 chip |
Standard Interface |
USB、RS232、RS485、TCP/IP |
|
|
Frequency |
902~928MHz (US）865~868MHz (EU） |
Customized Interface |
POE (mode A/mode B af) |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
GPIO interface |
2 sets of GPI & 2 sets of GPO |
|
|
RF Output Power |
0dbm—33dbm(adjustable) |
Antenna Port |
4 Channel RP TNC Female |
|
|
Inventory speed |
800 tags/s |
Power Supply |
12V 2A |
|
|
Data Cache |
600pcs @ 128bits EPC |
Current consumption |
0.5~1.2A |
|
|
Reading Distance |
0—25 meter |
Development Environment |
||
|
Anti-collision |
Multi-antenna ports polling fast inventory |
SDK |
Include Demo software, API,Sample,User Manual |
|
|
Work Mode |
Active mode Answer mode |
Development language |
Support C#, java-jni, java-linux,VC,Android |
|
|
RSSI |
Support |
Hardware Firmware |
Support Remote upgrade |
|
|
Physical Specification |
Working Environment |
|||
|
Material |
Die-cast Aluminum |
IP grade |
IP55 |
|
|
Dimension |
184*161.7*26mm |
Operating temperature |
-10-+60℃ |
|
|
Net Weight |
0.6kg |
Storage temperature |
-20-+75℃ |
|
|
Package size |
200*255*100mm |
|
||
|
Gross weight |
1.3kg |
|
||
Details Image
|
GPIO Pins Definition |
||
|
NO |
Symbol |
Content |
|
1 |
Output1R |
Universal optocoupler isolated output 1+ |
|
2 |
Output1L |
Universal optocoupler isolated output 1- |
|
3 |
Output2R |
Universal optocoupler isolated output 2+ |
|
4 |
Output2L |
Universal optocoupler isolated output 2- |
|
5 |
GND |
Signal ground |
|
6 |
Input1＋ |
Universal optocoupler isolation input 1+ |
|
7 |
Input1- |
Universal optocoupler isolation input 1- |
|
8 |
Input2＋ |
Universal optocoupler isolated input 2+ |
|
9 |
Input2- |
Universal optocoupler isolation input 2- |
|
10 |
GND |
Signal ground |
|
RS232 D89 Pins Definition |
||
|
NO |
Symbol |
Content |
|
1 |
NC |
reserve |
|
2 |
RXD |
RS232 data input |
|
3 |
TXD |
RS232 data output |
|
4 |
NC |
reserve |
|
5 |
GND |
grounding |
|
6 |
NC |
reserve |
|
7 |
NC |
reserve |
|
8 |
NC |
reserve |
|
9 |
NC |
reserve |
Related Products
|
Photo |
|
|
|
|
Model Number |
CF815 |
CF816 |
CF817 |
|
Engine |
Impinj E710 Chip |
||
|
Output RF power |
0dbm ~33dbm (adjustable) |
||
|
Inventory Speed |
800pcs/s |
||
|
Reading Distance |
0~25 meter (depends on antenna & tag & application) |
||
|
Antenna ports |
4 channel RP TNC Female |
8 channel SMA Female |
16 channel SMA Female |
