CF812 Even UHF sixteen-channel Fixed Reader
2.Frequency: 902~928MHz(US)/865~868MHz(EU)
3.RF power: 33dbm (adjustable)
4.Communication Interface:
Standard interface: USB, RS232.RS485.TCP/IP
Optional interface: POE, WIFI
5. Reading distance: 0~15 meters (depending on external antenna and tag)
6. Antenna port: 16 SMA female
7. GPIO: 2 sets of trigger signal input, 2 sets of relay signal output
1、Product Features
CF812 EVEN UHF sixteen-channel fixed reader |
|
RF chip |
Designed by high-performance chip design |
High power output |
Maximum power 33dbm adjustable |
Fast card reading |
Tag query speed up to 200 tags; tag cache 600 @ 128bits EPC |
Polling Inventory |
Multi-antenna port polling fast inventory |
Communication Interface |
Standard:USB、RS232、RS485、TCP/IP Optional:POE、WIFI |
GPIO |
2 sets of GPI & 2 sets of GPO, can control external devices |
Support multi-language development |
Support C#, Delphi, java, Python, VB and other language development |
Support firmware remote online upgrade |
Special functional requirements can be completed through remote upgrades |
With LED indicator |
judge the working status of the equipment |
2.Product parameters
CF812 EVEN UHF sixteen-channel fixed reader | |
RF chip |
Designed by high-performance chip design |
Frequency |
902~928MHz (US standard) 865~868MHz (EU standard) |
Protocol |
ISO18000-6C (EPC GEN2) |
RF power |
33dbm (adjustable) |
Maximum query speed |
200 tags/sec |
Reading distance |
0~15 meters (depending on external antenna and tag) |
Data cache |
600pcs @ max 128bits EPC or 180pcs @ max 496bits EPC |
Mixed query |
Support simultaneous query of EPC+TID area data |
Working mode |
Answer mode Real-time query mode Trigger mode (optional) |
Judgment distance |
Support output RSSI value |
Voltage |
12V 2A |
Current consumption |
0.5~1.2A |
Communication Interface |
Standard:USB、RS232、RS485、TCP/IP Optional:POE、WIFI |
GPIO |
2 sets of trigger signal input 2 sets of relay signal output |
Antenna port |
16 SMA female |
Size |
145*224*26mm |
Weight |
1.3kg |
Package Size |
310*230*140mm |
Package weight |
2.5kg |
Operating temperature |
-10-+60℃ |
Storage temperature |
-20-+75℃ |

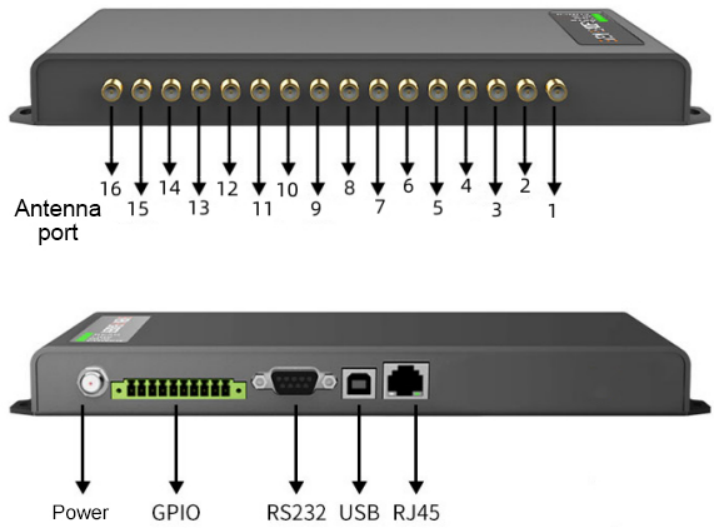

3、Interface definition
3.1 Antenna interface: 8 SMA female connectors (8 different types of antennas can be connected externally at the same time)
Panel Antenna |
cabinet antenna |
|
near field antenna |
ceramic antenna |
3-2、Standard interface: USB, RS232, RS485, TCP/IP Optional interface: POE, WIFI
TCP/IP Network communication is stable,wireless length limit |
POE POE Network cable power supply, no wiring, plug and play |
WIFI Wireless communication, no need to wiring |
4、Definition
DC |
||
Serial No |
Signal |
Content |
1 |
PWR |
+12V DC |
2 |
CND |
Ground |
RS232 D89 Female |
||
Serial No |
Signal |
Content |
1 |
NC |
reserve |
2 |
RXD |
RS232 data input |
3 |
TXD |
RS232data output |
4 |
NC |
reserve |
5 |
GND |
Ground |
6 |
NC |
reserve |
7 |
NC |
reserve |
8 |
NC |
reserve |
9 |
NC |
reserve |
GPIO |
||
Serial No |
Signal |
Content |
1 |
COM1 |
Relay 1-Common |
2 |
NO1 |
Relay 1 - normally open |
3 |
COM2 |
Relay 2-Common |
4 |
NO2 |
Relay 1 - normally open |
5 |
CND |
Ground |
6 |
GPI-1 |
trigger 1 |
7 |
GPI-2 |
trigger 2 |
8 |
CND |
Ground |
9 |
A+ |
RS485 data 1 (D+) |
10 |
B+ |
RS485 data 0 (D-) |

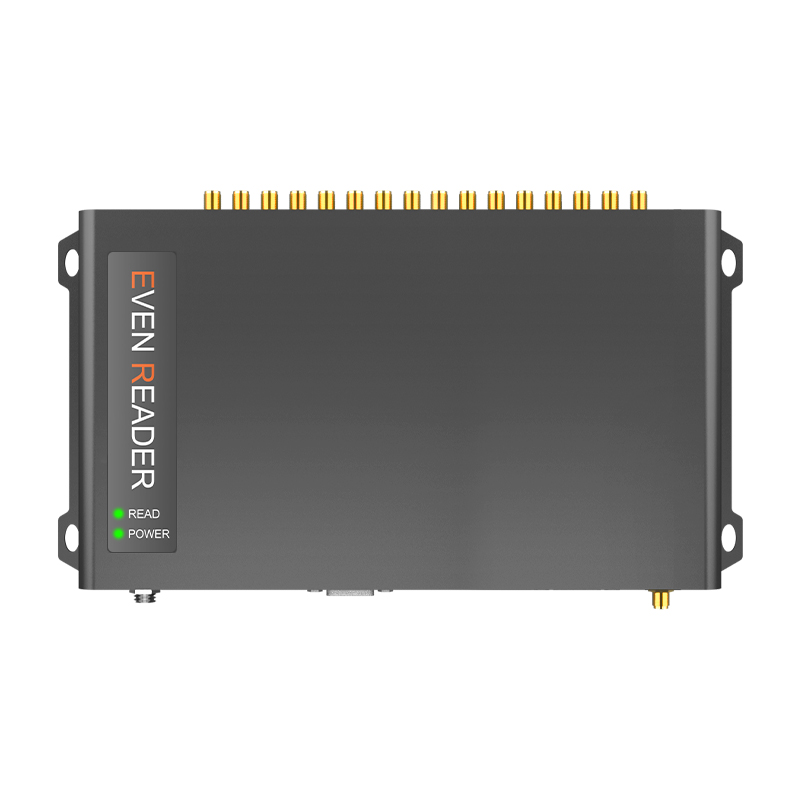

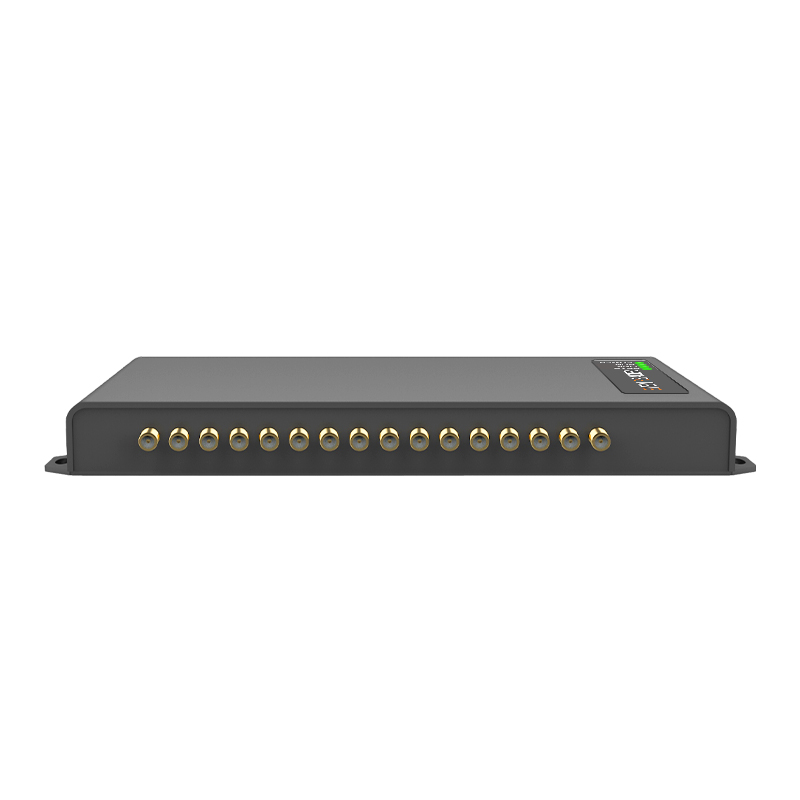

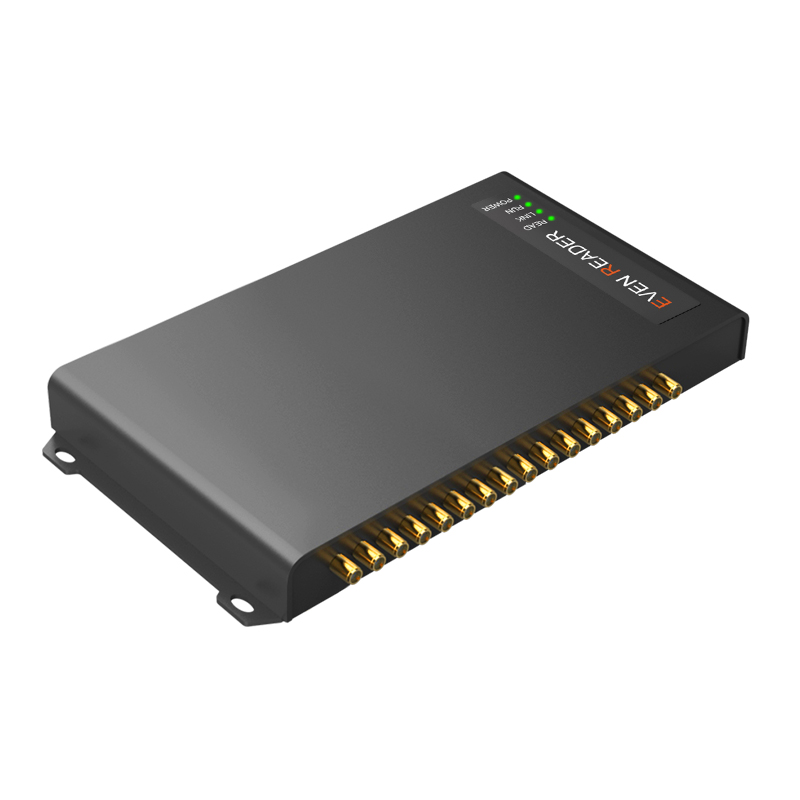

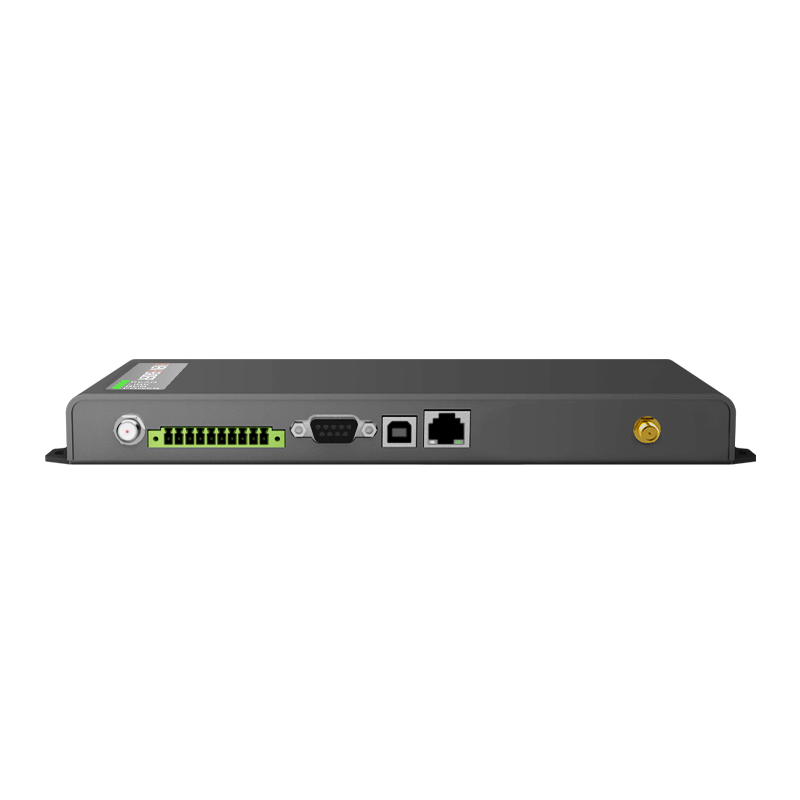

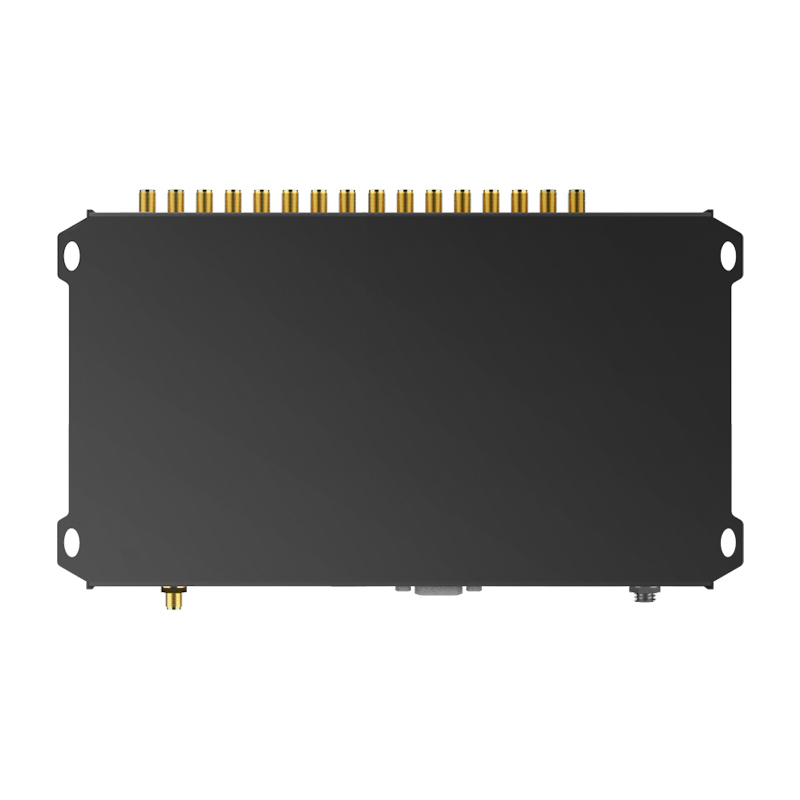

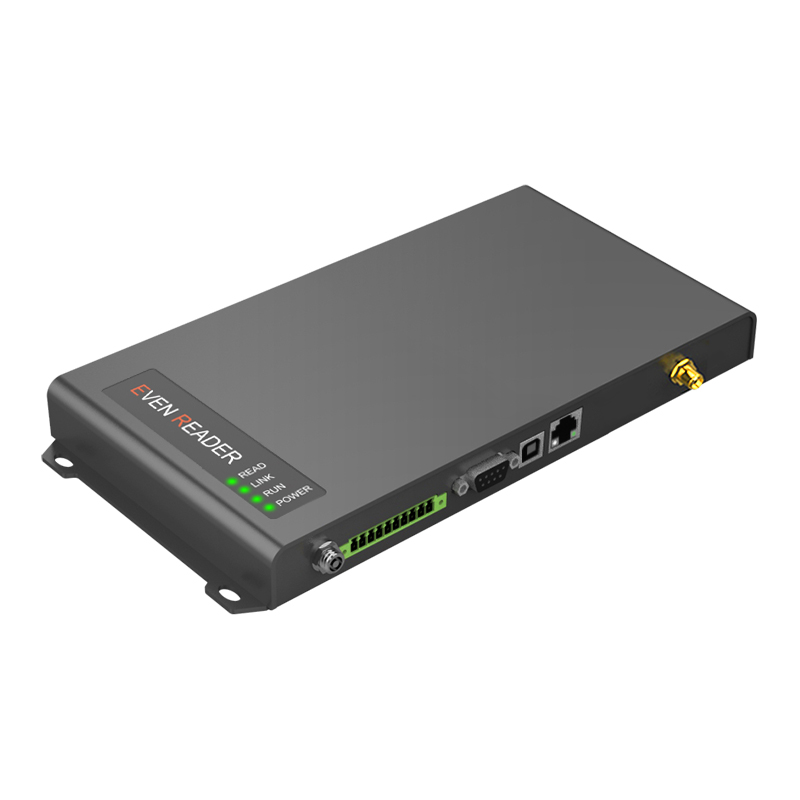

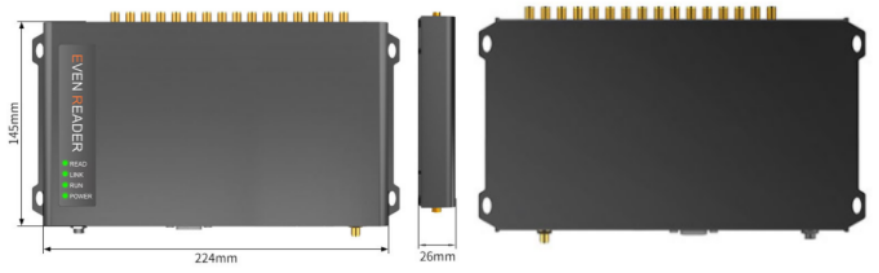

5、Product view
6、Product accessories: power adapter + plug * 1 set, serial cable * 1 USB cable * 1
7、EVEN series products
CF810 four channels 0-15 meters High performance chip RP TNC female port |
CF815 four channels 0-25meters Impinj E710 chip RP TNC female port |
CF811 eight channels 0-15 meters High performance chip SMA female port |
CF816 sixteen channels 0-25meters Impinj E710 chip SMA female port |
