CF811 Even UHF eight-channel Fixed Reader
2.Frequency: 902~928MHz（US）/865~868MHz(EU)
3.RF power: 33dbm (adjustable）
4.Communication Interface: RS232/RS485/USB/RJ45/POE/WIFI (optional)
5. Reading distance: 0~15 meters (depending on external antenna and tag)
6. Antenna port: 8 SMA female
7. GPIO: 2 optocoupler input
2 relay output
1、Product Features
|
CF811 EVEN UHF eight-channel fixed reader |
|
|
RF chip |
Designed by high-performance chip design |
|
High power output |
Maximum power 33dbm adjustable |
|
Fast card reading |
Tag query speed up to 200 tags; tag cache 600 @ 128bits EPC |
|
Polling Inventory |
Multi-antenna port polling fast inventory |
|
Communication Interface |
Standard：USB、RS232、RS485、TCP/IP Optional：POE、WIFI |
|
GPIO |
2 sets of GPI & 2 sets of GPO, can control external devices |
|
Support multi-language development |
Support C#, Delphi, java, Python, VB and other language development |
|
Support firmware remote online upgrade |
Special functional requirements can be completed through remote upgrades |
|
With LED indicator |
judge the working status of the equipment |
2.Product parameters
| CF811 EVEN UHF eight-channel fixed reader | |
|
RF chip |
Designed by high-performance chip design |
|
Frequency |
902~928MHz (US standard） 865~868MHz (EU standard） |
|
Protocol |
ISO18000-6C (EPC GEN2) |
|
RF power |
33dbm (adjustable） |
|
Maximum query speed |
200 tags/sec |
|
Reading distance |
0~15 meters (depending on external antenna and tag) |
|
Data cache |
600pcs @ max 128bits EPC or 180pcs @ max 496bits EPC |
|
Mixed query |
Support simultaneous query of EPC+TID area data |
|
Working mode |
Answer mode Real-time query mode Trigger mode (optional) |
|
Judgment distance |
Support output RSSI value |
|
Voltage |
12V 2A |
|
Current consumption |
0.5~1.2A |
|
Communication Interface |
Standard：USB、RS232、RS485、TCP/IP Optional：POE、WIFI |
|
GPIO |
2 sets of trigger signal input 2 sets of relay signal output |
|
Antenna port |
8 SMA female |
|
Size |
147*184*26mm |
|
Weight |
1.3kg |
|
Package Size |
200*255*100mm |
|
Package weight |
2.5kg |
|
Operating temperature |
-10-+60℃ |
|
Storage temperature |
-20-+75℃ |
3、Interface definition

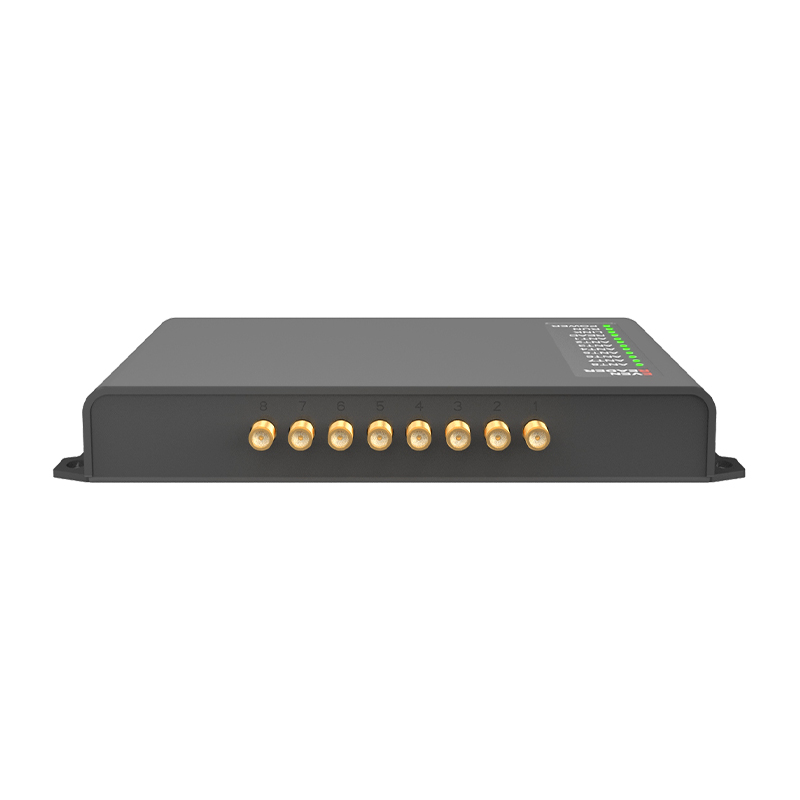

3.1 Antenna interface: 8 SMA female connectors (8 different types of antennas can be connected externally at the same time)
 |
|
 |
|
Panel Antenna |
cabinet antenna |
|
 |
|
|
|
near field antenna |
ceramic antenna |
3-2、Standard interface: USB, RS232, RS485, TCP/IP Optional interface: POE, WIFI
 |
||
|
TCP/IP Network communication is stable,wireless length limit |
POE POE Network cable power supply, no wiring, plug and play |
WIFI Wireless communication, no need to wiring |
4、Definition
|
DC |
||
|
Serial No |
Signal |
Content |
|
1 |
PWR |
+12V DC |
|
2 |
CND |
Ground |
|
RS232 D89 Female |
||
|
Serial No |
Signal |
Content |
|
1 |
NC |
reserve |
|
2 |
RXD |
RS232 data input |
|
3 |
TXD |
RS232data output |
|
4 |
NC |
reserve |
|
5 |
GND |
Ground |
|
6 |
NC |
reserve |
|
7 |
NC |
reserve |
|
8 |
NC |
reserve |
|
9 |
NC |
reserve |
|
GPIO |
||
|
Serial No |
Signal |
Content |
|
1 |
COM1 |
Relay 1-Common |
|
2 |
NO1 |
Relay 1 - normally open |
|
3 |
COM2 |
Relay 2-Common |
|
4 |
NO2 |
Relay 1 - normally open |
|
5 |
CND |
Ground |
|
6 |
GPI-1 |
trigger 1 |
|
7 |
GPI-2 |
trigger 2 |
|
8 |
CND |
Ground |
|
9 |
A+ |
RS485 data 1 (D+) |
|
10 |
B+ |
RS485 data 0 (D-) |

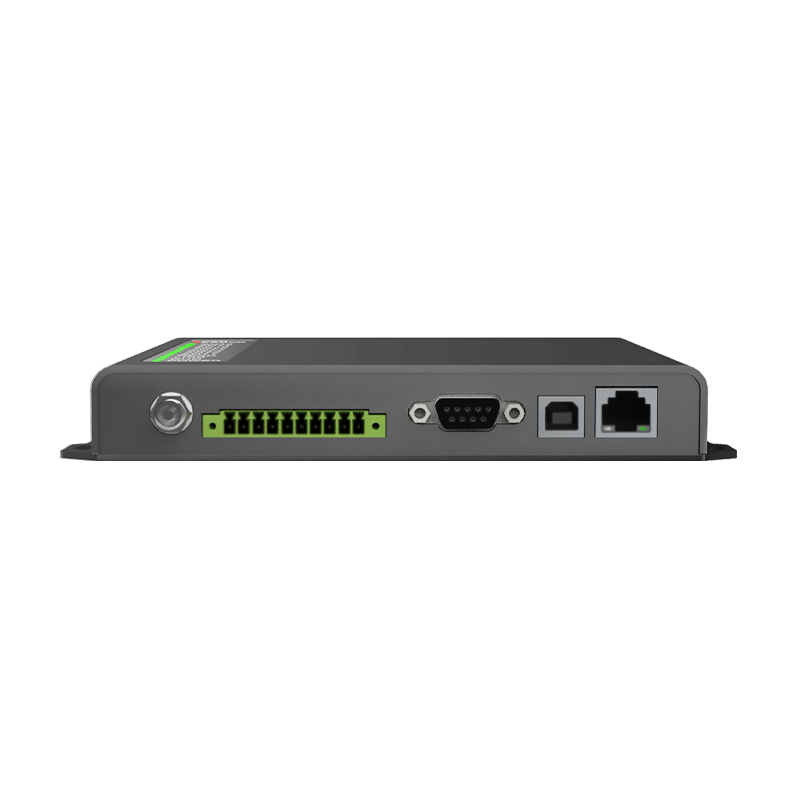

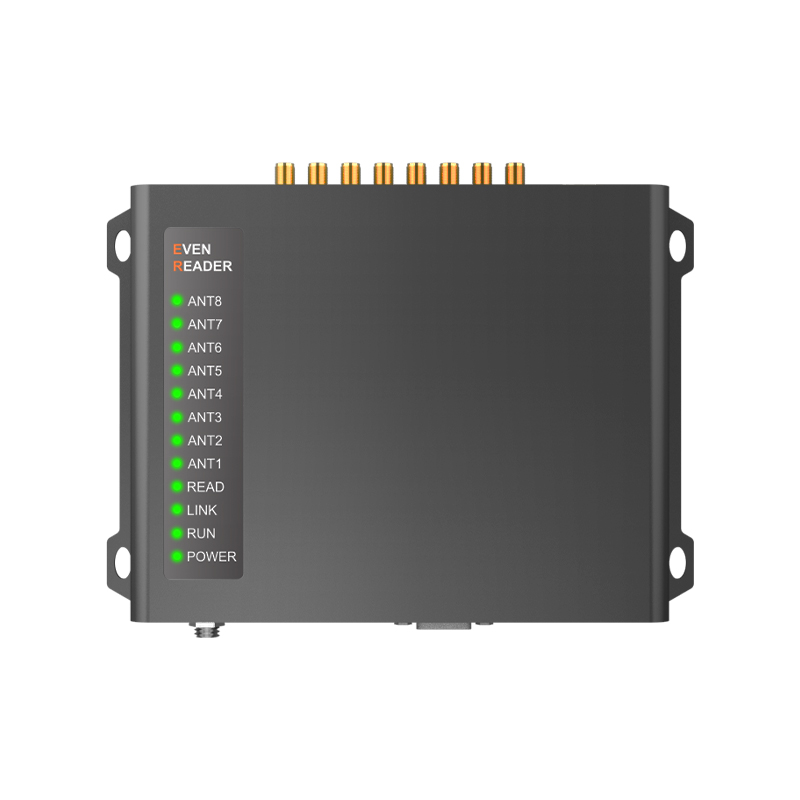

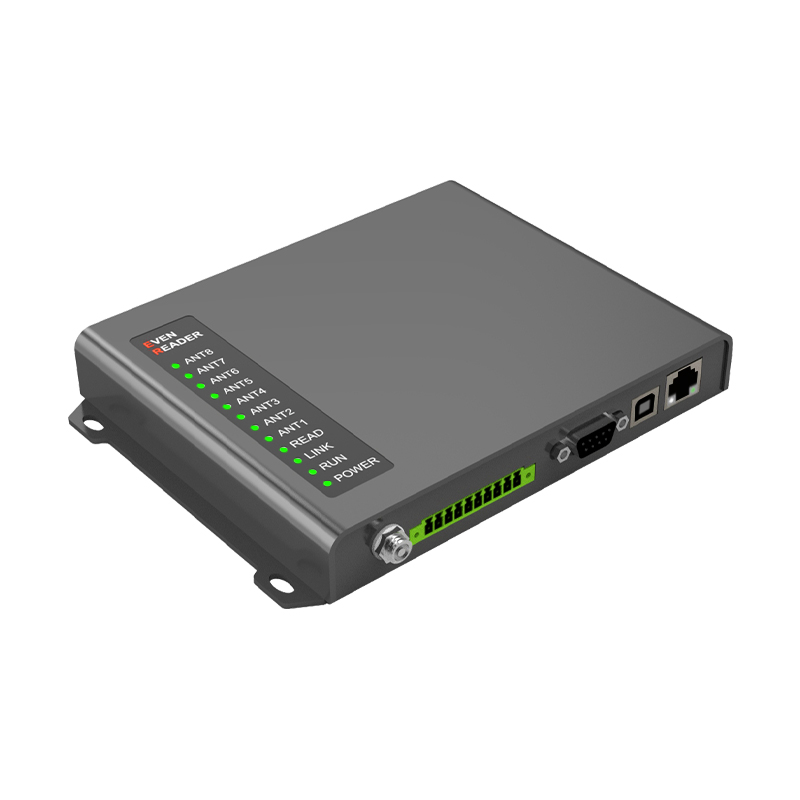

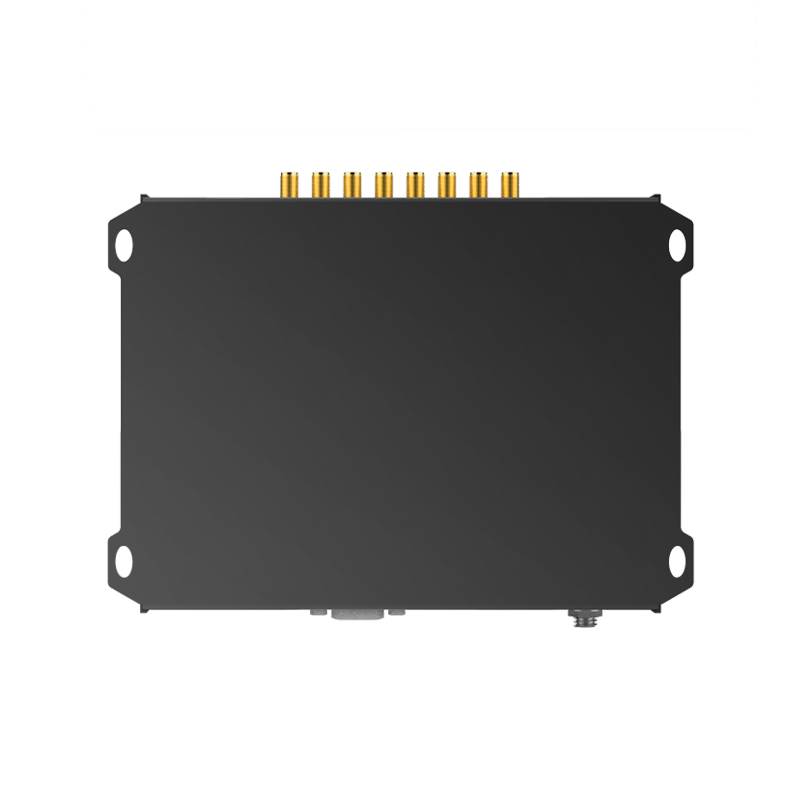

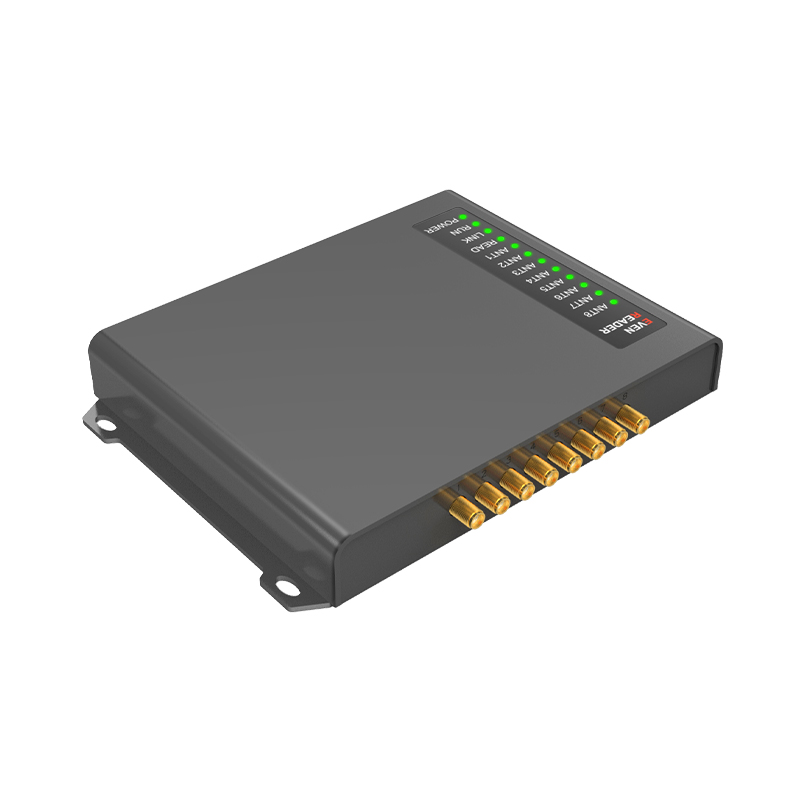

5、Product view
6、Product accessories: power adapter + plug * 1 set, serial cable * 1 USB cable * 1
 |
 |
 |
 |
7、EVEN series products
 |
 |
 |
 |
|
CF810 four channels 0-15 meters High performance chip RP TNC female port |
CF815 four channels 0-25meters Impinj E710 chip RP TNC female port |
CF811 eight channels 0-15 meters High performance chip SMA female port |
CF816 sixteen channels 0-25meters Impinj E710 chip SMA female port |
8、Application
 |
 |
 |
 |
