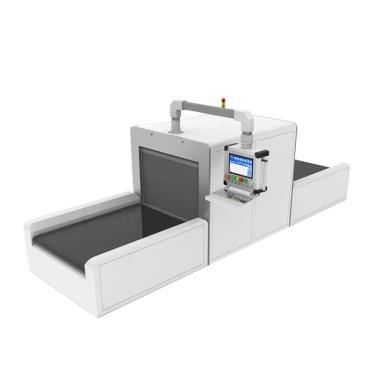

CF-CM01 UHF Industrial Single Box Channel Machine
-Motion control + mechanical design technology, effectively solving the problem of missed tag reads.

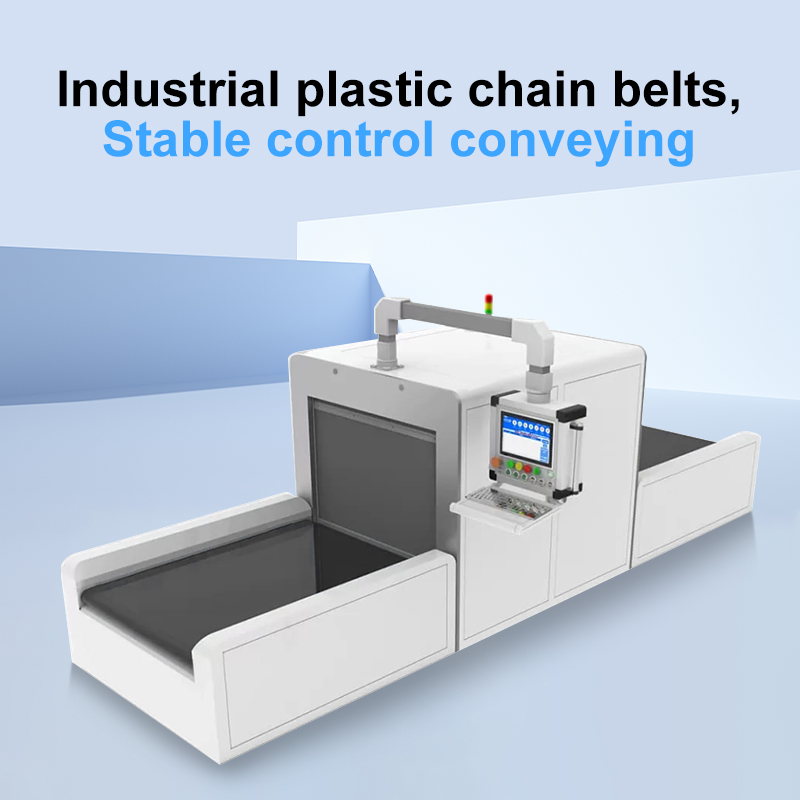

-Industrial plastic chain belt conveyor design, effectively resolving maintenance issues related to conveyor belt misalignment.

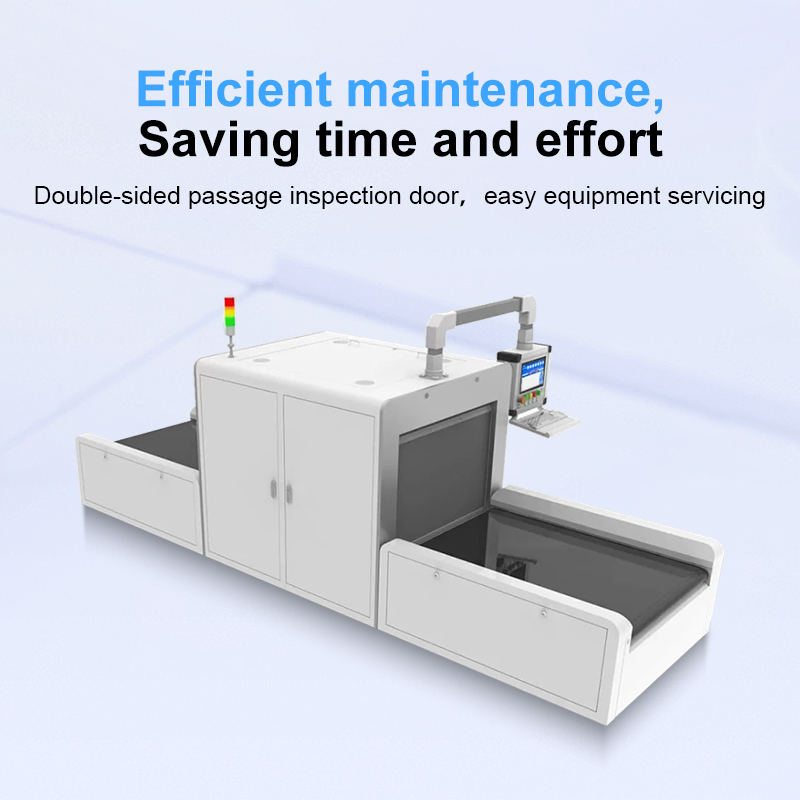

-Maintenance access doors on both sides of the tunnel for easy equipment servicing.
-Provides secondary development interfaces, including DLL and Demo program
|
Main performance parameters |
|
Main performance parameters |
||
|
Protocol |
EPC Global Class1 Gen2/ISO 18000-6C |
|
Up to 80KG |
|
|
Frequency |
|
Efficiency |
6-10 boxes/minute |
|
|
RFID Frequency Mode |
Fixed Frequency / Frequency Hopping, 10 hopping points |
Read/Write Tag Quantity |
400+PCS |
|
|
Reader Output Power |
5-33dBm |
Read/Write Device |

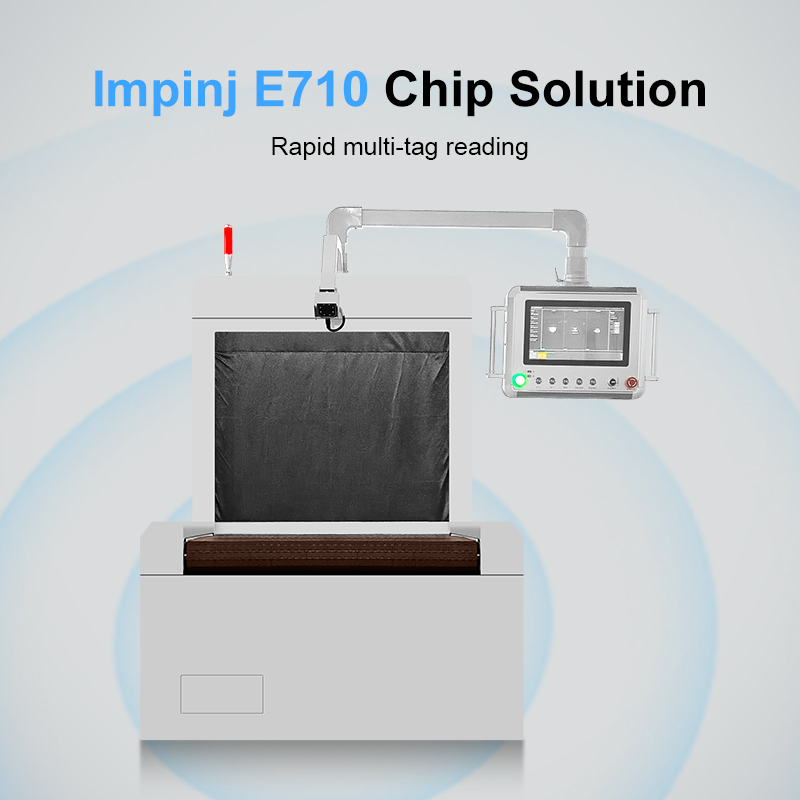

E710 (Impinj R420 optional) / Domestic solution |
|
|
Interface |
RJ45,USB,RS232 |
Reading Speed |
Within 3 seconds |
|
|
Conveying Speed |
Up to 40m/min (adjustable), Default 20m/min |
Reading Mode |
Static / Motion |
|
|
Operating Mode |
Interval T Cycle / Continuous Operation / External Trigger |

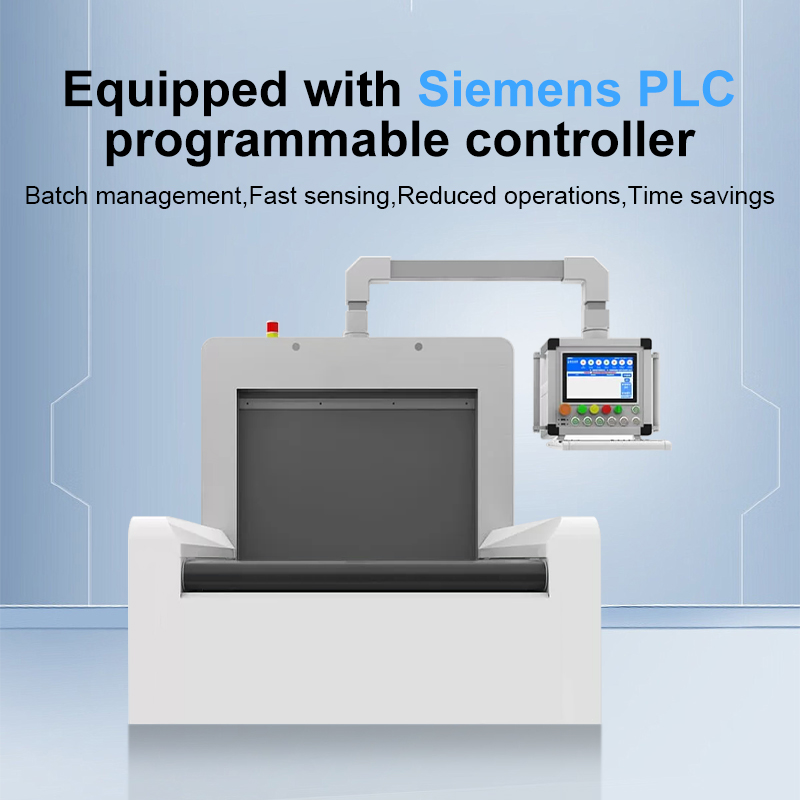

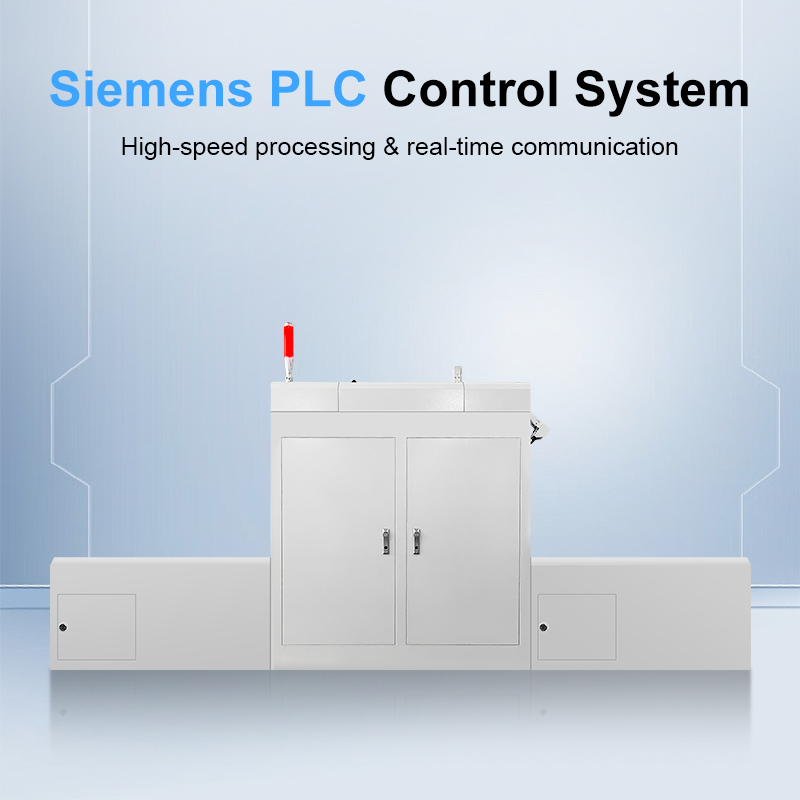

PLC |
Siemens PLC |
|
|
Reading Mode |
|
Circuit Control System |
Cooperates with PLC |
|
|
Cantilever (Optional) |
Available, selected based on cost |
Read/Write Antenna |
8 antenna positions reserved, 10dbi |
|
|

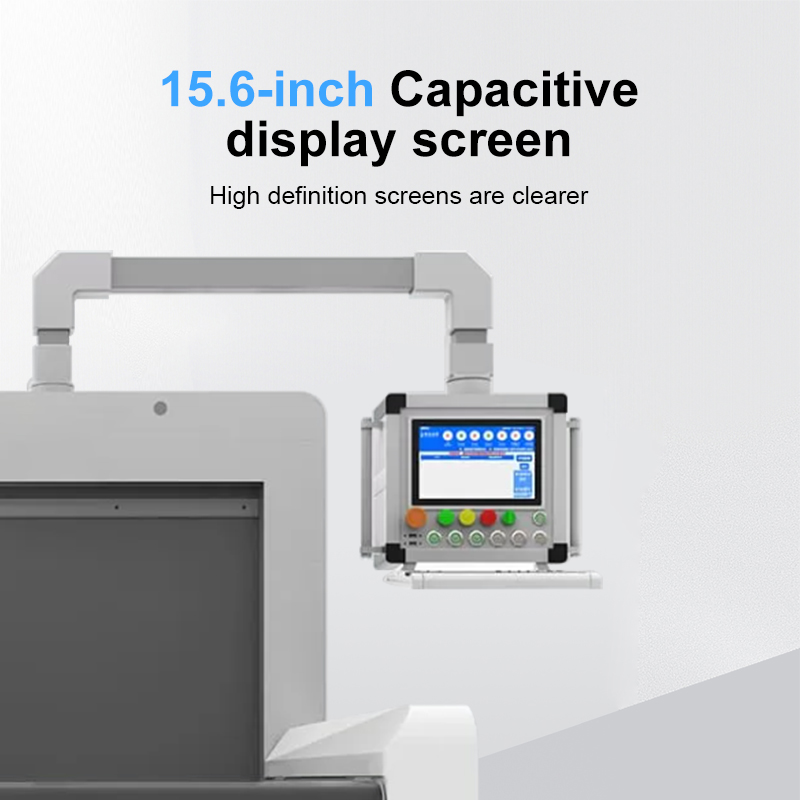

Touch Screen Specification |
15.6 inch Capacitive Screen, 1280*800 (16:9) |
Conveyor Forward/Reverse Capability |
Conveyor can run in both forward and reverse directions |
|
|
Industrial Computer Specification |
J6412/8G+128G /RK3399,4+32G |
Door Opening/Closing Speed |
1.5 Seconds |
|
|
Operating System |
Windows / Android |
Door Type |
Front and rear motorized shielded roller doors |
|
|
Conveyor Material |
Chain Plate Belt |

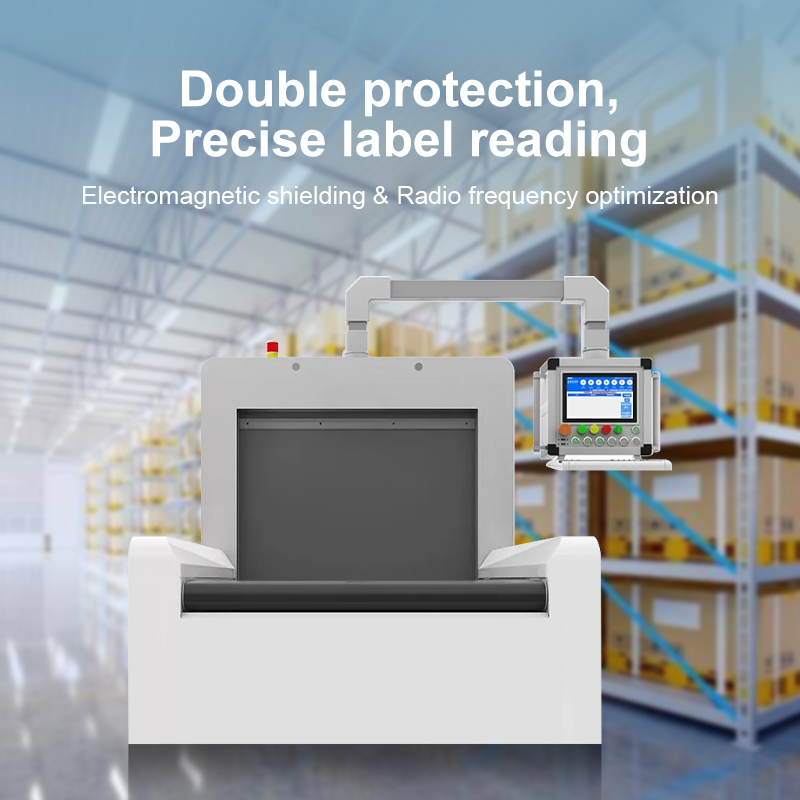

Shielding Distance |
Misread range ≤10cm after front/rear shielded roller doors close (misread range depends on tag performance) |
|
|
Status Indicator Light |
|

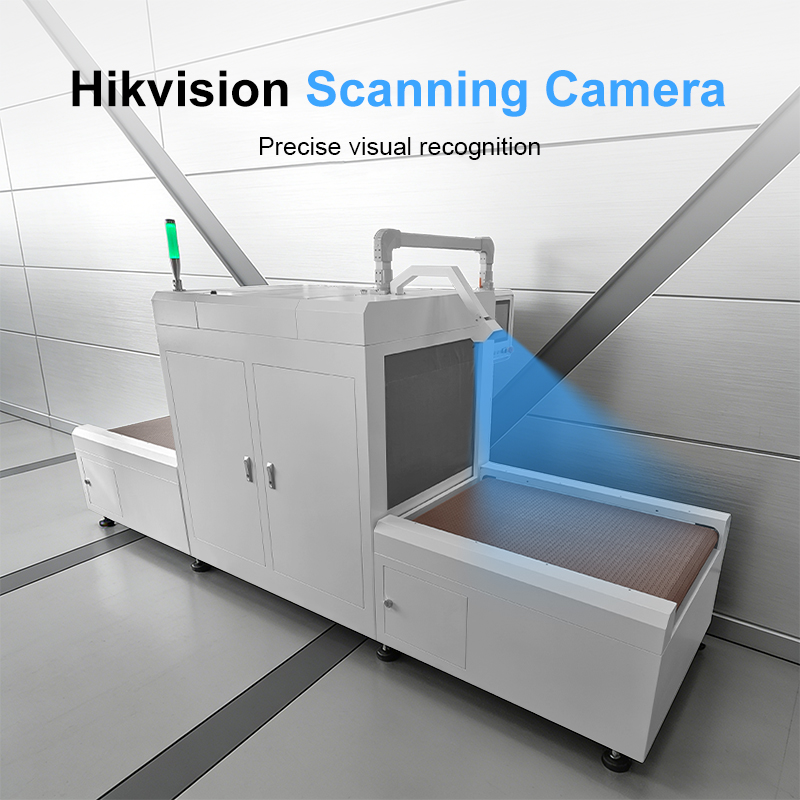

High-Speed Barcode Scanner / Camera |
Customizable (Hikvision / Newland) |
|
|
Segmented Conveyor |
Three segments, individually controllable and adjustable |
Weighing Module |
Customizable |
|
|
Manual Control Switches |
|
Motor Type |
Stepper |
|
|
Production Line Queuing Interface |
NO |
Physical environment indicators |
||
|
Physical environment indicators |

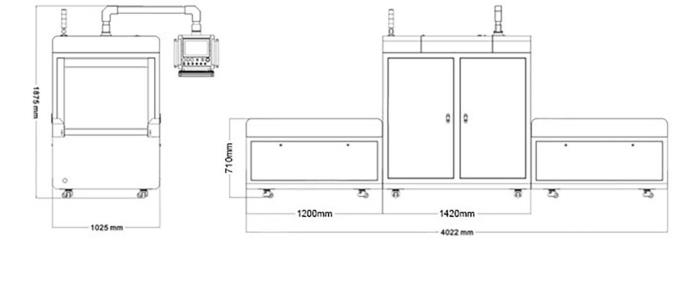

Overall Dimensions (W×D×H) |

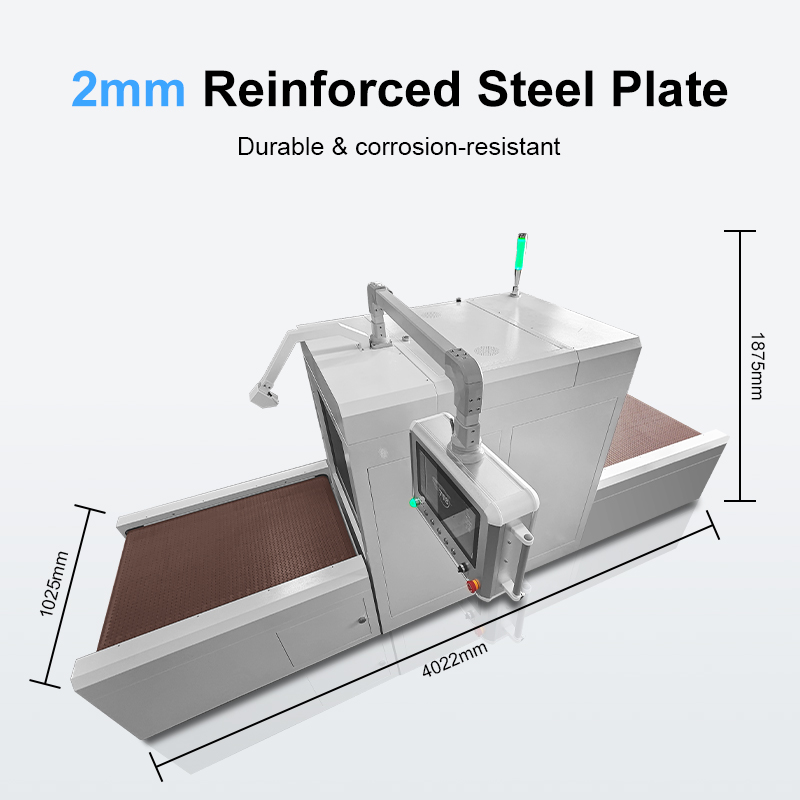

1025mm (W) × 4022mm (D) × 1875mm(H) (excluding cantilever and alarm light) |
||
|
Operating Temperature |
-20℃~60℃(Practical use: -10℃~50℃) |
Middle Section Dimensions (mm) |
1025mm (W) × 1420mm (D) × 1875mm(H) (excluding cantilever and alarm light) |
|
|
Storage Temperature |
-10℃~60℃ |
Internal Space Dimensions (mm) |
780mm (W) × 1300mm (D) × 620mm (H) |
|
|
Operating Humidity |
20–95%(non-condensing) |
Maximum Box Size (mm) |
760mm (W) × 1000mm (D) × 600mm (H) |
|
|
Operating Voltage |
220VAC（±10%）50±3HZ |
Front/Rear Section Dimensions (mm) |
1025mm (W) × 1200mm (D) × 650mm (H) |
|
|
Power Consumption |
1000W |
Sorting Module |
Optional (specially designed) |
|
|

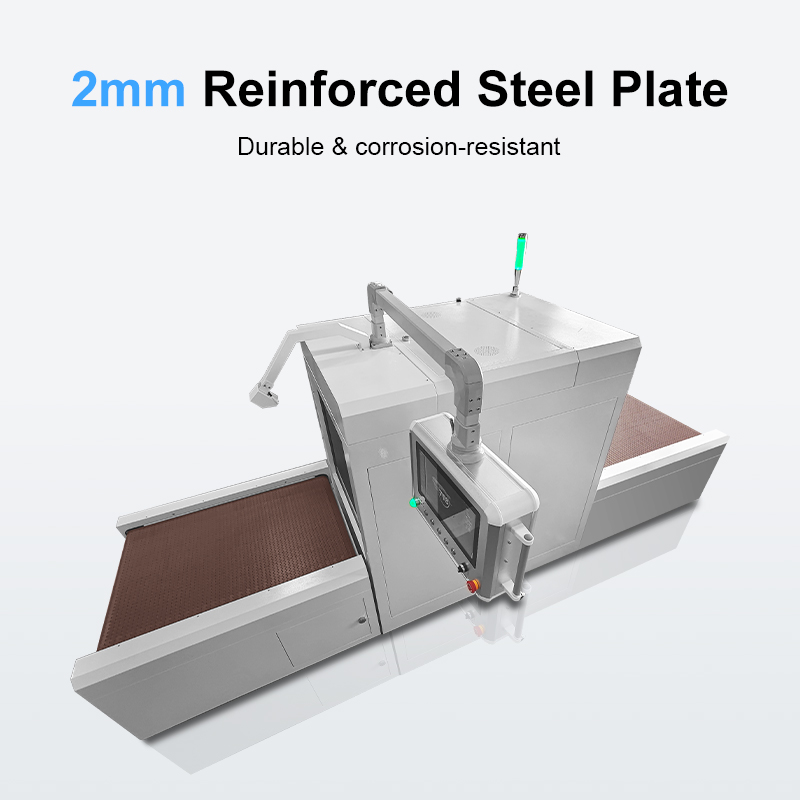

Enclosure Material |
Carbon Steel Spray Painting (Industrial Gray + Tech Blue) |
Net Weight |
Approx. 465KG |
|
Details display

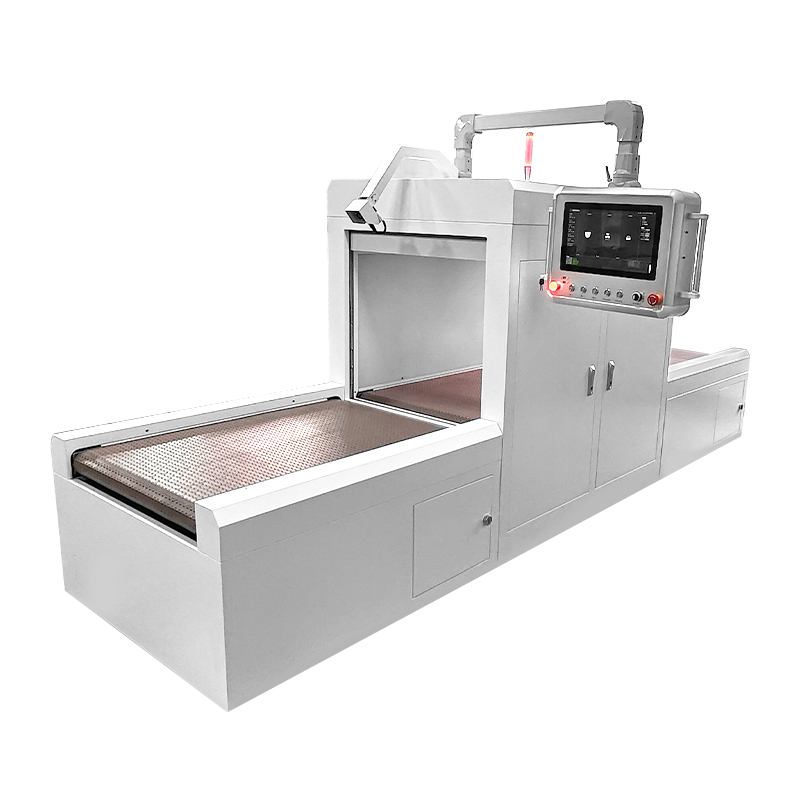

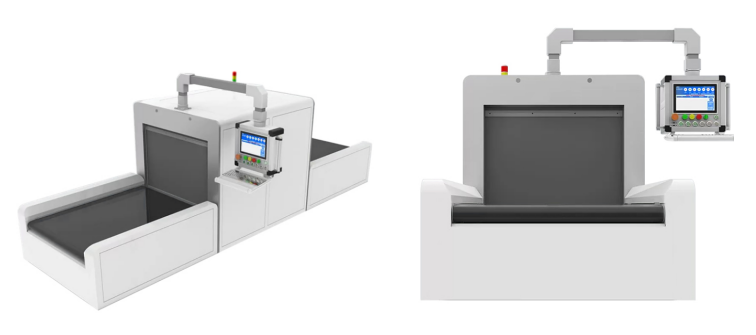

Product Physical Image:
|
Image |
|
|
|
Model |
CF-CM01 |
T101 |
|
Output Power |
0-33dbm |
|
|
Reading Distance |
Within 3 seconds |
|
|
Operating System |
Windows/Android(optional） |
|
