CF-CR03 UHF RFID Self-Checkout Counter
-Utilizes a 15.6-inch high-definition touchscreen for interaction and transmits data via Ethernet port.

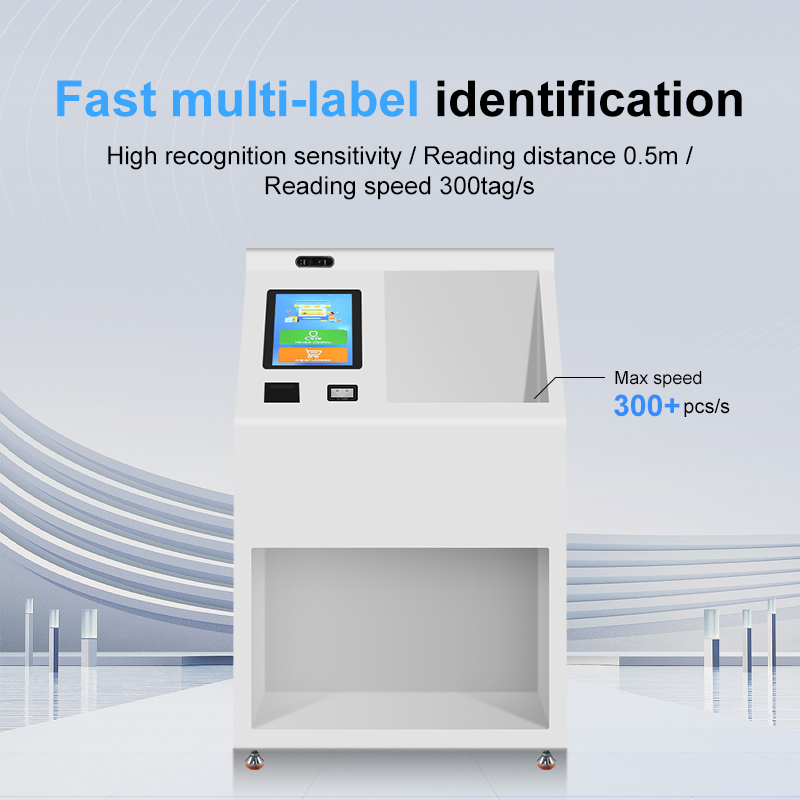

-UHF RFID technology offers superior multi-tag reading/writing performance, capable of identifying >10 items at once, enhancing checkout efficiency.
-Integrated design, fashionable appearance, user-friendly interface, and process design make it simple and easy to use.

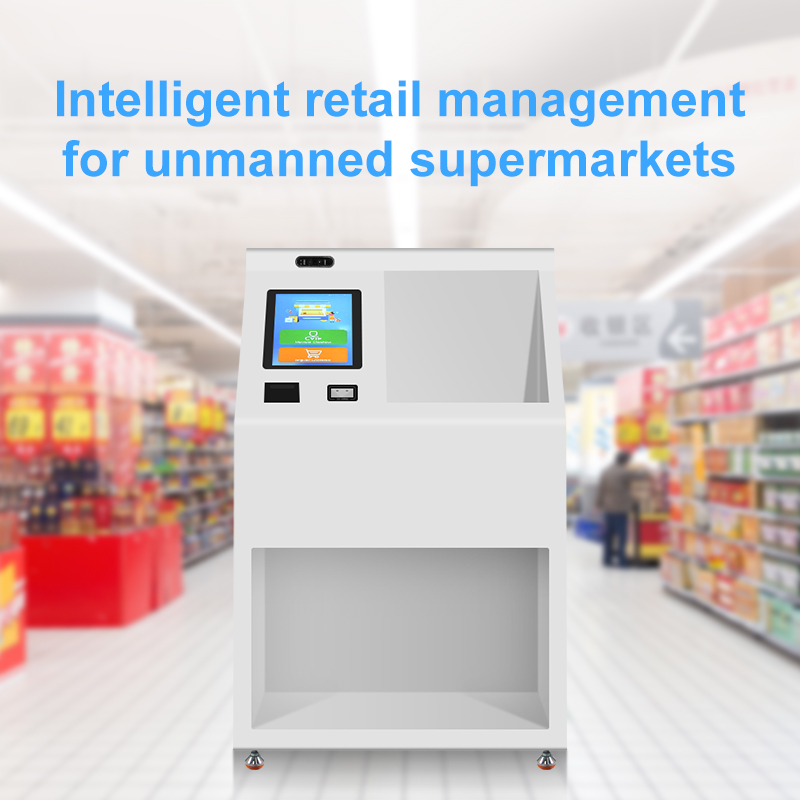

-Application: unmanned supermarkets and self-checkout
Product Specifications
|
UHF RFID |
|
Physical Parameters |
||
|
Frequency Range |
840MHz-960MHz |

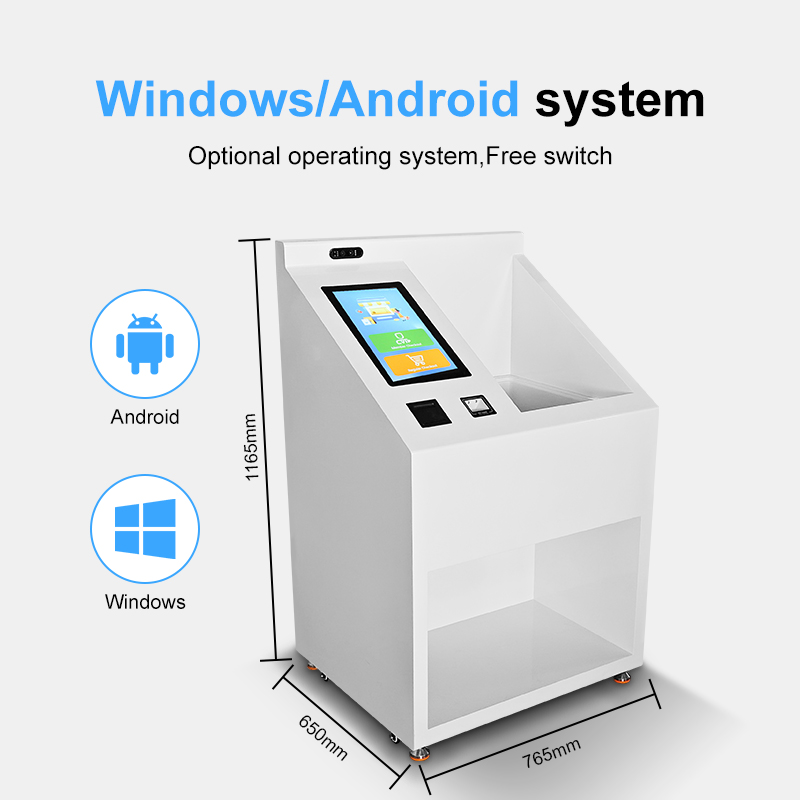

Overall Dimensions (HWD) |
1165*765*650mm |
|
|
RF Protocol Standard |
ISO 18000-6C（EPC C1 G2） |

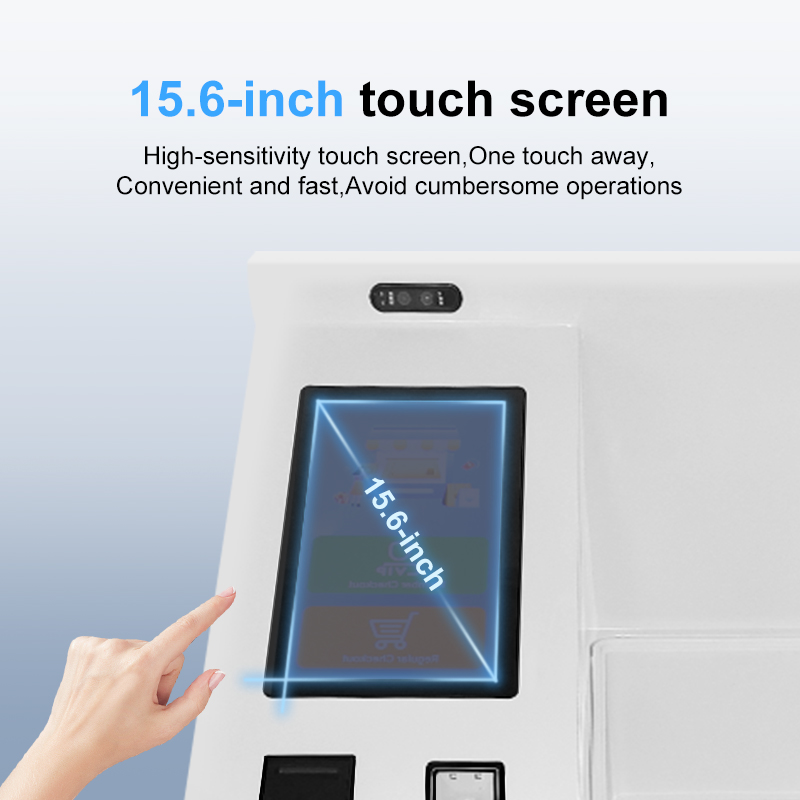

Screen
|
15.6-inch Capacitive touch screen |
|
|
Performance Parameters |
Resolution
|
1920*1080 |
||
|

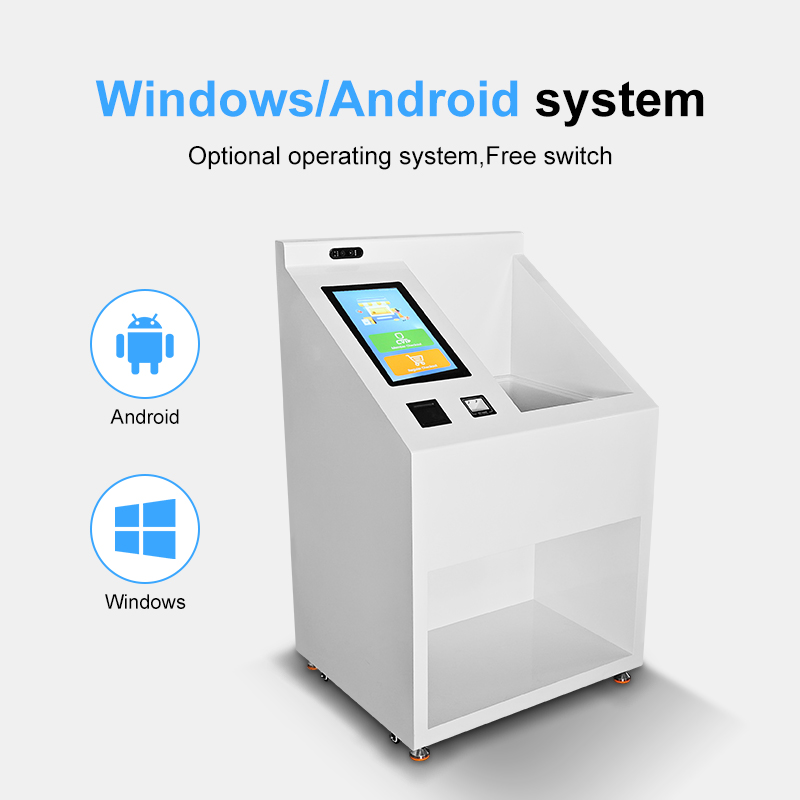

Operating System |
Windows/Android |
Aspect Ratio |
16:9 |
|
|
Industrial Control Configuration |
J6412(8G+128G)/RK3568(4+32) |
Communication Interfaces |
RS232、USB、RJ45
|
|
|
Identification Method |
Radio Frequency Identification (UHF RFID) |
Fixation/Mobility Method
|
Casters |
|
|
Read Time |
1-3 seconds |
Power Supply |
||
|
Optional Functions |
Power Input |
AC220V |
||
|

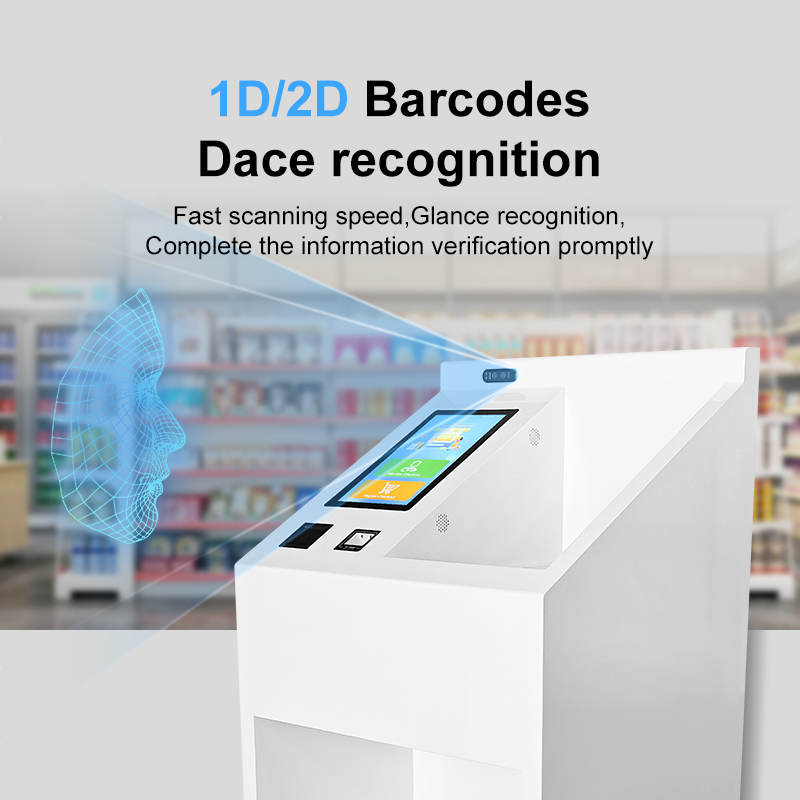

QR Code |
Standard 1D/2D scanning |
Operating Environment |
||
|
Facial Recognition |
Dual 1080P, RGB + Infrared |
Operating Temperature |
0~60℃ |
|
|
Receipt Printing |
EM5823H, Paper Width 58mm, Roll Paper 27.5m |
|
||
|
NFC |
Optional |
|||
Details display

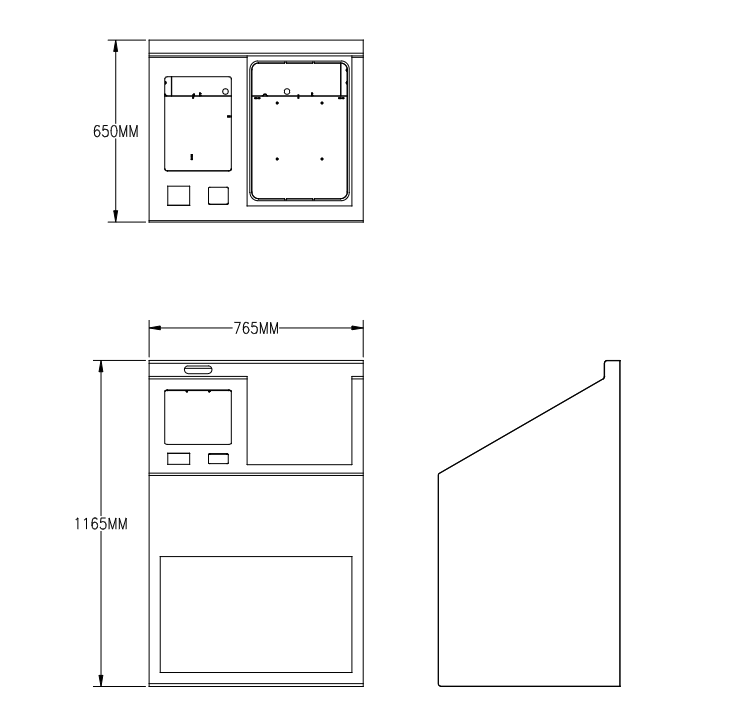

Product size:
Related Products
|
Image |
|
|
|
|
Model |
CF-CR03 |
CF-CR01 |
CF-CR02 |
|
COM |
RS232、USB 、RJ45 |
RS232、USB、TCP/IP、Power |
RS232、USB、TCP/IP、Power |
|
Screen |
15.6-inch |
21.5-inch |
- |
|
Size |
1165*765*650mm |
1629*580*610mm |
442*586*266mm |
