CF-CR02 UHF intelligent cash register
-High-performance chip design, tag query speed can reach 300 tags/second, and can store up to 1,000 96-bit EPC tags
-Supports development in languages such as C#, Delphi, Java, Python, VB , and SDKs are available
-Application: Scenarios requiring self-service checkout , such as unmanned supermarkets
Product Specifications
|
RFID Technical Parameters |
|
Power supply parameters |
||
|
frequency |
860~960MHz( Universal ) US 902-928MHZ( US ) 865.6—867.6MHZ( EU ) 917-920.8MHZ( KCC ) 920-926MHZ( ACMA ) |
Power input |
100-240V 50/60Hz |
|
|
protocol |
ISO18000-6C (EPC GEN2) |
Power output |
12V 2A |
|
|
RF output power |
0dbm-33dbm (adjustable) |
interface |
||
|
Built-in antenna |
2dBi antenna*5 , circular polarization |
Power interface |
12V 2A DC interface 1 |
|
|
Read range |
326*470*213mm (inside the frame) |
|
RS232 DB9 Female Interface * 1 |
|
|
Read rate |
>300 fps (depending on tag and antenna) |
|
USB Type-B Female Port * 1 |
|
|
Tag Cache |
1000 @96bitEPC tags (supports cache and real-time storage modes) |
Development Environment |
||
|
RSSI |
support |
SDK |
Demo software, API, examples, user manual |
|
|
Physical parameters |
Development language |
C#, Delphi, Java, Python, VB and other languages |
||
|
Material |
ABS+Q235A steel |
Firmware version |
Support online upgrade |
|
|
color |
White |
Work Environment |
||
|

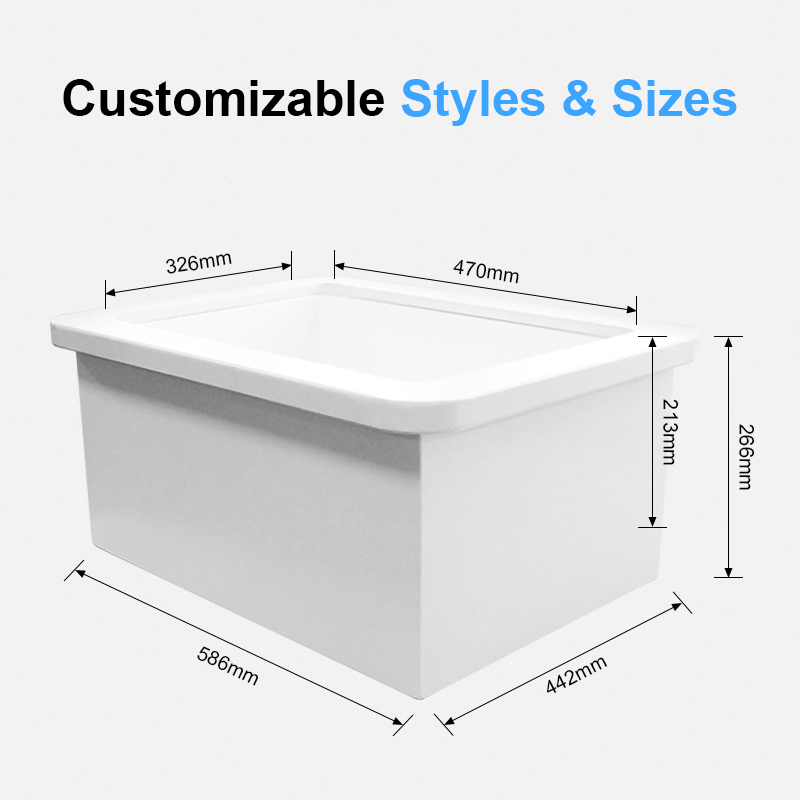

Checkout counter size |
442*586*266mm |
IP rating |
IP65 |
|
|
net weight |
9.8KG |
Operating temperature |
-40℃~+65℃ |
|
|
|
Storage temperature |
-45℃~+85℃ |
||
|
|
Operating humidity |
<95% (25℃) |
||

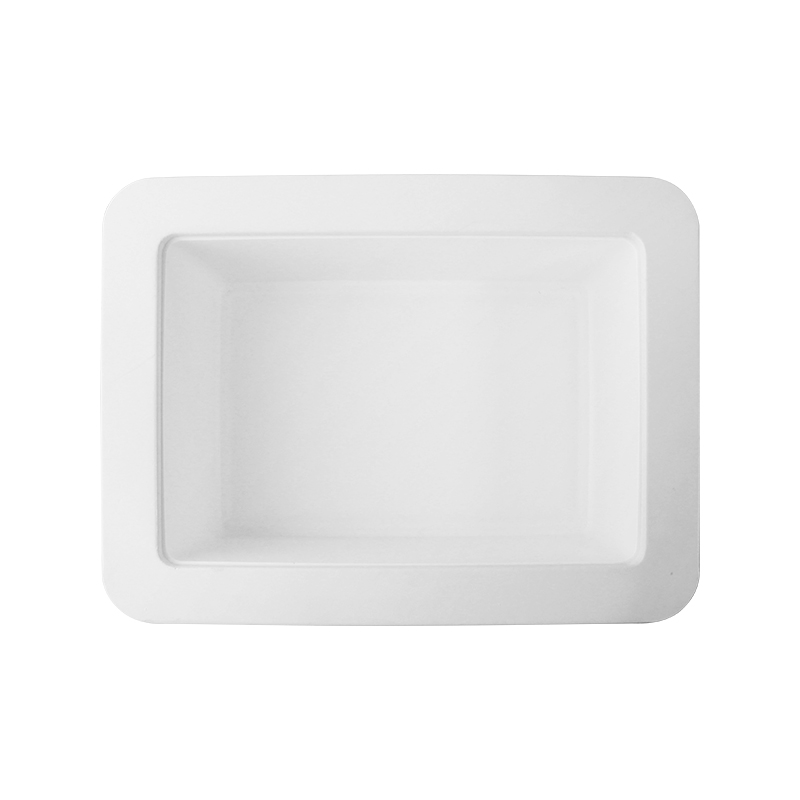

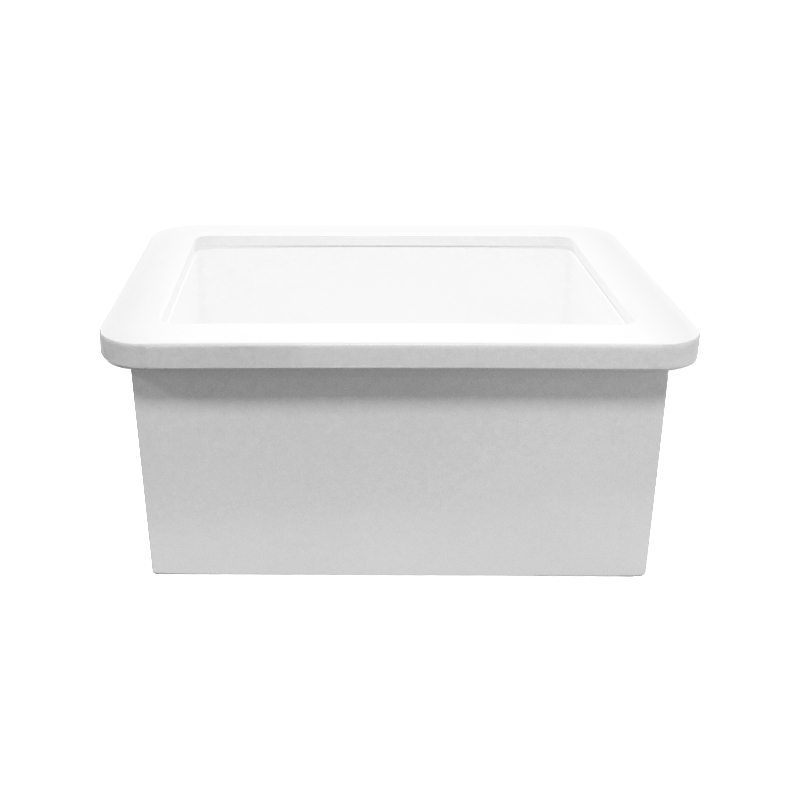

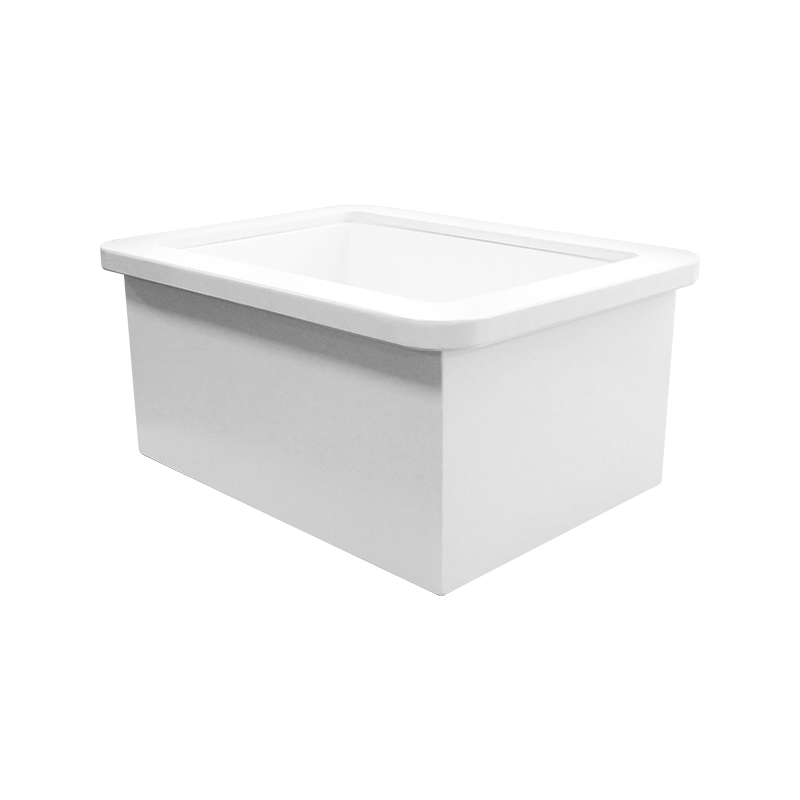

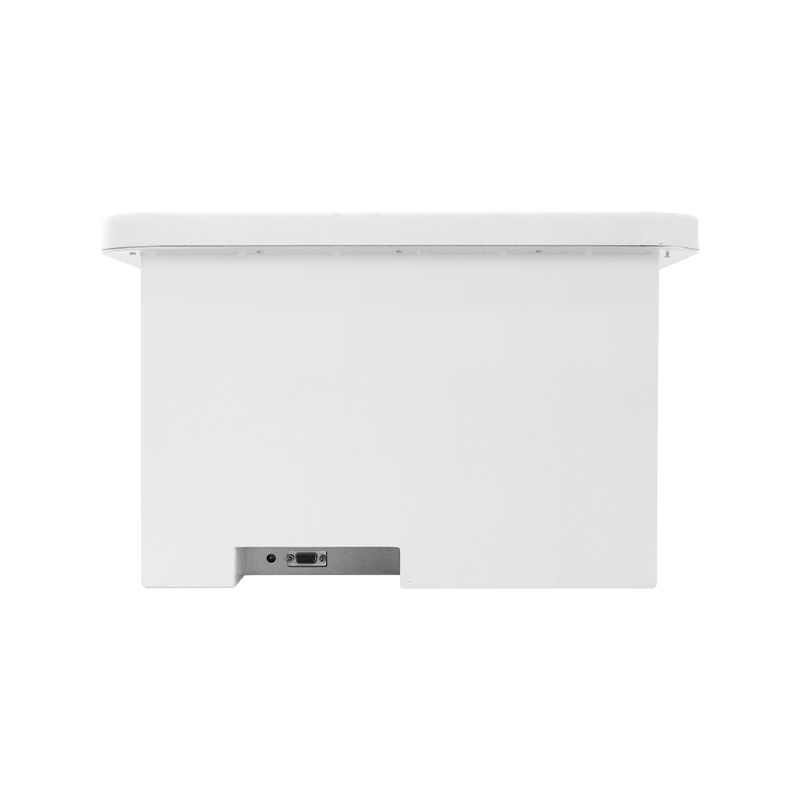

Details display

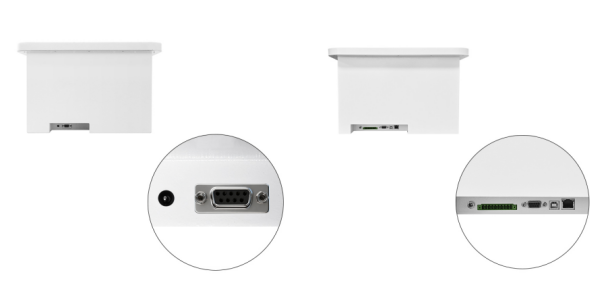

CF-CR02 Standard Edition - Base CF-CR02 Expansion Edition-Pro
|
Model Definition |
|
|
Model |
COM connector |
|
CF-CR02 Standard Edition - Base |

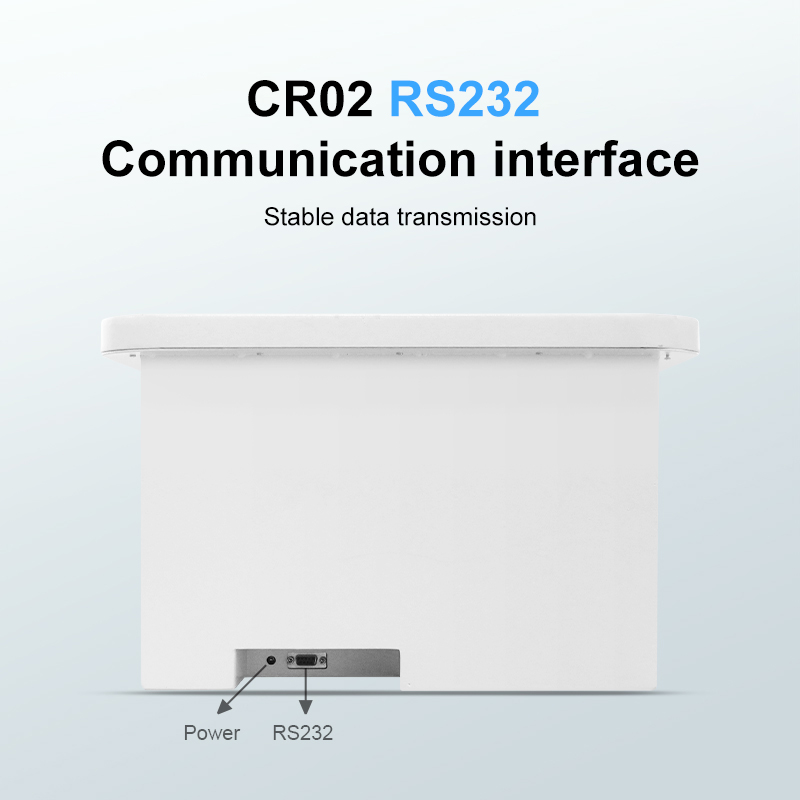

Power,RS232 |
|

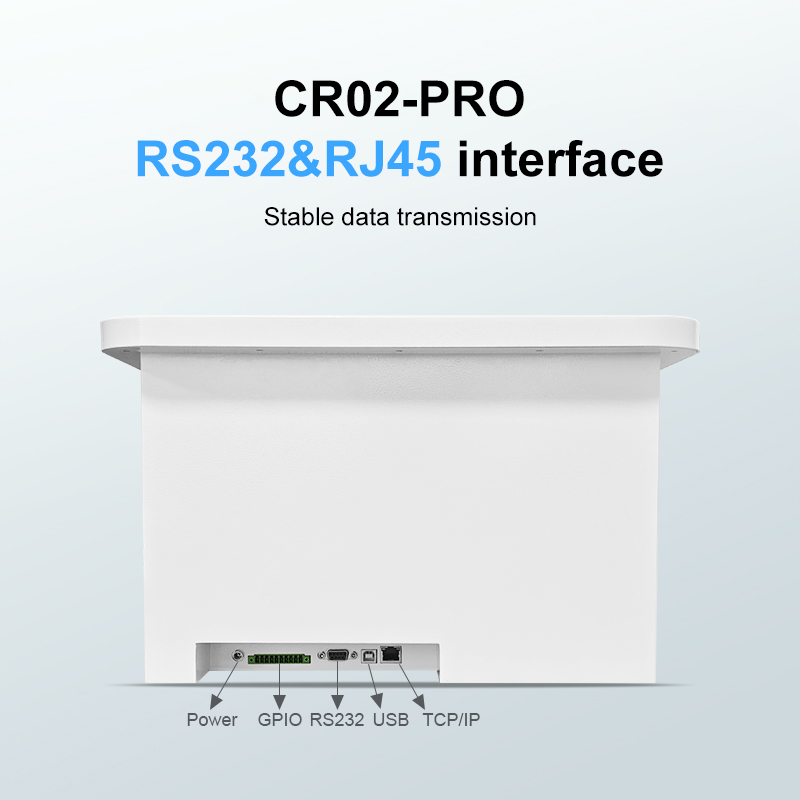

CF-CR02 Expansion Edition-Pro |
Power,RS232,USB,RJ45 |

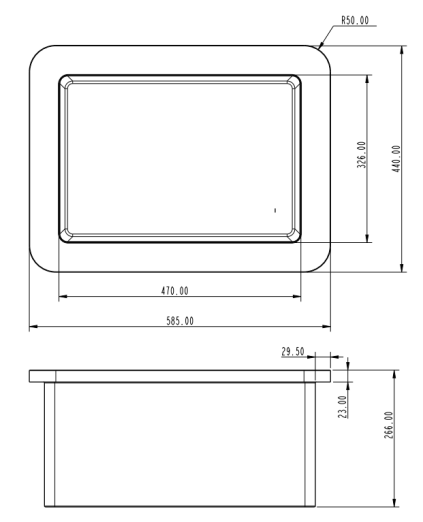

Product size:

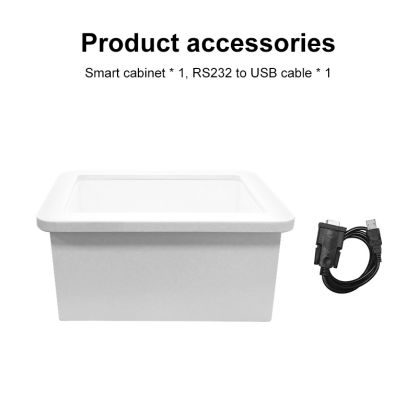

Product Accessories
Related Product
|
Picture |
|
|
|
|
Model |
CF-CR02 |

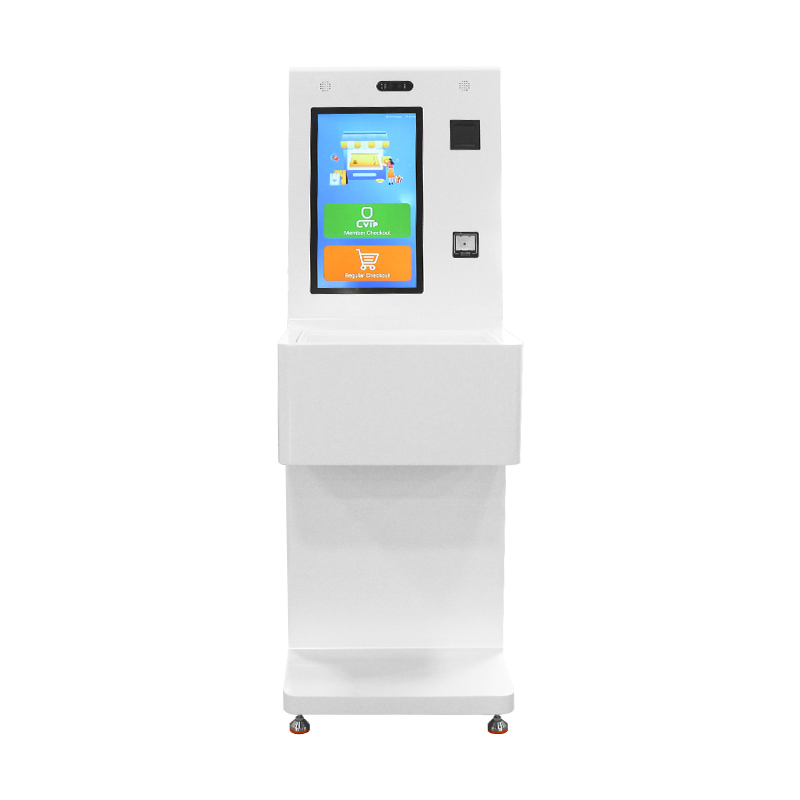

CF-CR01 |
CB200 |
|
COM interface |
RS232,USB,TCP/IP,Power | RS232,USB,TCP/IP,Power |
RS232 |
|
Screen |
- |
21.5inches |
15.6inches |
|
Size |
442*586*266mm |
1629*580*610mm |
840*650*1019mm |
