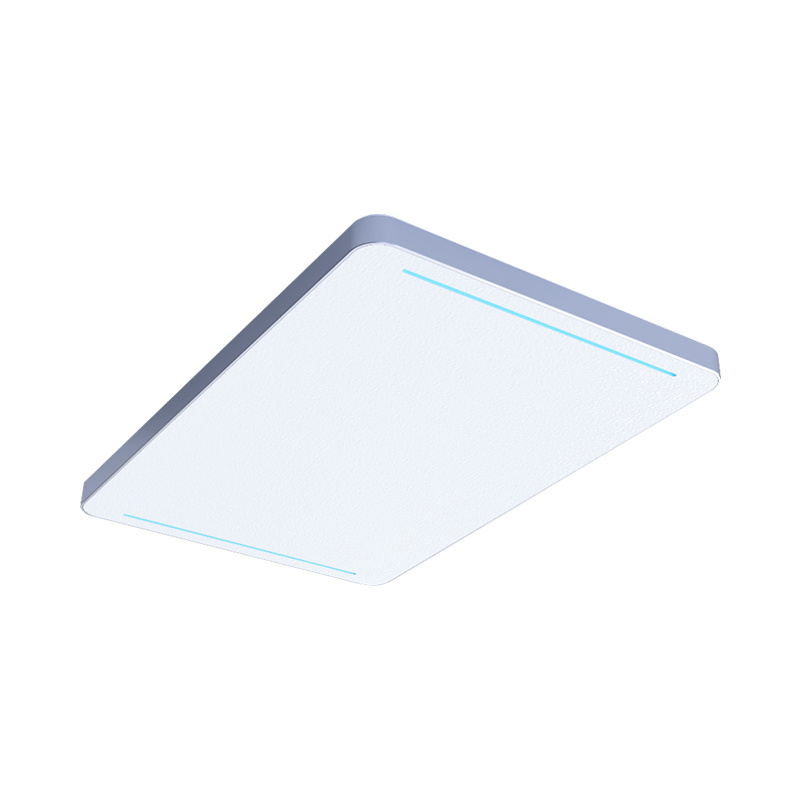

M600 UHF Top Mount Gate Reader
Characteristic
- AI algorithm filters misreading and solves the problem of false alarms in retail stores
- Support online mode and offline mode
- Support sound and light alarm function, the alarm volume is adjustable
- It can detect theft of tagged assets and prevent restricted items from being illegally taken out of the controlled area.
- The product is suitable for indoor places such as libraries and warehouses, which require network access and no rain or dust.
- Various installation methods and easy wiring
- Optional visual module to achieve passenger flow statistics and accurate alarm
- Application: library management, warehouse management, retail management, anti-theft management
Product Specifications
|
Physical parameters |
|
Performance parameters |
||
|
Overall dimensions (height*width*depth) |
466x295x68mm |
Misreading algorithm |
have |
|
|
weight |
3.6Kg |
Antenna gain |
10.5dbi |
|
|
Installation |
Suspended/ceiling/wall mounted |
Operating frequency |
902-928MHz |
|
|
Recommended installation height |
2.5M-3M |
VSWR |
≤1.3 |
|
|
Communication interface |
Network port |
Power consumption |
≤30W |
|
|
UHF RFID |
Multi-channel |
Support multi-device expansion |
||
|
Frequency range |
840MHz-960MHz |
Operating Environment |
||
|
RF protocol standards |
ISO 18000-6C (EPC C1 G2) |
Operating temperature |
0~50℃ |
|
|
Output Power |
0 dBm -3 3 dBm ( adjustable ) |
Operating humidity |
10%RH~90%RH |
|
|
|
power supply |
|||
|
|
Power input |
AC220V |
||

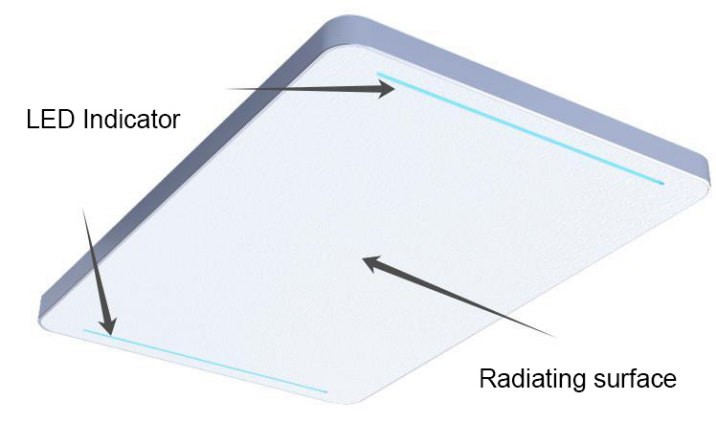

Product Structure Diagram

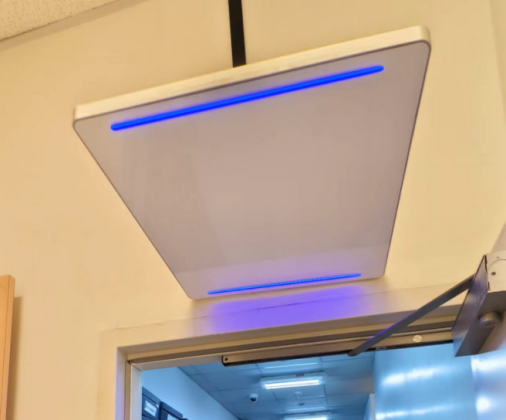

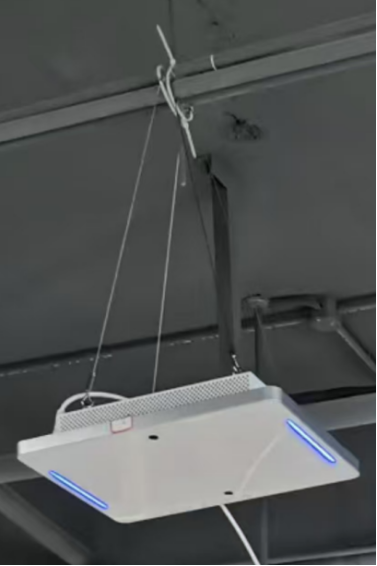

Product Application Diagram
