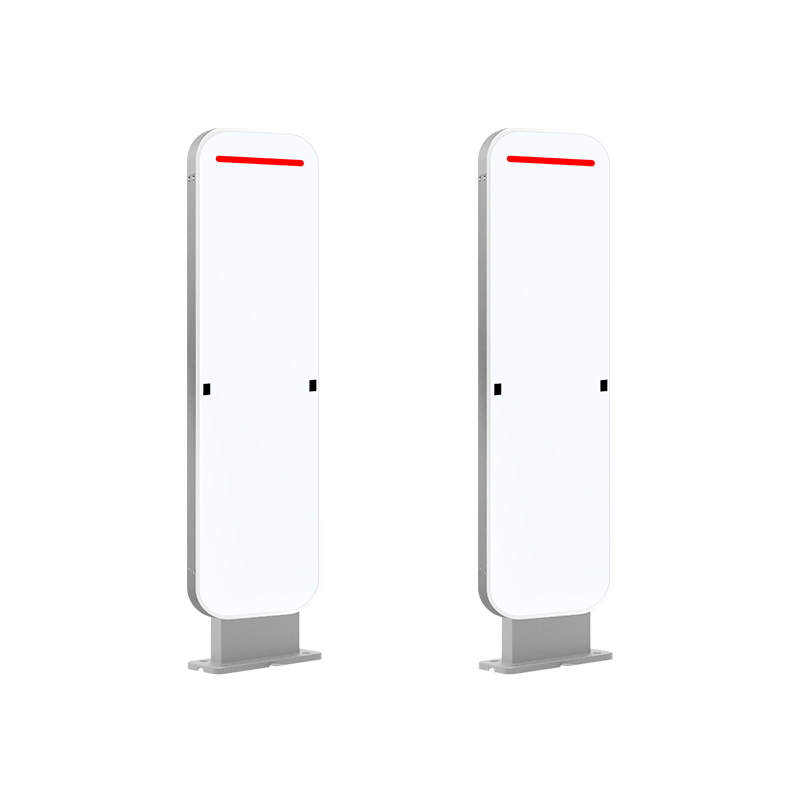

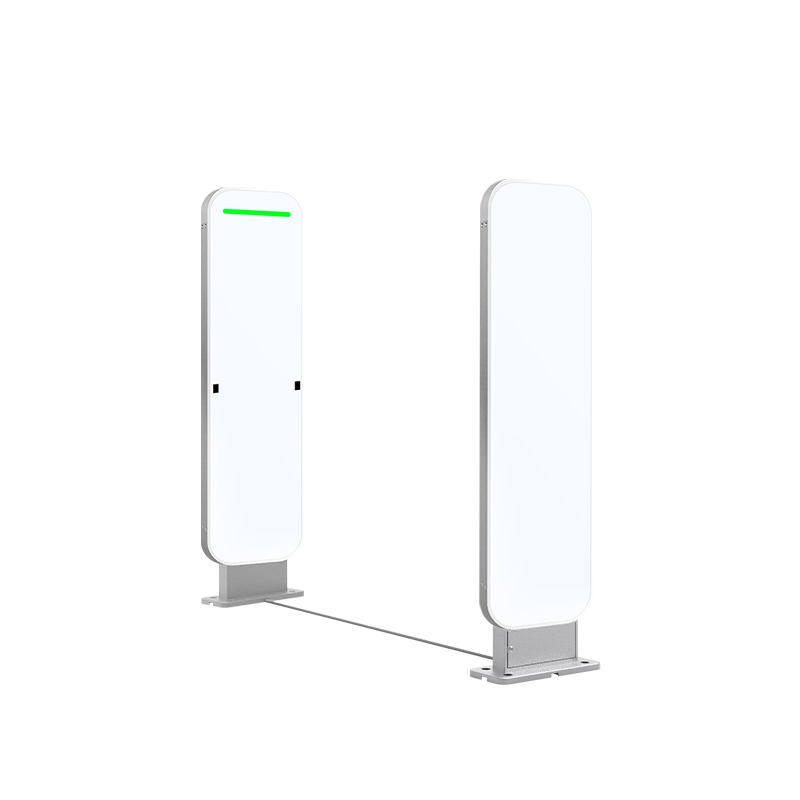

M100 UHF windows OS Gate Reader

- Support RSSI to identify tag signal distance
- Support automatic scanning and connection to ports/networks
- Configure the IP address to monitor and receive data sent by remote devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz (US） 865~868MHz (EU）		Standard interface	TCP/IP、Power port
Protocol	ISO18000-6C (EPC GEN2)		Optional interface	RS232/ POE/ WIFI
RF output power	0~33dbm (adjustable)		Customizable	USB / RS485
Built-in antenna	4 8dbi circular polarization flat antennas		Audio, light and electricity	Red and green LED light strip, built-in buzzer alarm
Maximum query speed	400 tags/second		Development Environment

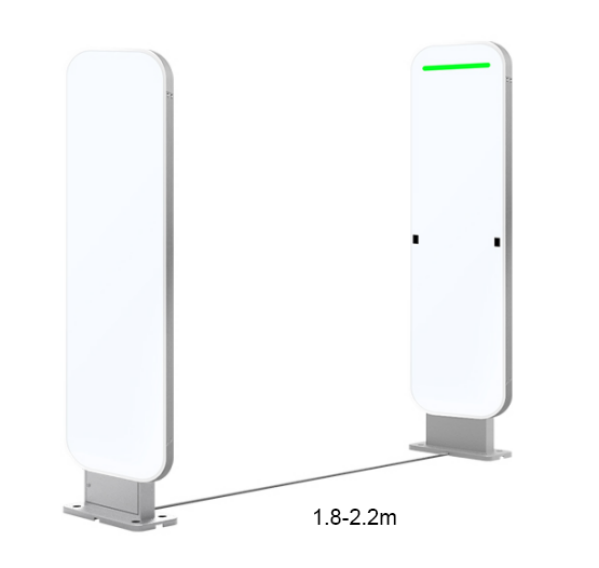

Read distance	1.8-2.2 meters between two doors		SDK	Demo software, API, examples, user manual
Working mode	Channel mode + EAS mode		Firmware version	Support online upgrade
In and out detection method	Infrared beaming		Development language	C#, Delphi, Java, Python, VB and other languages
RSSI	Support		Working environment
Physical parameters			Installation method	Expansion screw
Reader material	Aluminum alloy + acrylic		Operating temperature	-10-+60℃

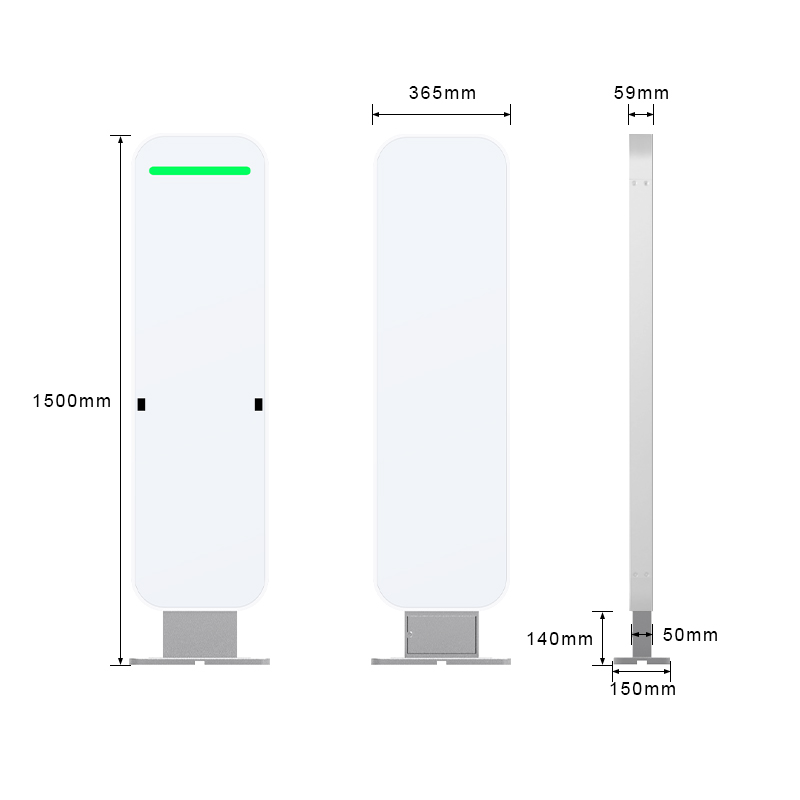

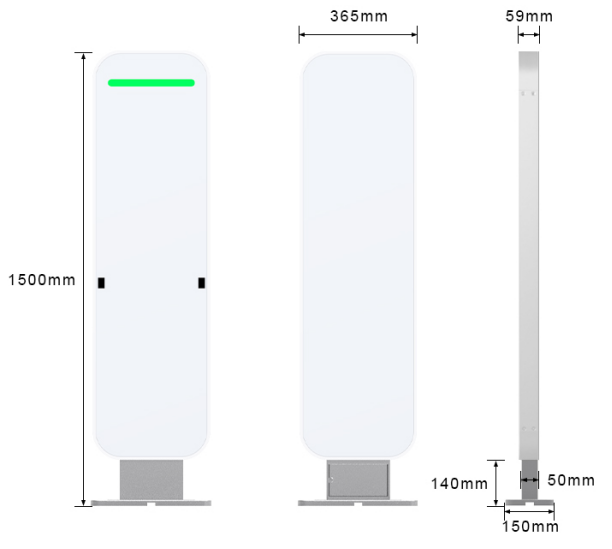

Size	1500365150mm		Storage temperature	-30-+70℃
Weight	40kg		Ambient humidity	5%~95%
Power supply	220V+10%55HZ
Power consumption	45W

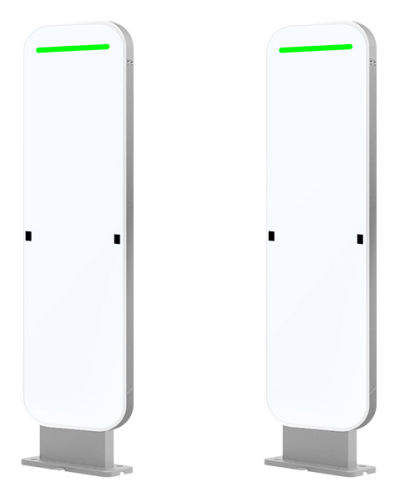

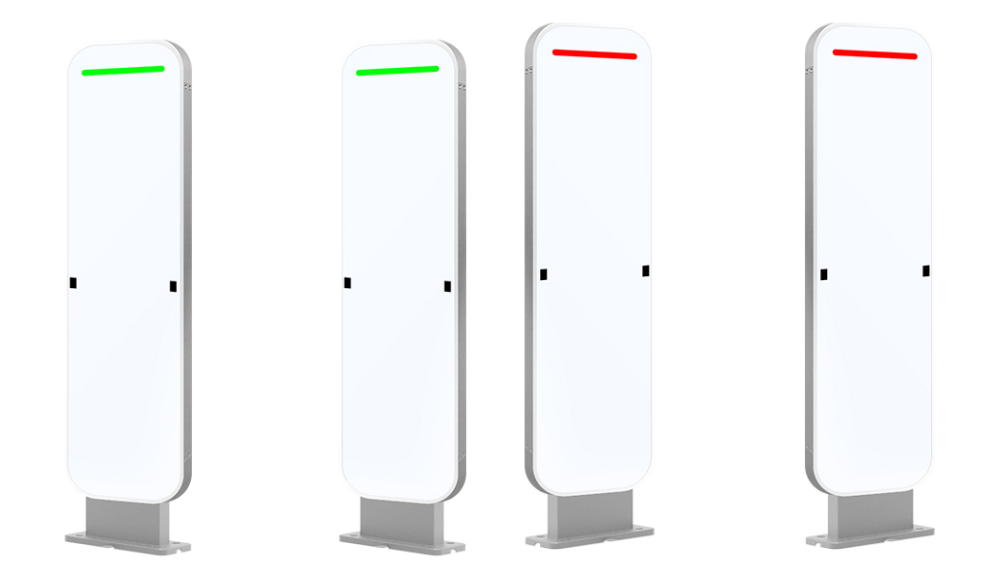

Details display

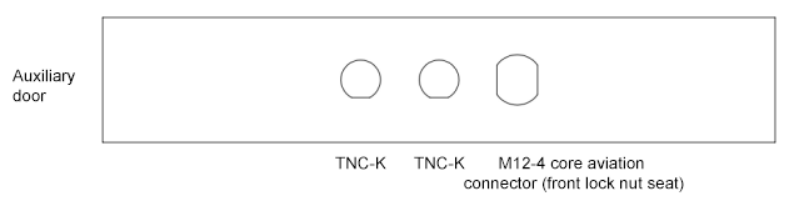

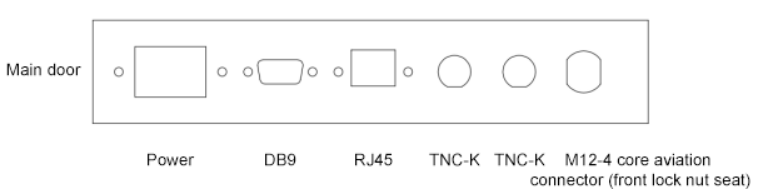

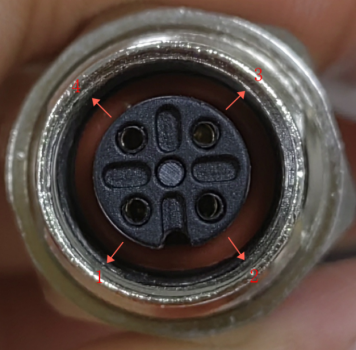

Wiring Definition
Pin	significance	describe
1	GND	DC-
2	+12V	DC+
3	RLED	Red light control signal
4	GLED	Green light control signal

Related Products

Model	M100	M200	M400
Output RF Power	0~33dbm (adjustable)
Reading Range	1.8~2.2 meters (depends on the label & application environment)	0-6 meters (depending on the tag & application environment)	1.5-3 meters (depending on the label & application environment)
Dimensions	1500365150mm	65033026mm	1500300120mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
