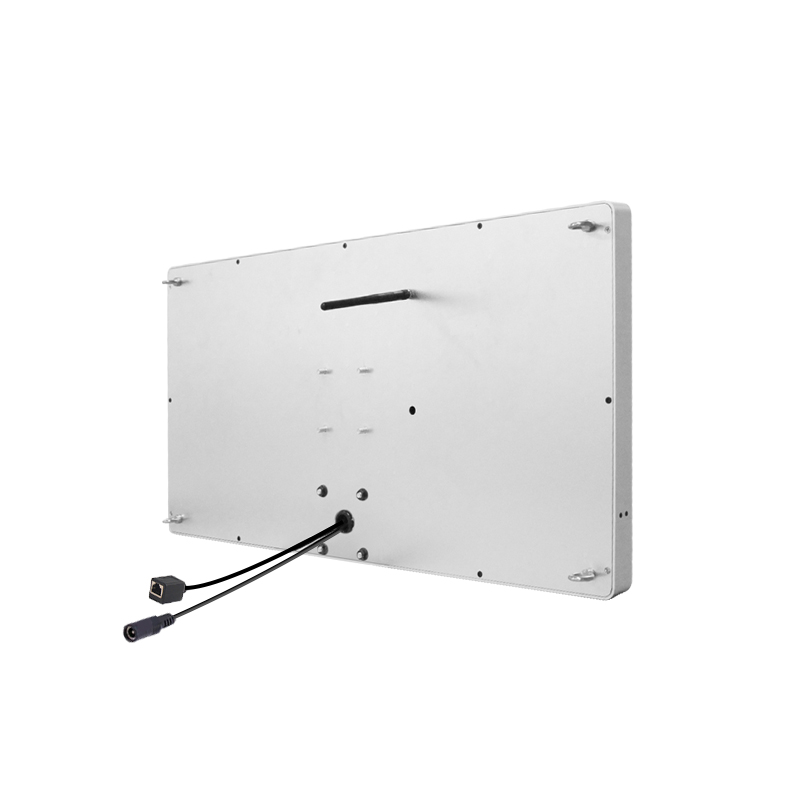

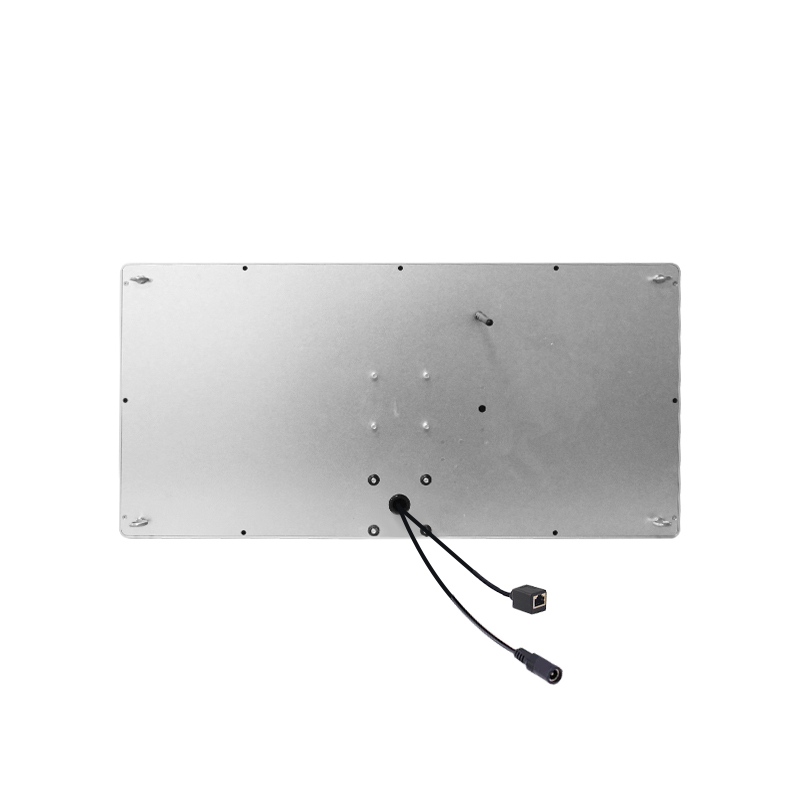

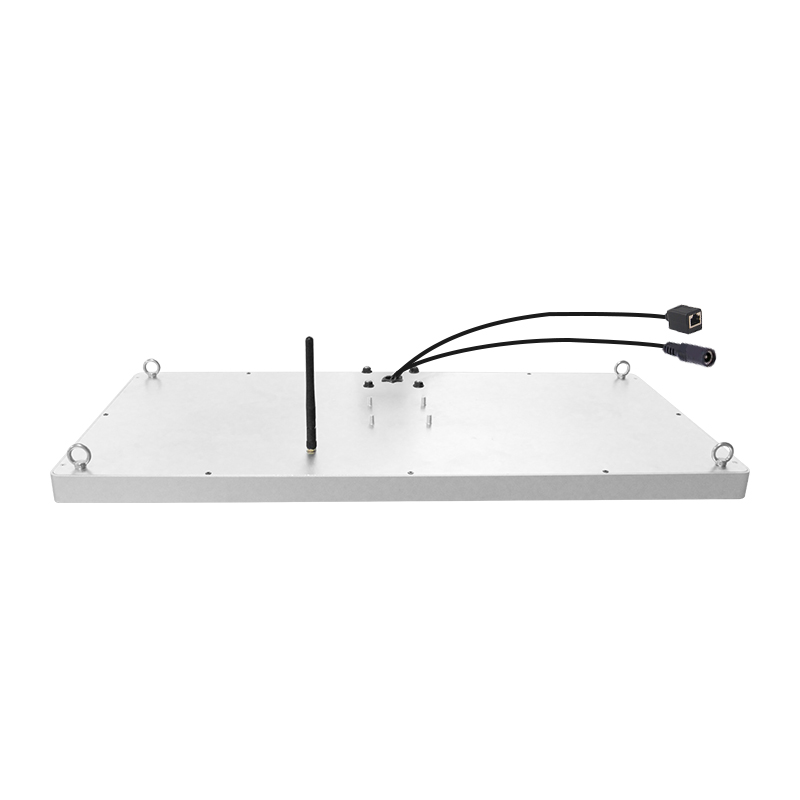

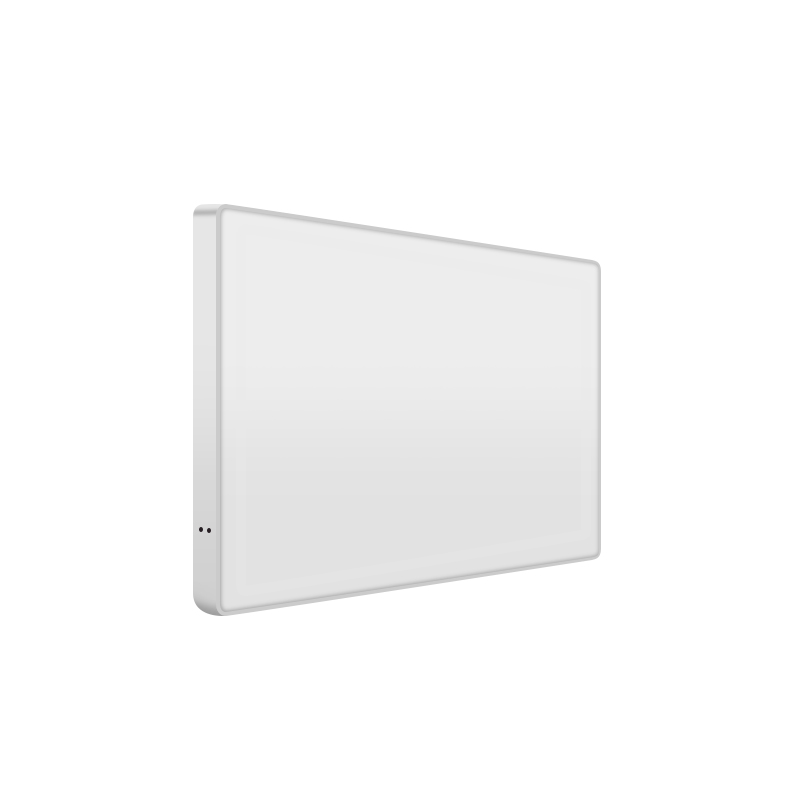

M200 UHF Ceiling Mount RFID Gate

- Support RSSI to identify tag signal distance
- Support automatic scanning and connection to ports/networks
- Configure the IP address to monitor and receive data sent by remote devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.

Product Specifications

RFID Technical Parameters



Data Communication

Frequency

902~928MHz (US）

865~868MHz (EU）

Standard interface

TCP/IP、Power port

Protocol

ISO18000-6C (EPC GEN2)

Optional interface

RS232/ POE/ WIFI

RF output power

0~33dbm (adjustable)

Customizable

USB / RS485

Built-in antenna

6dbi narrow beam antenna

Sound, light and electricity

Three-color LED light strip + EAS alarm

Anti-theft function

Password/mask function

Working voltage

9-24V (with 12V 2A power adapter)

Reading distance

0~6 meters

Working power

<10W

Working mode

Active mode Trigger mode

Development Environment



RSSI

Support

SDK

Demo software, API, examples, user manual

Physical parameters



Firmware version

Support online upgrade

Equipment material

Aluminum alloy + acrylic

Development language

C#, Delphi, Java, Python, VB and other languages

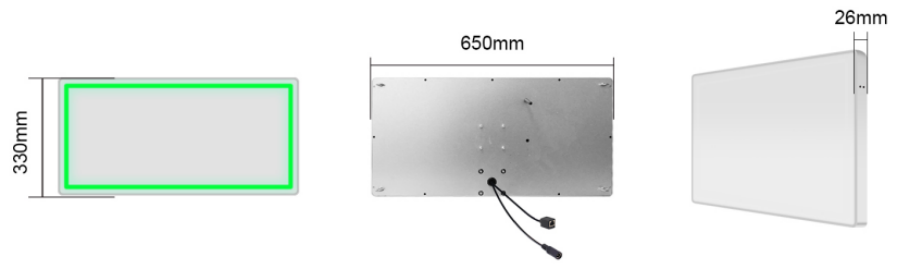

Dimensions

650*330*27.5mm

Working environment

Weight

3.1kg

IP protection level

IP65

Packaging dimensions

71*38*10cm

Operating temperature

-10~+55℃

Packaging weight

4kg

Storage temperature

-20~+75℃


Details display

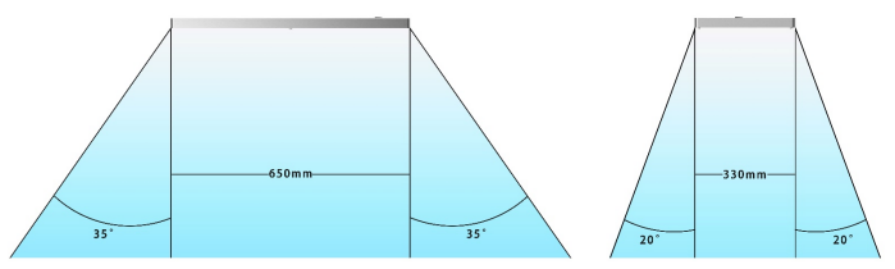

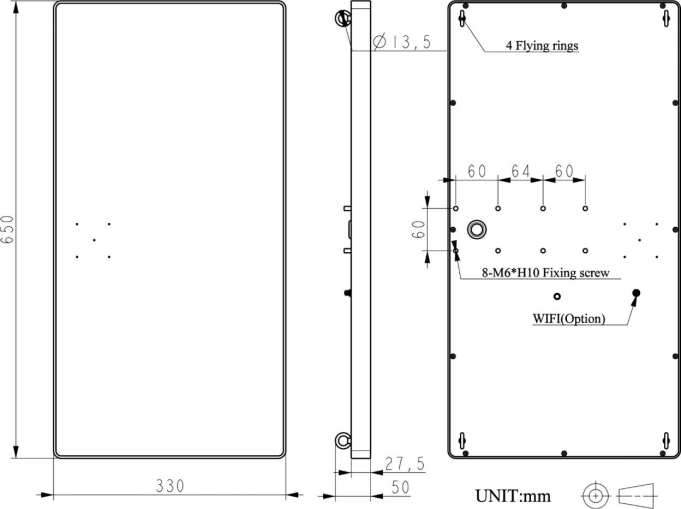

Installation diagram Recommended installation height 1.8~2.2m

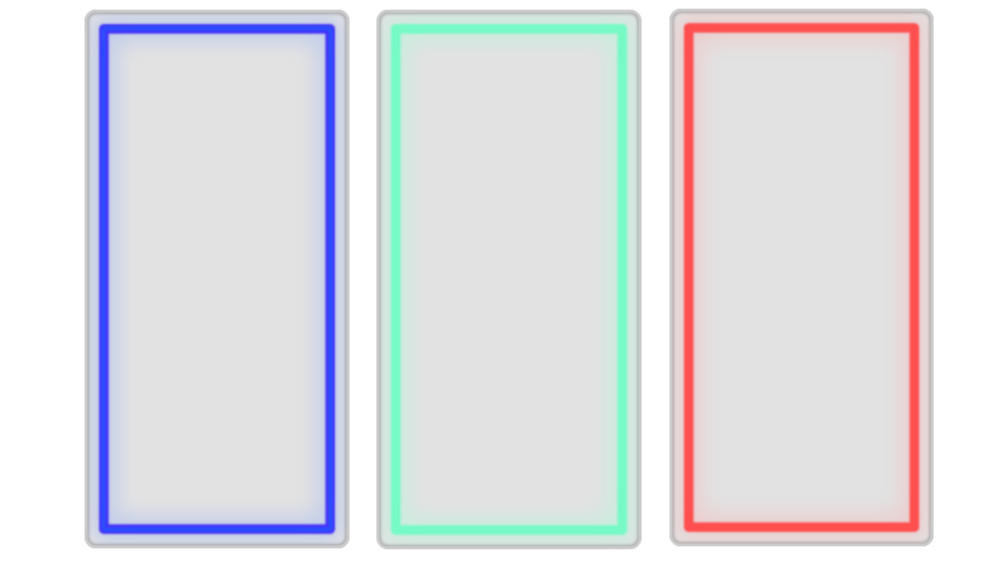

LED indicator light

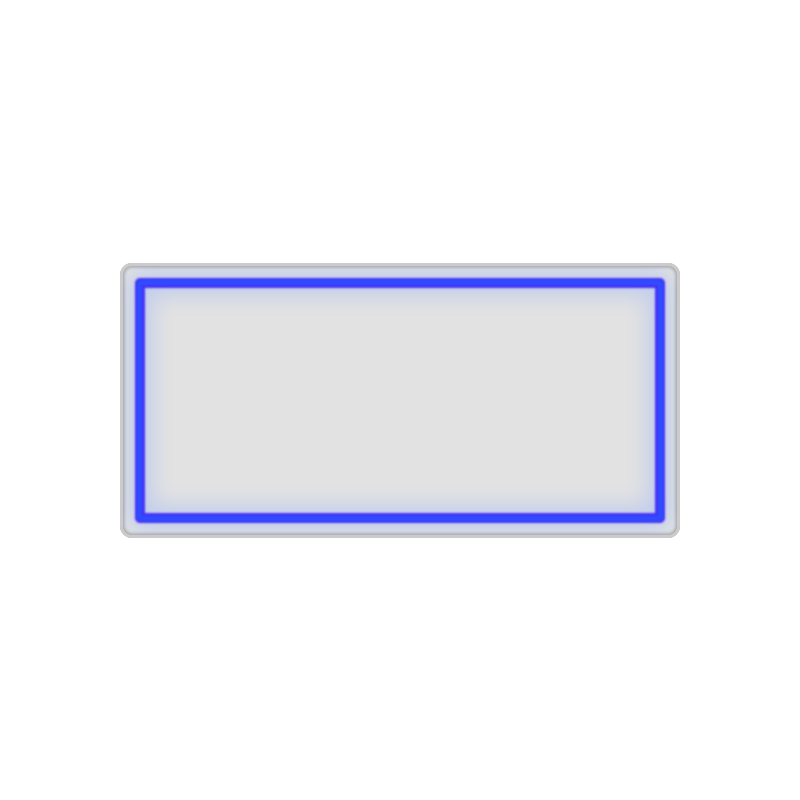

-When the power is on, the unread card lights up in blue-purple

-When reading a normal card, the green light flashes

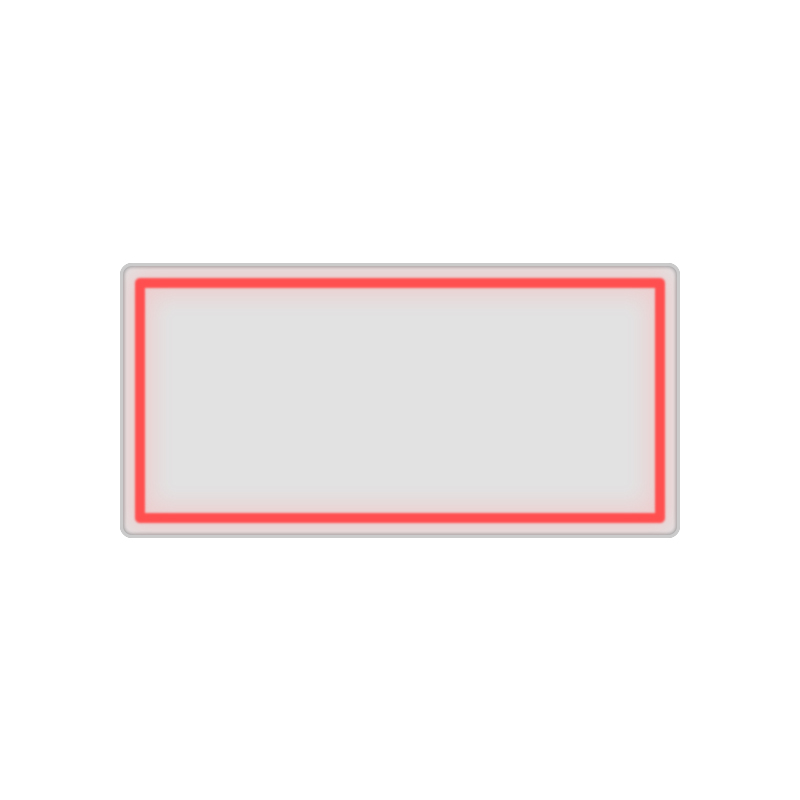

-When reading an authorized card, the light lights up in red and an alarm prompts
