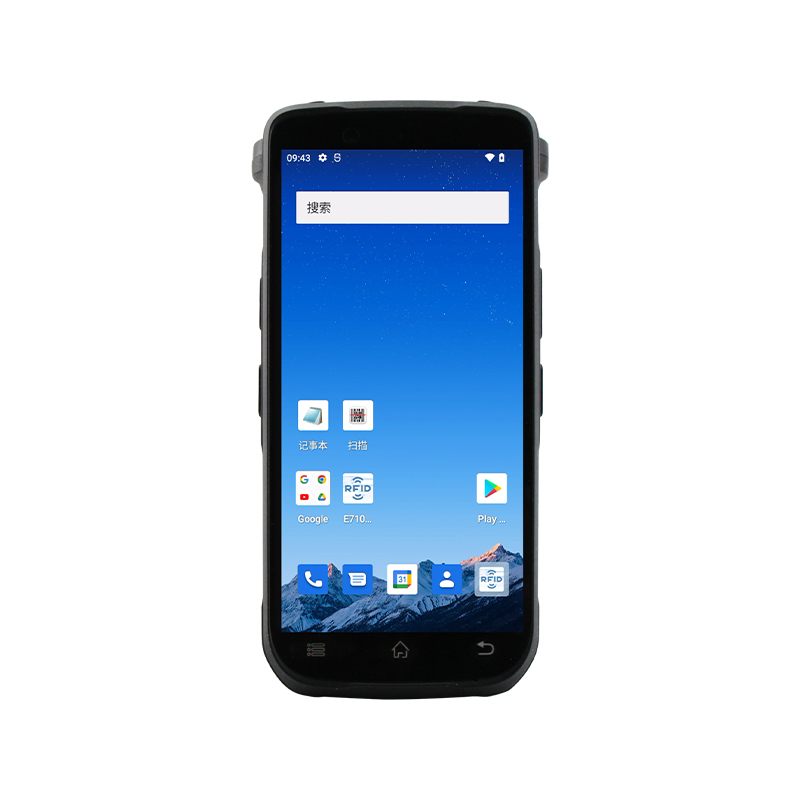

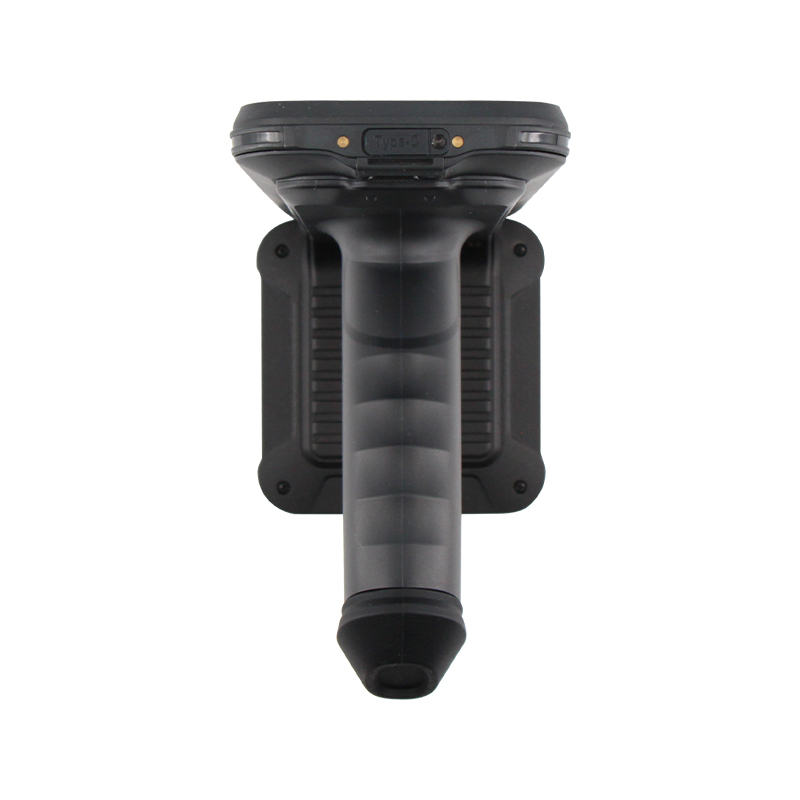

H105 UHF RFID Handheld Reader
-Using Impinj E710 chip solution
-Reliable structural design, long service life, durable and resistant to fall
-Terminals and readers can realize data transmission via Bluetooth or USB interface
-Provide dynamic link library (DLL) and demonstration software source code to support secondary development
Applications: clothing inventory, warehouse inventory,asset management & inspection,etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
840～960MHz（Optional） |
Wireless WAN |
4G full network access, backward compatible with 3G, 2G |
|
|
Protocol |
ISO18000-6C (standard EPC C1G2) Optional: GB29768, GJB7377.1 |
Bluetooth |
Bluetooth 2.1+EDR/3.0+HS/4.1+HS+5.0 |
|
|

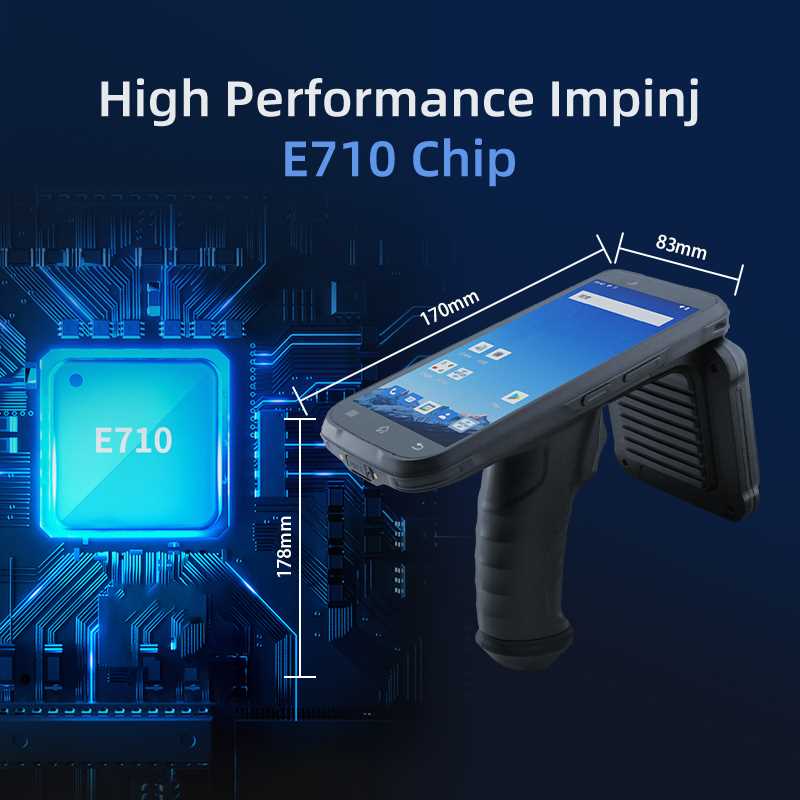

Chip |
IMPINJ E710 |
WIFI |
WIFI frequency: 2.4GHz & 5GHz dual-band WIFI supports roaming Protocol: 802.11 a/b/g/n/ac protocol |
|
|
Output Power |
0-33dbm(Adjustable) |
GPS |
High-precision GPS, supporting A-GPS, Beidou, GLONASS, Galileo |
|
|

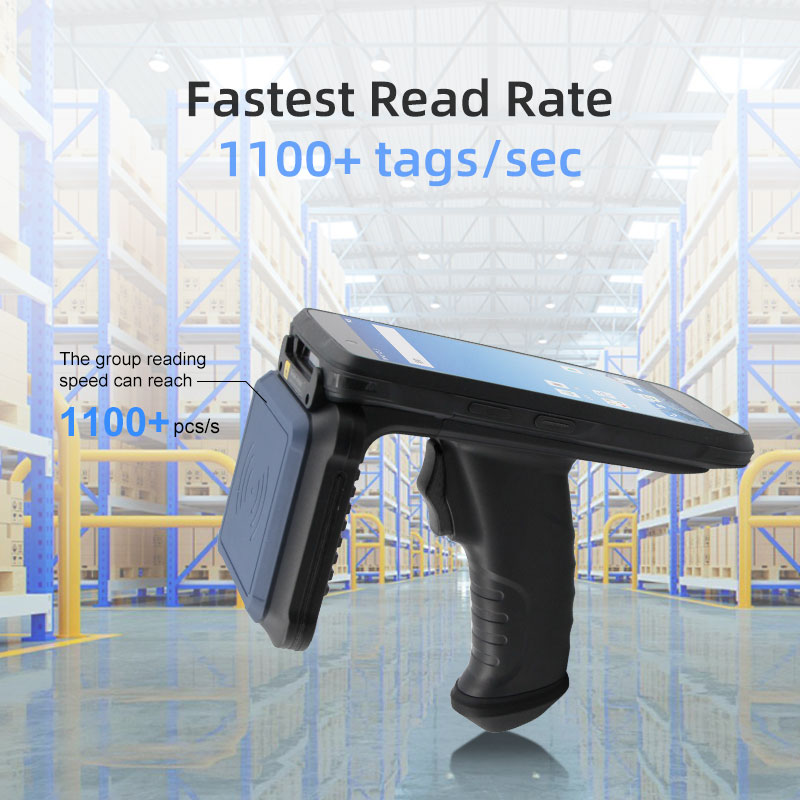

Reading Speed |
>1100 label/s |
Physical parameters |
||
|

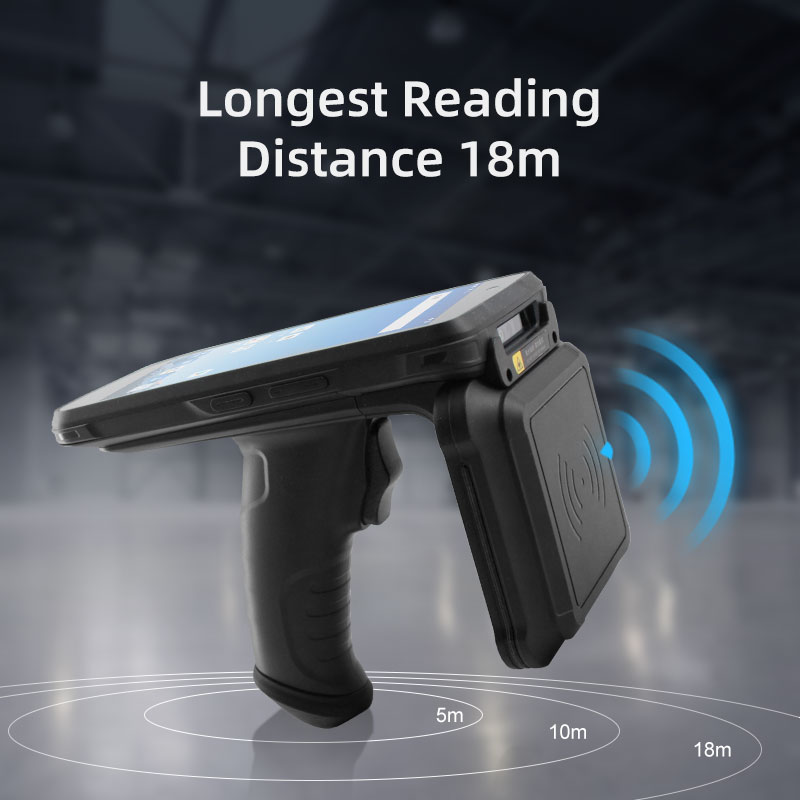

Reading Range |
0~18m(Related to tags and working environment) |
Size |
178mmx83mm×17mm |
|
|
Antenna |
4.5dbi |
Weight |
641g |
|
|
Function |
Read/Write |
Display |
6-inch HD (720×1440) |
|
|
Environmental parameters |
Touchscreen |
Support multi-touch, glove touch, multi-touch, water operation and passive pen signature |
||
|
Operating temperature |
-20 ～ +60℃ |
Main battery |
3.7V 11550mAh |
|
|
Storage temperature |
-40 ～ +70℃ |
Charging time |
Less than 3 hours |
|
|
Humidity |
5%RH～95%RH (No condensation) |
Audio |
Speaker, microphone, receiver |
|
|

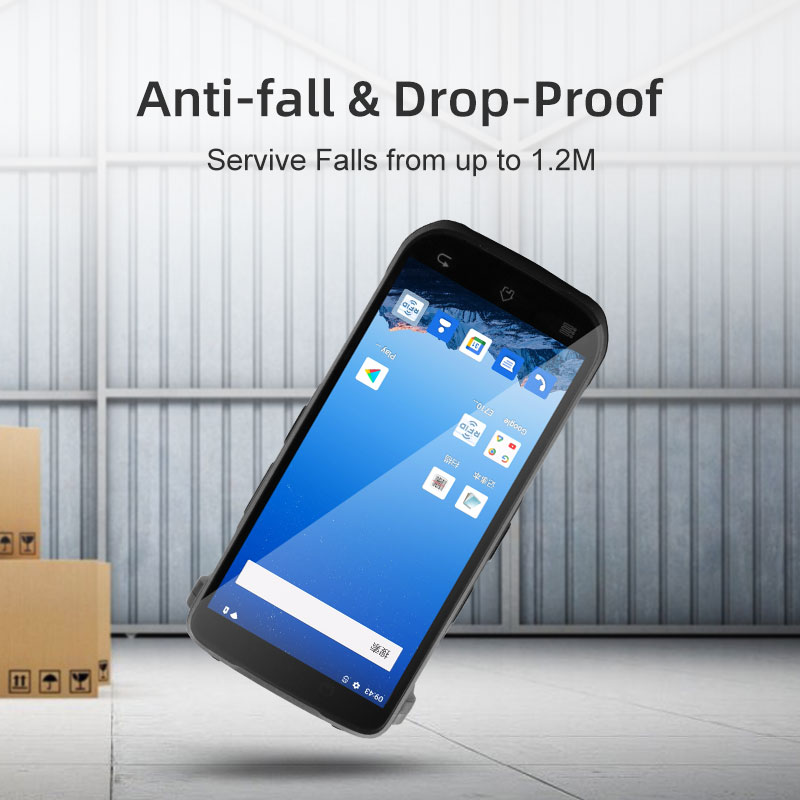

Shockproof height after falling to the ground |
Can withstand multiple drops from a height of 1.2 meters onto a smooth concrete floor |

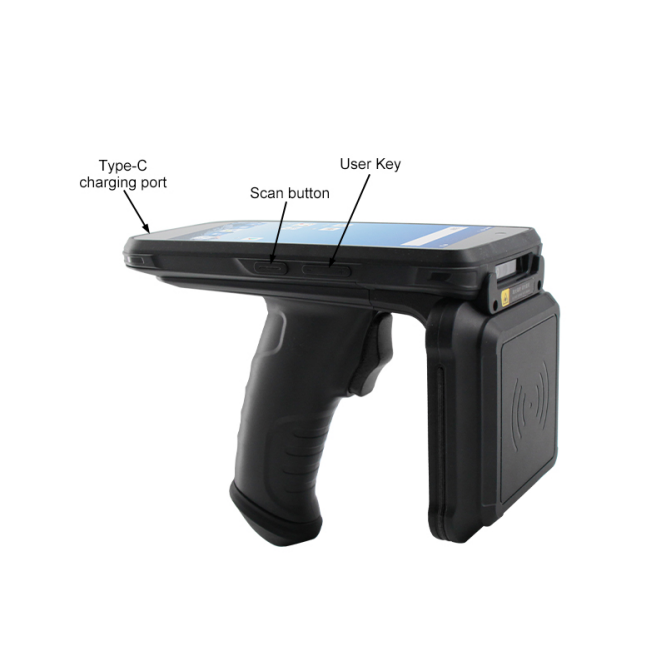

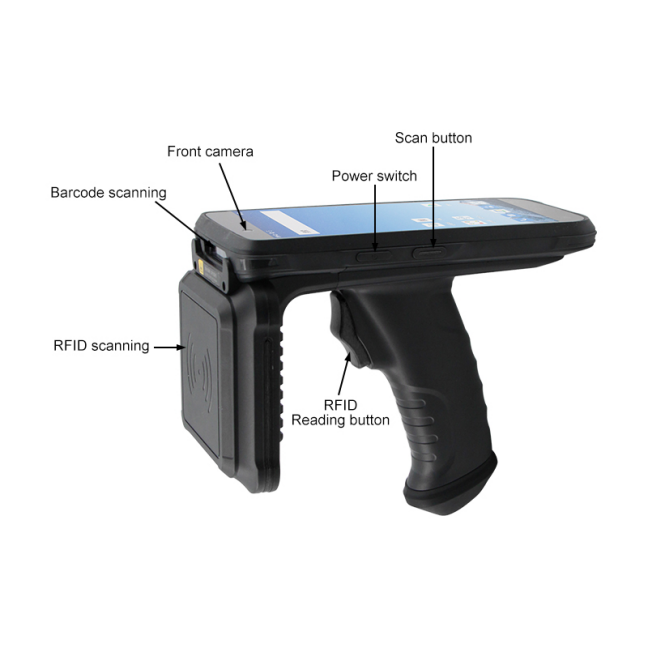

Button |
Volume +, - keys, power key, 2 scan keys, handle trigger key |
|
|
Protection level |
IP67 IEC sealing standard |
Camera |
Front camera 5 megapixels, rear camera 13 megapixels, flash support |
|
|
Electrostatic protection |
Air discharge ±10KV, contact discharge ±6KV |
Sensor |
Distance, light sensitivity, gravity, vibration motor, geomagnetism, gyroscope |
|
|
Development Environment |
Scanning |
Professional scanning head, supports scanning mainstream one-dimensional and two-dimensional codes, supports screen scanning |
||
|

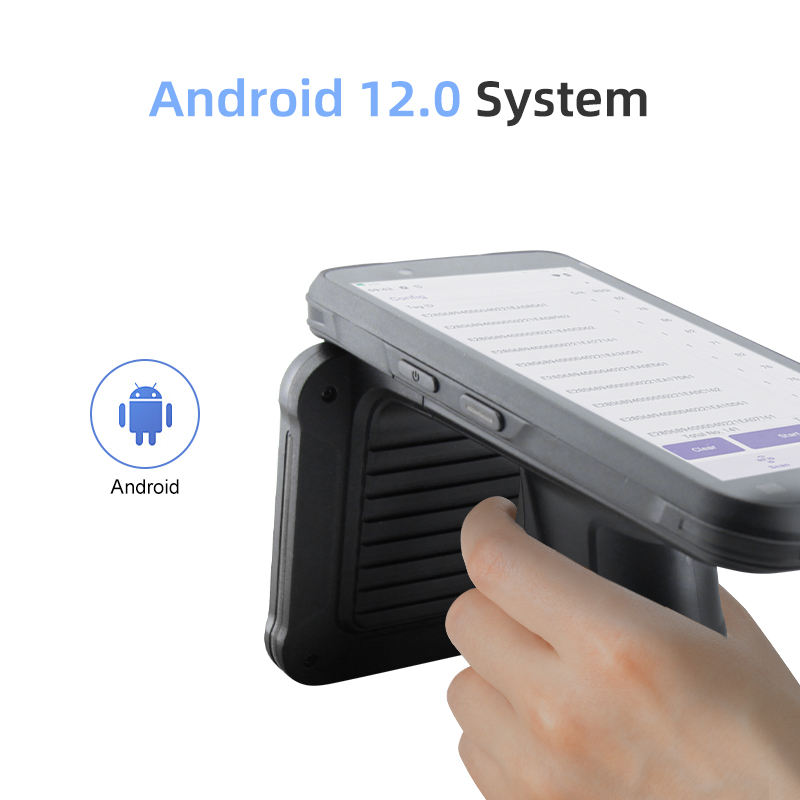

Operating system |
Android 12.0/Android 15.0 |
Card slot type |
Micro SIM*1, PSAM×2 (optional), TF card can support up to 128GB expansion |
|
|
Scroll |
Rolling continuously for 1000 times at 0.5m, 6 surfaces in contact still running stably |
Vibration |
Random (10 Hz to 30KHz); 60 minutes per axis, 3 axes |
|
|
Processor |
Octa-core Cortex-A53, 2.0 GHz |
|
|
|
|
Memory |
RAM：4GB，ROM：64GB RAM：8GB，ROM：128GB(Optional) |
|
|
|
|
Expanded Memory |
Micro SD card, up to 128GB |
|
|
|
|

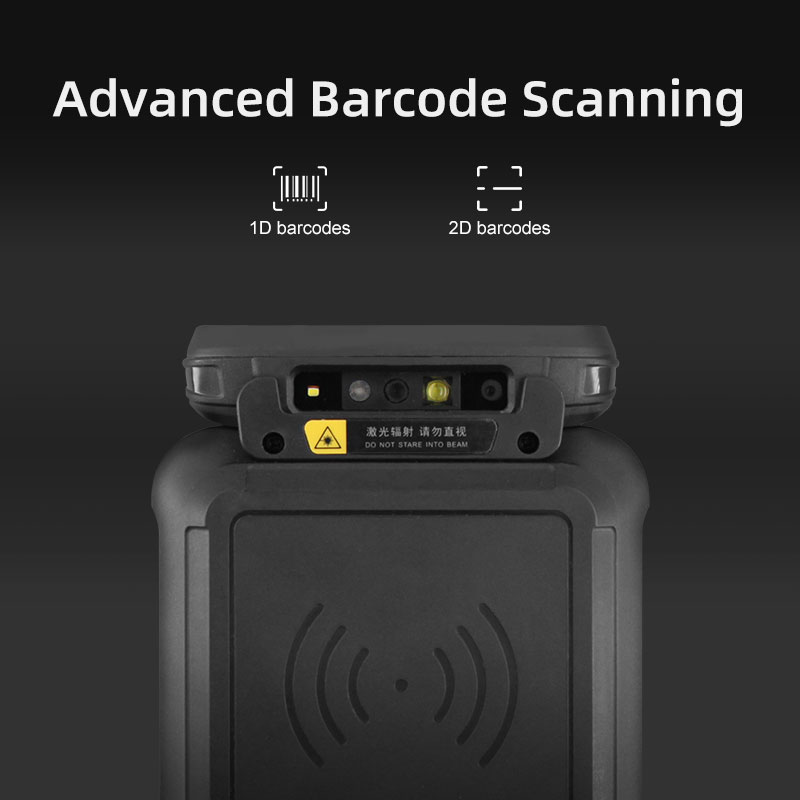

Scanning head |
|
|
Scanning head module |
Laser 2D/1D |
|
Rotate view |
360° |
|
Up and down tilt viewing angle |
±45° |
|
Left and right offset viewing angle |
±60° |
|
Laser Type |
Class Ⅱ |
|
One-dimensional code type |
UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code128,GS1-128,ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,Korean 3 of 5,Matrix 2 of 5,Inverse 1D,GS1 DataBar,Com- posite Codes etc |
|
QR code type |
PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal,Japan Postal, Netherlands KIX Code,USPS |
|
GPS |
|
|
Position |
Positional parameters |
|
Support Mode |
Support GPS、A-GPS、北斗、GLONASS、Galileo |
|
Frequency |
GPS（ L1 1.575GHz C/A code ）， Beidou（ B1 1.561GHz）， GLONASS(L1 1.602GHz)，Galileo（E1 1.589 GHz / E2 1.561 GHz） |
|
Cold start time |
Less than 40s |
|
Maximum number of channels |
31channel |
|
Sensitivity |
-130dB(SNR value 40dBHz) |
|
Accuracy |
5-10 meters (open space) |
|
Wireless communication function |
|
|
Wifi |
Wireless LAN |
|
协议 |
IEEE 802.11a/b/g/n/ac protocol (2.4G/5G dual-band WIFI) |
|
Frequency range |
2.4G、5G |
|
Working channel |
CH1~CH13, CH34-CH140, CH149~CH165 (depending on the country (region)) |
|
Security |
wep wpa/wpa2 psk 802.1xeap |
|
Roaming |
Support 802.11r seamless roaming |
|
Bluetooth |
|
|
Standard |
Bluetooth parameters |
|
Support Mode |
BT2.1+EDR/3.0+HS/4.1+HS+5.0 |
|
Connection distance |
5~10 meters |
|
Wireless WAN |
||
|
Wireless WAN |
WAN communication parameters |
|
|
Communication Mode |
Dual SIM Dual Standby |
|
|
Frequency band |
4G band |
TB1/3/4/5/7/8/12/20/38/39/40/41 |
|
3G band |
W1/2/5/8 |
|
|
2G band |
G850/900/1800/1900 |
|
|
Development support |
|
|
Development support |
Parameter |
|
Operating system |
Android 12.0/Android 15 |
|
Support development environment |
Eclipse, Android Studio |
|
System Feature Tools |
System feature settings, scan head settings, GMS |
|
Optional accessories |
|
|
Accessories |
Accessory Type |
|
Accessories |
Charger (supports charging 1 device + 1 battery), PSAM, tempered glass |
Details display

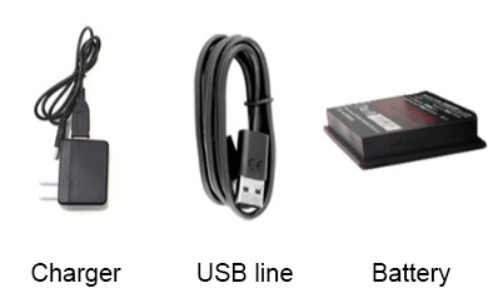

Product accessories

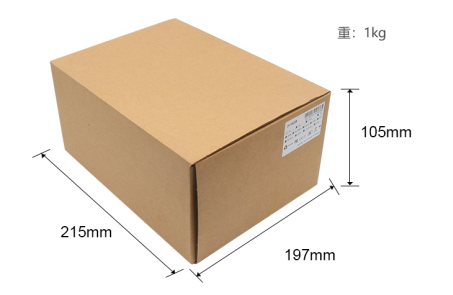

Packing size
