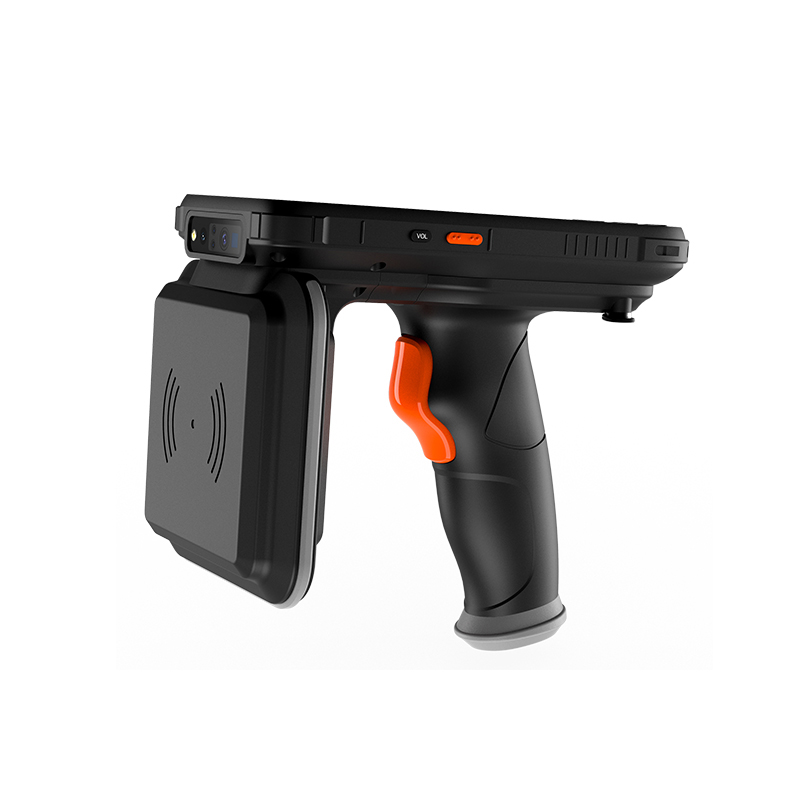

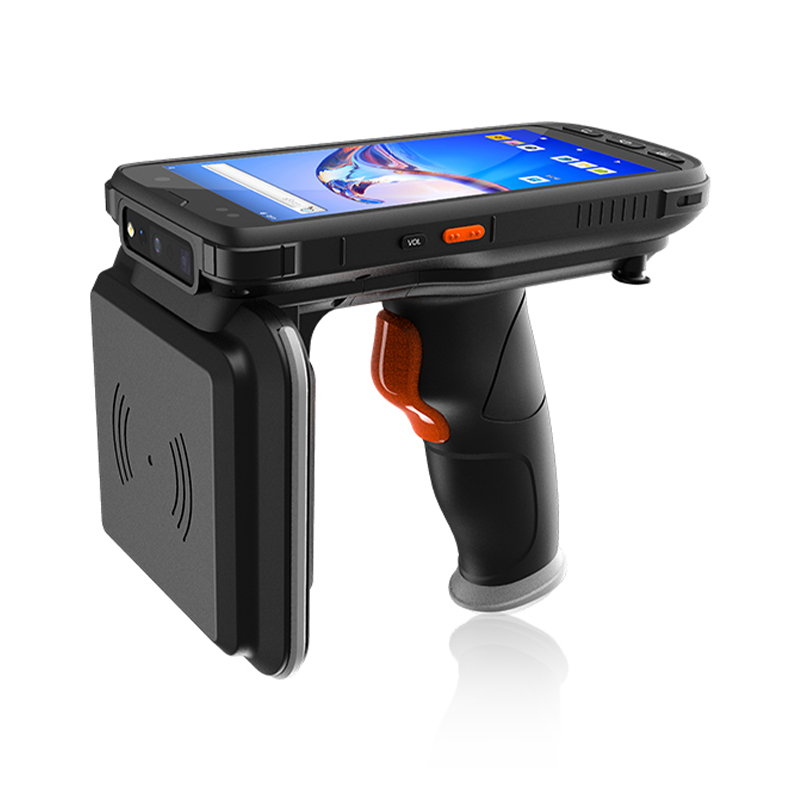

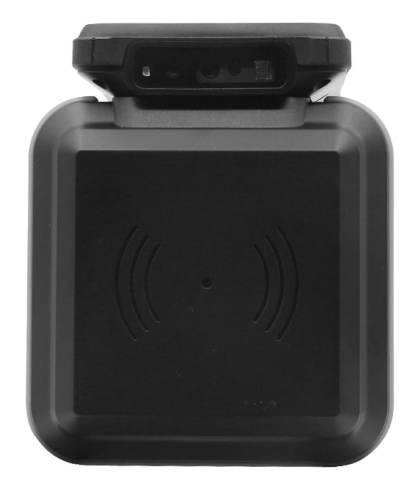

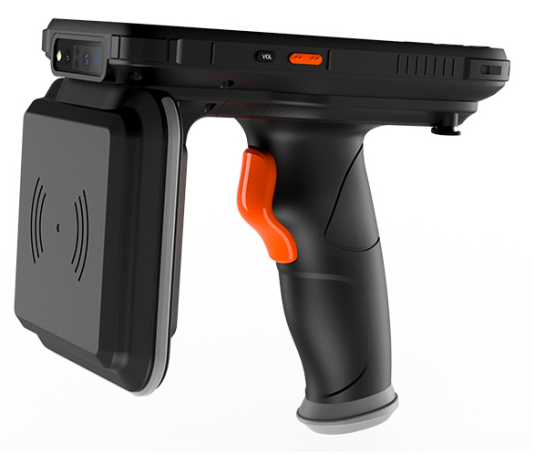

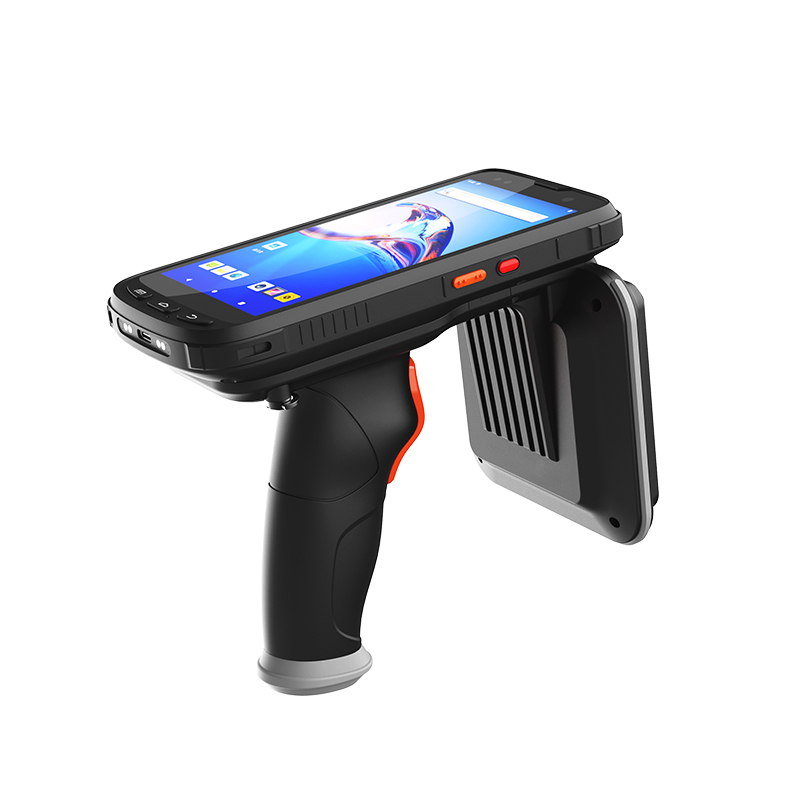

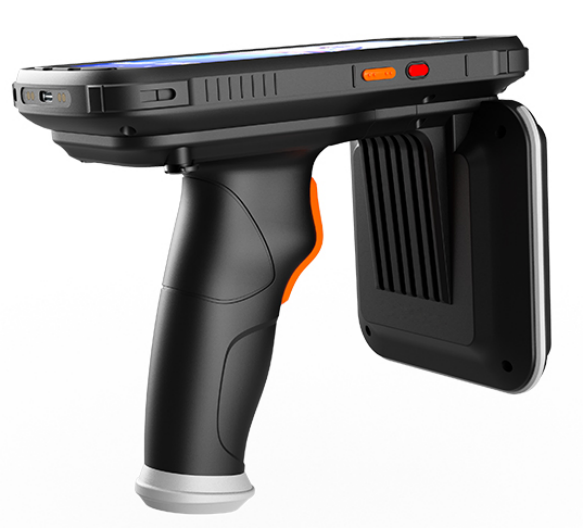

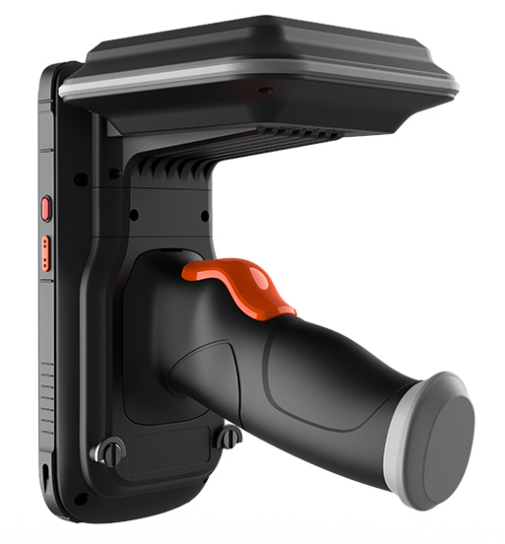

CF-H907 UHF Handheld reader

Basic parameters

Camera (optional)

Overall dimensions

166×79×31±2mm (Does not include shield, handle ）

Front camera

Front 5-megapixel camera

Overall weight

650g

Rear camera

Optional rear 13-megapixel camera with flash and autofocus

Display

5.5-inch IPS high-definition screen, resolution 720*1440

NFC function (optional)

Touch screen

Corning Gorilla 3rd generation industrial-grade multi-touch capacitive screen

Working frequency

13.56MHz

Expansion slot

1 sim card slot (MUP-C785), 1 TF card slot

1 PSAM card slot (MUP-C785)

Protocol standard

ISO14443A/B ISO15693, NFC-IP1, NFC-IP2, etc.

Communication interface

1 Type-c port

Tag standard

M1 card (S50, S70), CPU card, NFC tag, etc.

Indicator light

Network indicator, charging indicator

Read and write distance

5-10cm

Buttons

Scan key, function key

Barcode collection (optional)

Flashlight

Low-power LED lighting, emergency use

2D barcode

Support

Navigation system

GPS, Beidou navigation optional, error range ±5m

Supported 2D barcode types

PDF417, MicroPDF417,

Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes,US PostNet,

US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal etc.

Performance Parameters

2D scanning engine 2D barcode

Zebra SE4710/ ME5600/other

CPU

MT 6771 octa-core 64-bit processor

Four large-core A73 + four small-core A53, main frequency 2.0GHz

RFID (optional)

Memory capacity

RAM: 2GB ROM: 16GB (standard)

RAM: 4GB ROM: 64GB (optional)

UHF

Extended memory

Support 256GB T card

Support frequency

915MHz、865MHz

（865-868MHz或902-928MHz）

Operating system

Android 10.0

Support protocol

For EPC C1 GEN2 ISO18000-6C protocol

Data communication

4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20

3G:WCDMA( 850/1900/2100MHz);

2G:GSM/GPRS/Edge

（850/900/1800/1900MHz）

Reading distance

Optional 0-20m distance/depends on the tag and environment

WIFI

2.4G/5G dual-band, compliant with IEEE802.11a/b/g/n/ac, supports WiFi roaming function (seamless switching)

HF

Bluetooth

Compliant with Bluetooth 4.2

Support frequency

13.56MHz

Battery Performance

Support protocol

Supported protocols

Battery capacity

9000mAh polymer lithium battery, voltage 3.8 V

Reading distance

0-7cm (depending on the tag and environment)

Battery capacity

9000mAh polymer lithium battery, voltage 3.8 V

LF

125K/134.2K animal ear tag

Standby time

360 hours of standby time when wireless communication and other functions are turned off

HF（CPU card）

Supports CPU card reading and writing, used with PSAM

Charging time

Less than 5 hours (supports 5V2A/PE2.0 16W fast charging)

Active 2.45G

(customized)

200m distance, 200 tags can be read at one time

Working time

More than 14 hours (full charge once)

appendix

Work Environment

Standard

1 lithium battery, 1 charging head, 1 Type-c charging cable

Operating temperature

-20℃～50℃

Storage temperature

-20℃～70℃

Relative humidity

5%～95% non-condensing

Protection level

Host IP65
