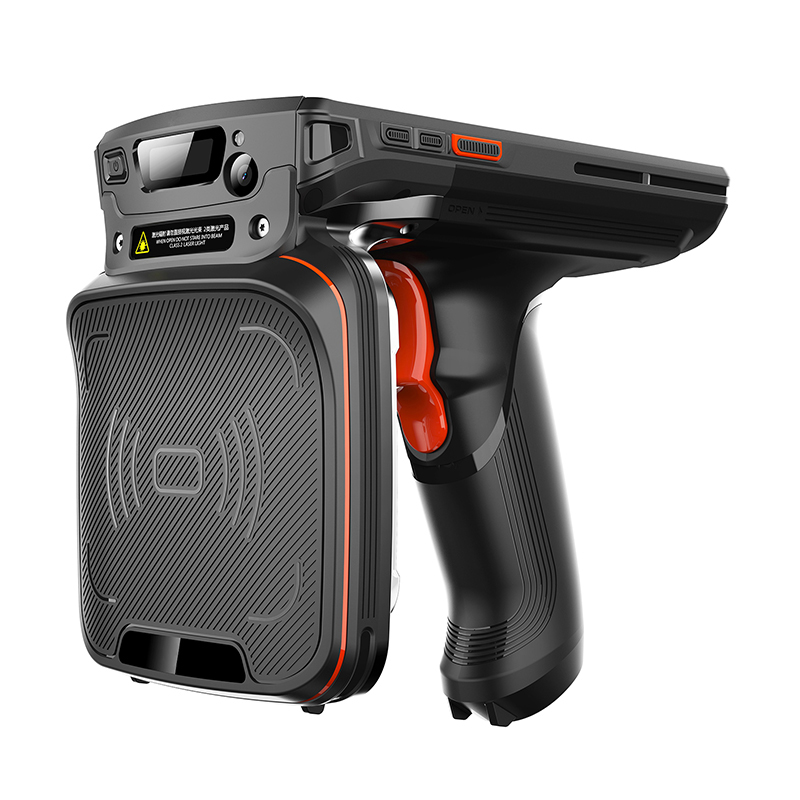

CF-H906 UHF handheld reader
- Based on Impinj E710 chip solution
- Reliable structural design, long service life, durable and resistant to falling
- The terminal and reader can realize data transmission via Bluetooth 4.2 or USB interface
- Provide dynamic link library (DLL) and demonstration software source code to support secondary development
- Application: clothing inventory, warehouse inventory, asset management and inspection, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication | ||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Wireless WAN |
Dual SIM dual standby |
|
|
Protocol |
ISO18000-6C (standard EPC C1G2) Optional: GB29768, GJB7377.1 |
Bluetooth |
4G full network access, backward compatible with 3G, 2G |
|
|
Chip solution |
IMPINJ E710 |
WIFI |
Bluetooth 4.2+BR/EDR+BLE |
|
|
Output power |
0-33dbm adjustable |
Positioning |
2.4G/5G dual-band, IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v |
|
|
Read speed |
>800 pcs/sec |
Physical parameters |
||
|
Read distance |
>18m (depending on the tag) |

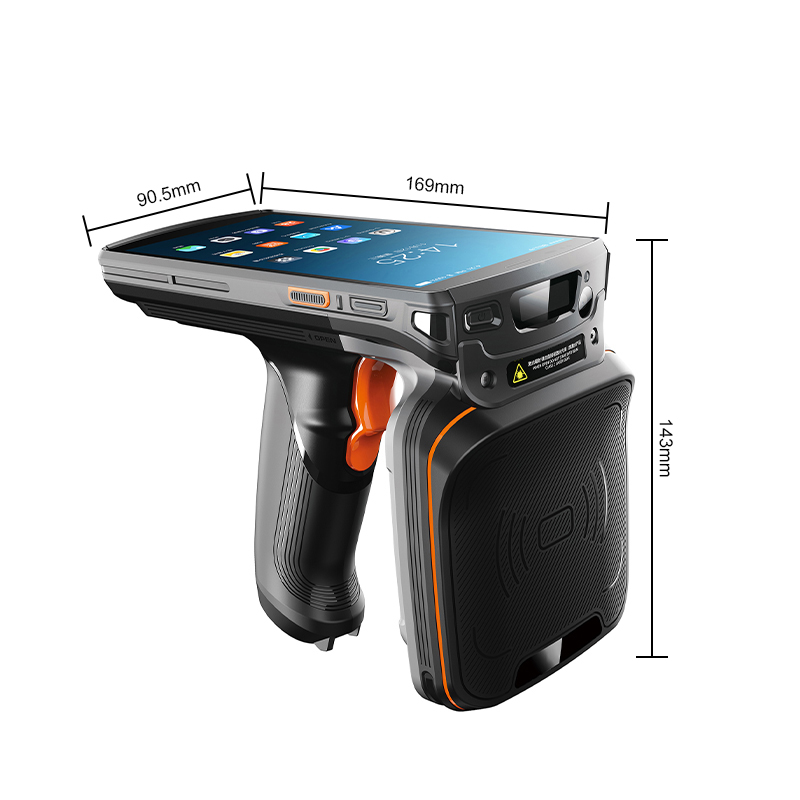

Overall dimensions |
143.3mmx169mm×90.5mm |
|
|
Antenna |
4.5dbi |
Machine weight |
678g |
|
|
Function |
Read/write |
Display screen |
5.7-inch HD (720×1440) |
|
|
Environmental parameters |
Touch screen |
Support multi-touch, glove touch, multi-touch, water operation and passive pen signature |
||
|
Working temperature |
-20 ～ +60℃ |
Main battery |
3.85V 9000mAh rechargeable lithium battery |
|
|
Storage temperature |
-40 ～ +70℃ |
Charging time |
No more than 7 hours |
|
|
Humidity |
5%RH～95%RH (non-condensing) |
Audio |
1.5W speaker, two microphones (supports noise reduction), earpiece, headset |
|
|
Fall-to-ground shock resistance height |
Can withstand the impact of falling from a height of 1.2 meters onto a smooth concrete floor multiple times |

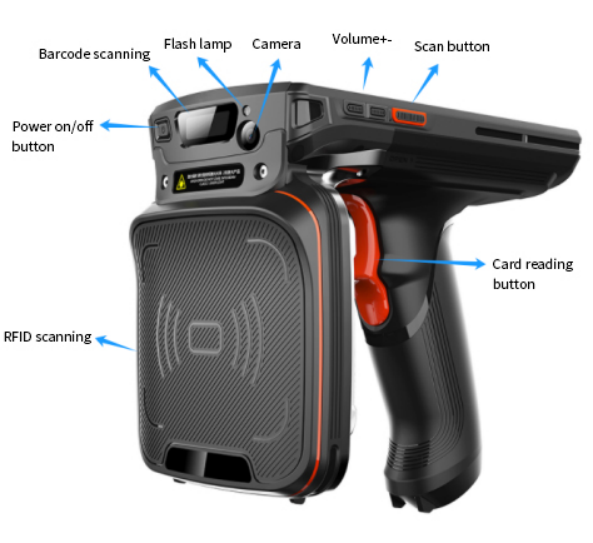

button |
Volume +, - button, power button, PTT button, 2 scan buttons, handle trigger button |
|
|
Protection level |
IP65 |
Camera |
5MP front camera, 13MP rear camera, flash support |
|
|
Static protection |
Air discharge ±15KV, contact discharge ±8KV |
sensor |
Distance, light sensitivity, acceleration, geomagnetism, gyroscope (optional) |
|
|
Development Environment |
scanning |
Professional scanning head, supports scanning mainstream one-dimensional and two-dimensional codes, supports screen scanning |
||
|
Operating system |
Android 11.0 |
Card slot type |
Nano-SIM x 2, Micro SD can support up to 128GB expansion |
|
|
Processor |
Octa-core Cortex-A53, 1.4 GHz |
|
|
|
|
Memory |
RAM: 4GB, ROM: 64GB |
|
|
|
|
Extended memory |
Micro SD card, up to 128GB |
|
|
|
|
Camera |
|
|
Rear camera |
1300W |
|
Front camera |
500W |
|
Focus mode |
Autofocus, touch selection, face detection |
|
Flash |
700mA, flashlight support |
|
Video shooting |
1080p front and rear camera video recording |
|
Scanning head |
|
|
Scanning head module |
Conventional 2D |
|
Rotation angle |
360° |
|
Up and down tilt angle |
±45° |
|
Left and right offset angle |
±60° |
|
Laser type |
Class Ⅱ |
|
Support code system |
UPC/EAN, UPC/EAN with supplementals, Code128, GS1-128, Code 39, Trioptic, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial 2 of 5,Codabar, Codablock F,MSI,Telepen,Code11, GS1 DataBar variants,PDF417, MicroPDF417, Composite Code,Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
|
GPS positioning |
|
|
Positioning |
Positioning parameters |
|
Supported modes |
Support GPS, A-GPS, Beidou, GLONASS, Galileo |
|
Frequency |
GPS (L1 1.575GHz C/A code), Beidou (B1 1.561GHz), GLONASS (L1 1.602GHz), Galileo (E1 1.589 GHz / E2 1.561 GHz) |
|
Cold start time |
Less than 40s |
|
Maximum number of channels |
31channel |
|
Sensitivity |
-130dB (SNR value 40dBHz) |
|
Accuracy |
5-10 meters (open space) |
|
Wireless communication function |
|
|
Wifi |
Wireless LAN |
|
Protocol |
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w protocols (2.4G/5G dual-band WIFI) |
|
Frequency range |
2.4G, 5G |
|
Operating channel |
CH1~CH13, CH34-CH140, CH149~CH165 (depending on the country (region)) |
|
Security |
EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, PEAP-TLS, |
|
Roaming |
PEAP-GTC, PWD, SIM, AKA, WEP, WPA/WPA2-PSK, WAPI certificate, WAPI-PSK |
|
Bluetooth |
|
|
Standard |
Bluetooth parameters |
|
Standard Support Mode |
BT4.2 + BR/EDR + BLE |
|
Connection distance |
More than 10 meters |
|
Wireless WAN |
||
|
Wireless WAN |
WAN communication parameters |
|
|
Communication mode |
Dual SIM dual standby |
|
|
Domestic version |
China Mobile 4G (TD-LTE) China Unicom 4G (FDD-LTE) China Telecom 4G (FDD-LTE) |
TD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/ B20/B28A/B28B) |
|
China Unicom 3G (WCDMA) |
WCDMA(B1/B2/B4/B5/B8) TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) |
|
|
China Telecom 3G (CDMA2000) |
CDMA1x GSM/EDGE/GPRS(850/900/1800/1900) |
|
|
Development support |
|
|
Development support |
Parameters |
|
Operating system |
Android 11.0 |
|
Management platform |
Supports MDM remote management |
|
Support development environment |
Eclipse, Android Studio, Vim, Ubuntu |
|
System-specific tools |
iLuncher main screen tool, system feature settings, scanner settings, cloud intercom |
|
Optional accessories |
|
|
Accessories |
Accessory Type |
|
Accessories |
Charger (supports 1 device + 1 battery), 5-row charger, tempered glass |

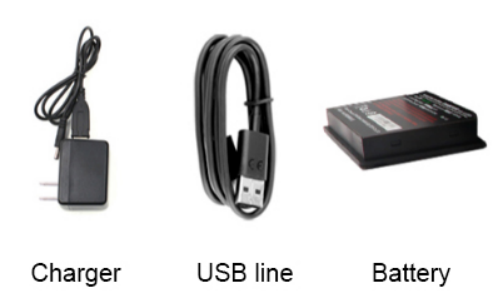

Product accessories

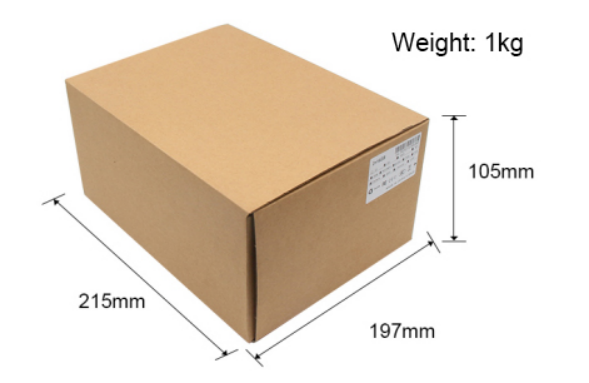

Packing size
