G9853 UHF Anti-metal Tag
Supports LOGO printing service;
Can be used in machine asset management, warehouse shelf management and other scenarios.
|
Specifications |
|
|
Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
902-928MHz or 865~868MHz |
|
Chip |
Impinj M781（EPC 128-bit User 512-bit） |
|
Read&write function |
Support only-read and read-write（Can repeatedly write content into the chip） |
|
Data storage |
50 years |
|
Reading distance (RFID fixed reader) |
On metal surface: More than 10meters（4W EIRP） |
|
Reading distance (RFID handheld reader) |
On metal surface：more than 5meters （based on handheld reader of R2000chip+33dbm power +4dBi antenna） |
|
Polarization |
Linear |
|
RF performance consistency test |
100% tested and passed (tested by Voyantic Tagformace tester from Finland, Europe) |
|
Physical properties |
|
|

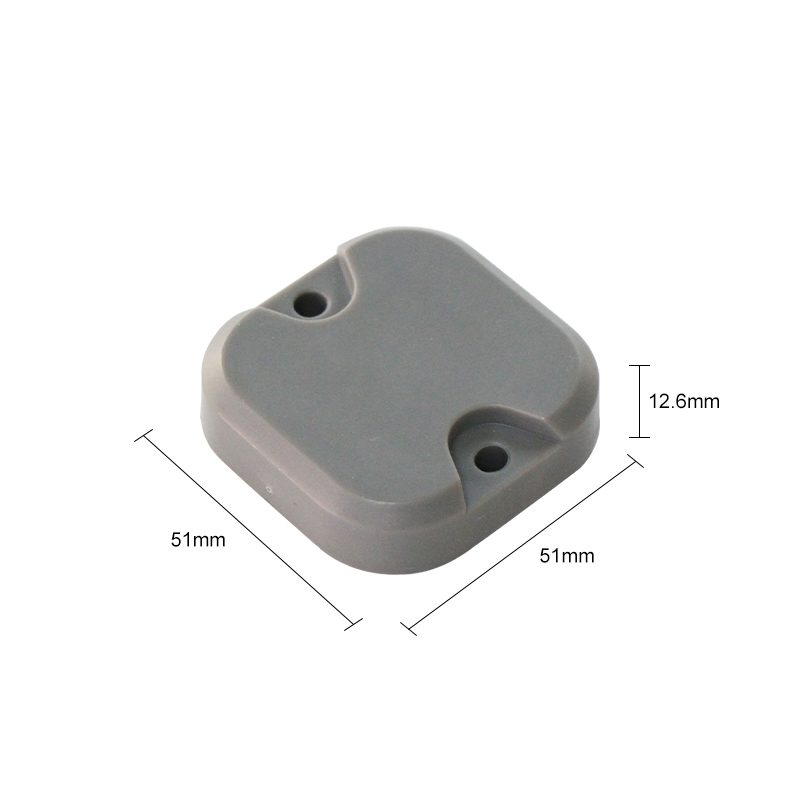

Size |
51mmx 51mmx 12.6mm |
|
Operating temperature |
-25℃~ +73℃ |
|
Storage temperature |
-40℃~ +73℃ |
|
Storage humidity |
5%～95% |
|
Installation |
Double-sided tape, super glue, screw, or aluminum rivet |
|
Weight |
~26g/pc |
|
Packing |
Anti-static bag and carton packaging |
|
Color |
black （can customize color more than 5000pcs） |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
Passed 95% alcohol test |
|
Gasoline test |
No. 92 gasoline wipe passed |
|
High and low temperature alternating test |
-40℃～+73℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days of testing passed |
|
RoHS |
Materials are SGS certified |
|
IP level |
IP67 |
|
Warranty |
1year |
|
Material |
ABS or strong weather-resistant polymer material |
|
Customization |
Data writing, surface laser printing, surface UV pattern processing, surface silk screen or pad printing processing |
