G9852 UHF Anti-metal Tag
Supports LOGO printing service;
Can be used in machine asset management, warehouse shelf management and other scenarios.
|
Specifications |
|
|
Protocol |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
902-928MHz or 865~868MHz |
|
Chip |
NXP Ucode7M |
|
Memory |
EPC 96-bit, User 32-bit |
|
Read&write function |
Support only-read and read-write（Can repeatedly write content into the chip） |
|
Data storage |
50 years |
|
Reading distance |
More than 18meters（based on Alien 9900 fixed reader） |
|
Reading distance |
On metal surface: more than 8meters On non-metal surface：more than 5meters （based on handheld reader of R2000chip+33dbm power +4dBi antenna） |
|
Polarization |
Linear |
|
Physical properties |
|
|
Size |

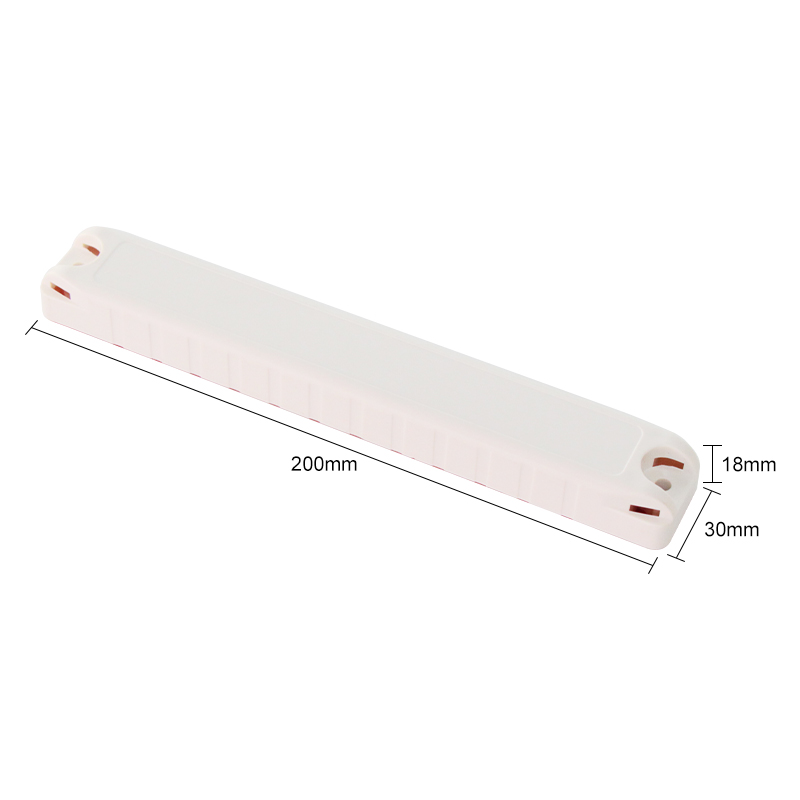

200mm x 30mm x 18mm（Positioning hole diameter 4.2mm，positioning hole center distance 186mm） |
|
Operating temperature |
-25℃~ +70℃ |
|
Storage temperature |
-40℃~ +70℃ |
|
Storage humidity |
5%～95% |
|
Installation |

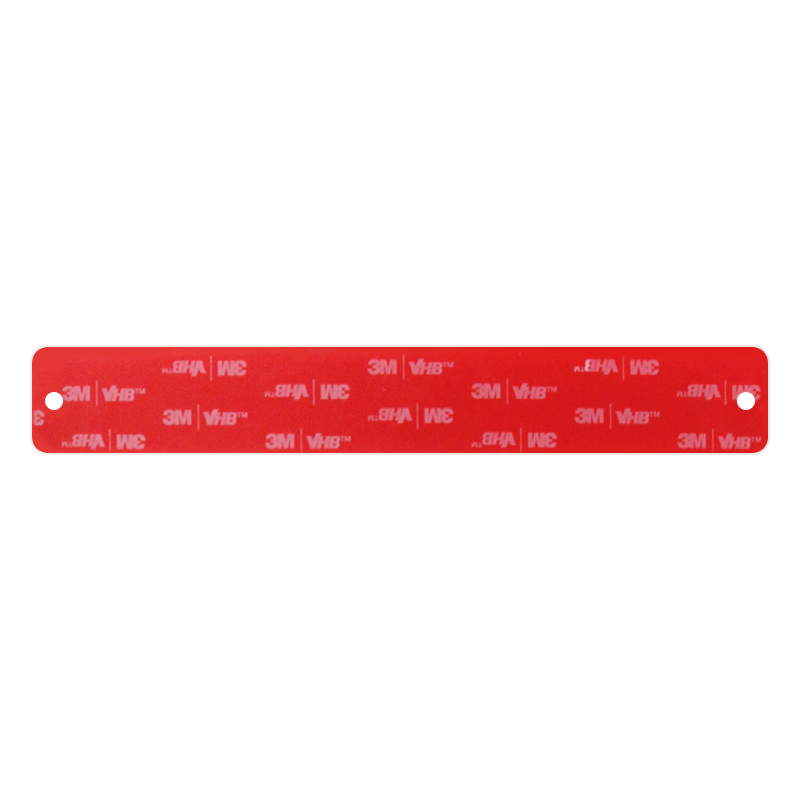

Screws, aluminum rivets, superglue, cable ties, double-sided adhesive tape (not standard, optional) |
|
Weight |
~60g/pc |
|
Packing |
Anti-static bag and carton packaging |
|
Color |
white （can customize color more than 5000pcs） |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
Passed 95% alcohol test |
|
Gasoline test |
No. 92 gasoline wipe passed |
|
High and low temperature alternating test |
-40℃～+70℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days of testing passed |
|
RoHS |
Materials are SGS certified |
|
IP level |
IP67 |
|
Warranty |
1 year |
|
Material |
ABS or strong weather-resistant polymer material |
