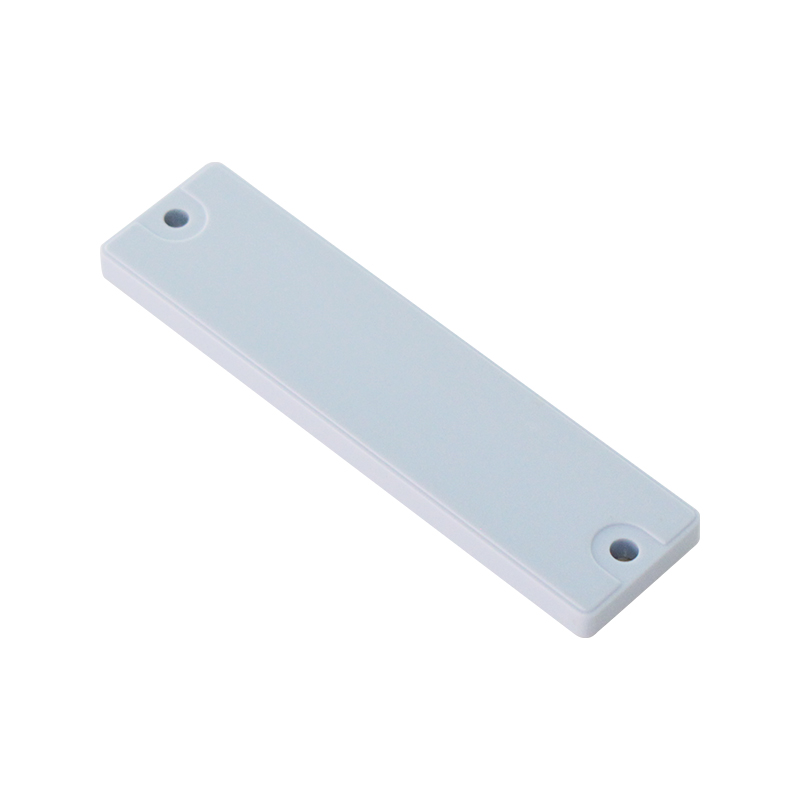

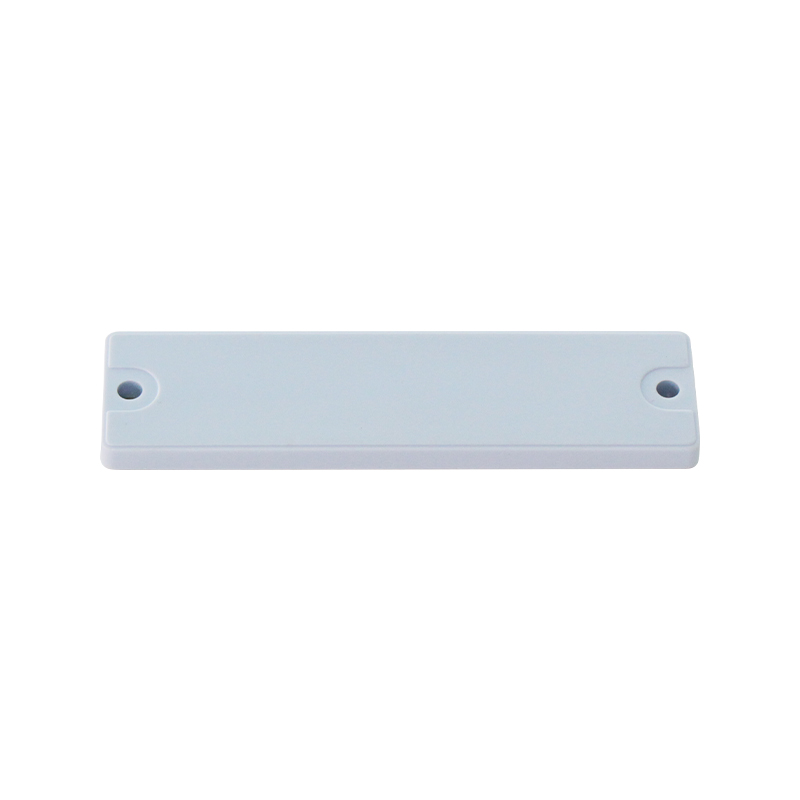

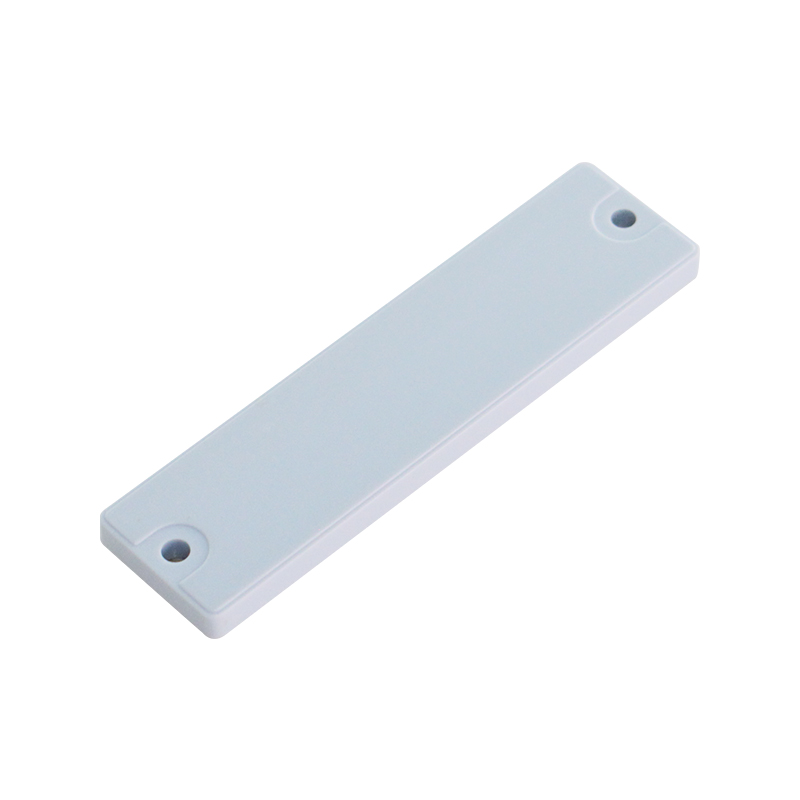

G9850 UHF Anti-metal Tag
Supports LOGO printing service;
Can be used in machine asset management, warehouse shelf management and other scenarios.
|
Specifications |
|
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
902-928MHz （also have EU frequency for optional） |
|
Chip |
UCODE9 |
|
Memory |
EPC 96bits User0 |
|
Read&write function |
Support only-read and read-write（Can repeatedly write content into the chip） |
|
Data storage |
50 years |
|
Reading distance |
More than 10meters（based on Alien 9900 fixed reader） |
|
Reading distance |
More than 5meters（based on Alien 9011 handheld reader） |
|
Polarization |
Linear |
|
RF performance consistency test |
100% tested and passed (tested by Voyantic Tagformace tester from Finland, Europe) |
|
Physical properties |
|
|

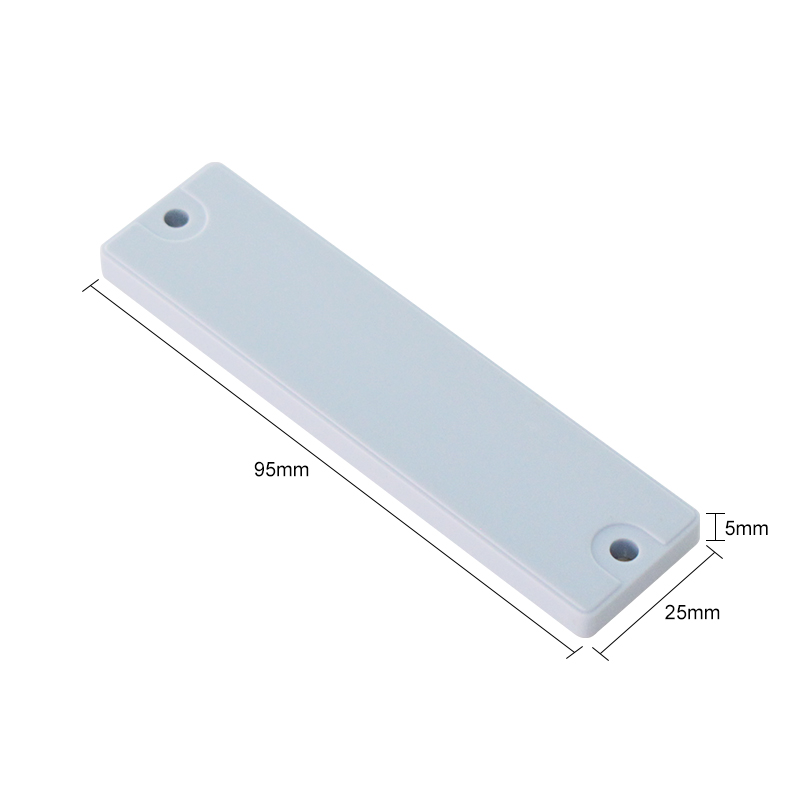

Size |
95mm *25mm* 5mm |
|
Positioning hole size |
Positioning hole diameter 4.04mm, positioning hole center distance 86mm |
|
Operating temperature |
-25℃~ +80℃ |
|
Storage temperature |
-30℃~ +80℃ |
|
Storage humidity |
5%～95% |
|
Installation |

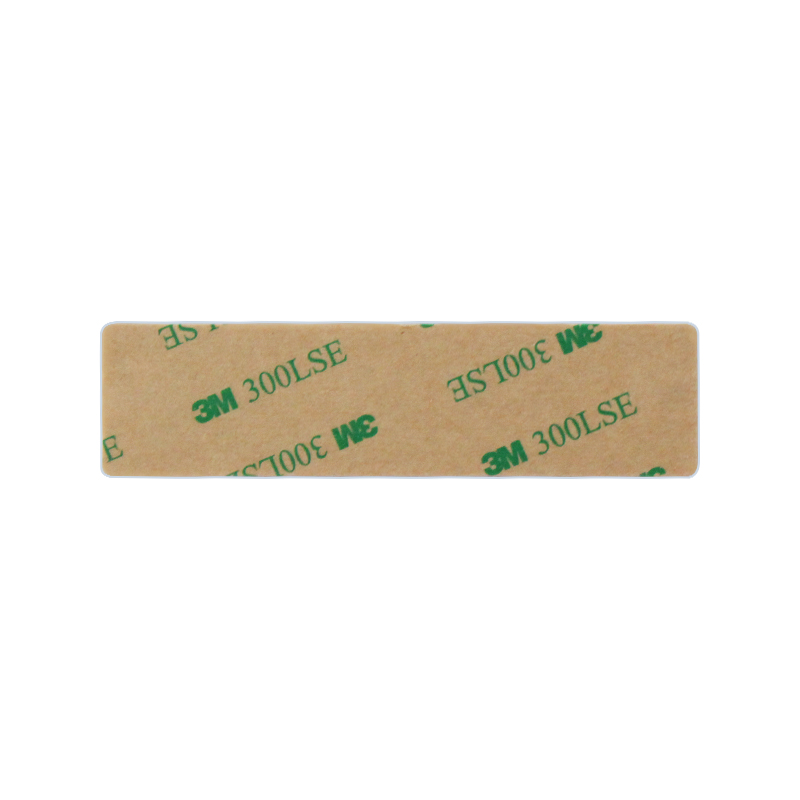

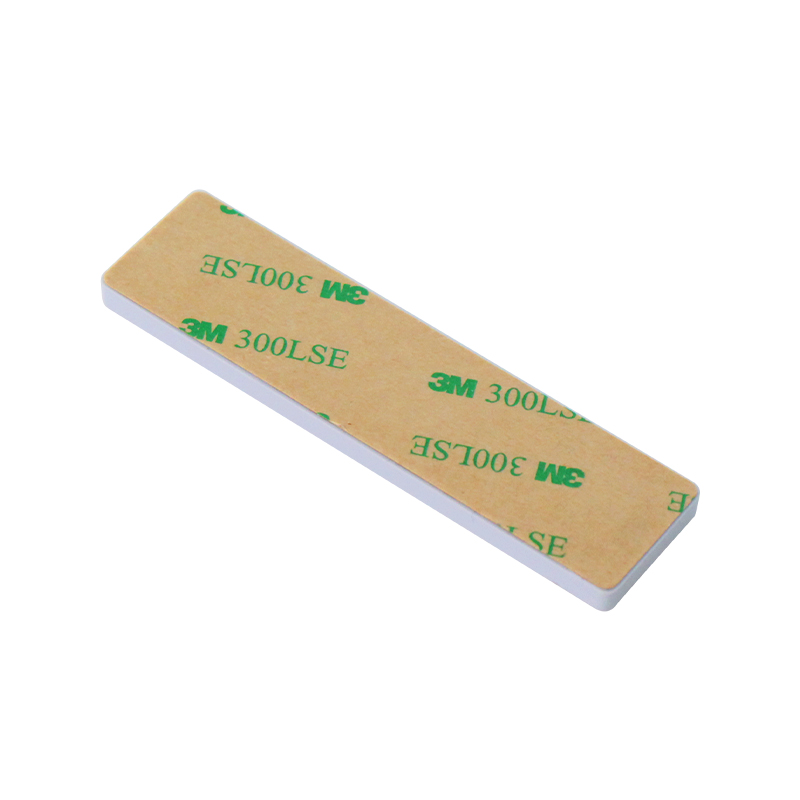

Screws, rivets, strong glue (not standard), 3M glue (standard) |
|
Weight |
13.5g/pc |
|
Packing |
Carton |
|
Drop test |
Passed 200 drop tests from 1 meter high |
|
Alcohol test |
Passed 95% alcohol test |
|
Gasoline test |
No. 92 gasoline wipe passed |
|
High and low temperature alternating test |
-30℃～+80℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days of testing passed |
|
RoHS |
Materials are SGS certified |
|
IP level |
IP67 |
|
Warranty |
1year |
|
Material |
ABS |
|
Color |
Baby-blue |
|
Customized service |
Laser printing, LOGO silk screen printing, data-writing, surface pattern processing, surface variable one-dimensional code or two-dimensional code processing |
