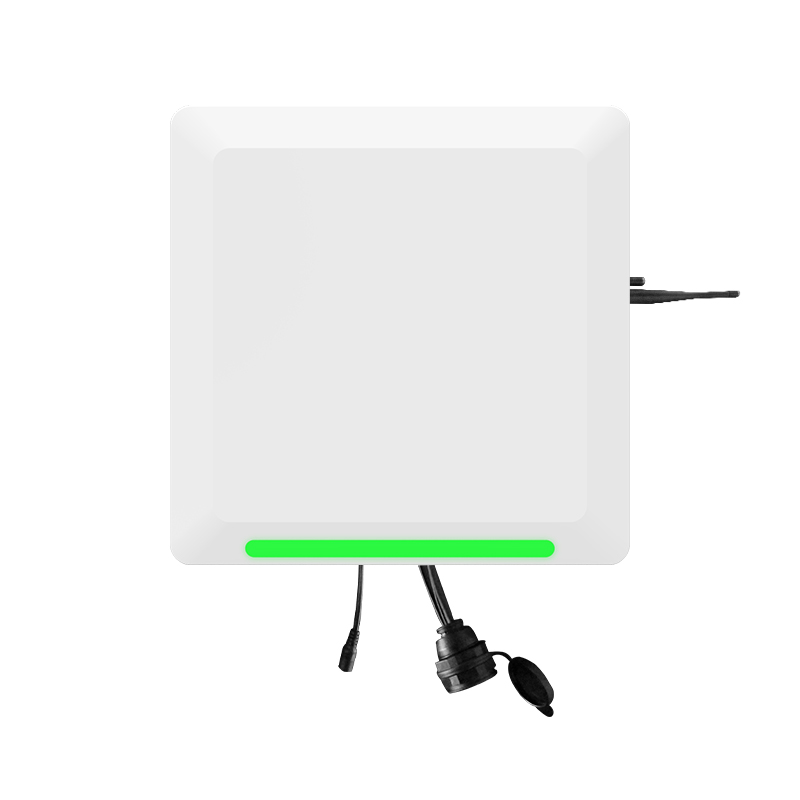

CF6D6 UHF Android integrated reader

- Support RSSI to identify tag signal distance
- HDMI interface to connect to display screen
- Support 4G standards in multiple countries
- Android 12.0 system
- Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz（US） 865~868MHz（EU）		Standard interface	USB3.0 TypeA, USB3.0 Type A (OTG), HDMI TypeA (supports up to 4K high-definition video output), 4G (EC25-E is standard, optional according to customer needs, built-in SIM card)
Protocol	ISO18000-6C (EPC GEN2)		Optional interface	RS232, RJ45, GPIO (2 inputs, 2 outputs, isolated), wifi, Bluetooth
RF output power	Maximum 33dbm (adjustable)		Operating system	Android 12
Internal antenna	12dBi		CPU	RK3568 2.0GHz quad-core
Polarization mode	Linear polarization		RAM+ROM	2GB+16GB (optional 4+64)
Reading distance	0-15 meters		Development Environment
RSSI	Support		Firmware version	Support online upgrade
Physical parameters			SDK	Demo software, API, examples, user manuals
Power supply	12V 2A		Development Languages & Tools	Java Eclipse / Android Studio
Material	Die-cast aluminum		Work Environment
Dimensions	41541567mm		IP protection level	IP65
Net weight	3.1kg		Operating temperature	-10~+55℃
			Storage temperature	-20~+75℃

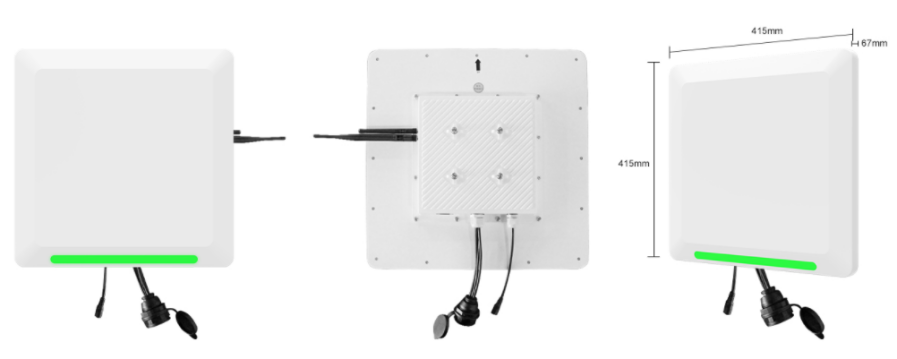

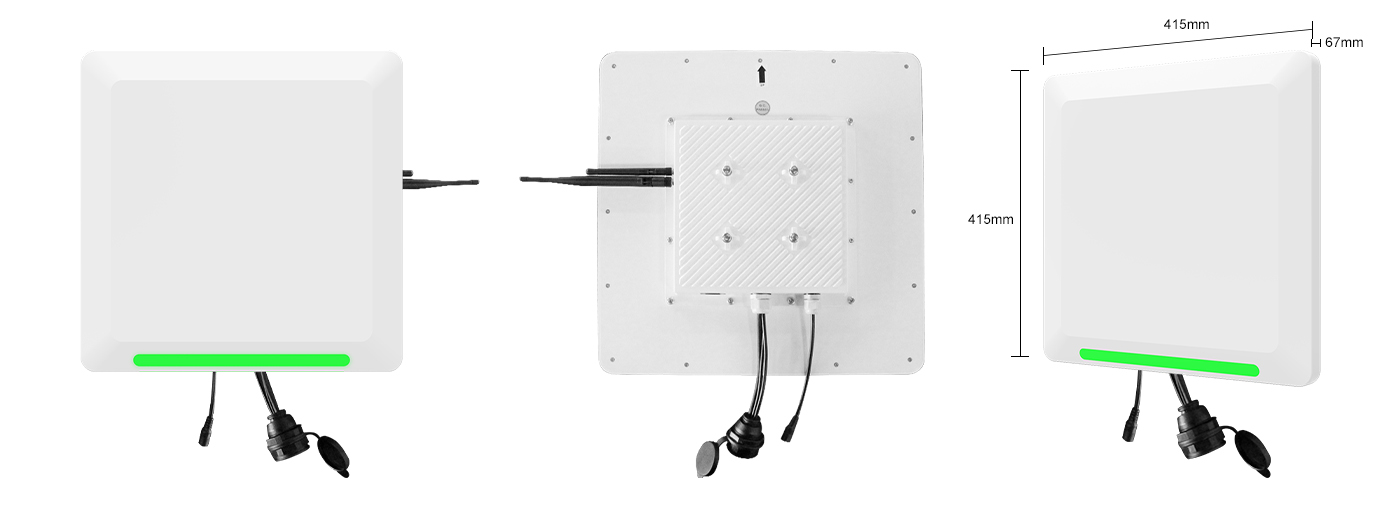

Specifications and dimensions

Interface Definition

Standard interface

USB3.0 TypeA，USB3.0 Type A（OTG）,HDMI TypeA（Support up to 4K HD video output），4G

DC power		USB3.0 TypeA	USB3.0 Type A（OTG）	HDMI TypeA（Support up to 4K HD video output）
12V	GND	/	/	/
Red	black	/	/	/

Optional interface

RS232, RJ45, GPIO (2 inputs, 2 outputs, isolated), wifi

Sound and light control pin

Sound and light control
1	Read	Green light	gpio-20 low level green light, high level red light
2	Beep	Buzzer	gpio-21 low level valid, high level invalid

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
