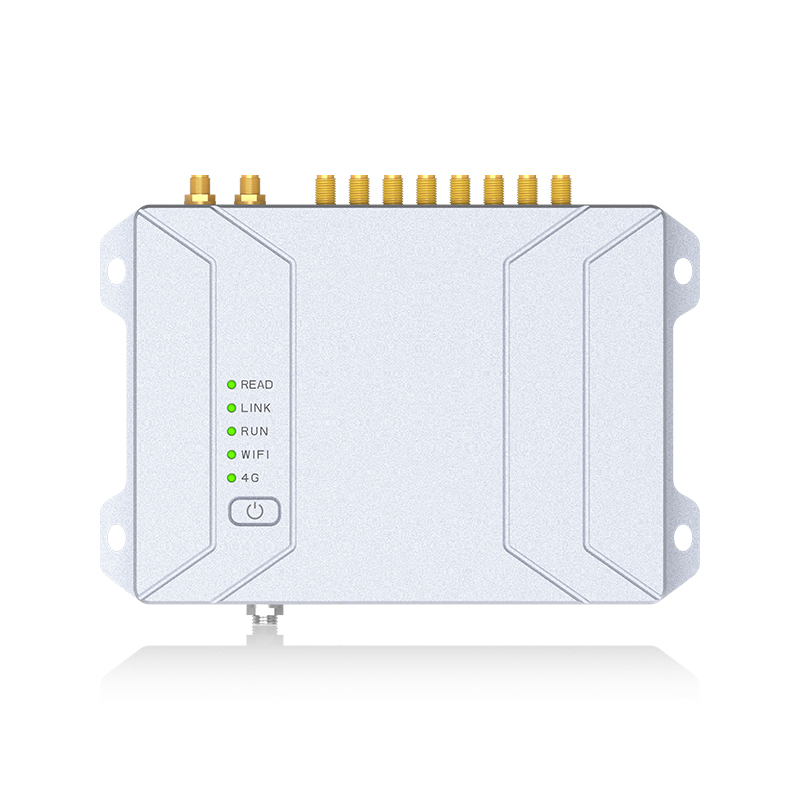

CF400 UHF Android OS Four Port Fixed Reader
- Reading speed up to 800 tag/s
- Support RSSI identification tag signal distance
- Supports multi-antenna anti-collision polling and inventory
- Supports multiple language development c#, java, etc.
- Applications: warehouse management, forklift management, asset tracking, laundry management, smart cabinets, waste management, etc.
Product specifications
|
RFID Technical Parameters |
|
Data communication |
||
|
Chip solution |
Impinj E710 chip |

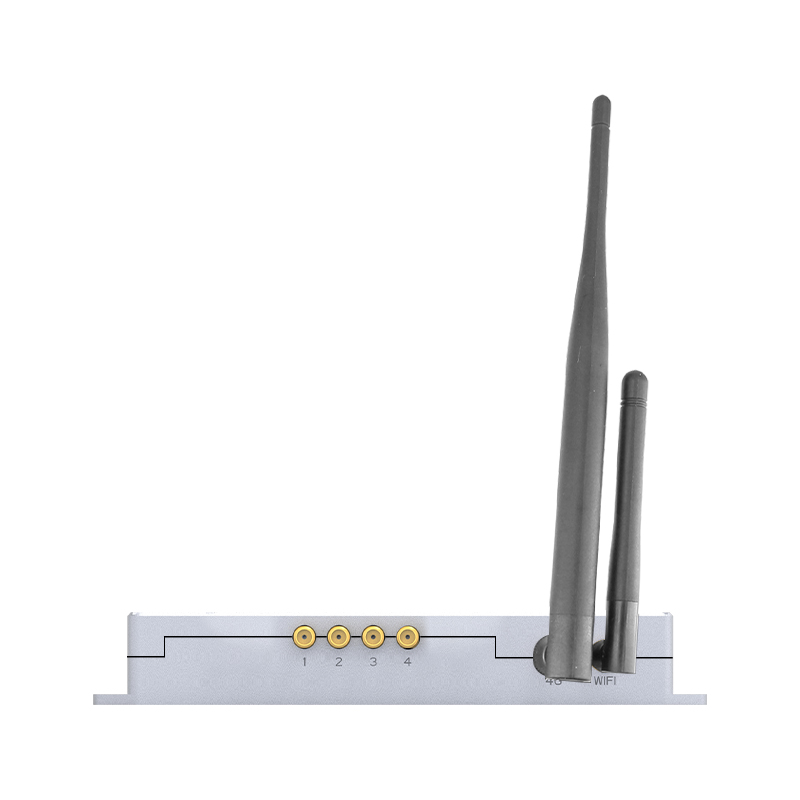

Antenna port |
4个SMA-K female |
|
|
frequency |
902~928MHz (US）865~868MHz （EU） |
communication |
RJ45, 2 USB3.0 Type A, supports USB Host (one supports OTG), RS232/ RS485 |
|
|
protocol |
ISO18000-6C (EPC GEN2) |
power supply |
Support DC 9-30V input, default DC 24V input |
|
|
RF output power |
0dbm—33dbm(Adjustable) |
General purpose I/O |
2 inputs, 2 outputs, optocoupler isolation (terminals) |
|
|
Reading speed |
800 tags/s |
management agreement |
HDMI Type A, supports 1080p HD video output |
|
|
Reading distance |
0-25 meters |
processor |
Quad-core Cortex-A55 Main frequency 2.0GHz |
|
|
Receiver sensitivity upper limit |
-88 dBm |
Memory |
2 + 16GB |
|
|
Physical parameters |
|
operating system |
Android 12.0 |
|
|
shell material |
die cast aluminum |
Firmware upgrade |
Support local USB upgrade |
|
|
Protection level |
IP53 |
Internet service |
4G: Default is Europe, optional for China, America, etc. |
|
|

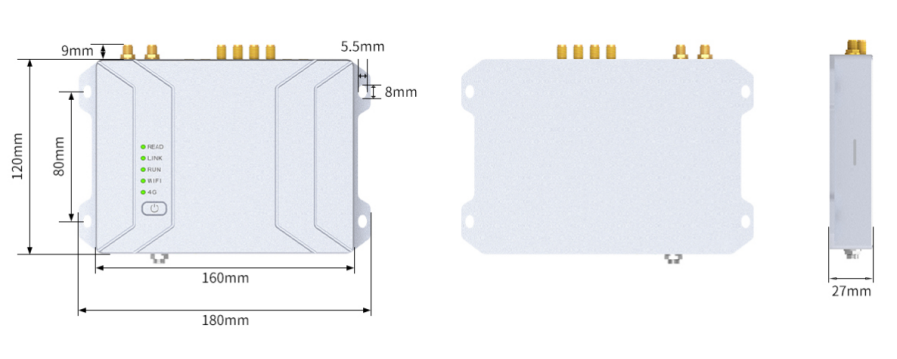

size |
180*129*27mm |
WIFI |
2.4G/5G dual-band, support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, IPV4, IPV6 |
|
|
weight |
600g |
Development environment |
||
|
working environment |
Firmware version |
Support online upgrade |
||
|
Operating temperature |
-20℃-65℃ |
SDK |
Demo software, API, examples, user manual |
|
|
storage temperature |
-40℃-80℃ |
host application |
.Net, C and Java EMDK |
|
|
humidity |
5%-95%（No condensation） |
Embedded applications |
C and Java SDK |
|

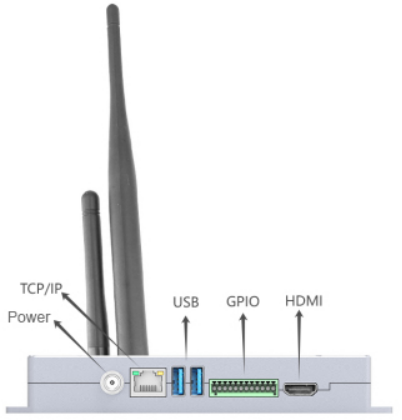

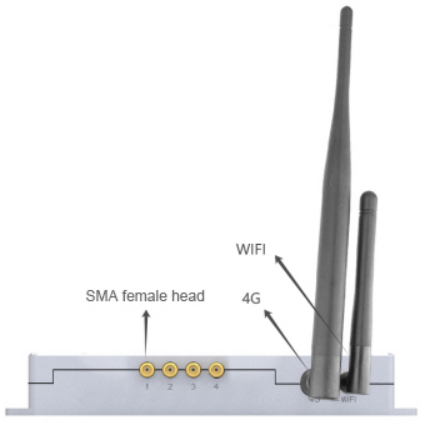

Detailed display
|
DC power supply definition |
||
|
serial number |
Signal |
content |
|
1 |
PWR |
+24V DC |
|
2 |
CND |
ground |
|
GPIO wiring definition |
||||
|
serial number |
Signal |
content |
||
|
1 |
RS232-RXD |
DeviceRXD |
||
|
2 |
GND |
Signal GND |
||
|
3 |
RS232-TXD |
DeviceTXD |
||
|
4 |
GND |
GND |
||
|
5 |
DC+ |
Power Output |
||
|
6 |
DC- |
power ground |
||
|
7 |
GPO-1 |
GPIO output 1 |
||
|
8 |
GPO-2 |
GPIO output 2 |
||
|
9 |
GPIO GND |
signal ground |
||
|
10 |
GPI-1 |
GPIO input 1 |
||
|
11 |
GPI-2 |
GPIO input 2 |
||
|
12 |
GPIO GND |
signal ground |
||
