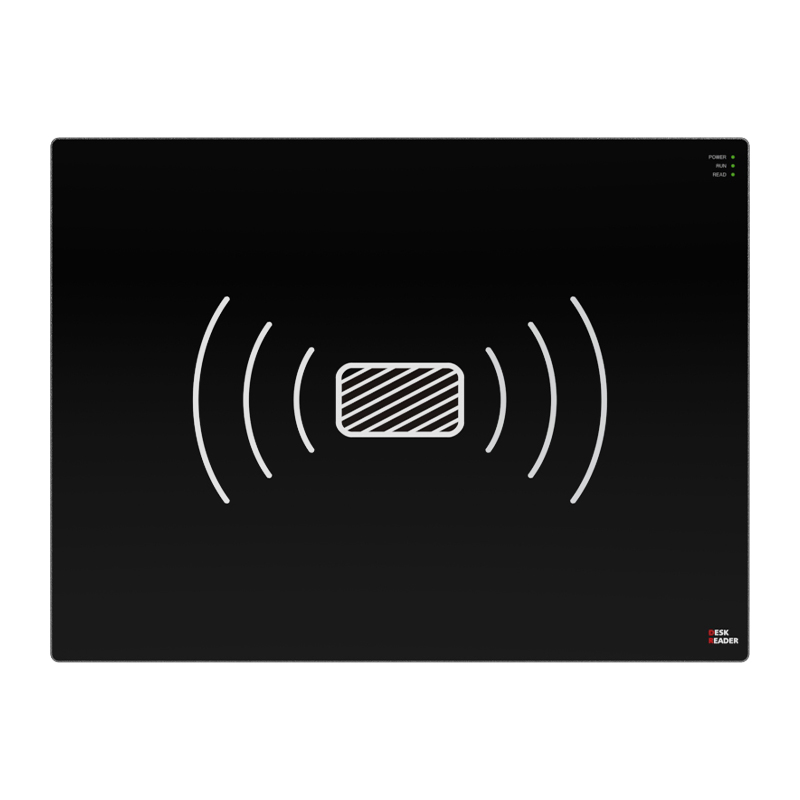

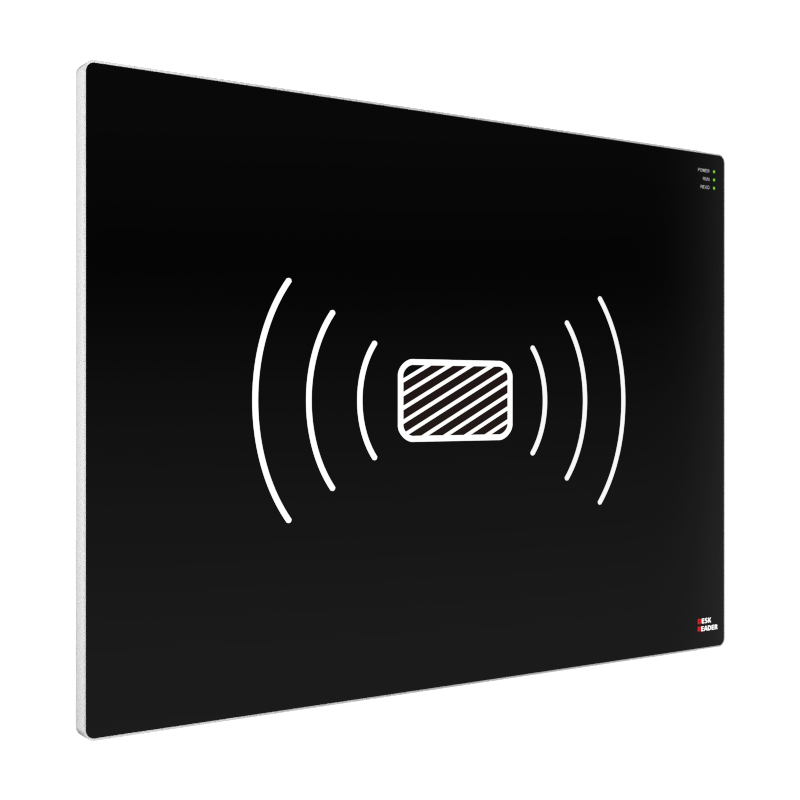

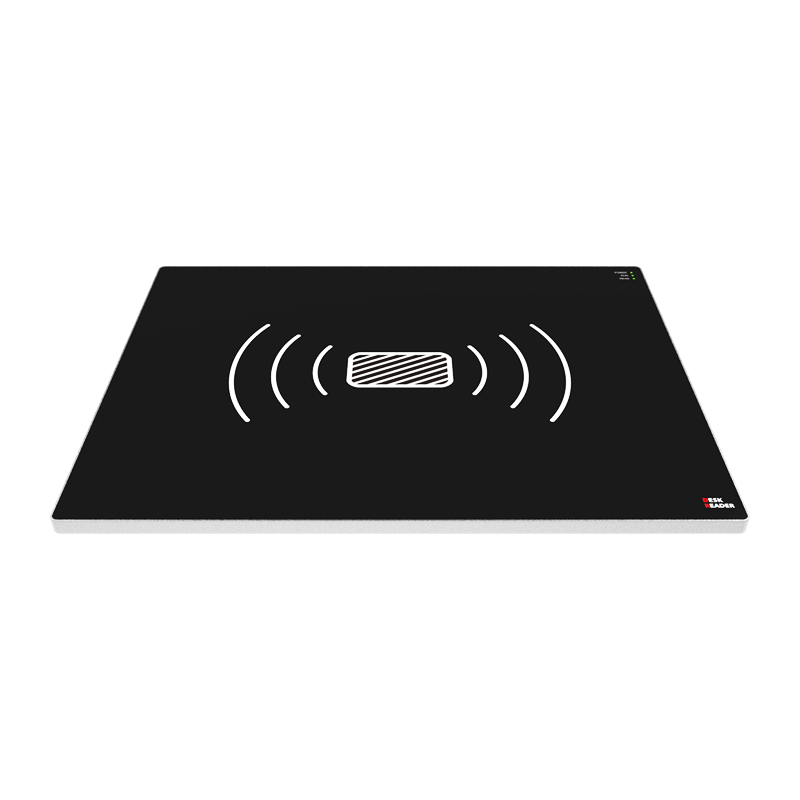

CF606 UHF Desktop Reader
Retail self-payment system
100pcs/s tags reading within range
DESK CF606
UHF Desktop reader writer
Widely used in application scenarios such as book borrowing and returning, electronic equipment borrowing and returning, supermarket retail, smart cashier, etc.
|
Model definition |
CF606：USB interface |
|
frequency |
865.6—867.6MHZ（EU） / 902-928MHZ (US) |
|
protocol |
ISO18000-6C(EPC GEN2) |
|
Built-in antenna |
PCB near field antenna |
|
RF output |
Independent read and write mode 5-26dBm, step 1dB, power adjustment accuracy ±0.2dB |
|
Sensitivity |
Module receiving sensitivity: -79dBm at 15dBm transmit power; -77dBm at 20dBm transmit power; |
|
Card reading speed |
>100 pcs/second (depending on tag and transmit power) |
|
Tag reading distance |
6-7 meters (depending on selected tag and antenna) |
|
Communication Interface |
USB to serial port default baud rate 115200 |
|
Tag RSSI |
support |
|
Sound and light indication |
Buzzer, three indicator lights (Power, Run, Read) |
|
Operating Voltage |
4.0-5.5V |
|
Working mode power consumption |
<1.5W typical value (at maximum transmit power) |
|
Standby mode power consumption |
0.25W (idle waiting state） |
|
Sleep mode power consumption |
0.05W (sleep power saving) |
|
Operating temperature |
-40℃--+70℃ |
|
storage temperature |
-40℃--+85℃ |
|
Working humidity |
<95% (25℃) |
|
shell material |
ABS |
|
Heat dissipation method |
Air cooling |
|
Specification |
|
2.product details

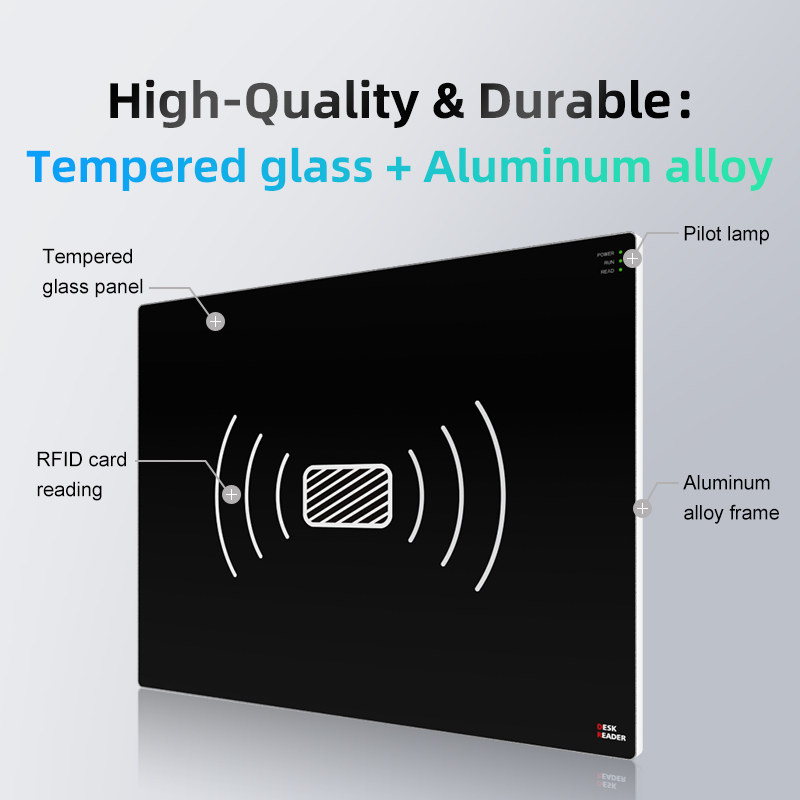

LED indicator light: three types of indicator lights (Power, Run, Read card reading)

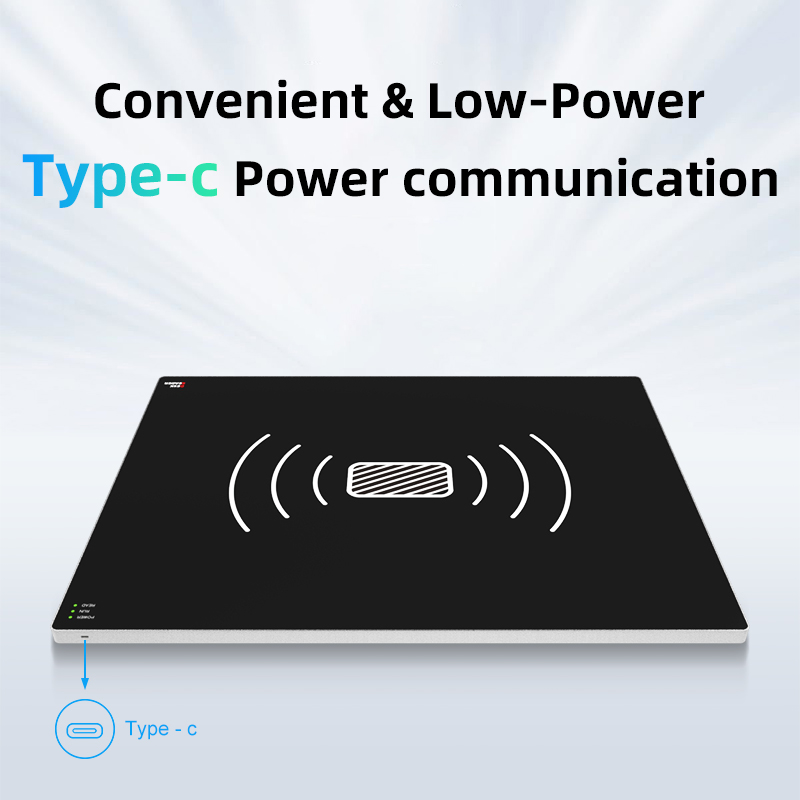

USB type-c powered communication: low power consumption design, convenient and simple

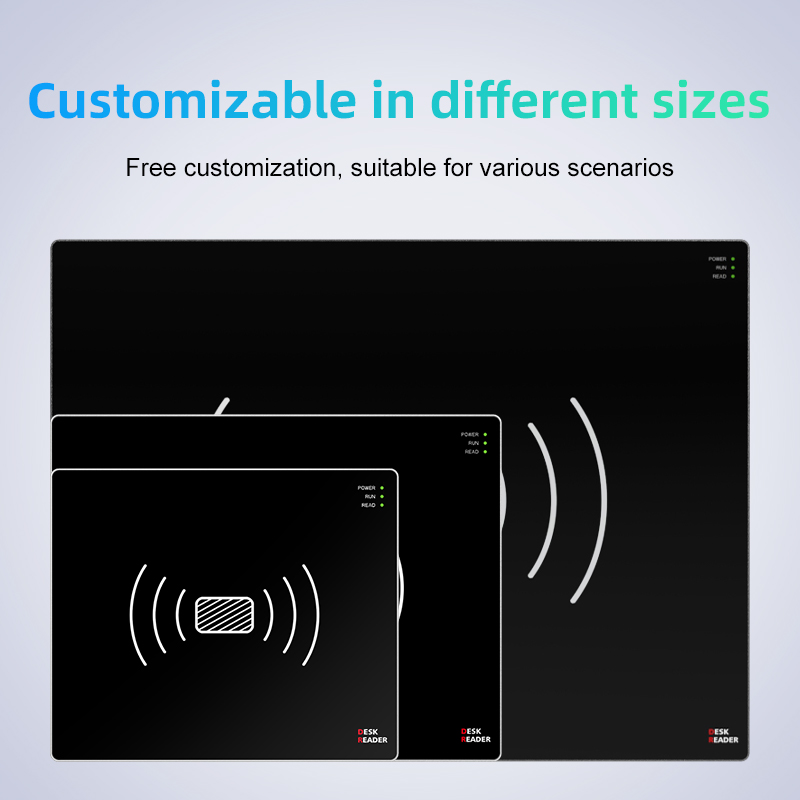

3、DESK Series
|
|
|
|
|
CF600 Reading distance 0~50cm Readable and writable |
CE601 Reading distance 0~35cm Readable and writable |
CE603 Reading distance 0~7 meters Tag group reading |
4、Application scenarios: widely used in application scenarios such as book borrowing and returning, electronic device borrowing and returning, supermarket retail, smart cashier, etc.
