CF605 UHF Desktop Reader
-Accurately identify tags and support intensive reading
-Type-C power supply communication: low power consumption design, convenient and simple
-Supports multiple language development including C#, Delphi, Java, Python, VB, etc.
-Applications: Book borrowing and returning, electronic equipment borrowing and returning, supermarket retail, smart cashier, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
frequency |
902~928MHz (US standard) 865~868MHz (EU standard) |
Standard interface |
The default baud rate of USB to serial port is 115200 |
|
|
protocol |
ISO18000-6C (EPC GEN2) |
Sound and light indication |
Buzzer, three indicator lights (Power, Run, Read) |
|
|
RF output power |
Independent read/write mode 5-26dBm, step 1dB, power adjustment accuracy ±0.2dB |
Working mode power consumption |
<1.5W typical ( at maximum transmit power ) |
|
|

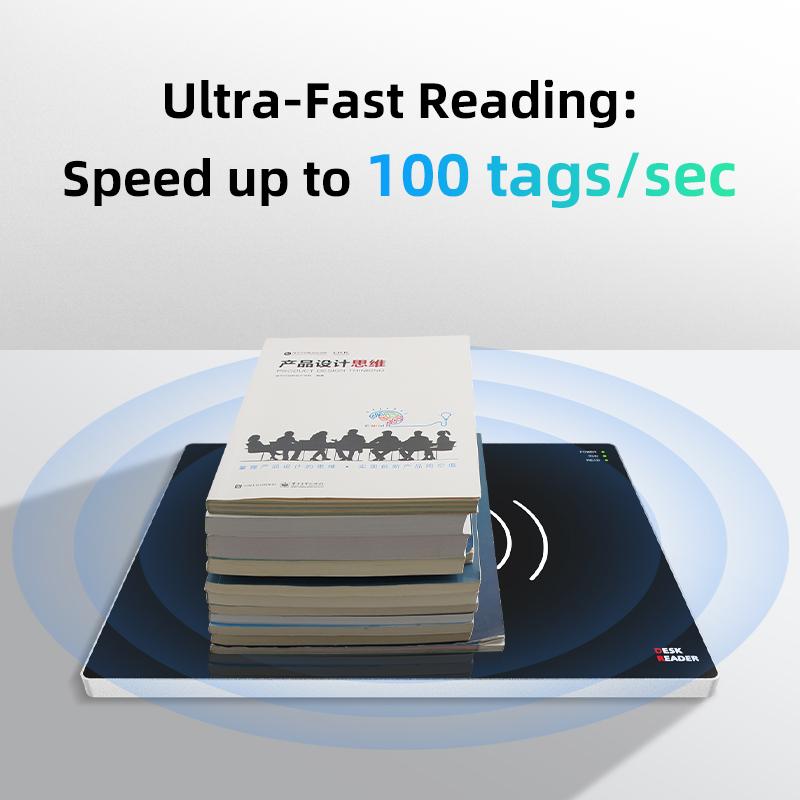

Reading speed |
100 tags per second |
Operating voltage |
4.0-5.5V |
|
|
Built-in antenna |
-6dB i Near Field Antenna |
Development Environment |
|
|
|
Reading distance |
0-1 meter ( depending on selected tag and environment ) |
SDK |
Demo software, API, examples, user manual |
|
|
RSSI |
support |
Firmware version |
Support online upgrade |
|
|
Sensitivity |
-79dBm at 15dBm transmit power -77dBm at 20dBm transmit power |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Physical parameters |
|
Work Environment |
|
|
|
Heat dissipation method |
Air cooling |
Operating temperature |
-40℃--+70℃ |
|
|
Material |
ABS |
Storage temperature |
-40℃--+85℃ |
|
|
size |
520*400*26.1mm |
|
||
|
net weight |
3.5kg |
|||
Details display

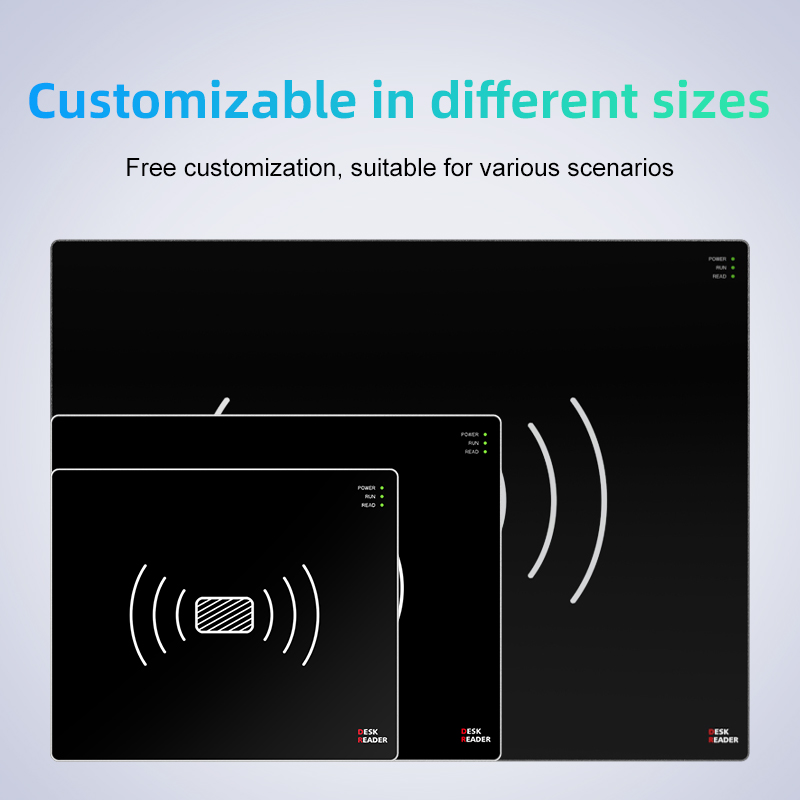

Related products
|
picture |
|
|
|
|
Model |
CF603 |
CF605 |
CF606 |
|
Size |
400*340*26.1mm |
520*400*26.1mm |
800*600*26.1mm |
|
Output RF power |
0dbm ~26dbm (adjustable) |
||
|
Reading speed |
100pcs/s |
||
|
Reading distance |
0-1 meter (depending on the tag and application environment) |
||
