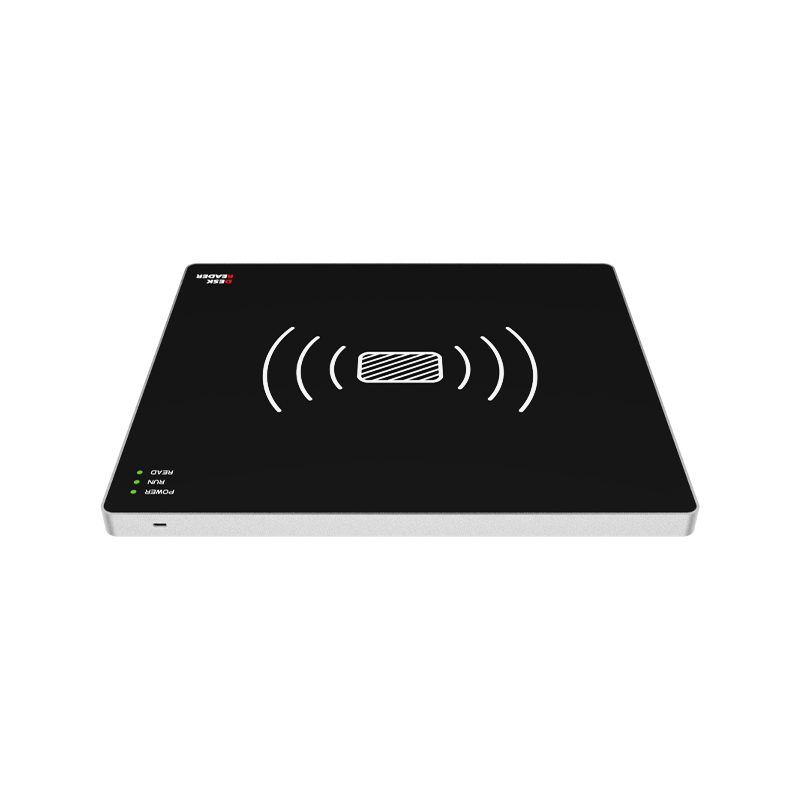

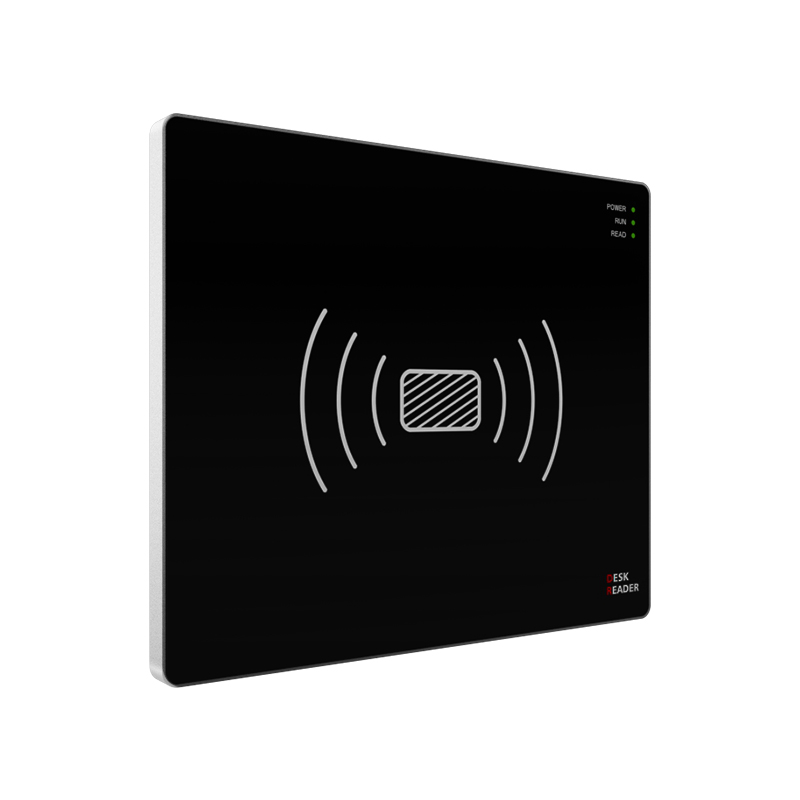

CF603 UHF Deaktop Reader

- The maximum reading speed can reach 100 tags/s
- Support RSSI to identify tag signal distance

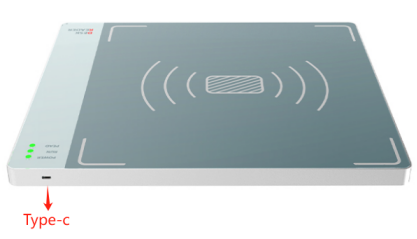

- Type-C power supply communication: low power consumption design, convenient and simple
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: book borrowing and returning, electronic equipment borrowing and returning, supermarket retail, smart cashier, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz (US） 865~868MHz(EU)		Standard interface	USB to serial port default baud rate 115200
Protocol	ISO18000-6C (EPC GEN2)		Sound and light indication	Buzzer, three indicator lights (Power, Run, Read)
RF output power	Independent read/write mode 5-26dBm, step 1dB, power adjustment accuracy ±0.2dB		Working mode power consumption	<1.5W typical value
Reading speed	100 tags per second		Working voltage	(at maximum transmission power)
Built-in antenna	7dBi array antenna		Standby mode power consumption	4.0-5.5V
Reading distance	0~7m (depending on the selected tag and antenna)		Sleep mode power consumption	0.25W (idle waiting state)
RSSI	Support		Development Environment
Sensitivity	-79dBm at 15dBm transmit power -77dBm at 20dBm transmit power		SDK	Demo software, API, examples, user manual
Physical parameters			Firmware version	Support online upgrade
Heat dissipation method	Air cooling		Development language	C#, Delphi, Java, Python, VB and other languages
Material	Tempered glass + aluminum alloy		Working environment

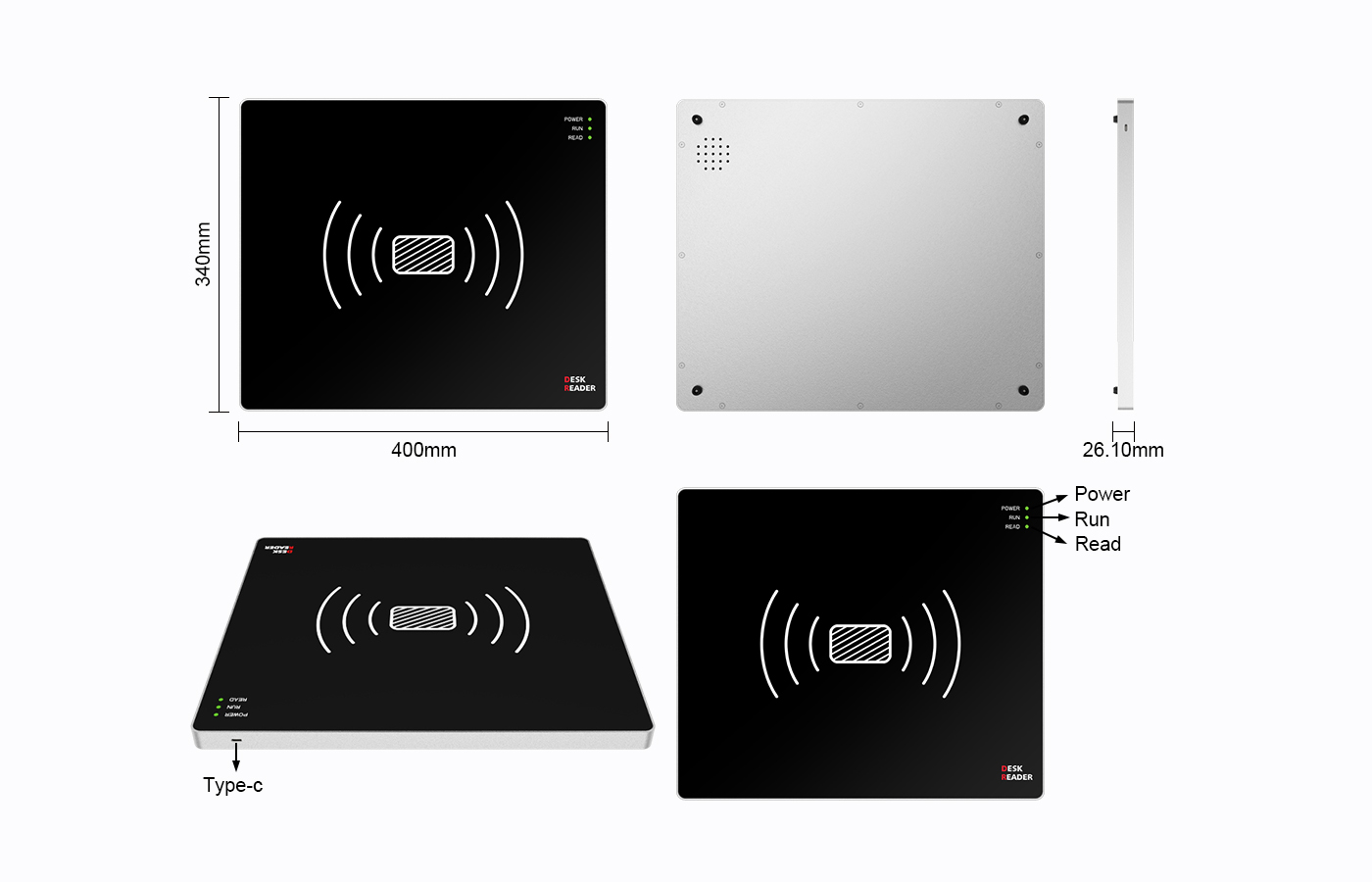

Dimensions	40034020mm		Operating temperature	-40℃--+70℃
Net weight	3.5kg		storage temperature	-40℃--+85℃
			Working humidity	<95% (25℃)

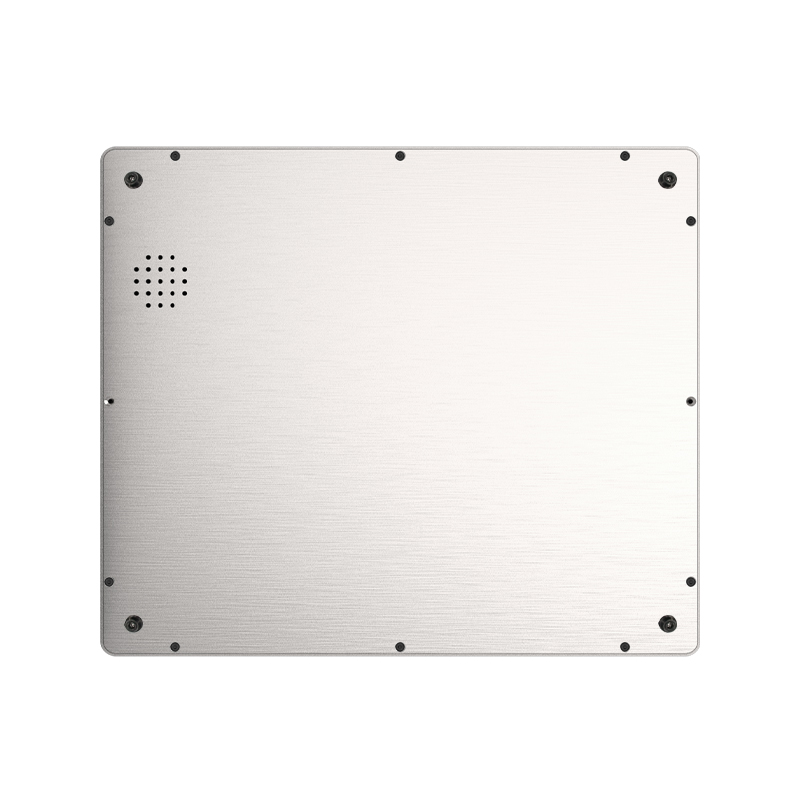

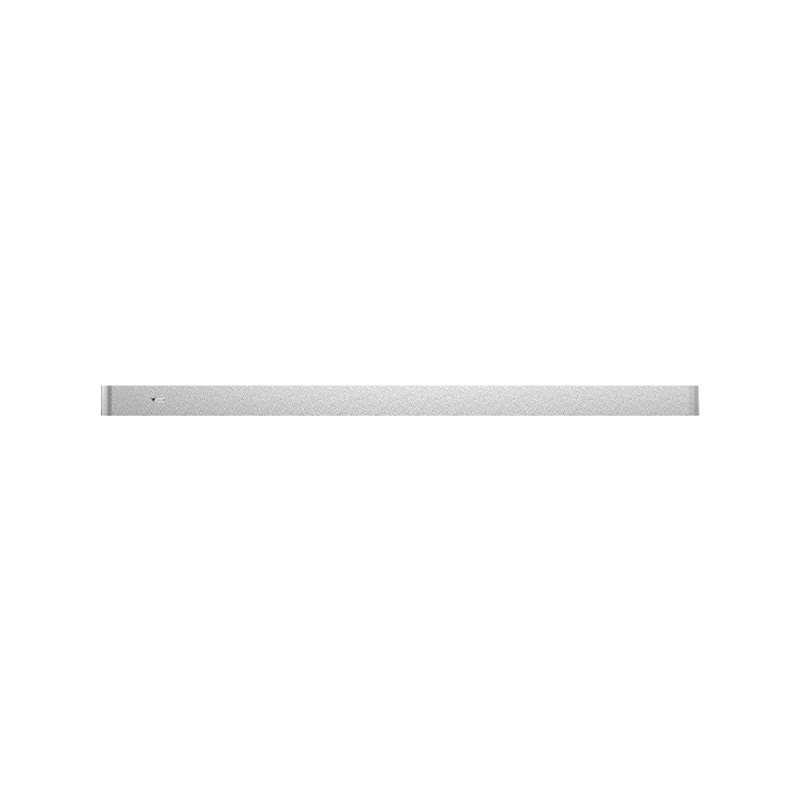

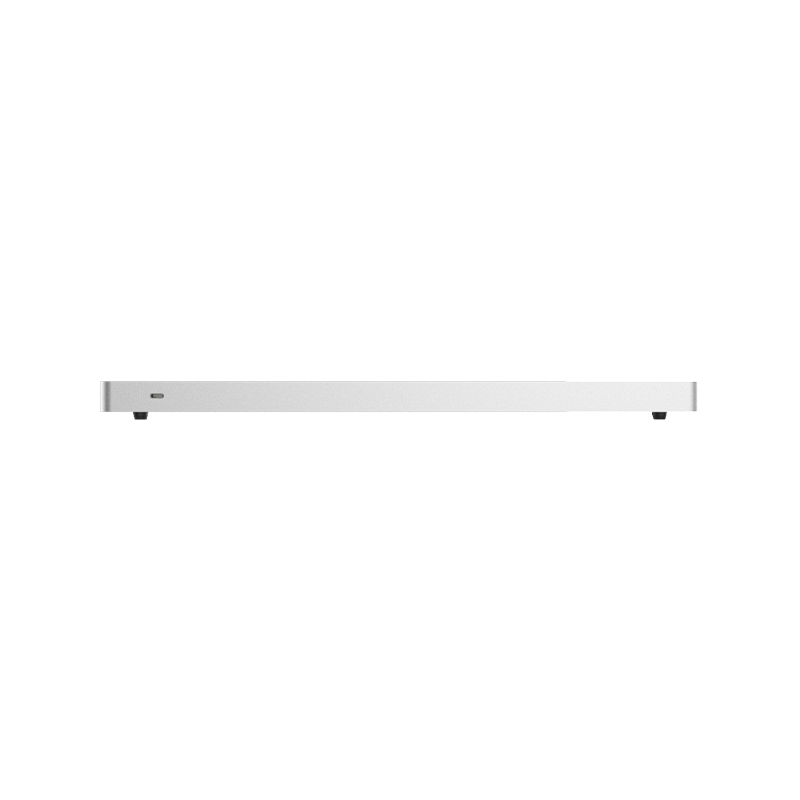

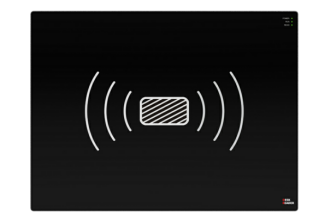

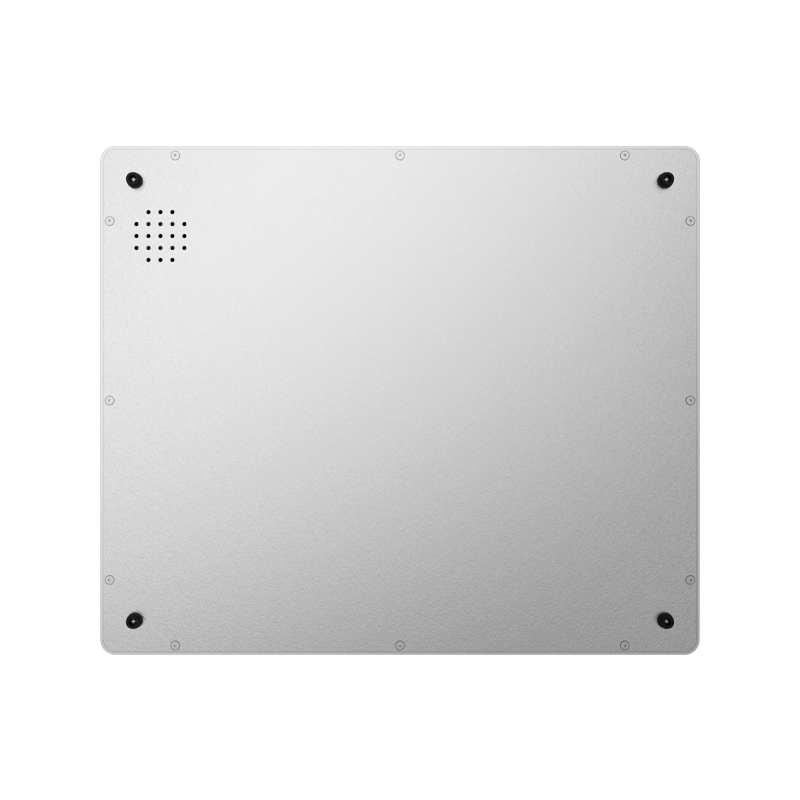

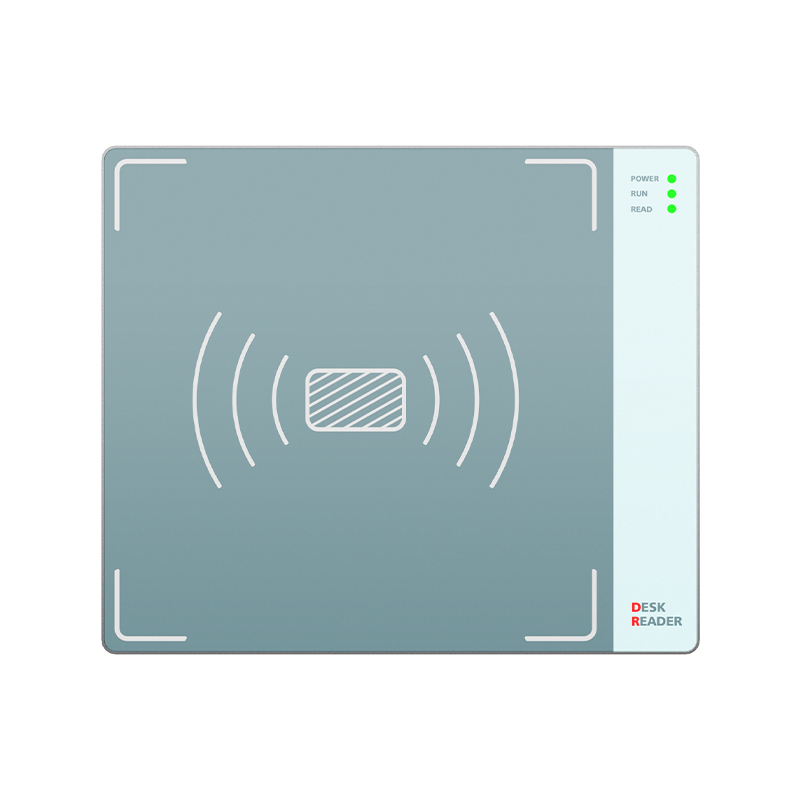

Details display

Related Products

Model	CF603	CF604	CF605
Output RF Power	0dbm ~26dbm (adjustable)
Reading Speed	100pcs/s
Reading Distance	0~7meters (depending on antenna & tag & application environment)

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
